FS5R30A

TRANSMISSION ASSEMBLY

Overhaul

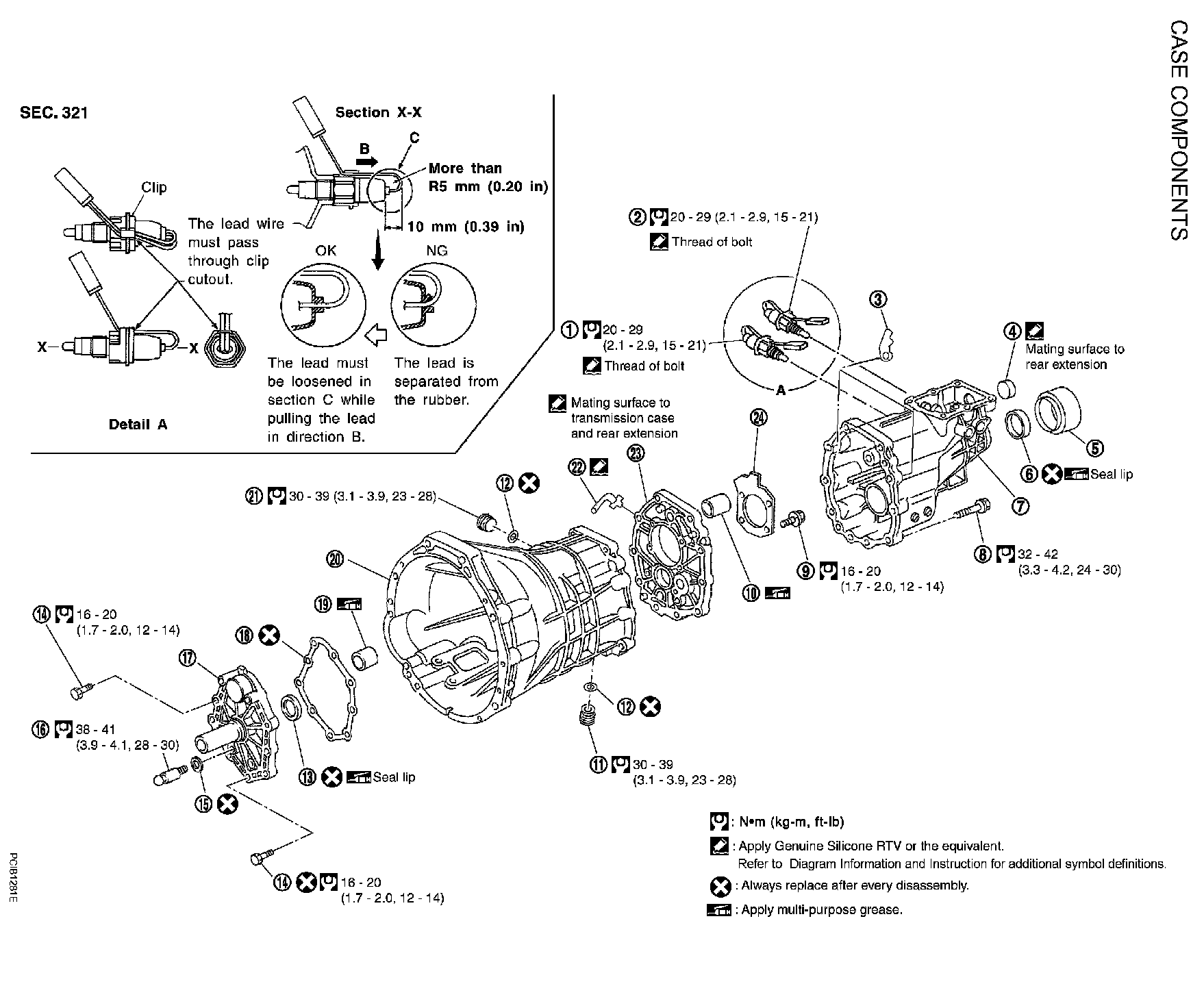

CASE COMPONENTS

TM-27 Components (Part 1):




TM-27 Components (Part 2):

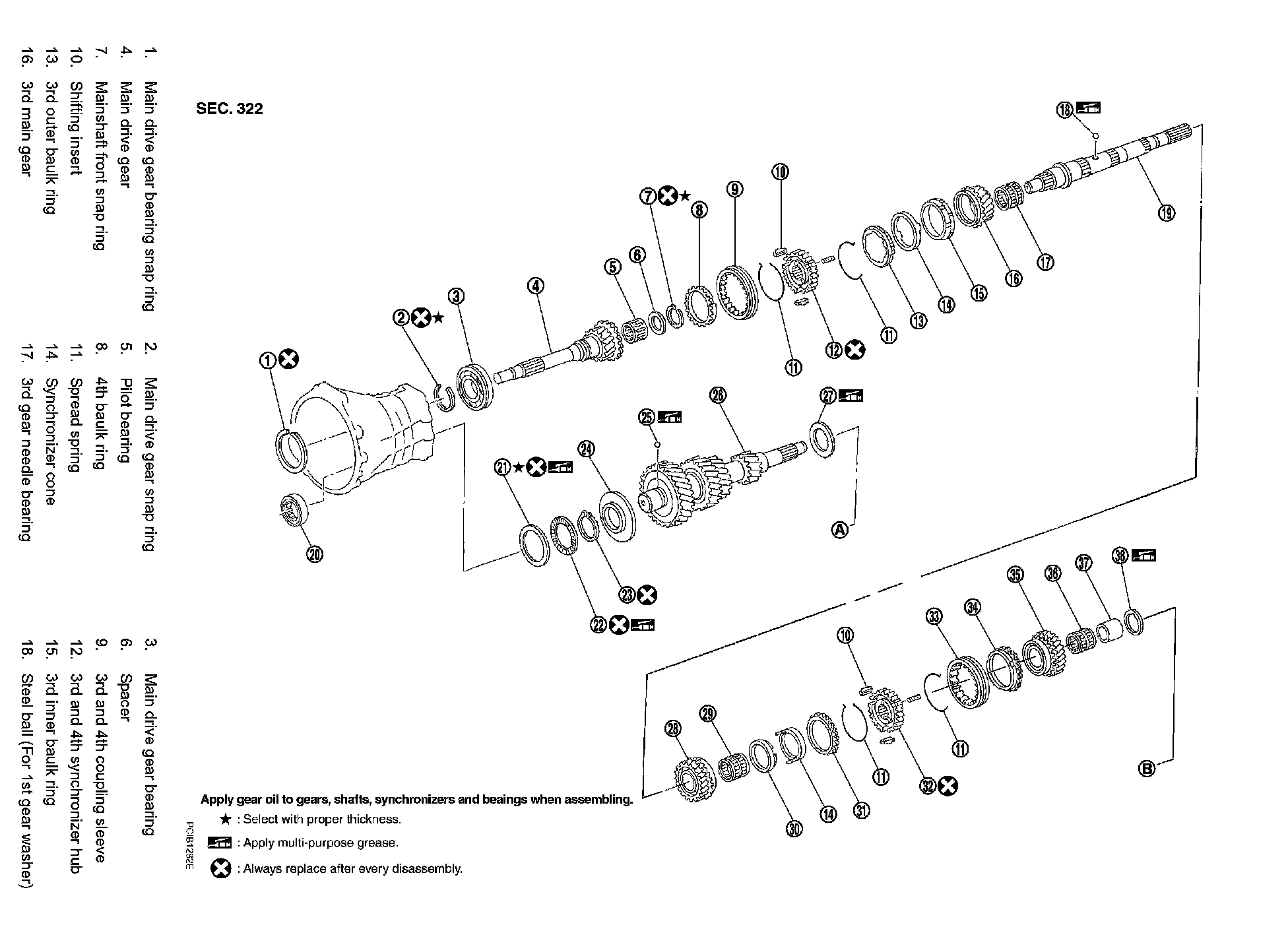

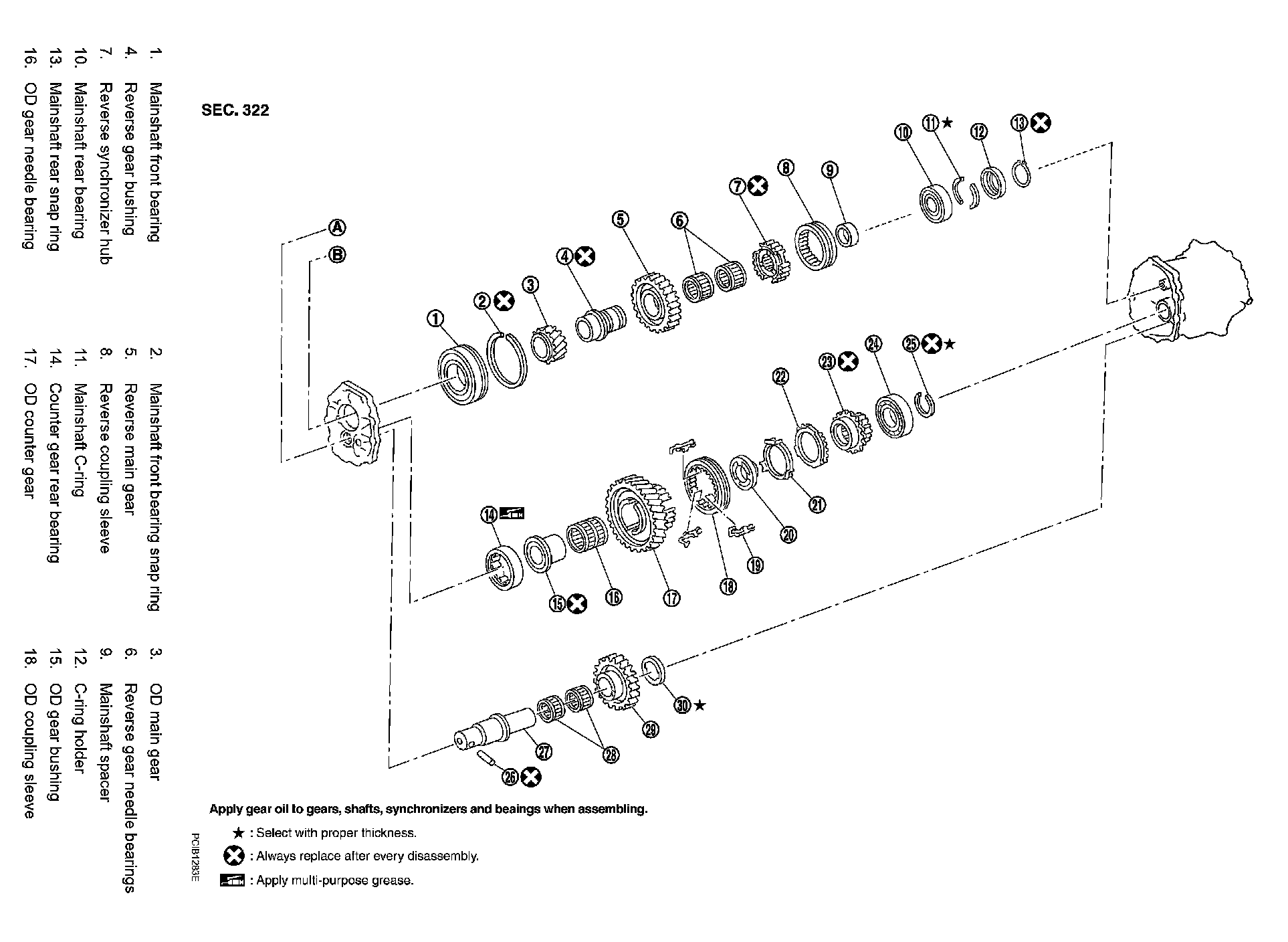

GEAR COMPONENTS

TM-29 Components (Part 1):




TM-29 Components (Part 2):




TM-31 Components (Part 1):




TM-31 Components (Part 2):

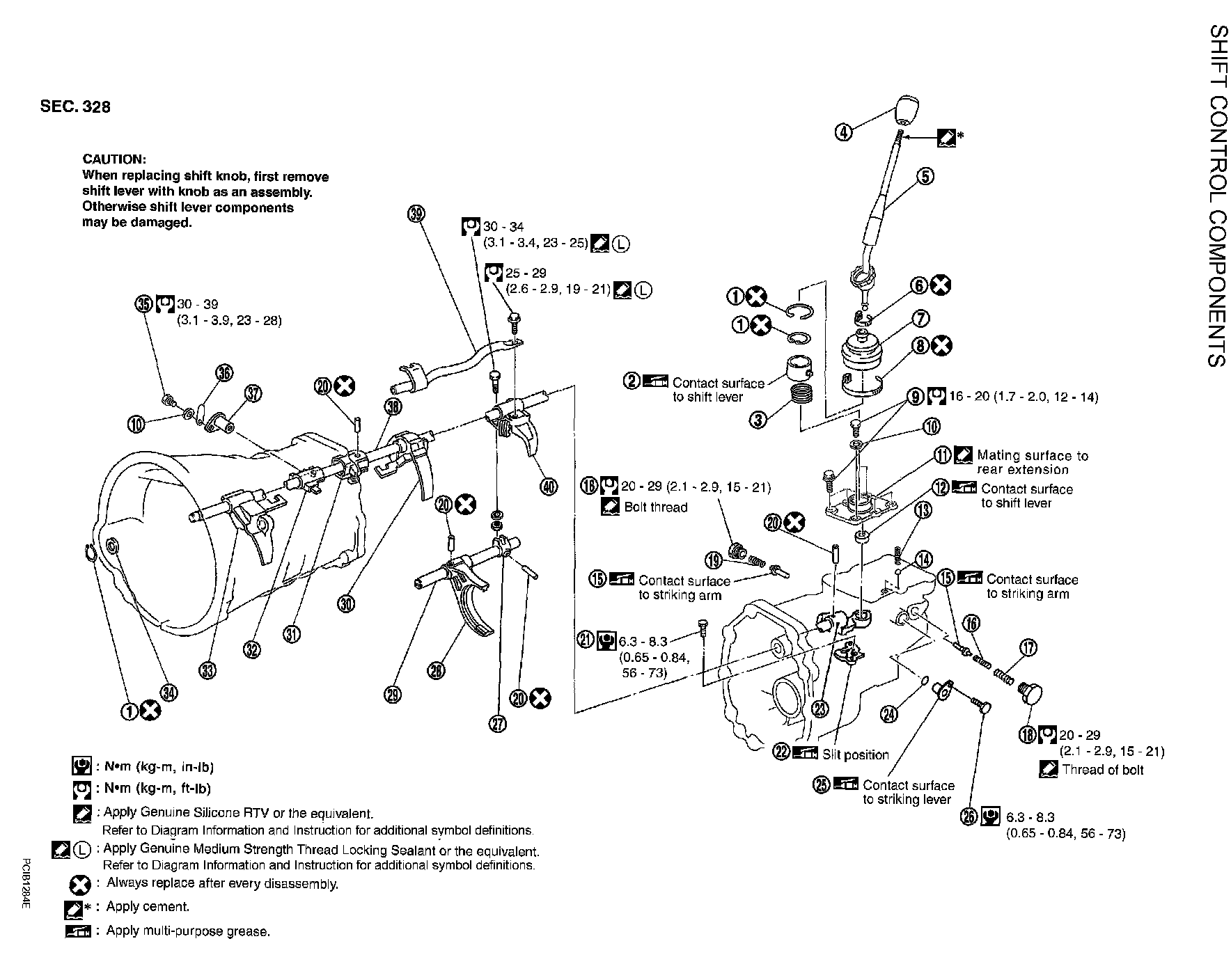

SHIFT CONTROL COMPONENTS

TM-32 Components (Part 1):




TM-32 Components (Part 2):
