Engine Control System Symptoms

SYMPTOM DIAGNOSIS

ENGINE CONTROL SYSTEM SYMPTOMS

Symptom Matrix Chart

SYSTEM - BASIC ENGINE CONTROL SYSTEM

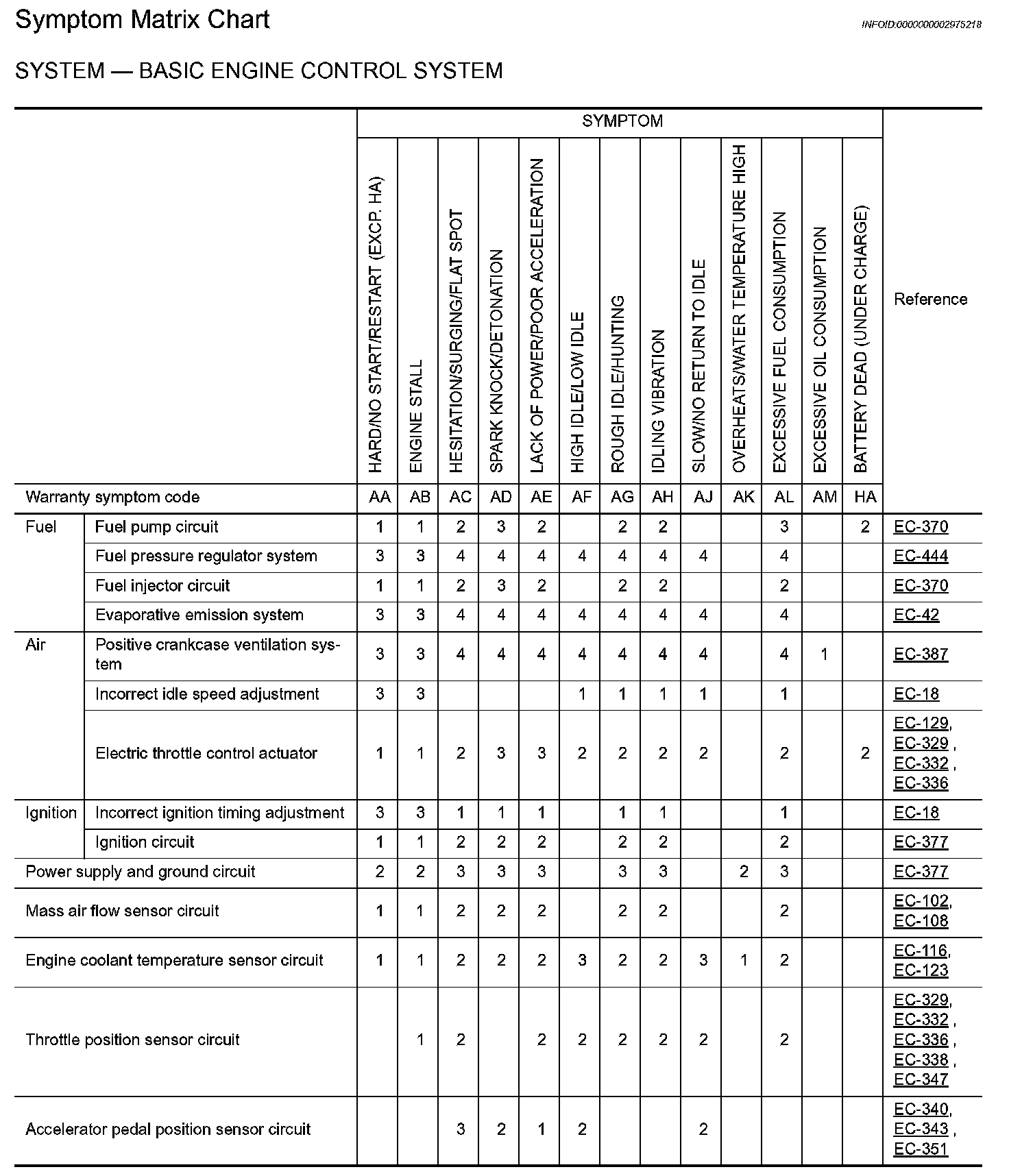

System-Basic Engine Control System (Part 1):

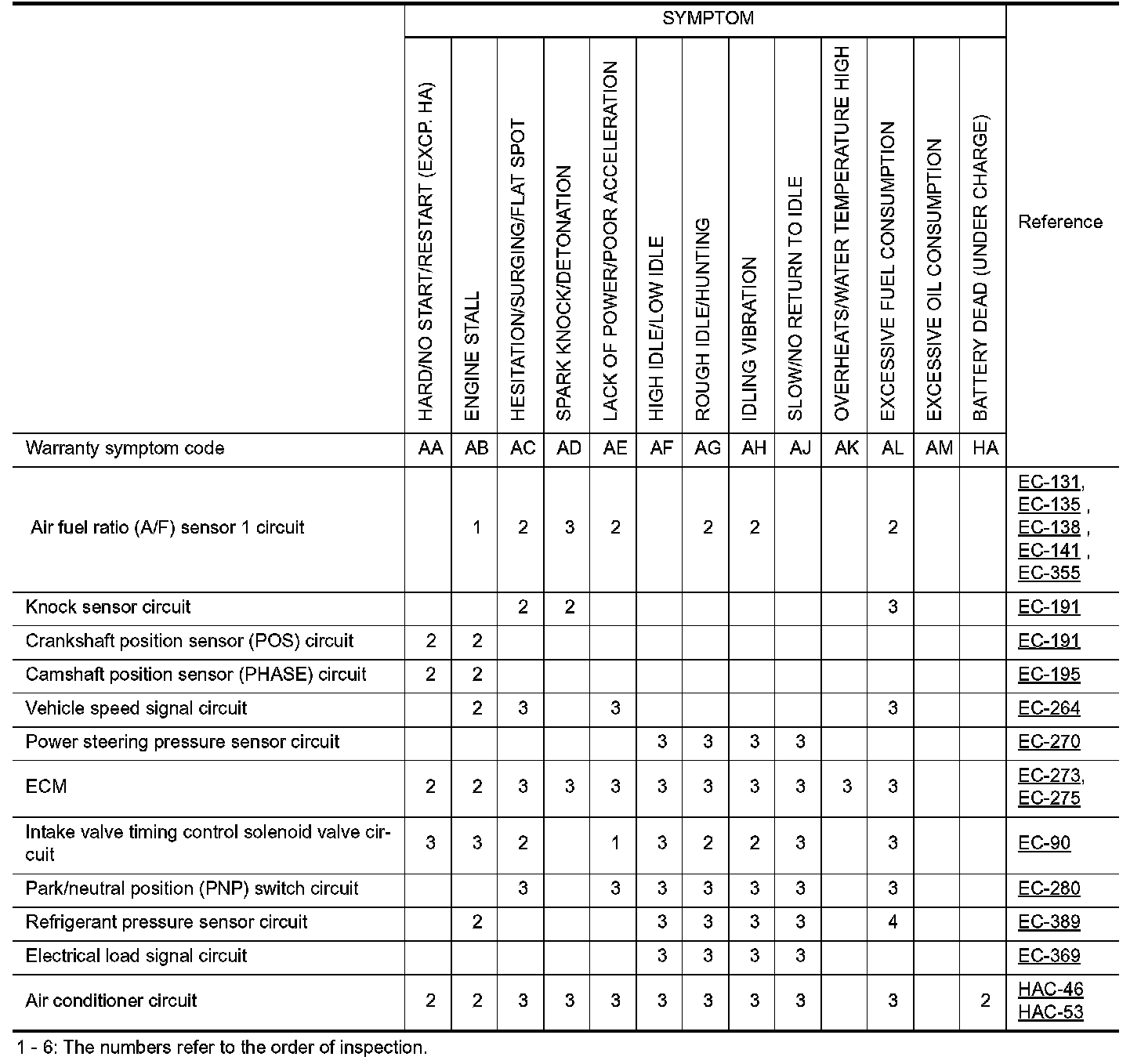

System-Basic Engine Control System (Part 2):






SYSTEM - ENGINE MECHANICAL & OTHER

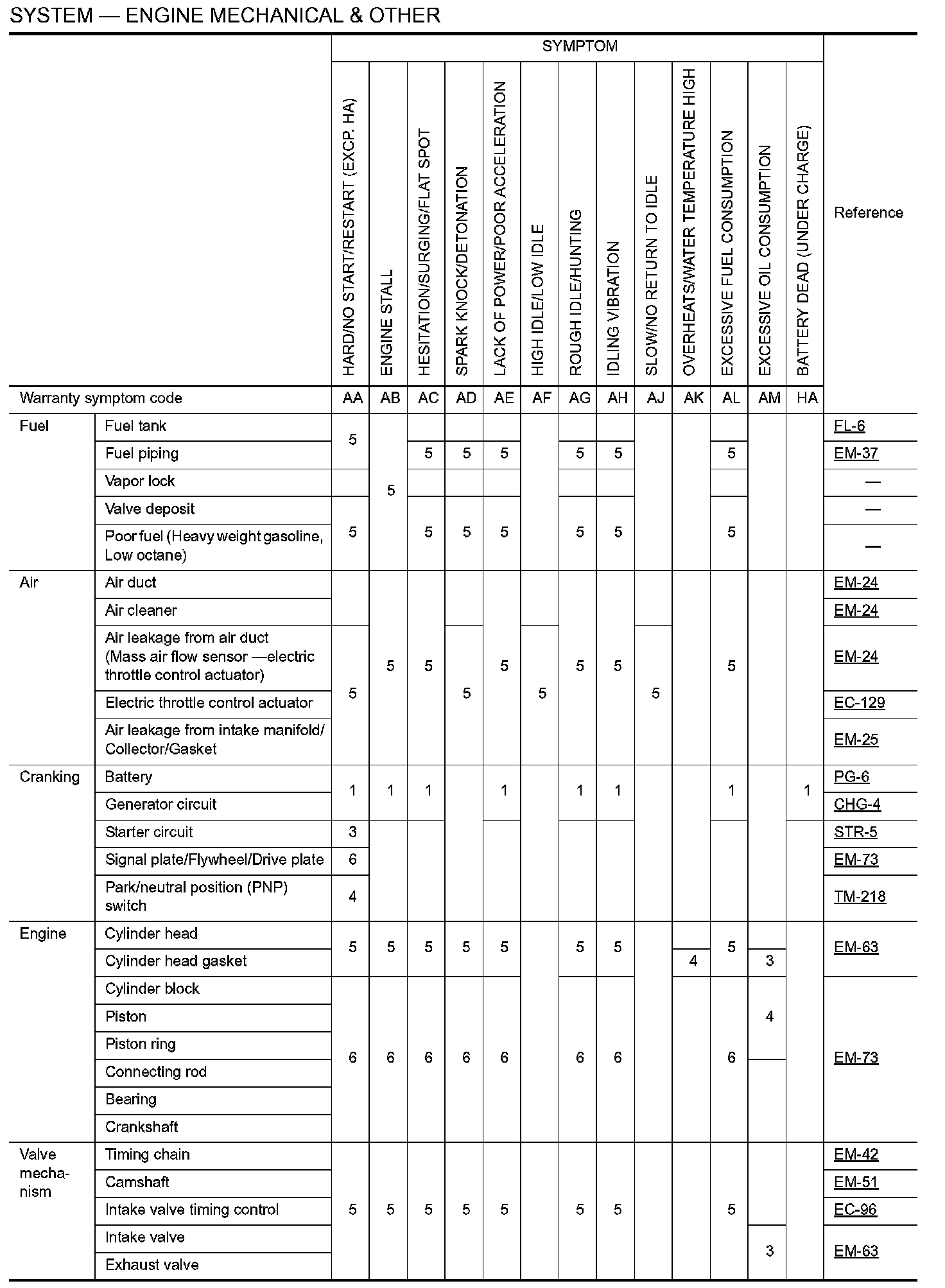

System-Engine Mechanical & Other (Part 1):

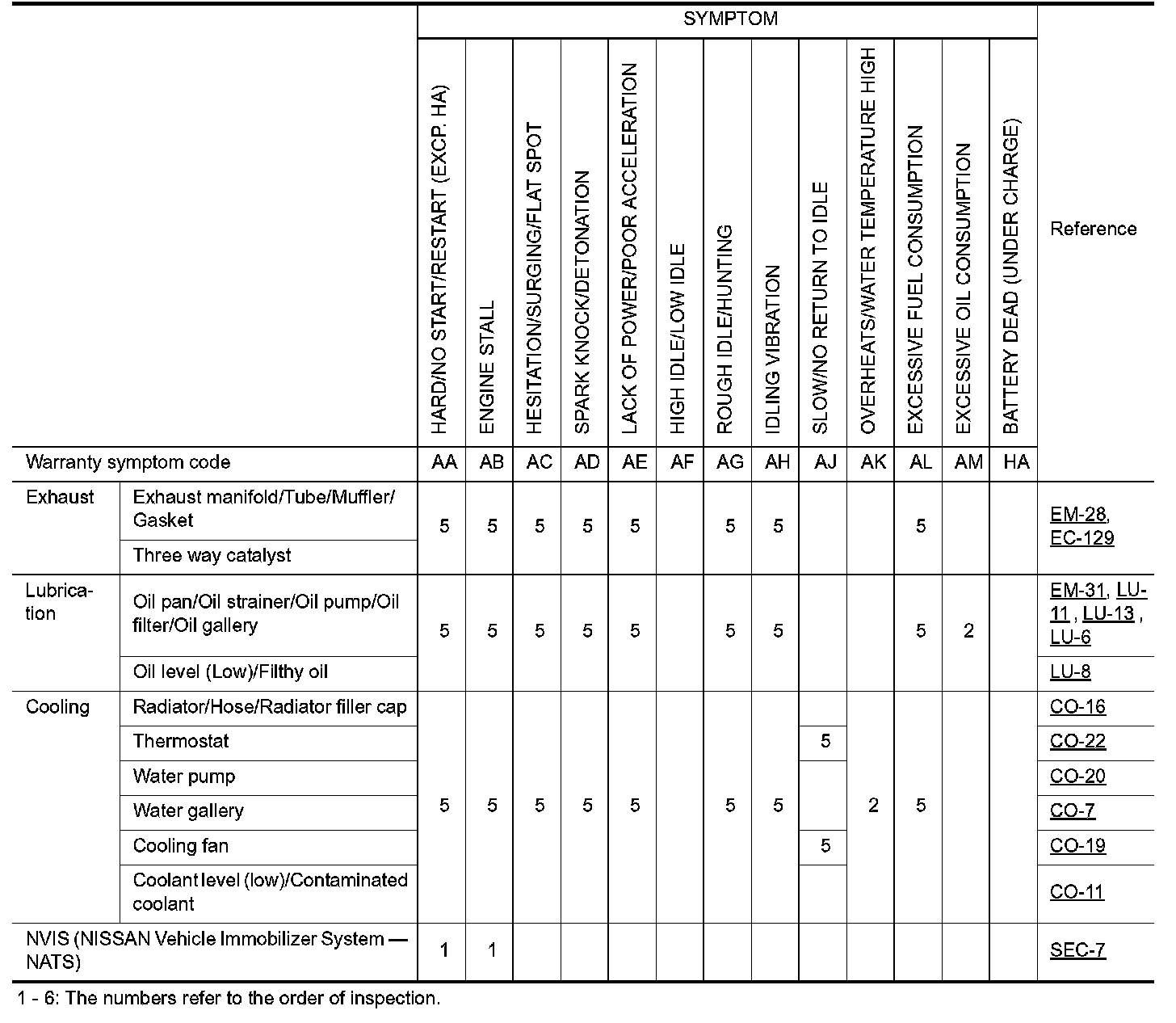

System-Engine Mechanical & Other (Part 2):
