Oil Pan, Engine

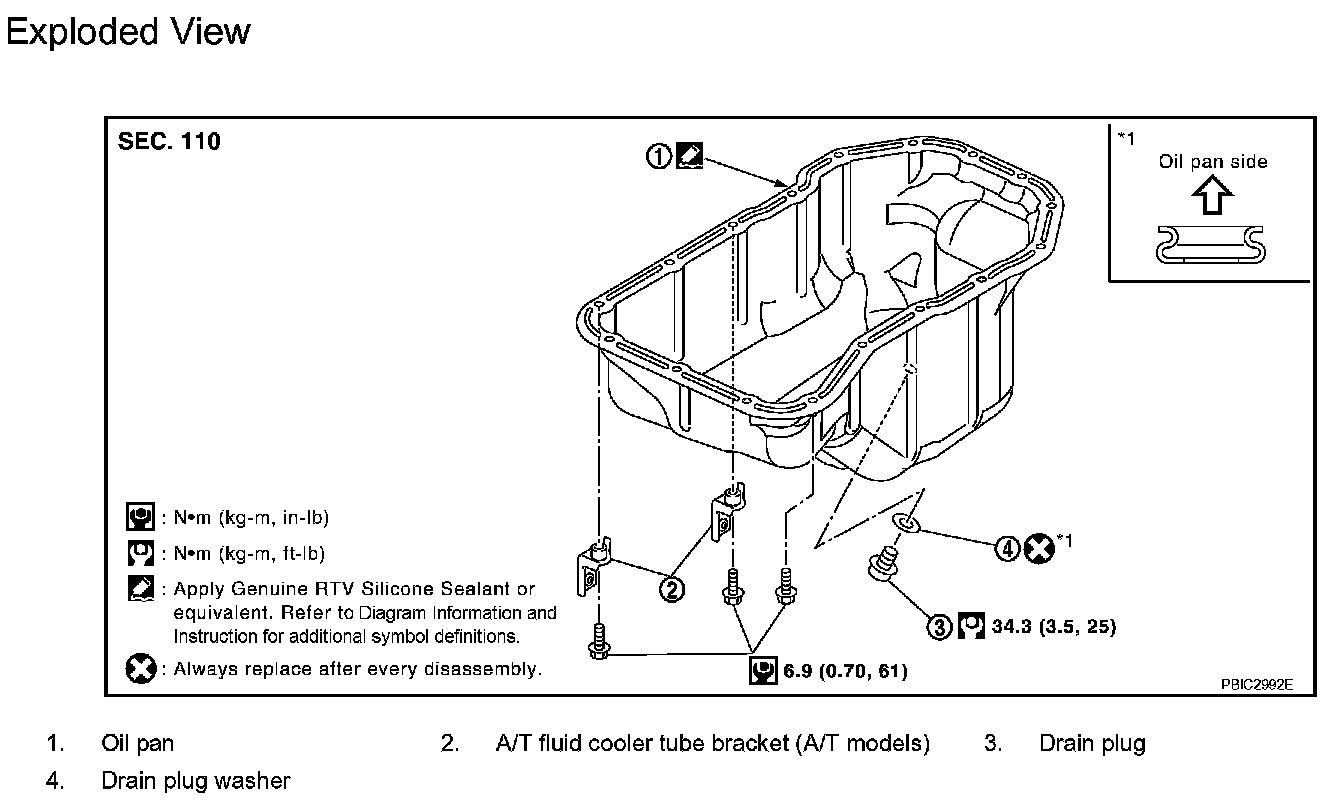

Oil Pan EM-31 Exploded View:
Tighten bolts in numerical order as shown.
Install A/T fluid cooler tube bracket with bolts No.1 and 9 as shown (A/T models).
