System Specifications

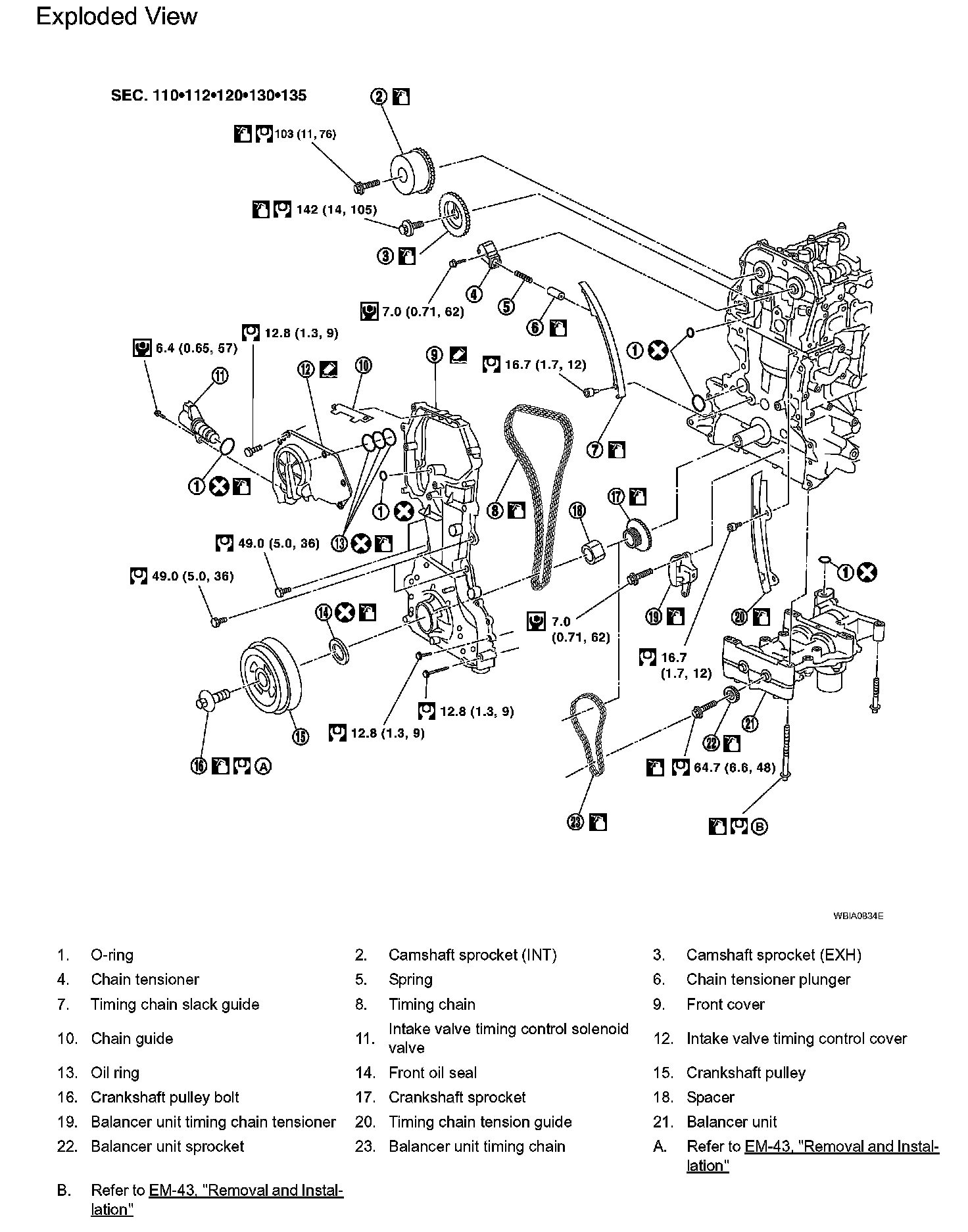

Timing Chain TensionerEM-42 Exploded View:
Crankshaft Pulley
Tighten crankshaft pulley bolt using Tool.
Tool number KV10112100 (BT-8653-A)
Secure crankshaft pulley using suitable tool, and tighten crankshaft pulley bolt.
Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
Tighten crankshaft pulley bolt.
Torque 42.1 Nm (4.3 kg-m, 31 ft-lb)
Put a paint mark on crankshaft pulley, mating with any one of six easy to recognize angle marks on bolt flange.
Turn another 60° degrees clockwise (angle tightening).
Check the tightening angle with movement of one angle mark.
Timing Cover
Tighten bolts in numerical order as shown.
Use the following for locating M6 bolts.
Bolt position
: 45 mm (1.77 in) 5, 10, 14, 17
: 20 mm (0.79 in) Except the above (Except 1 to 4)
Tighten bolts to the specified torque.
M6 bolts 12.8 Nm (1.3 kg-m, 9 ft-lb)
M10 bolts 49.0 Nm (5.0 kg-m, 36 ft-lb)
After all bolts are tightened, retighten them to the specified torque in numerical order as shown.
CAUTION: Be sure to wipe off any excessive liquid gasket leaking to surface for fitting oil pan.
