System Specifications

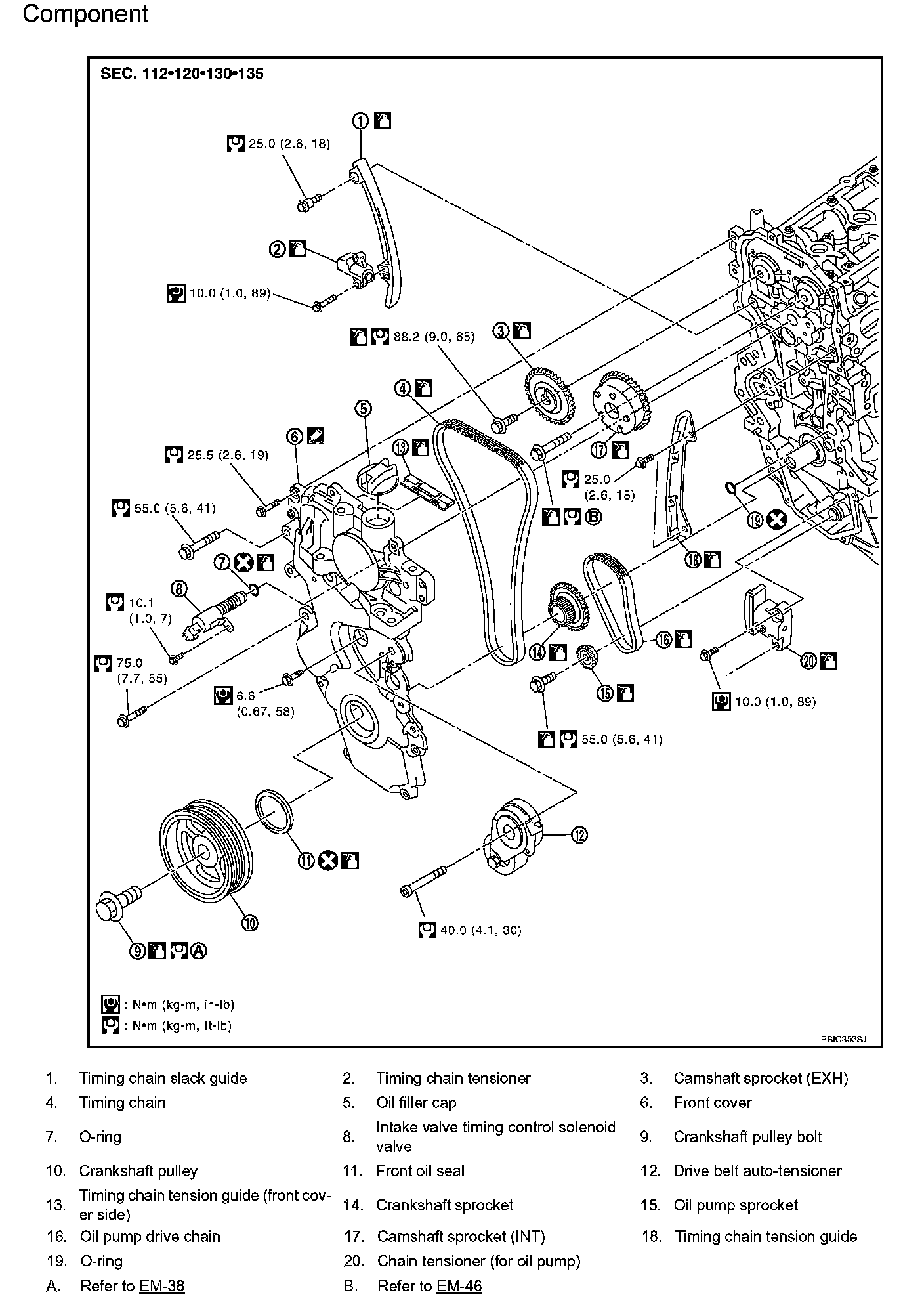

EM-37 Component:

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolt in three steps.
Step 1 68.6 Nm (7.0 kg-m, 51 ft-lb)
Step 2 0 Nm (0 kg-m, 0 ft-lb)
Step 3 29.4 Nm (3.0 kg-m, 22 ft-lb)

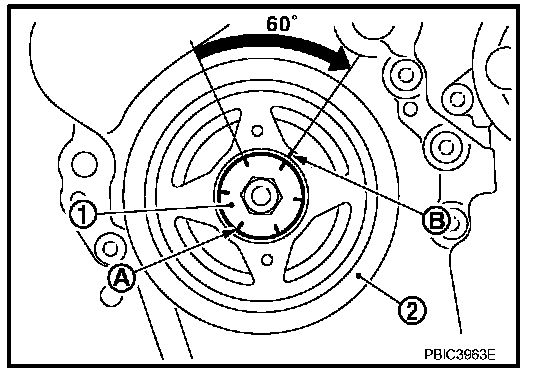

Put a paint mark (B) on crankshaft pulley (2), matching with any one of six easy to recognize angle marks (A) on crankshaft pulley bolt (1) flange.
Turn another 60 degrees clockwise (angle tightening) using Tool.
Check the tightening angle with movement of one angle mark.
Tool number KV10112100 (BT-8653-A)

Timing Cover

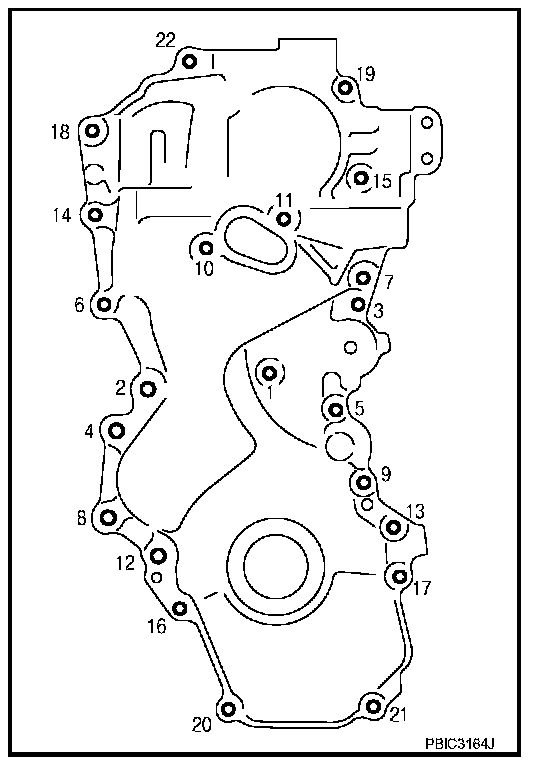

Install front cover, and tighten bolts in numerical order as shown.

CAUTION:
Attaching should be done within 5 minutes after liquid gasket application.

NOTE:
Use the following for the installation position of bolts.

M6 bolts No. 1
M10 bolts No. 6, 7, 10, 11, 14
M12 bolts No. 2, 4, 8, 12
M8 bolts Except the above
Tighten all bolts are in two stages to specified torque in numerical order as shown.
