Alternator: Service and Repair

Removal and Installation MR2ODE

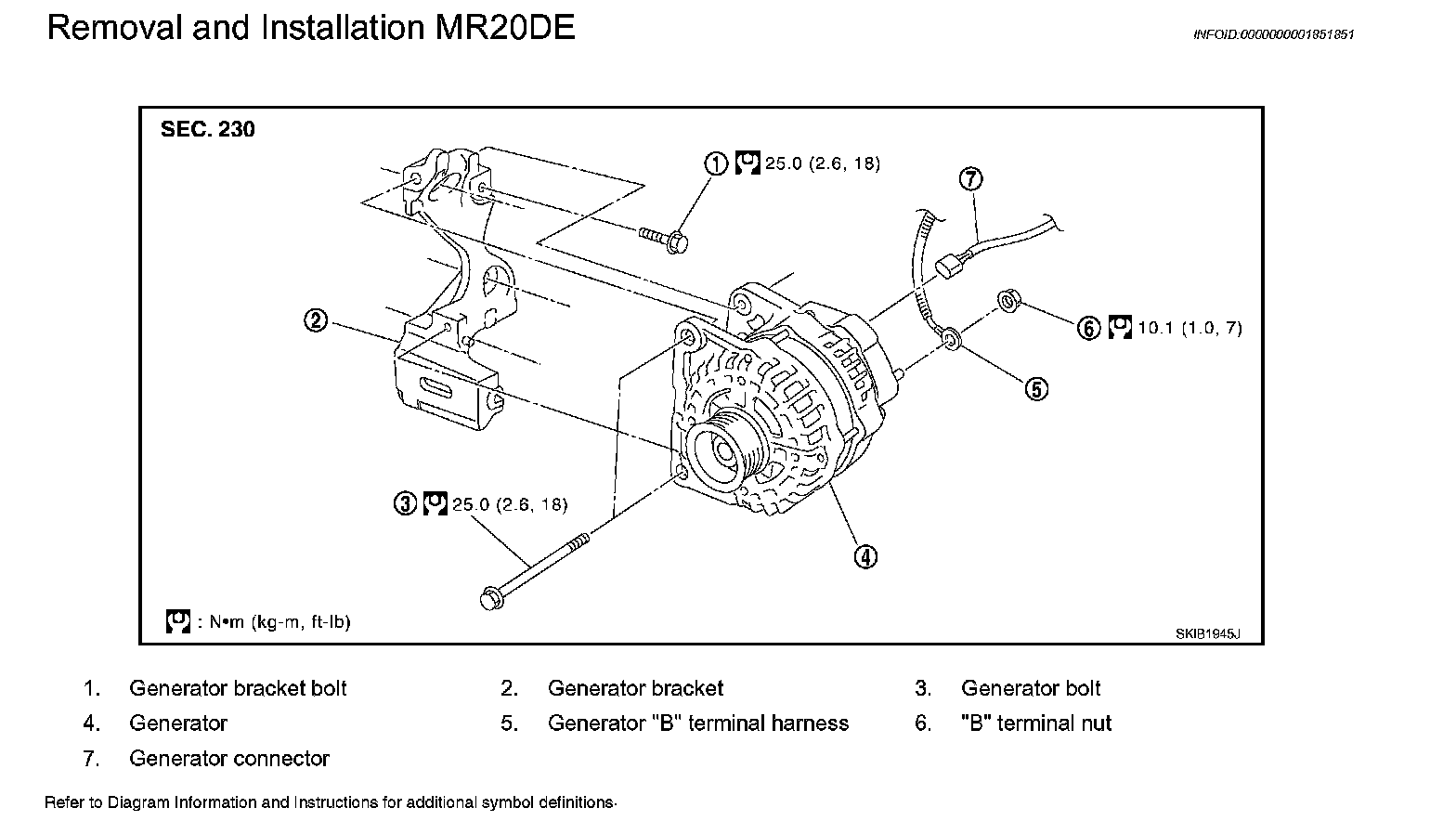

Exploded View SC-29:

REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove drive belt.
3. Disconnect generator connector.
4. Remove "B" terminal nut.
5. Remove generator bolts.
6. Remove generator assembly from the vehicle.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
