Wiring Diagram - Engine Start Function - With Remote Keyless Entry

BCM (BODY CONTROL MODULE)

Wiring Diagram - ENGINE START FUNCTION - WITH REMOTE KEYLESS ENTRY

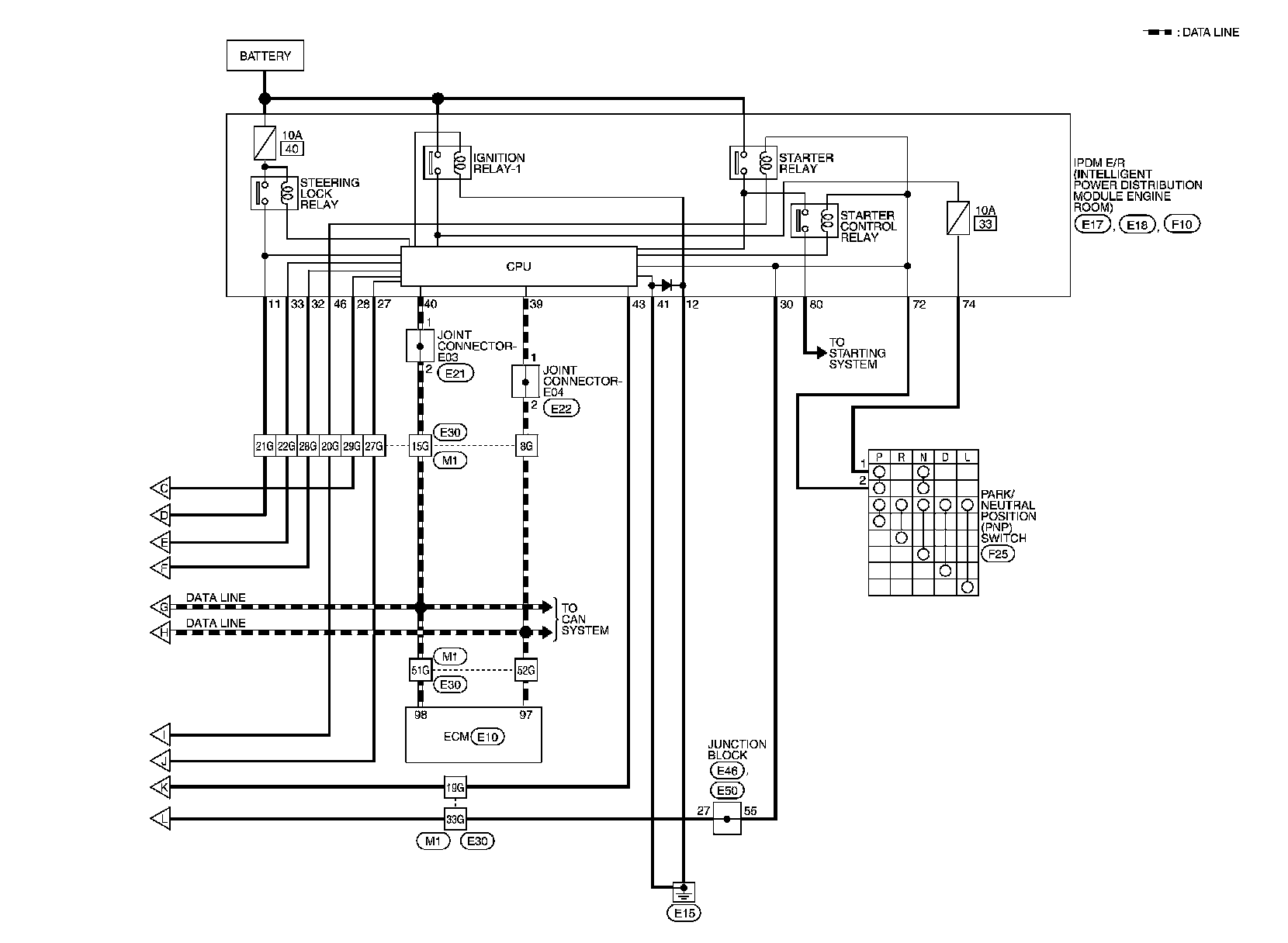

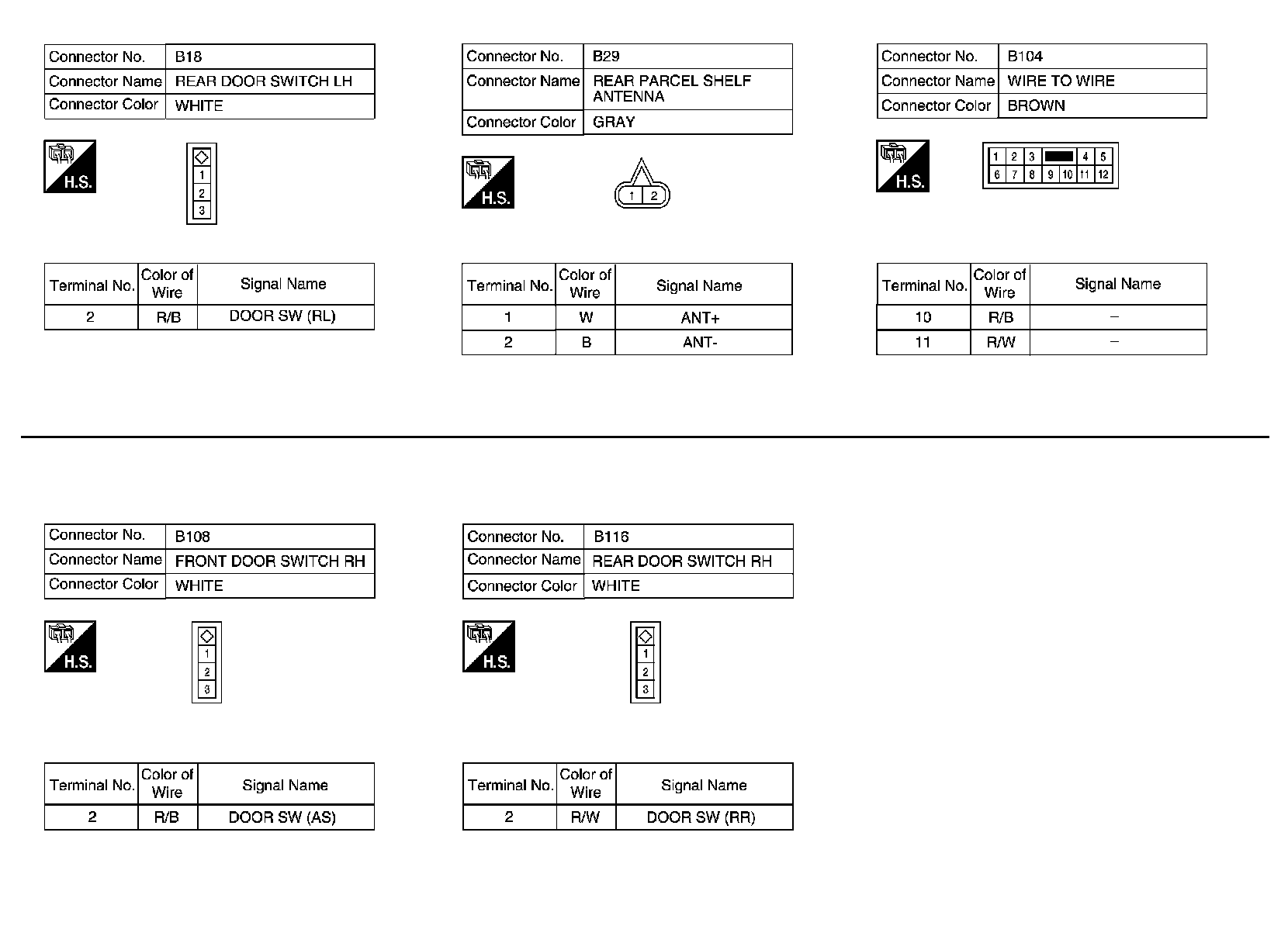

Engine Start Function - With Remote Keyless Entry - Part 1:

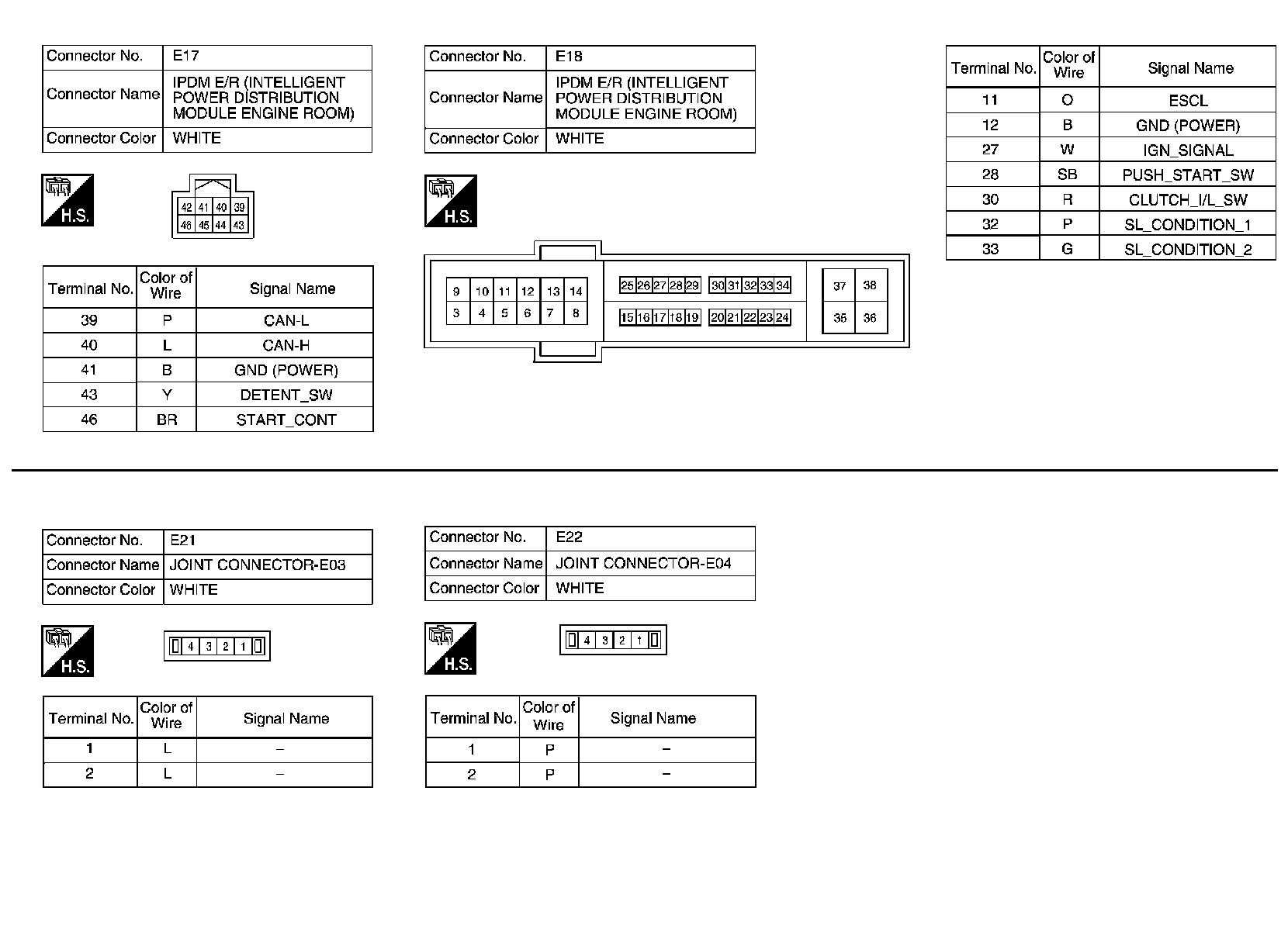

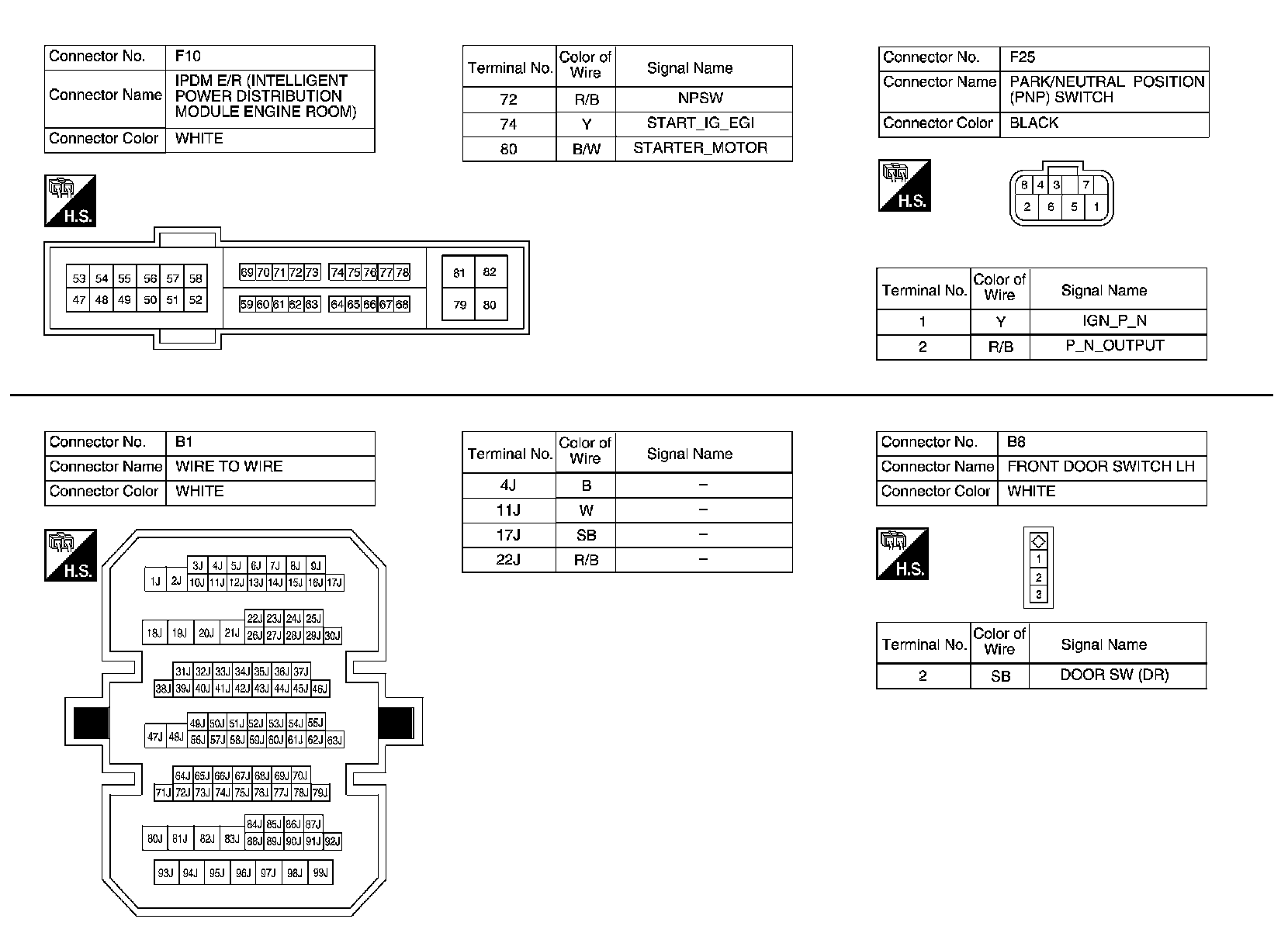

Engine Start Function - With Remote Keyless Entry - Part 2:

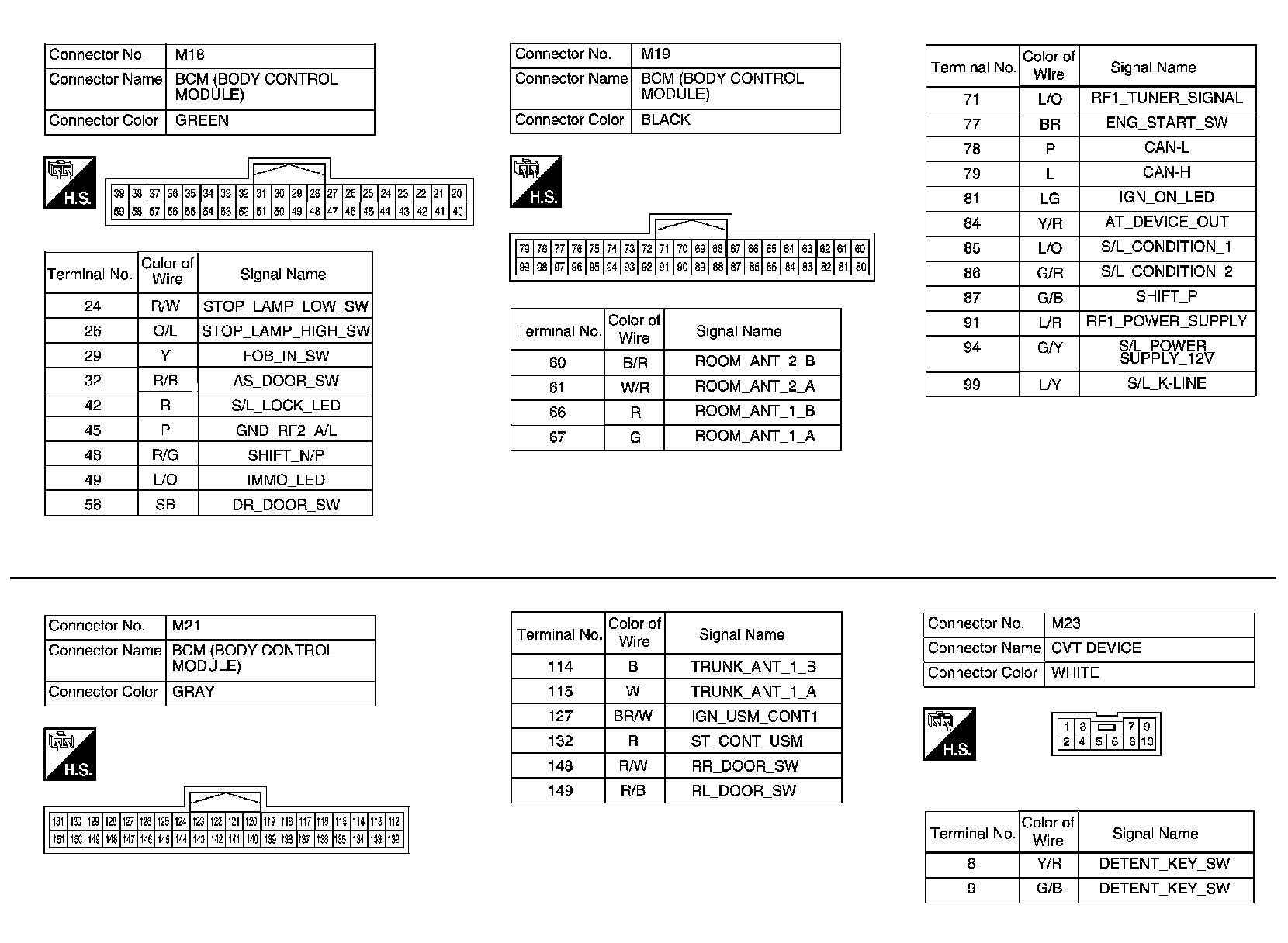

Engine Start Function - With Remote Keyless Entry - Part 3:

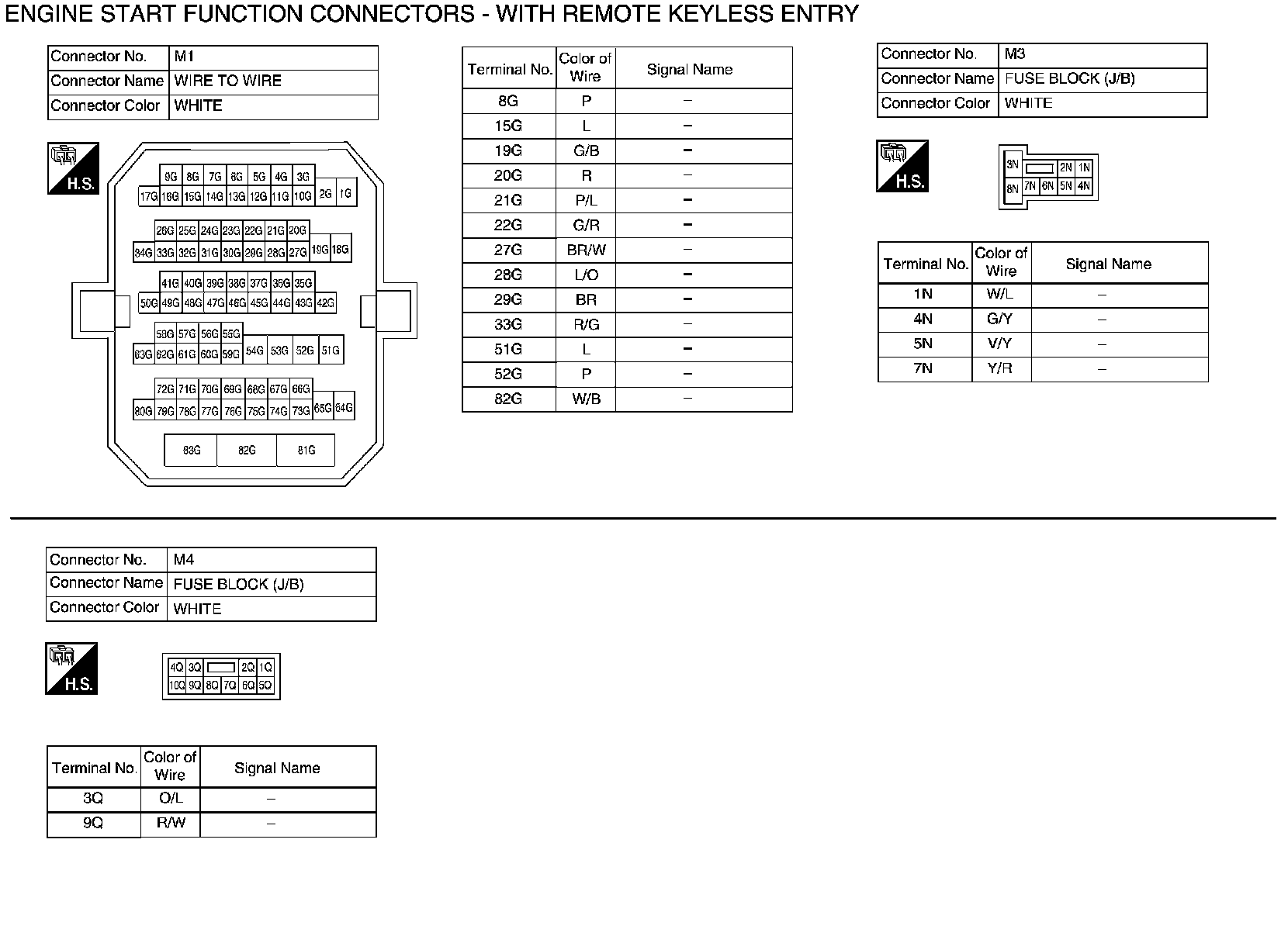

Engine Start Function - With Remote Keyless Entry - Part 4:

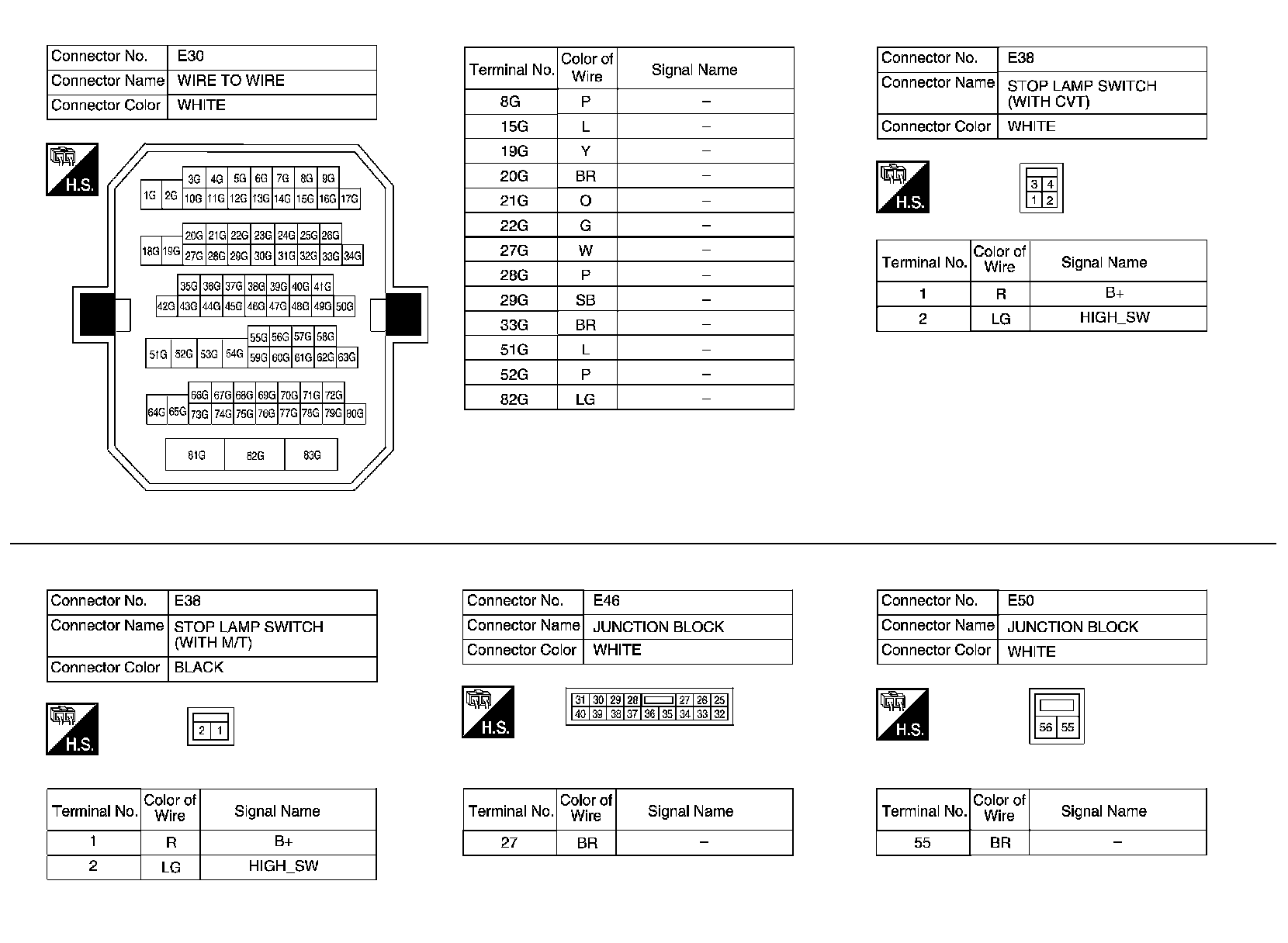

Engine Start Function - With Remote Keyless Entry - Part 5:

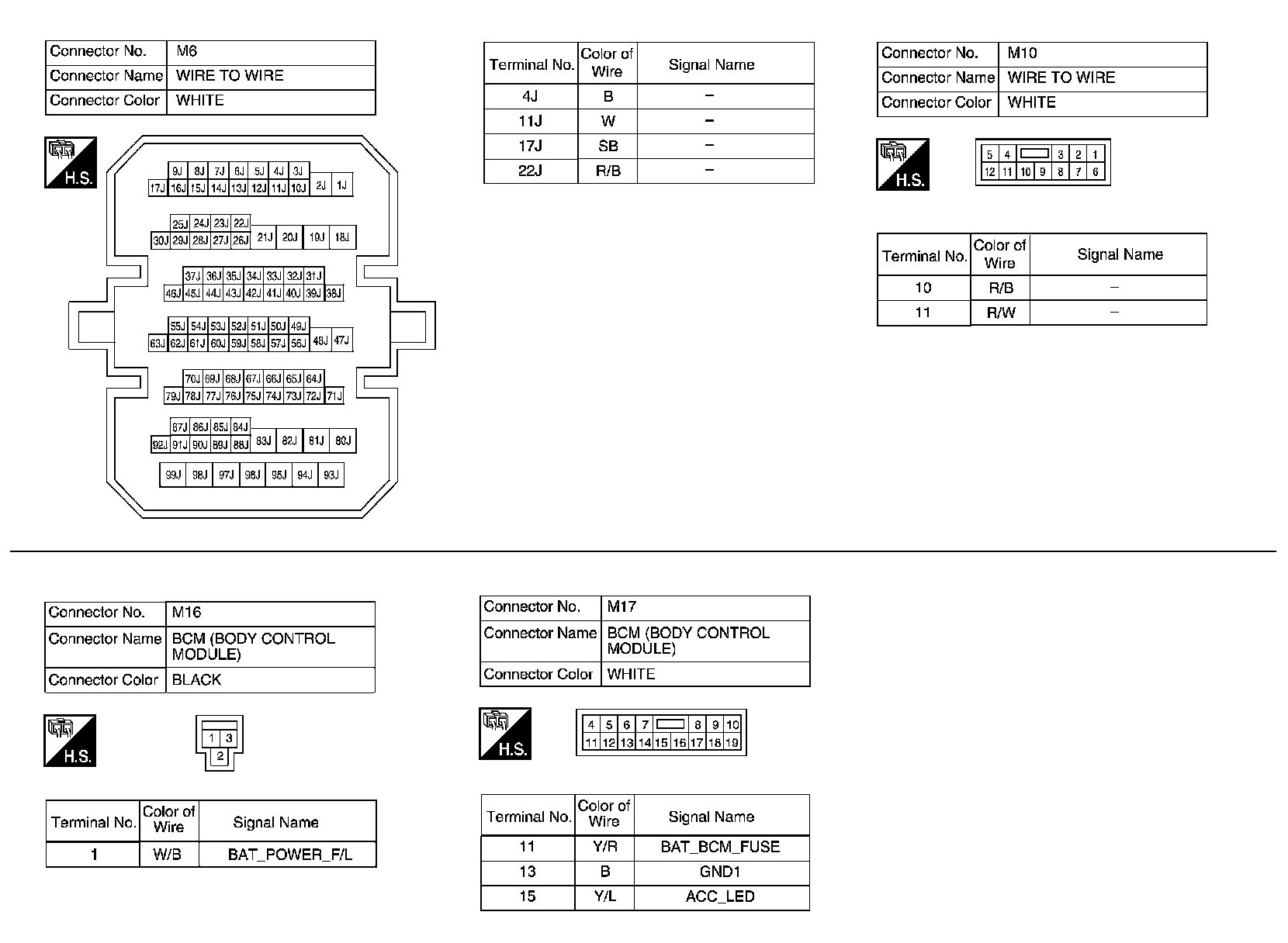

Engine Start Function - With Remote Keyless Entry - Part 6:

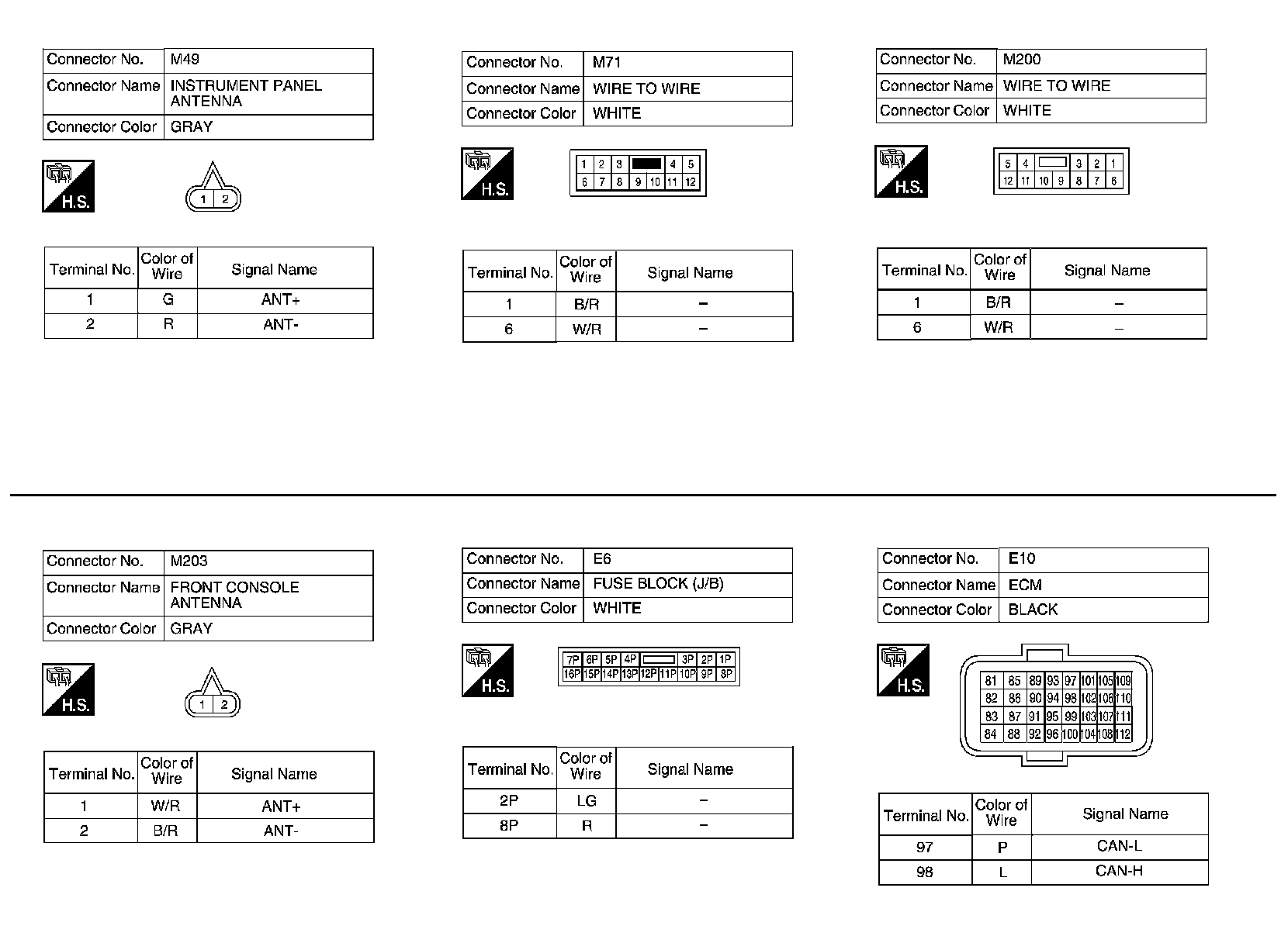

Engine Start Function - With Remote Keyless Entry - Part 7:

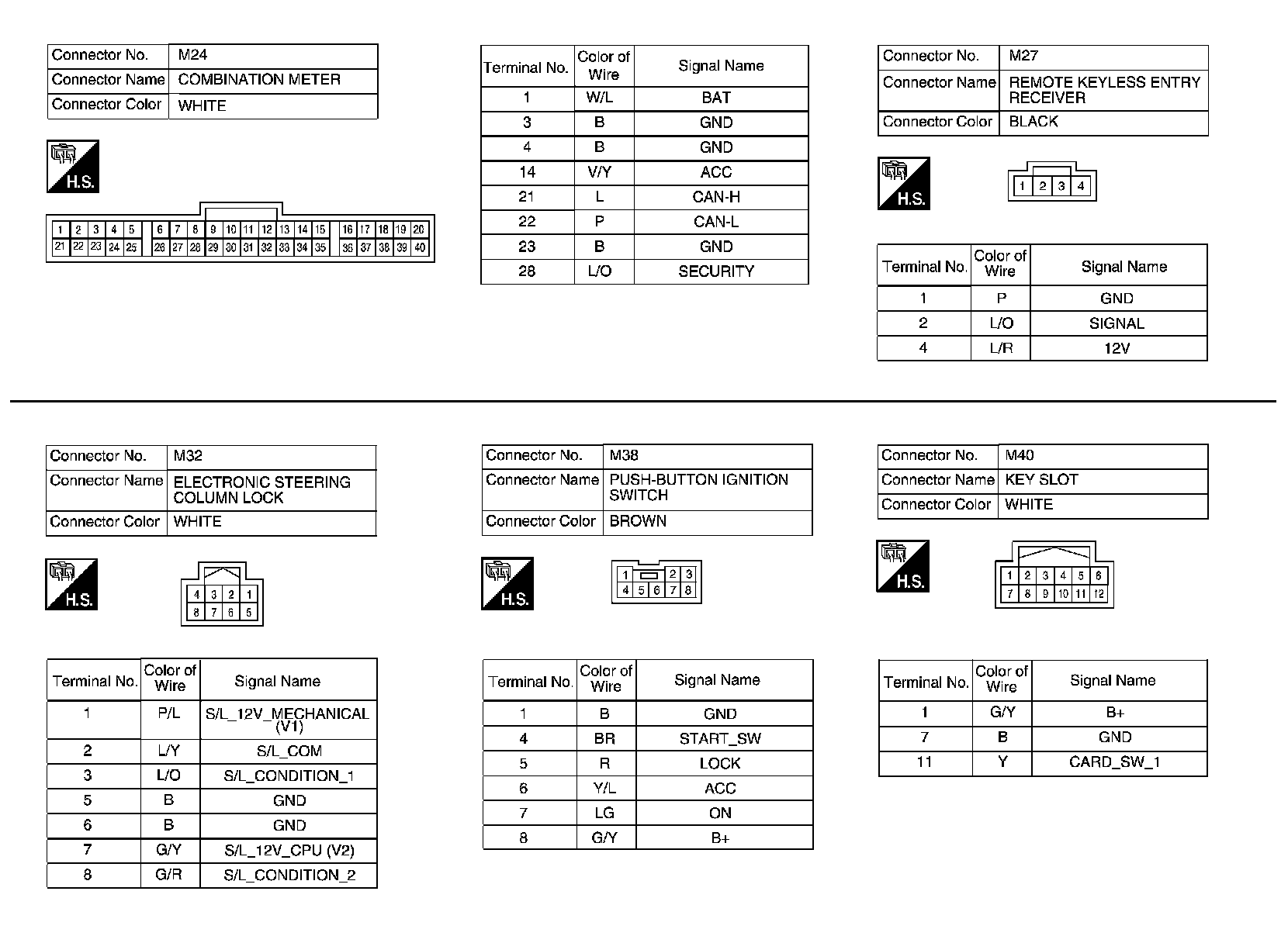

Engine Start Function - With Remote Keyless Entry - Part 8:

Engine Start Function - With Remote Keyless Entry - Part 9:

Engine Start Function - With Remote Keyless Entry - Part 10:

Engine Start Function - With Remote Keyless Entry - Part 11:

Engine Start Function - With Remote Keyless Entry - Part 12:

Engine Start Function - With Remote Keyless Entry - Part 13:
