Wiring Diagram - Intelligent Key System/Engine Start Function

BCM (BODY CONTROL MODULE)

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

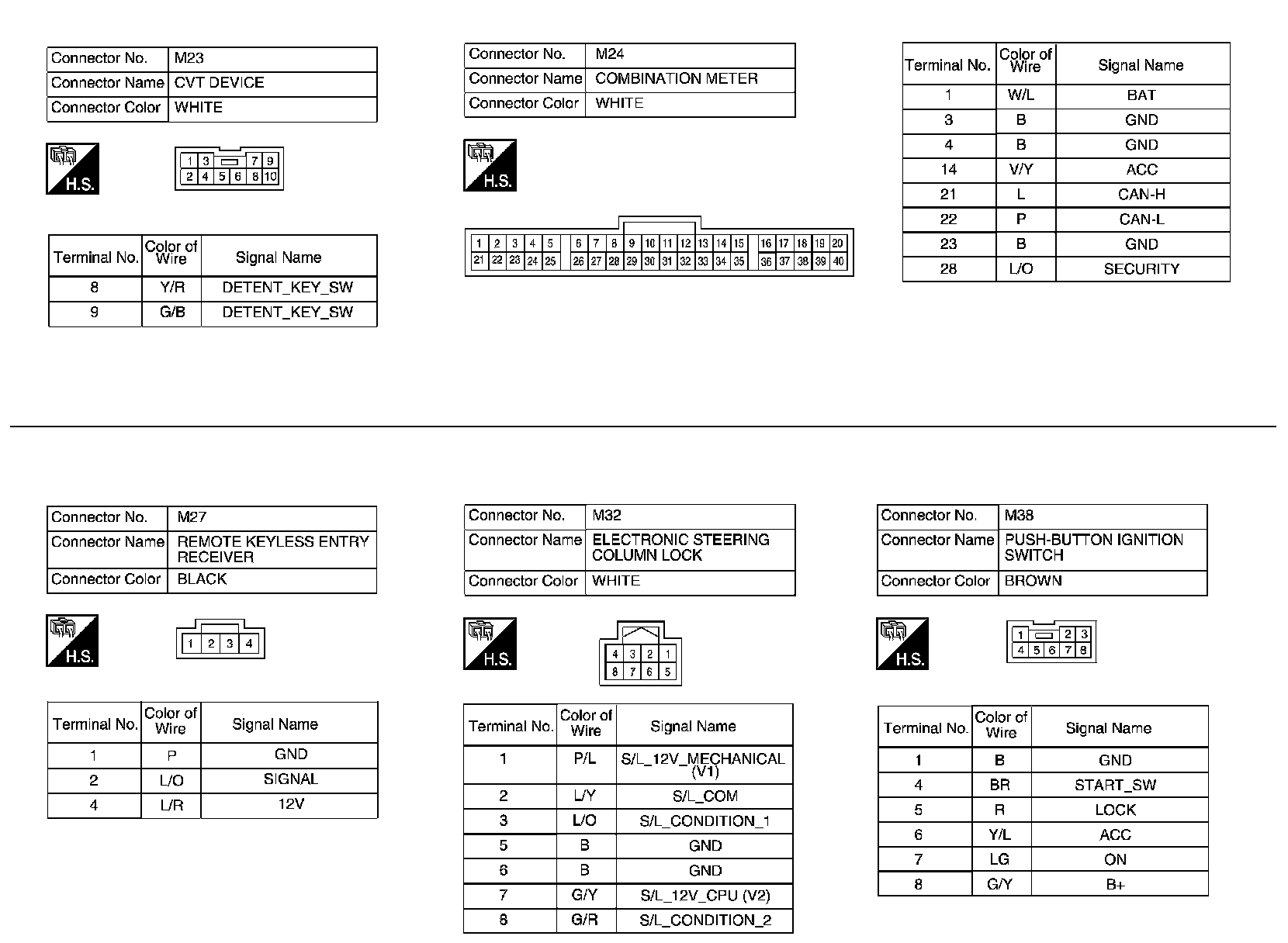

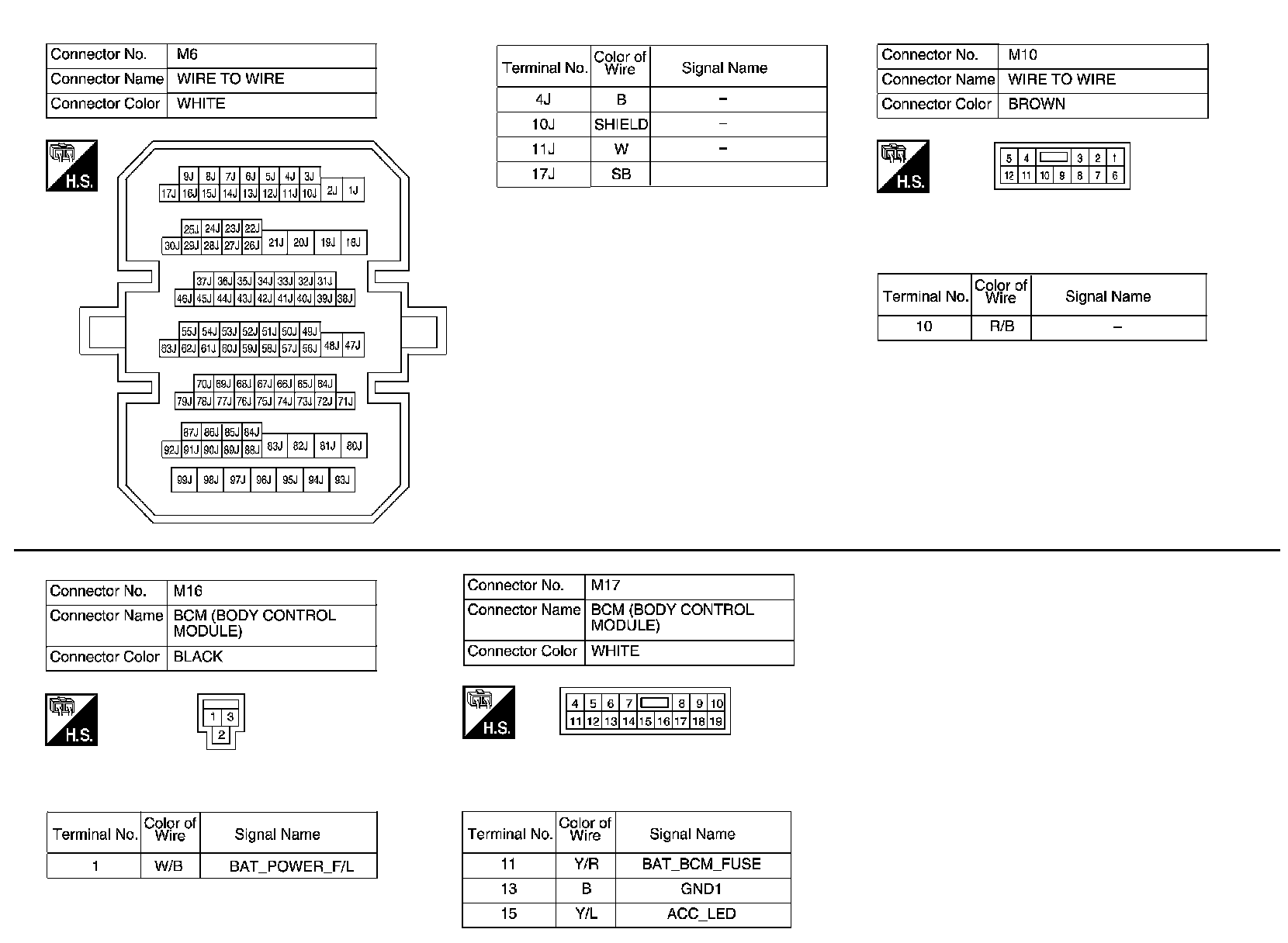

Intelligent Key System/Engine Start Function - Part 1:

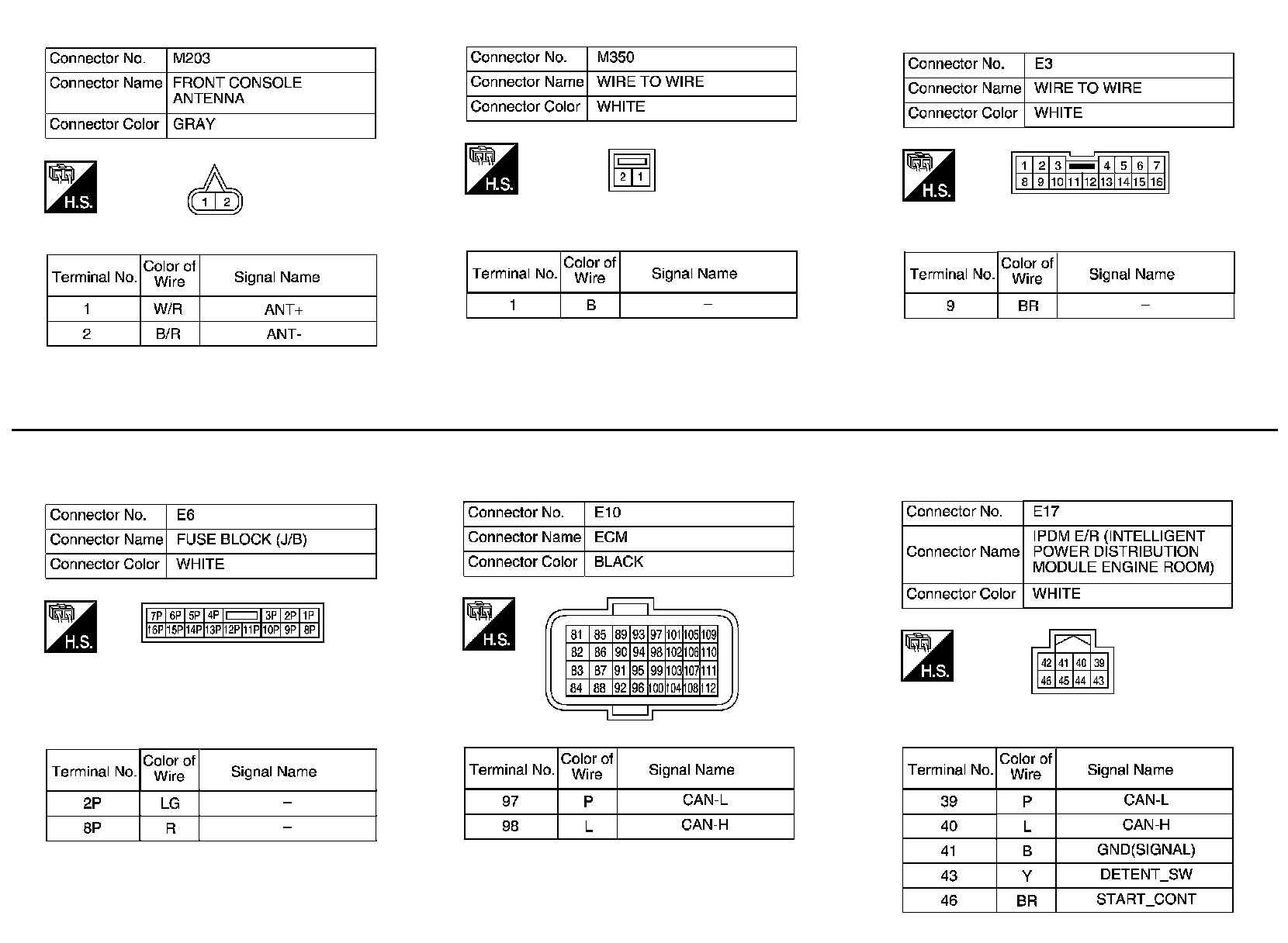

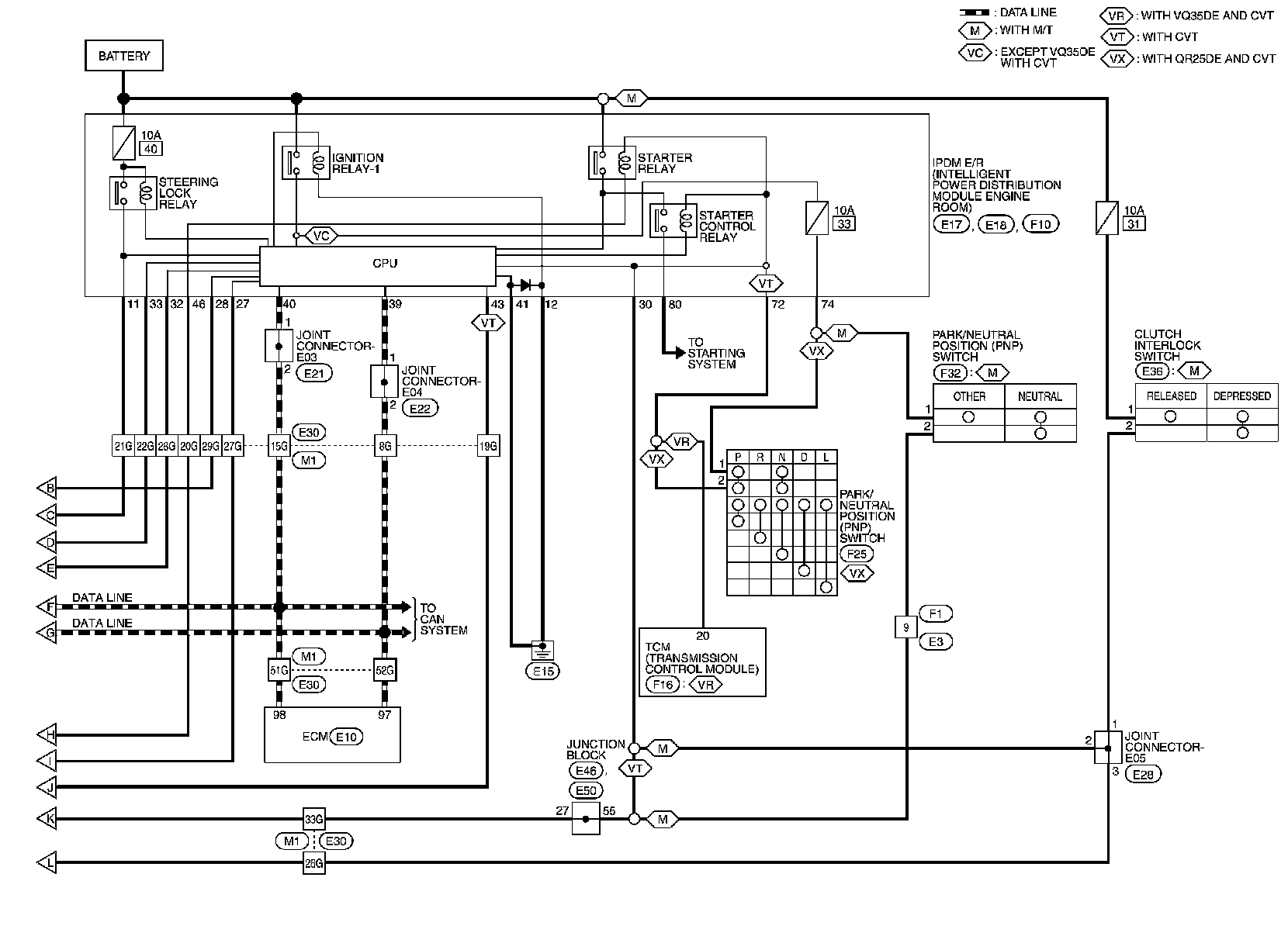

Intelligent Key System/Engine Start Function - Part 2:

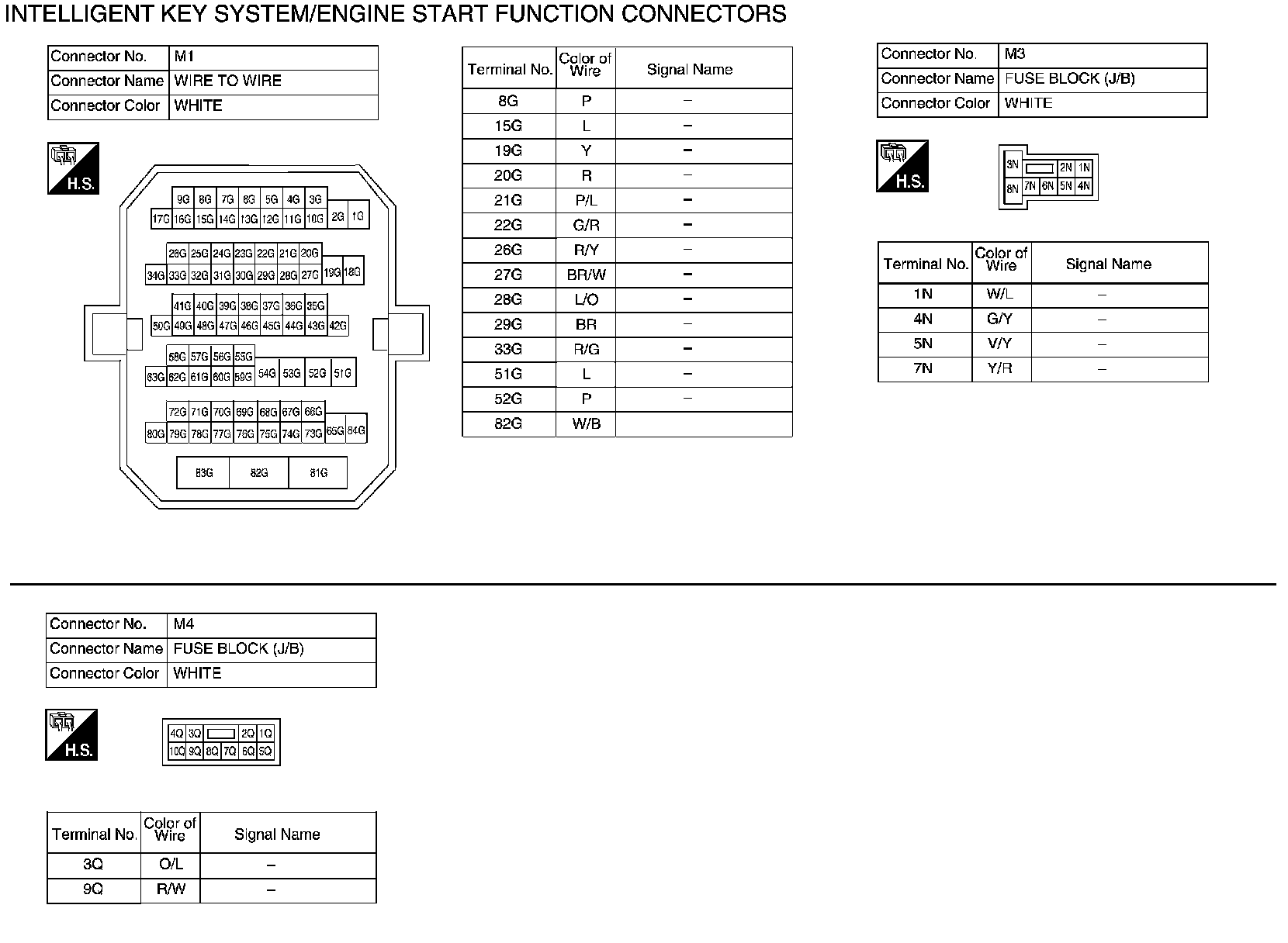

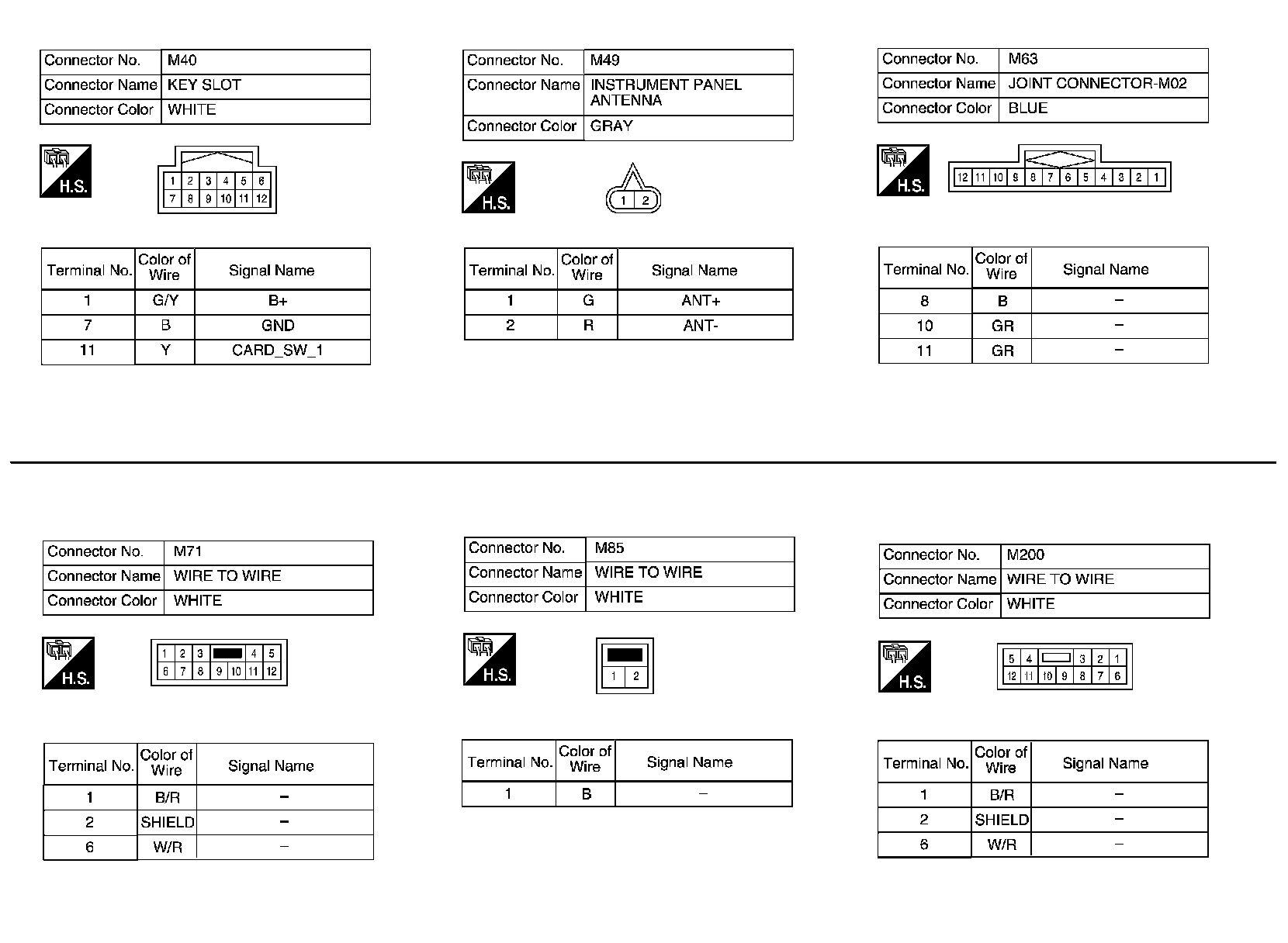

Intelligent Key System/Engine Start Function - Part 3:

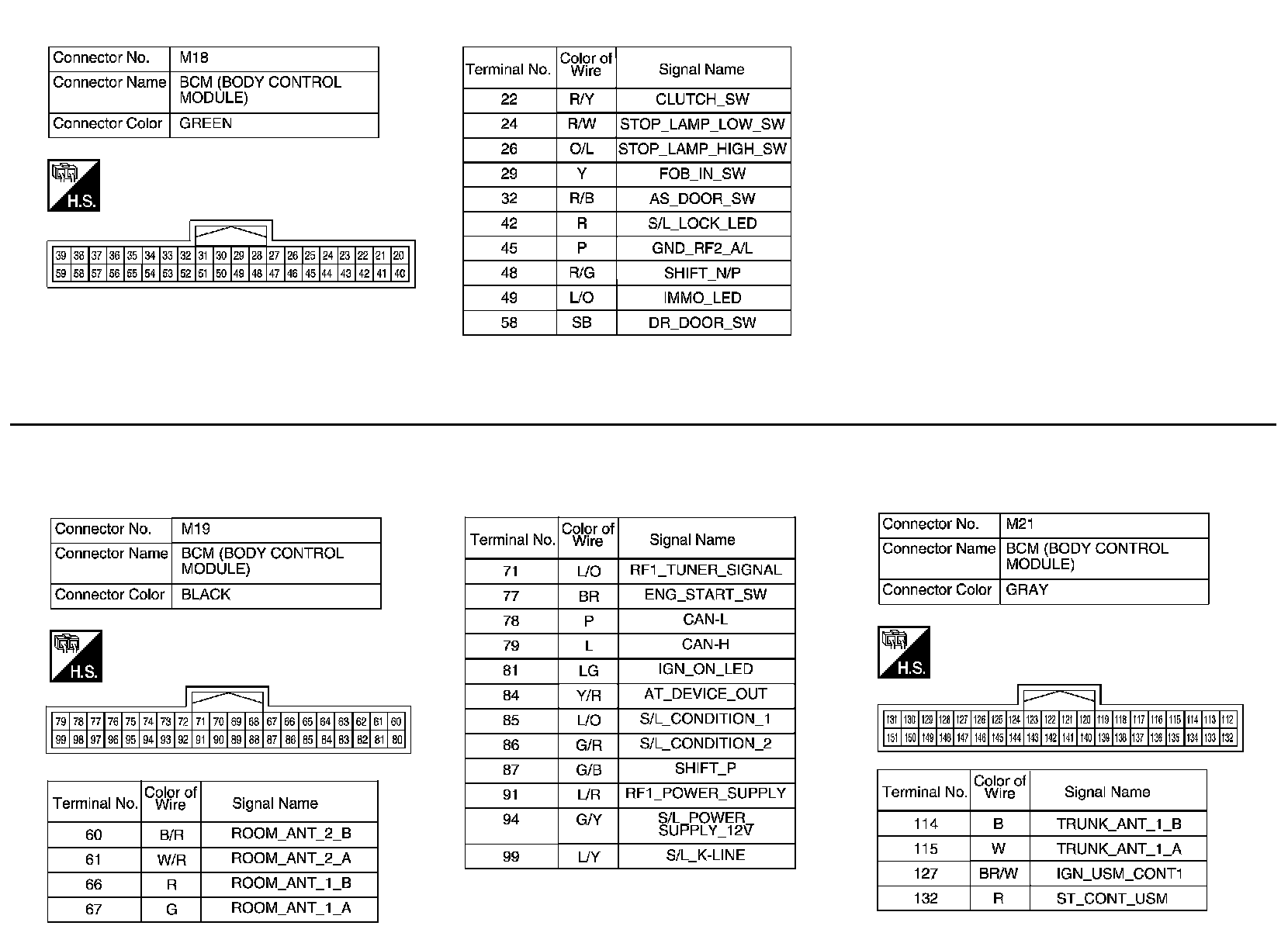

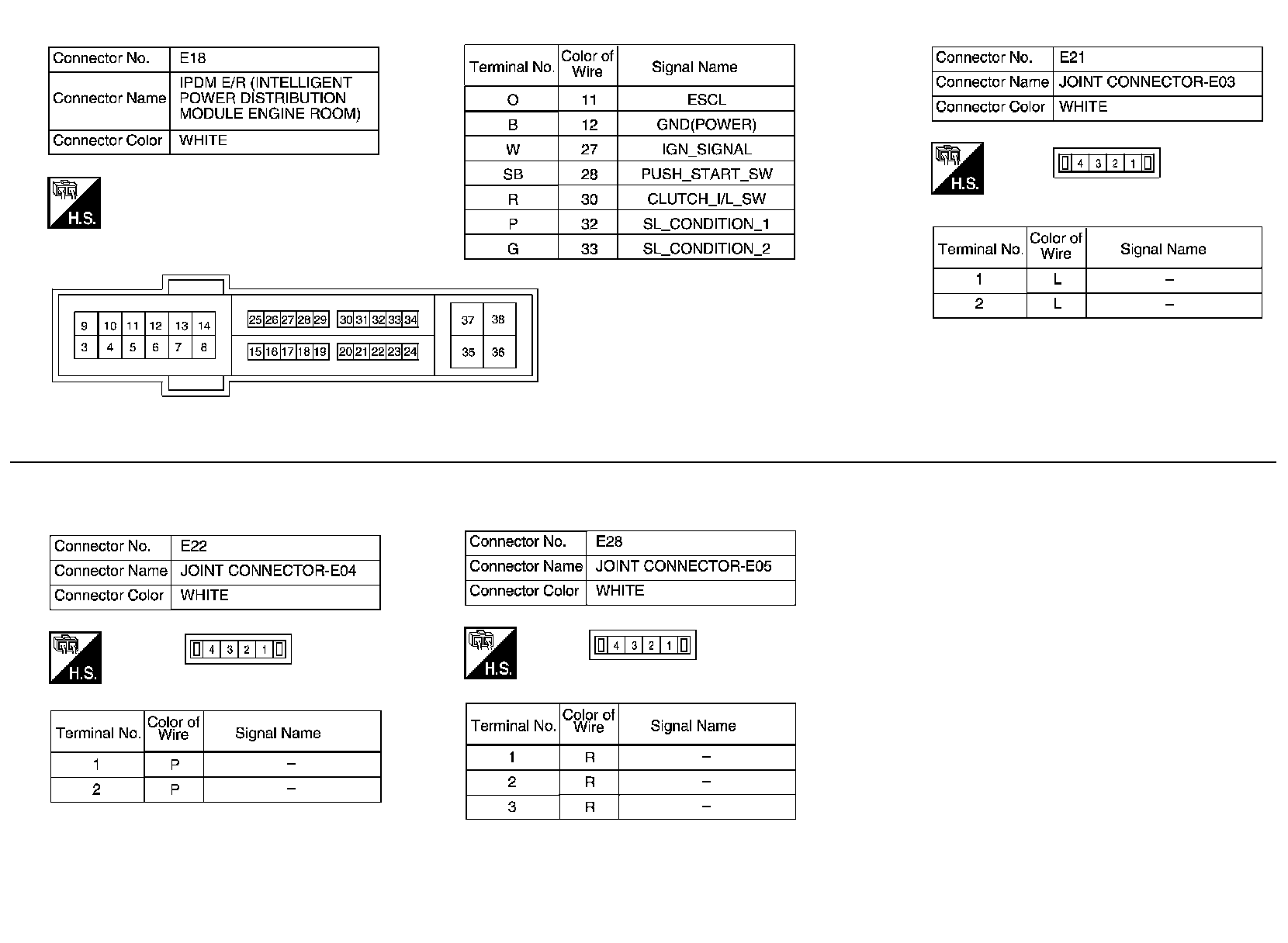

Intelligent Key System/Engine Start Function - Part 4:

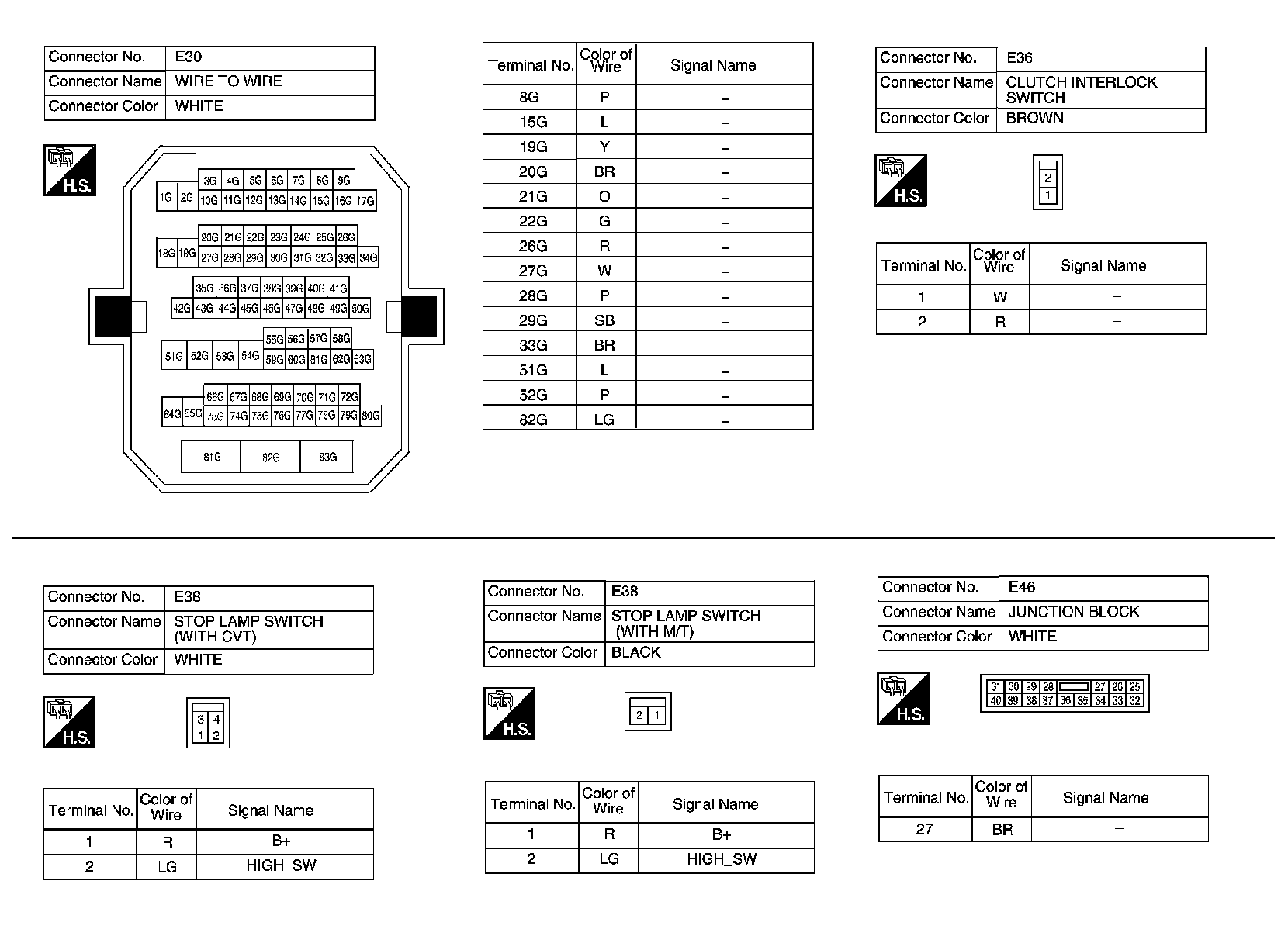

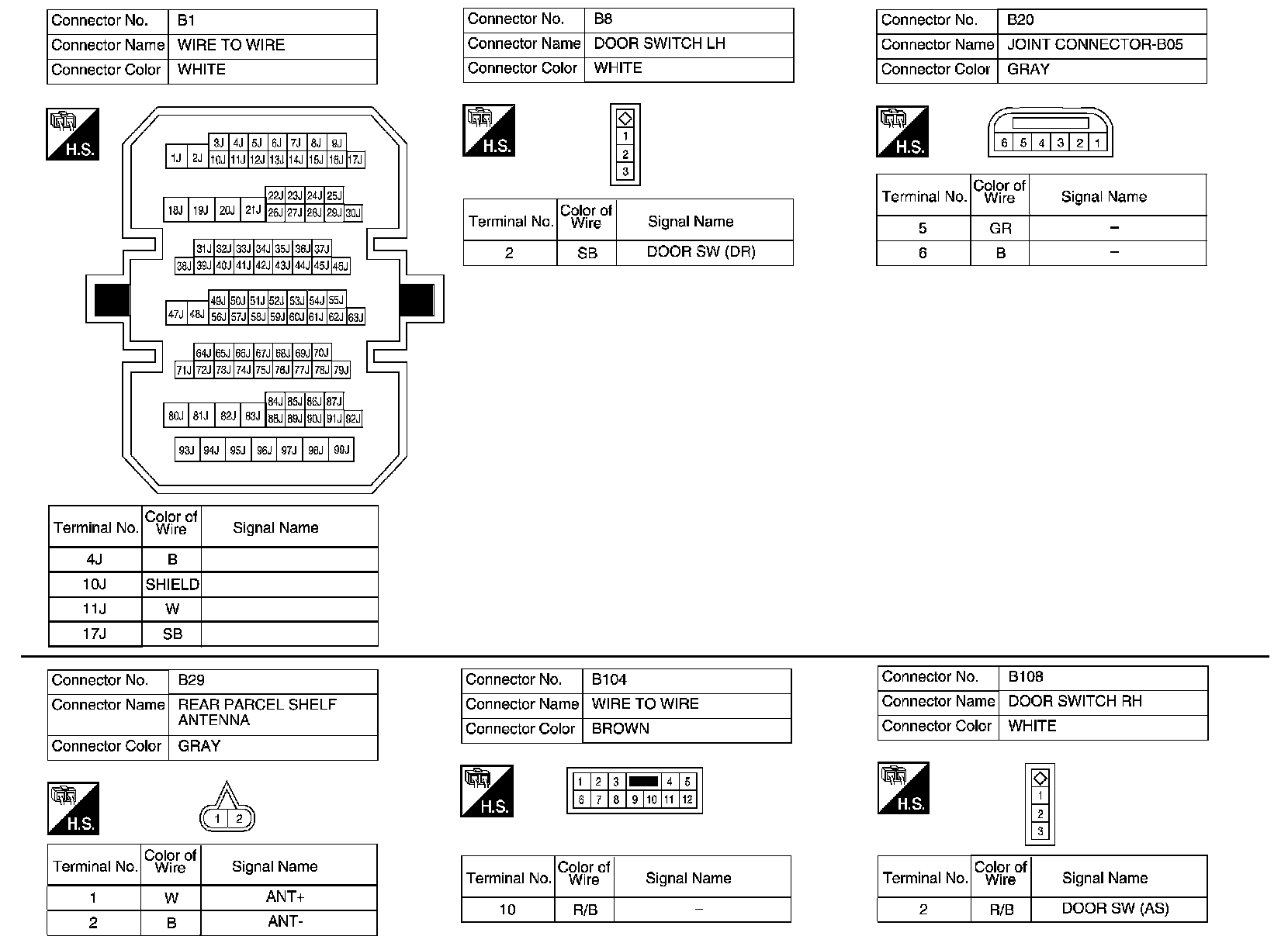

Intelligent Key System/Engine Start Function - Part 5:

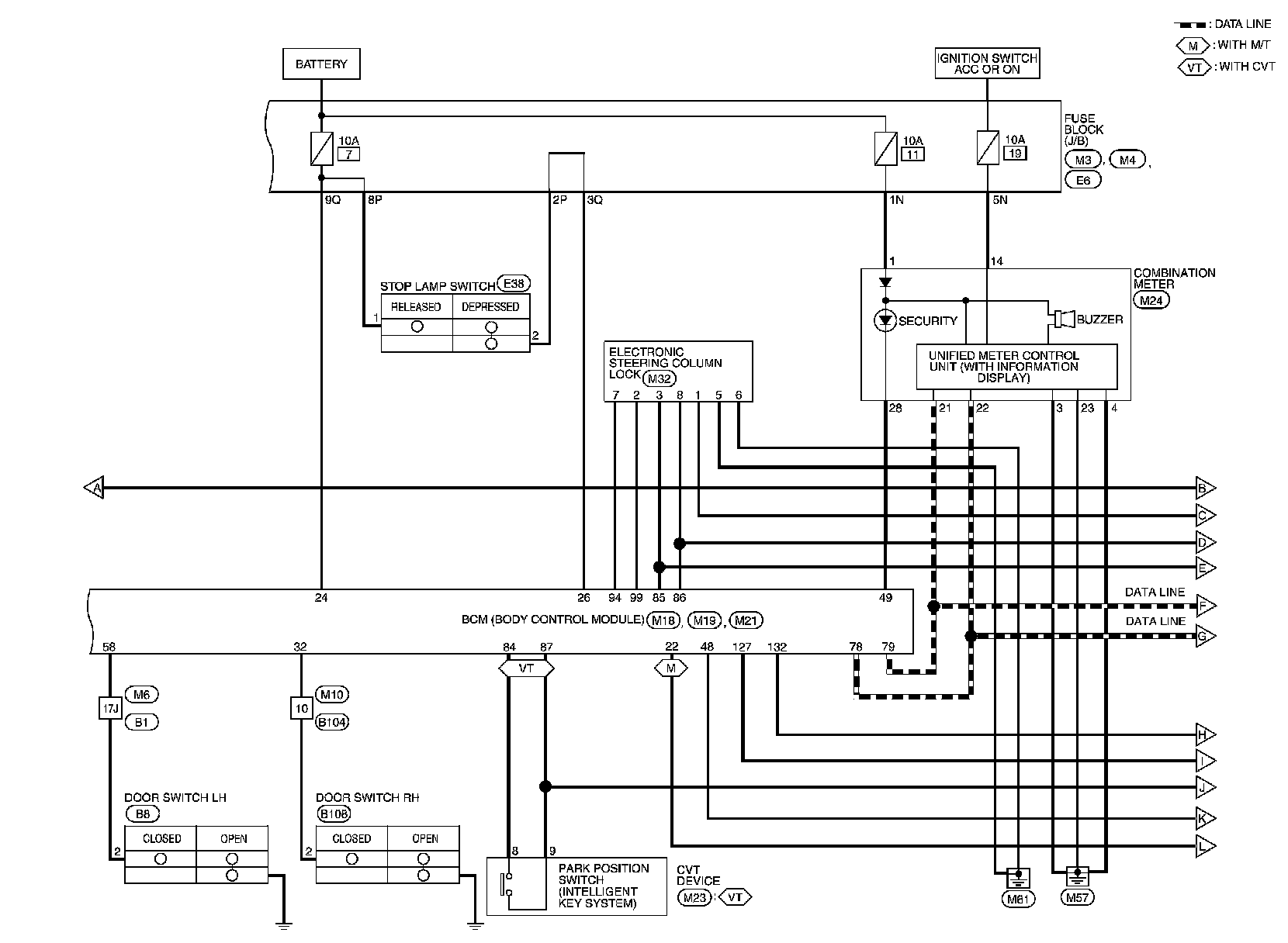

Intelligent Key System/Engine Start Function - Part 6:

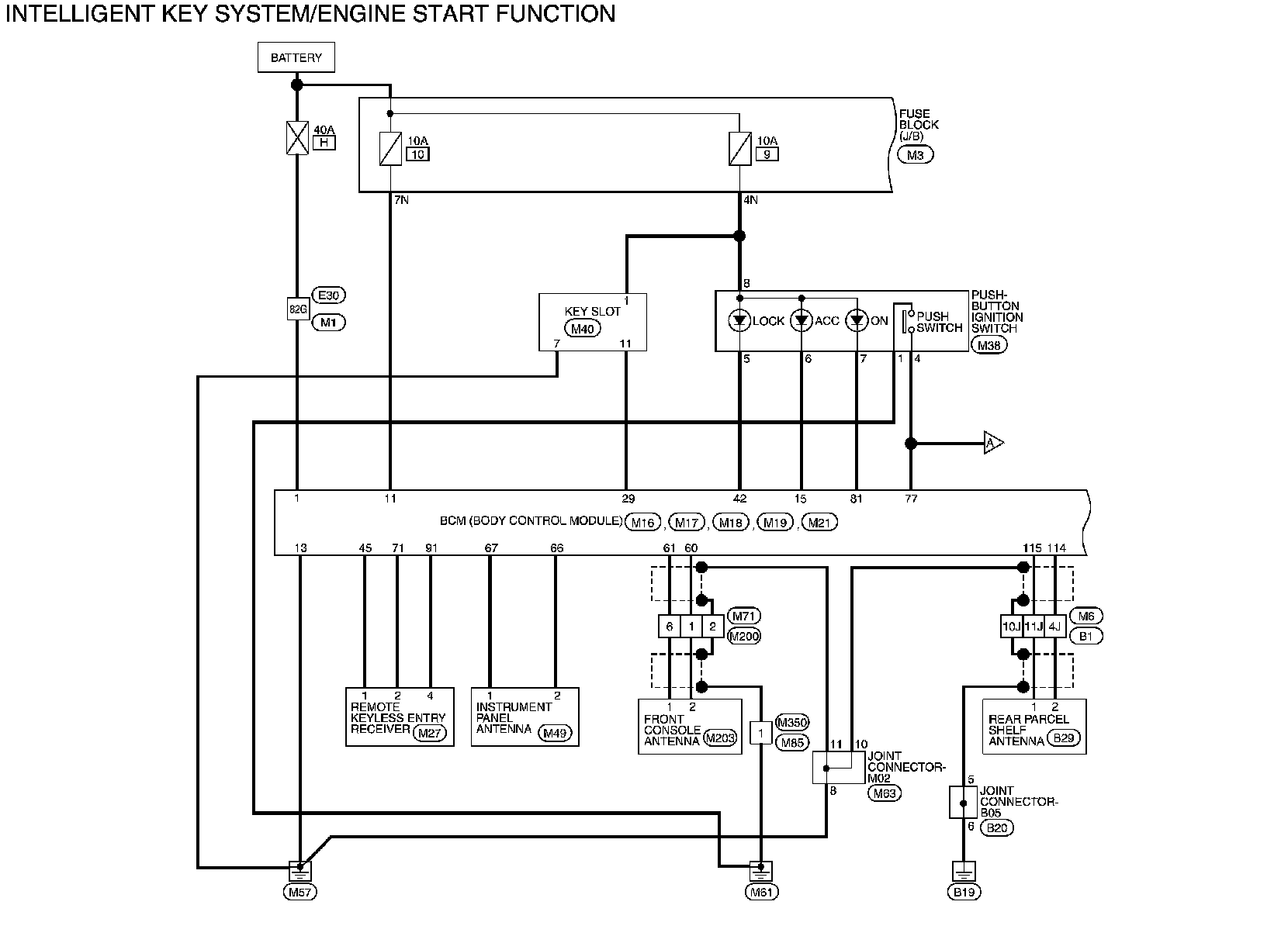

Intelligent Key System/Engine Start Function - Part 7:

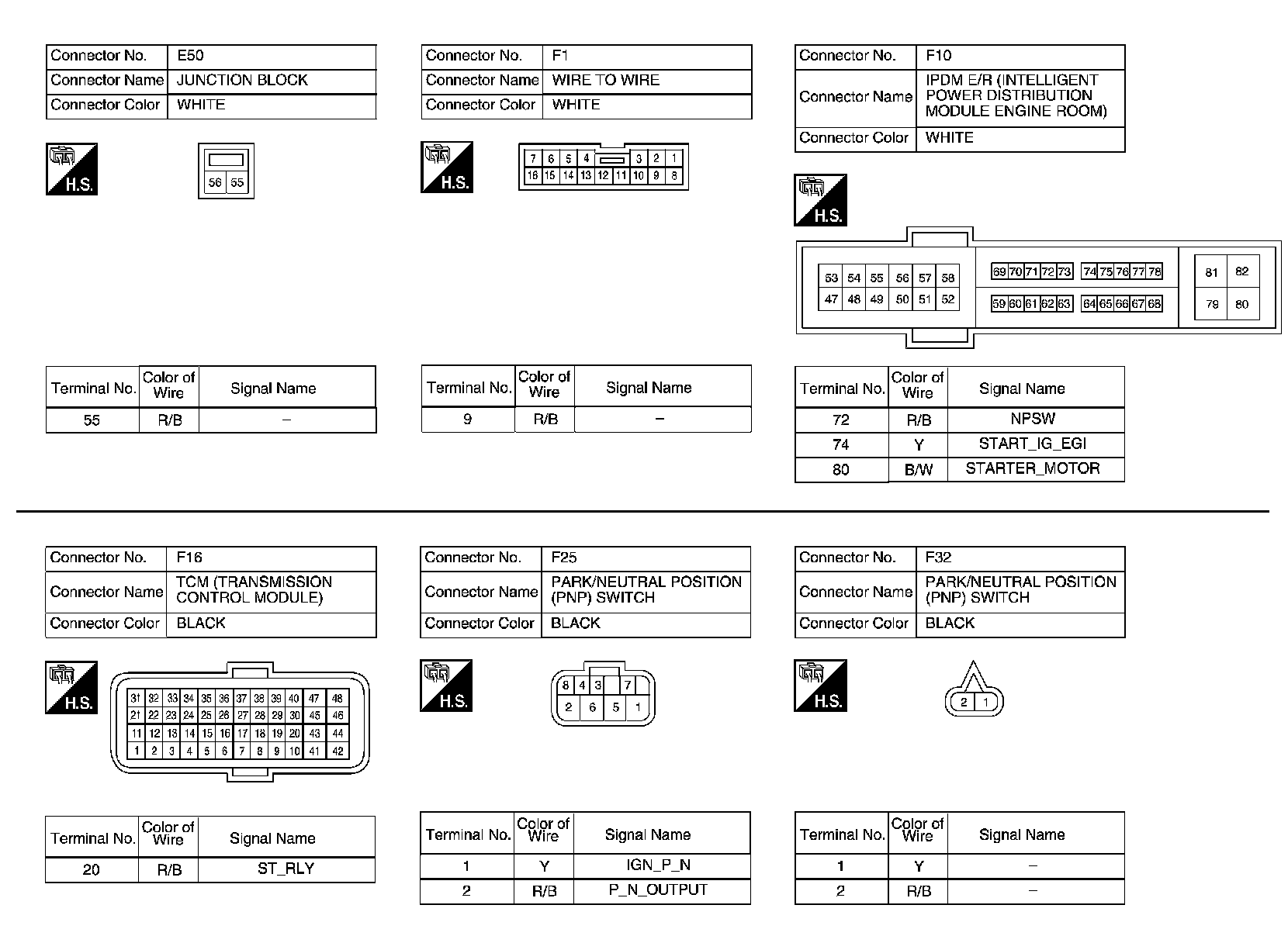

Intelligent Key System/Engine Start Function - Part 8:

Intelligent Key System/Engine Start Function - Part 9:

Intelligent Key System/Engine Start Function - Part 10:

Intelligent Key System/Engine Start Function - Part 11:

Intelligent Key System/Engine Start Function - Part 12:

Intelligent Key System/Engine Start Function - Part 13:
