CONSULT-III Function (Transmission)
DIAGNOSIS SYSTEM (TCM)
CONSULT-III Function (TRANSMISSION)
CONSULT-III can display each diagnostic item using the diagnostic test modes shown below.
FUNCTION
WORK SUPPORT MODE
Display Item List
Engine Brake Adjustment
CAUTION:
Mode of "+1""0""-1""-2""OFF" can be selected by pressing the "UP""DOWN" on CONSULT-III screen.
However, do not select mode other than "0" and "OFF". If the "+1" or "-1" or "-2" is selected, that might cause the irregular driveability.
Check CVT Fluid Deterioration Date
CAUTION:
Touch "CLEAR" after changing CVT fluid, and then erase "CVTF DETERIORATION DATE".
SELF-DIAGNOSTIC RESULT MODE
After performing self-diagnosis, place check marks for results on the Diagnostic Work Sheet. References are provided following the items.
Display Items List
Refer to Testing and Inspection.

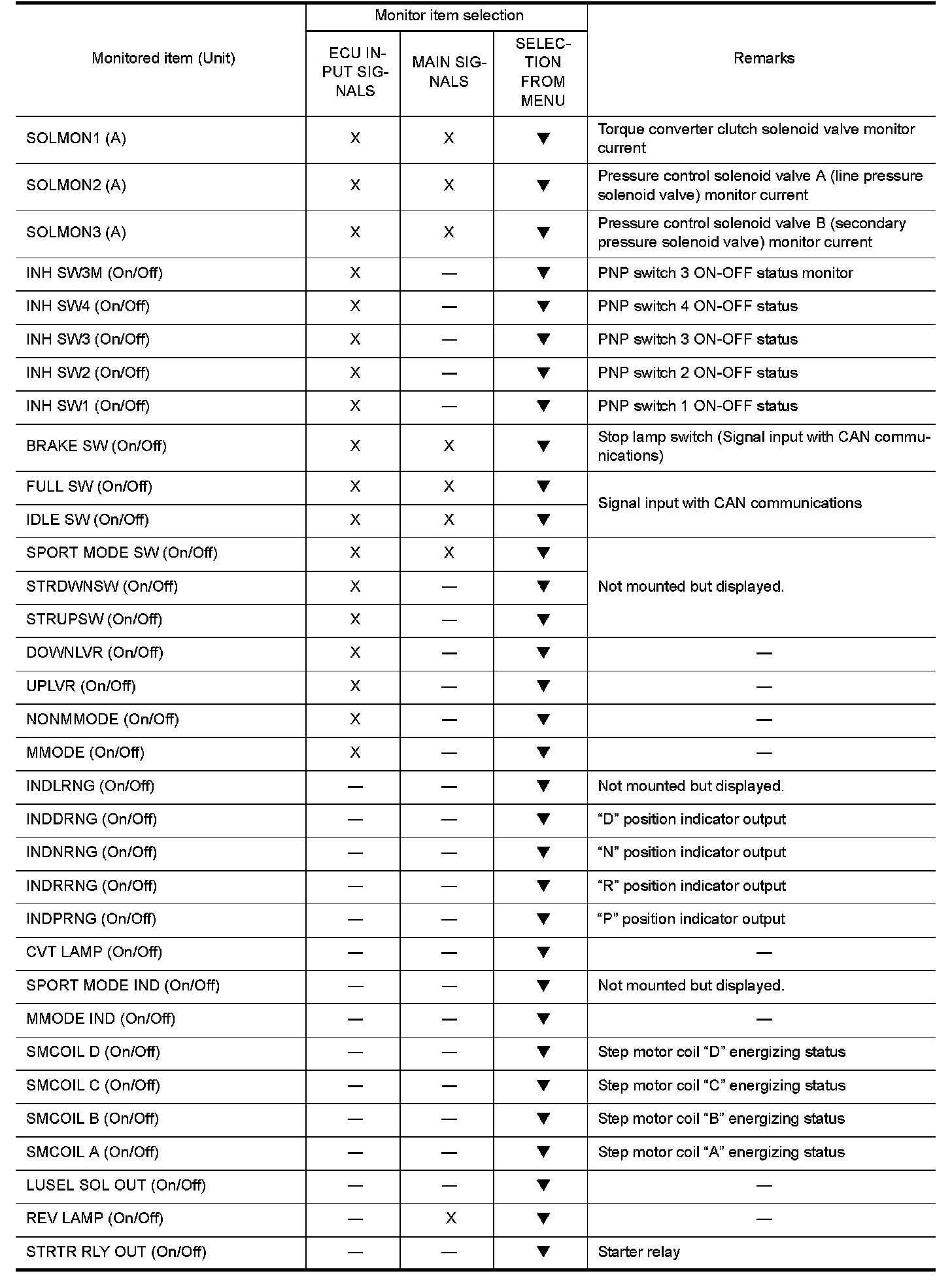

DATA MONITOR MODE

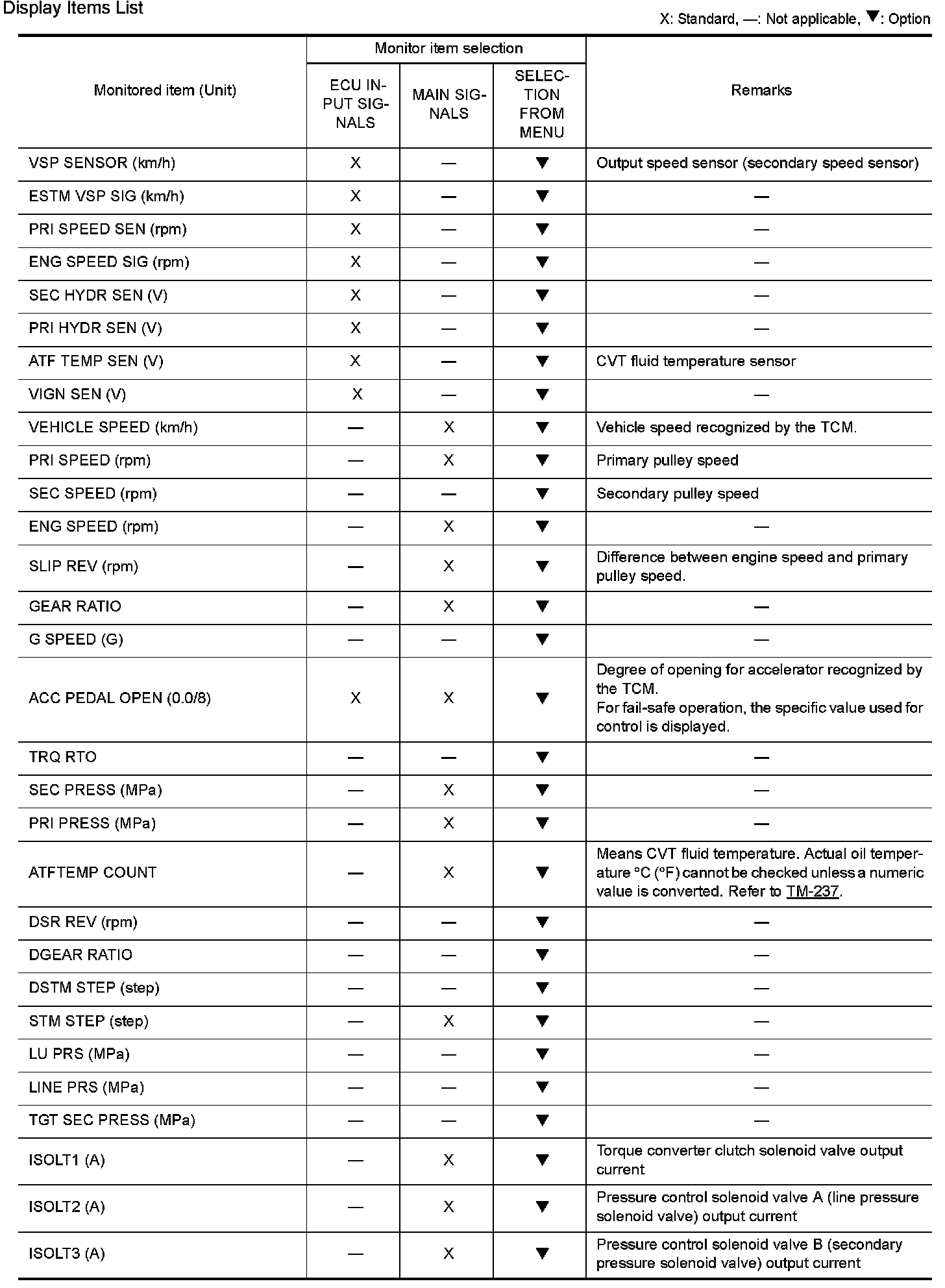

Display Items List
