System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

CYLINDER HEAD

Valve Dimensions

Valve Spring

Valve Lifter

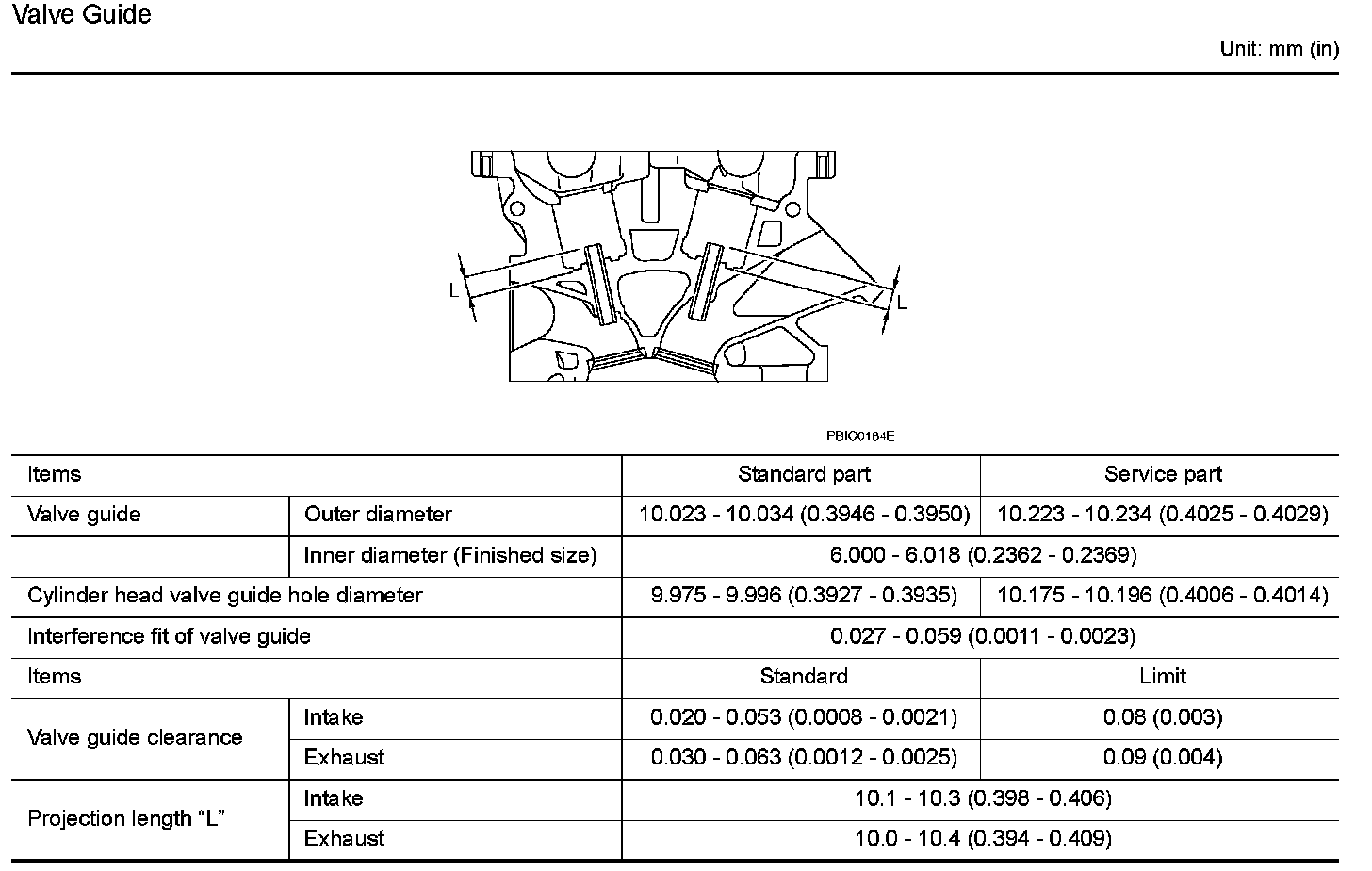

Valve Guide

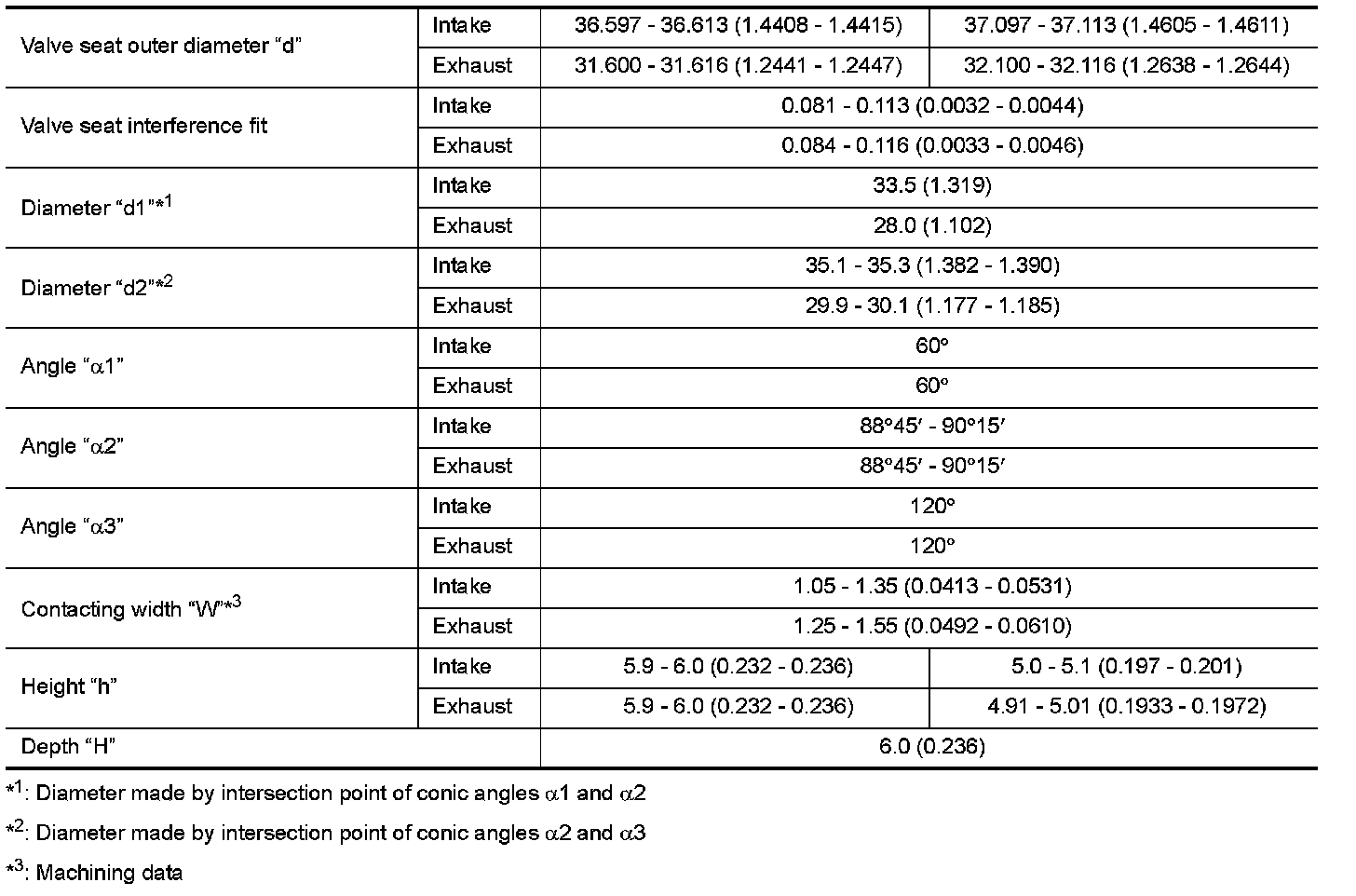

Valve Seat

CYLINDER BLOCK

Available Piston

Piston Ring

Piston Pin

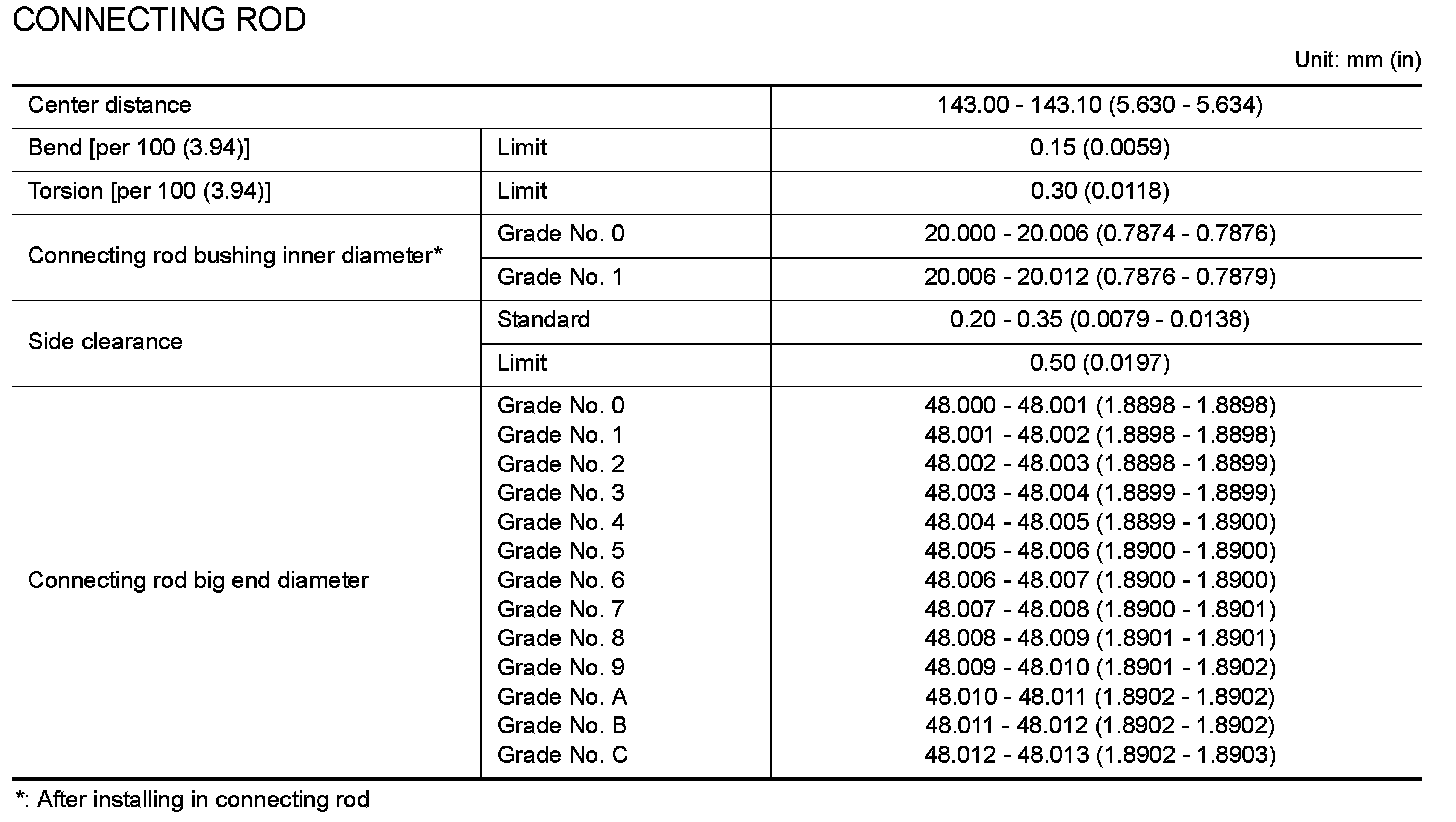

CONNECTING ROD

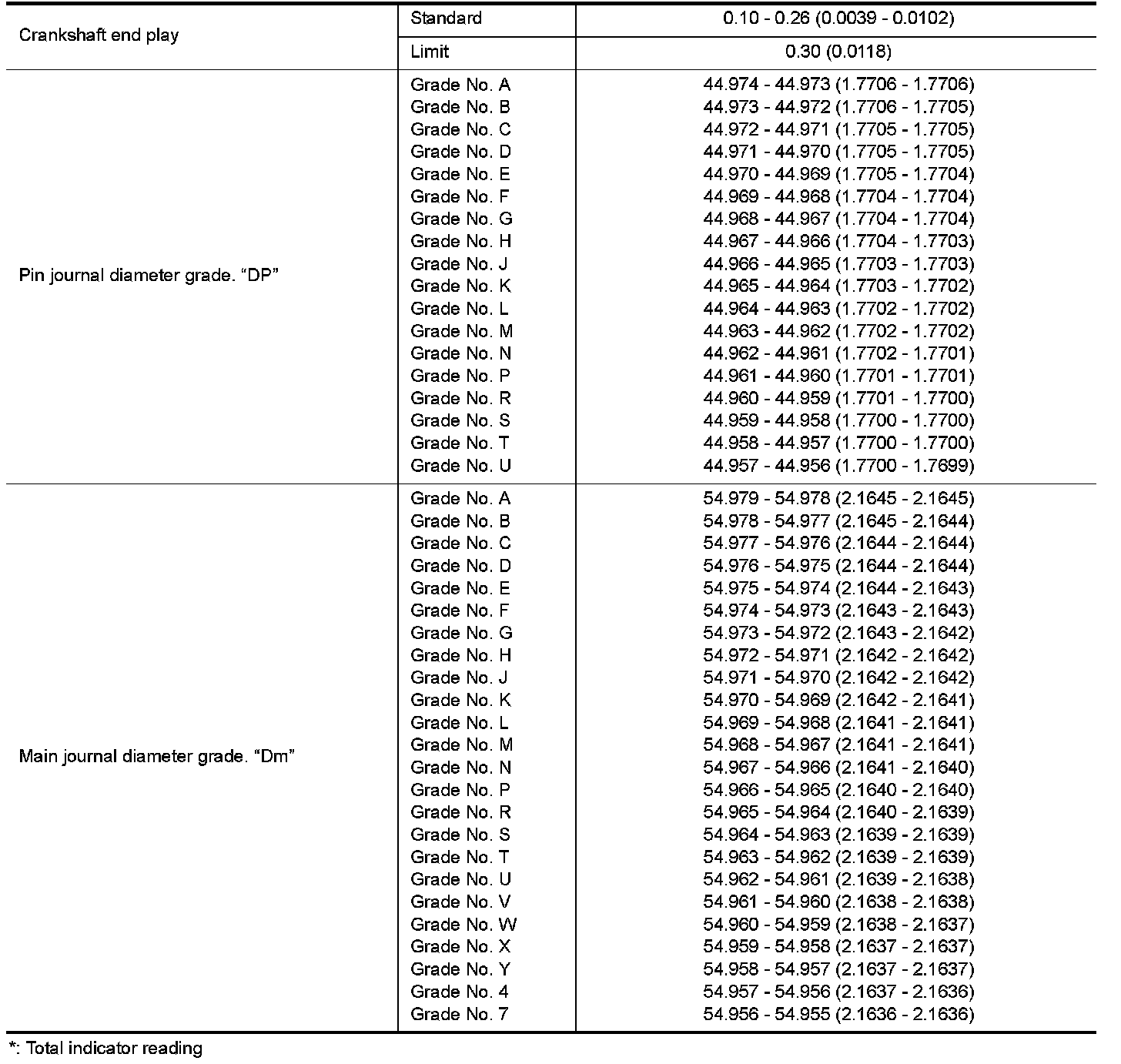

CRANKSHAFT

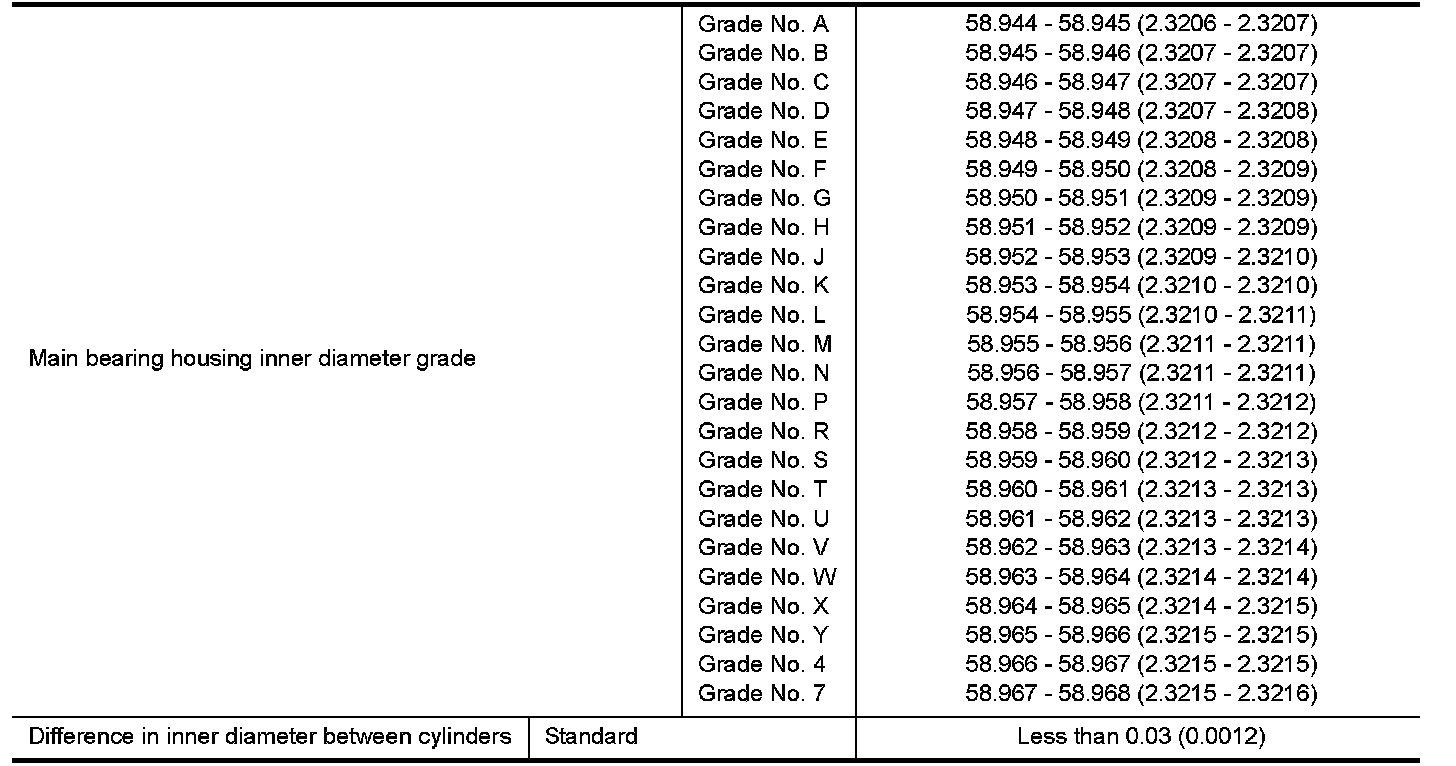

MAIN BEARING

Undersize

Bearing Oil Clearance

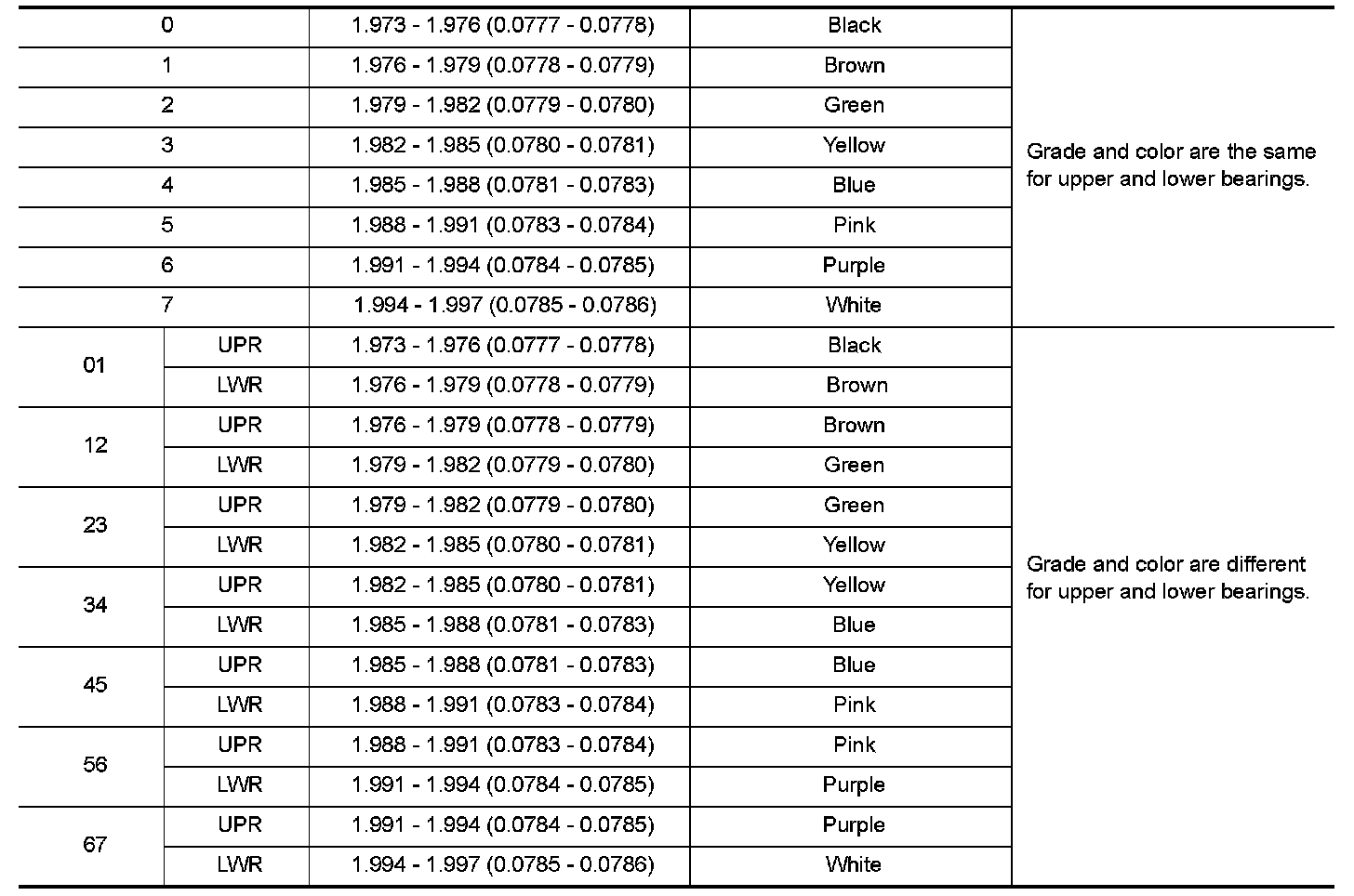

CONNECTING ROD BEARING

Undersize

Bearing Oil Clearance

Main Bearing Cap Torque

Crankshaft Pulley Torque

Tighten crankshaft pulley bolt.

Torque 42.1 N.m (4.3 kg-m, 31 ft-lb)
