Symptom Chart

SYSTEM SYMPTOM

Symptom Chart

- The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
- Overhaul and inspect inside the A/T only if A/T fluid condition is NG. Refer to Checking The A/T Fluid (ATF).

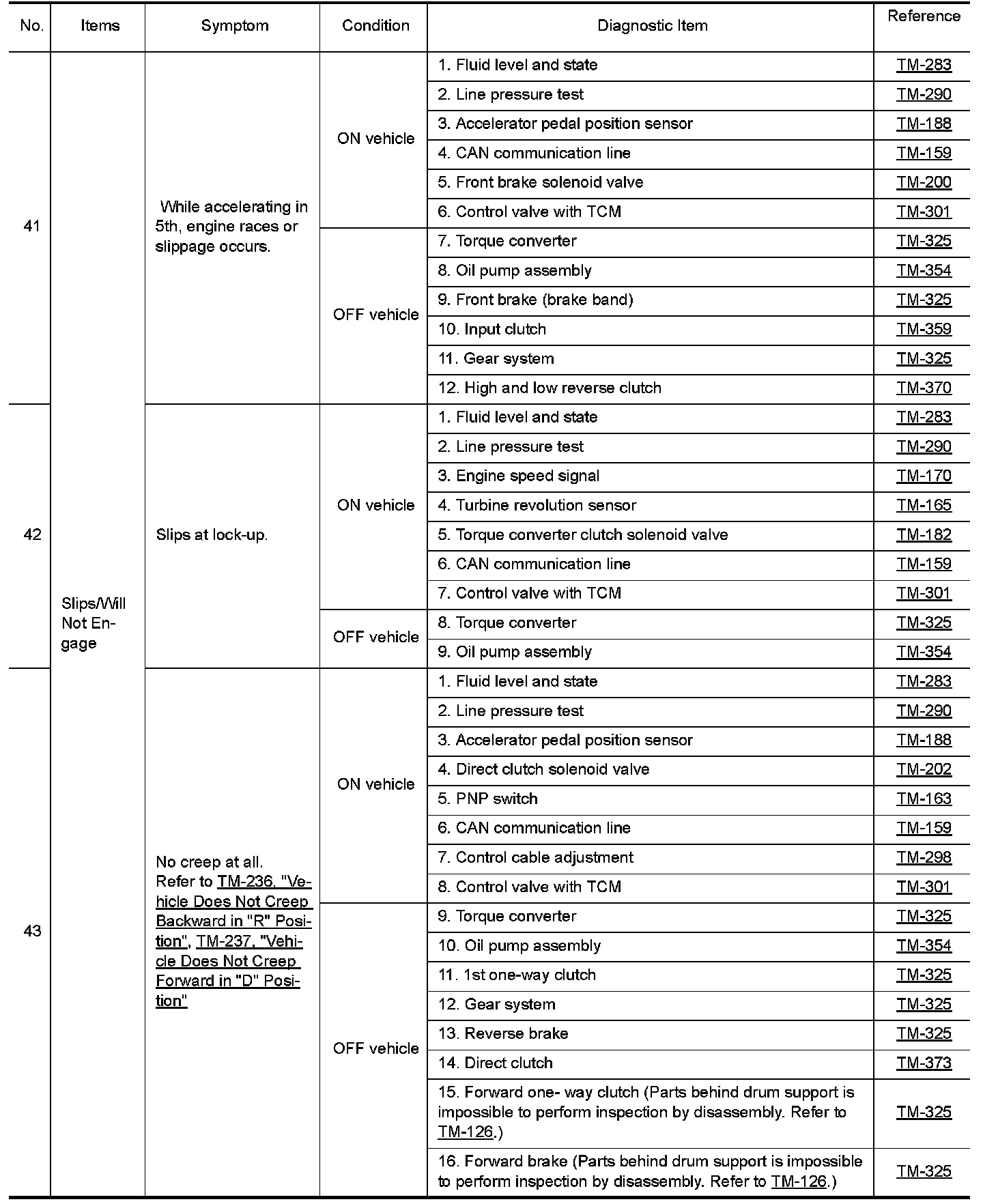

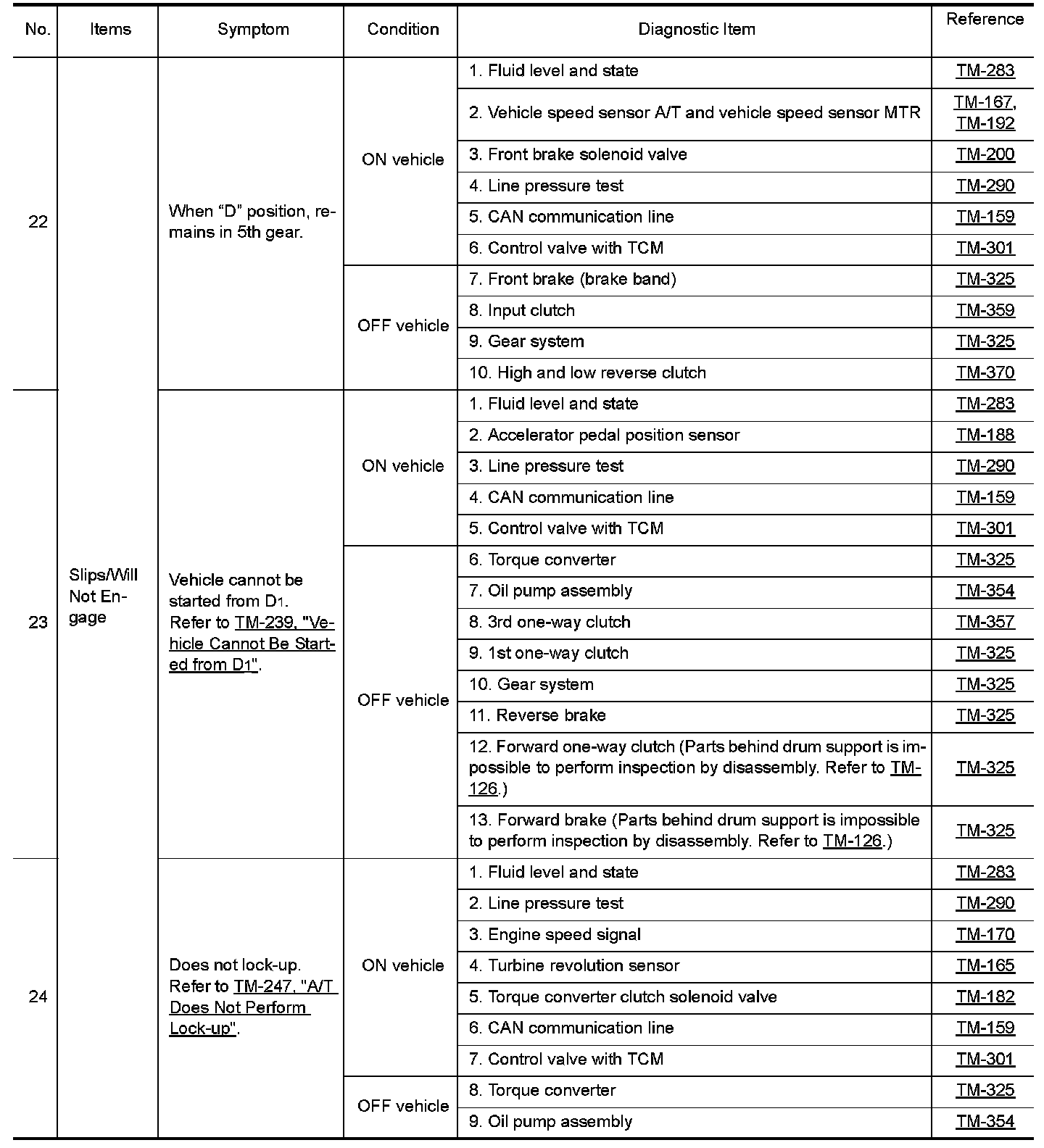

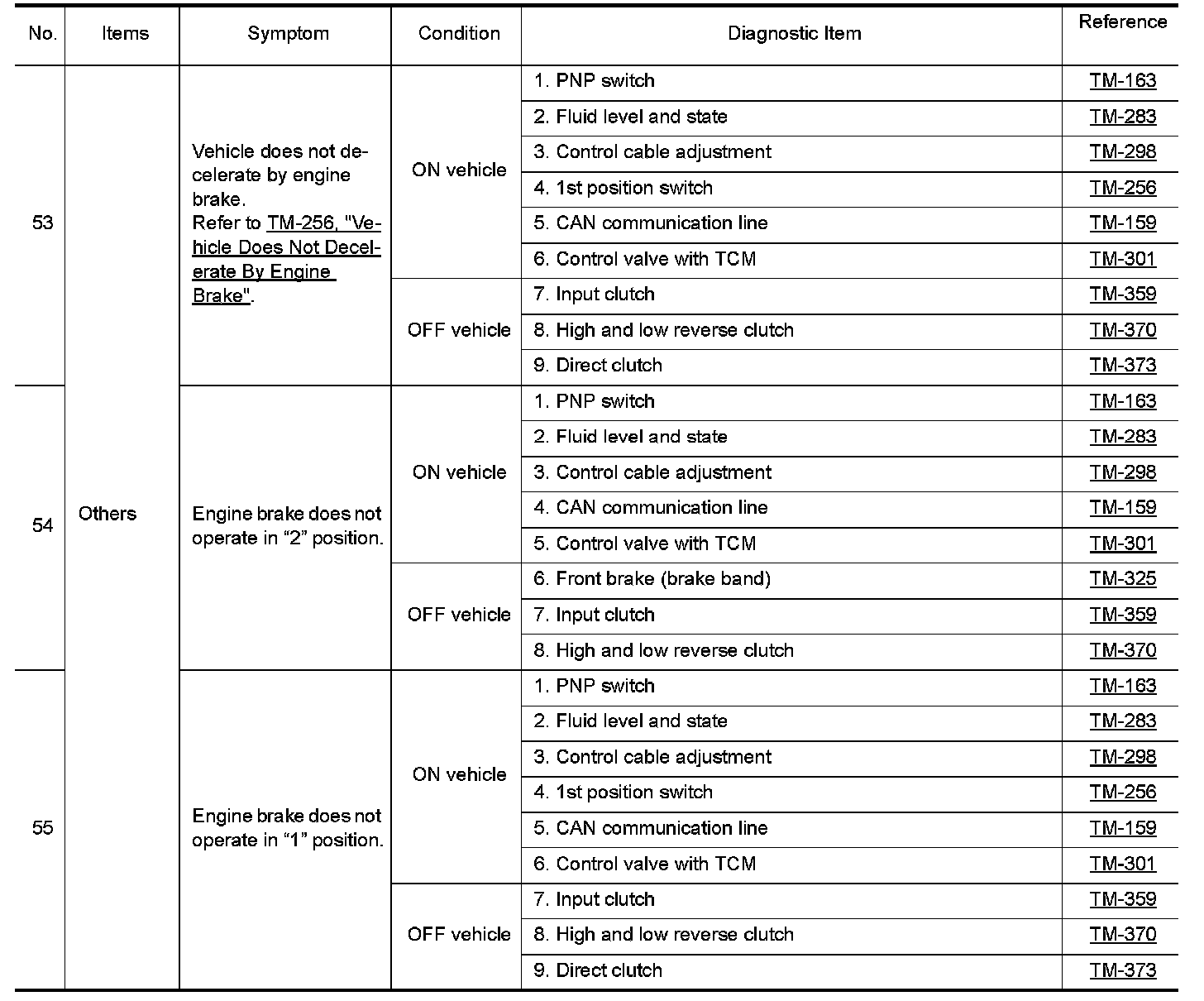

Symptom Chart (Part 1):

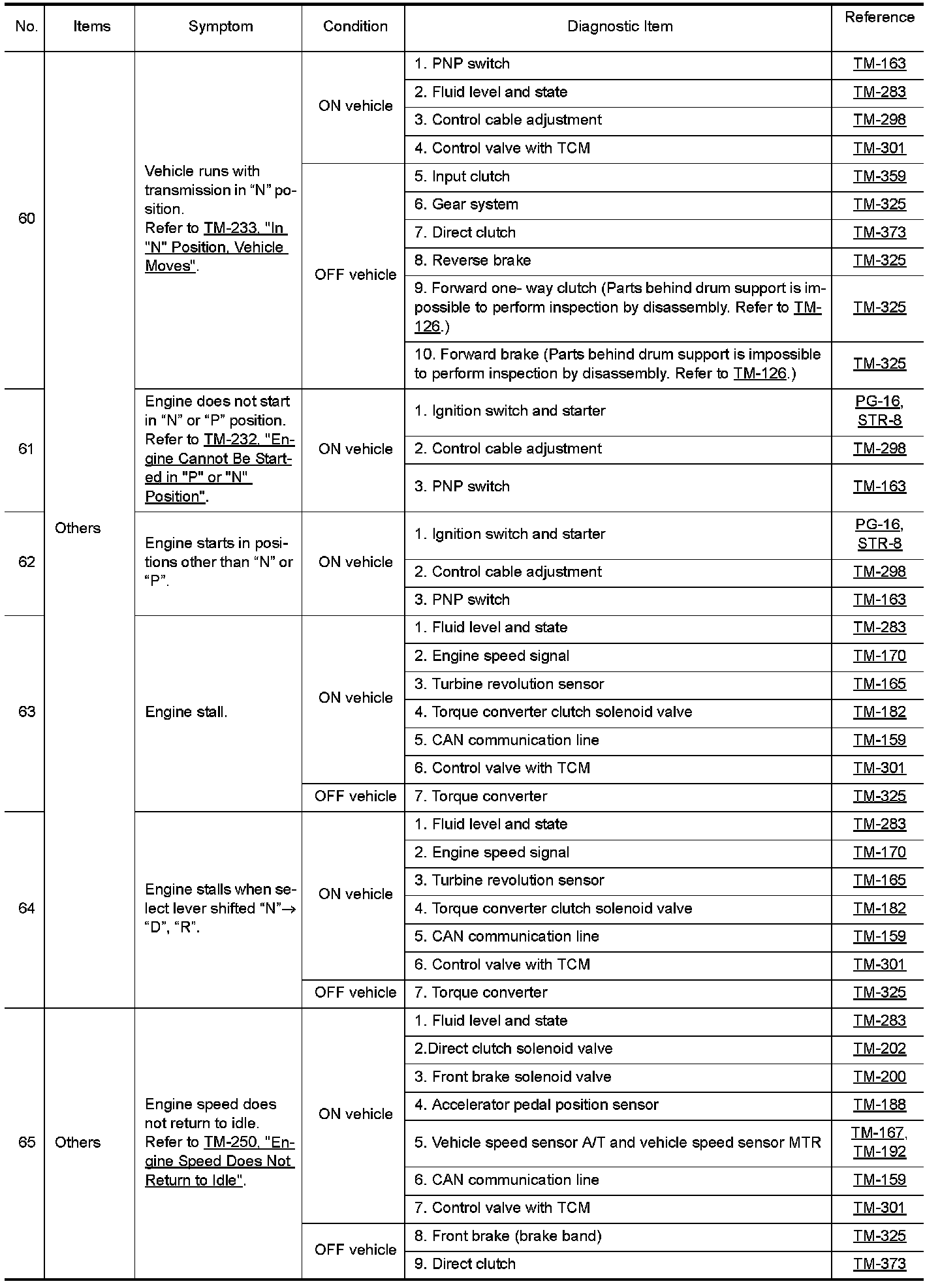

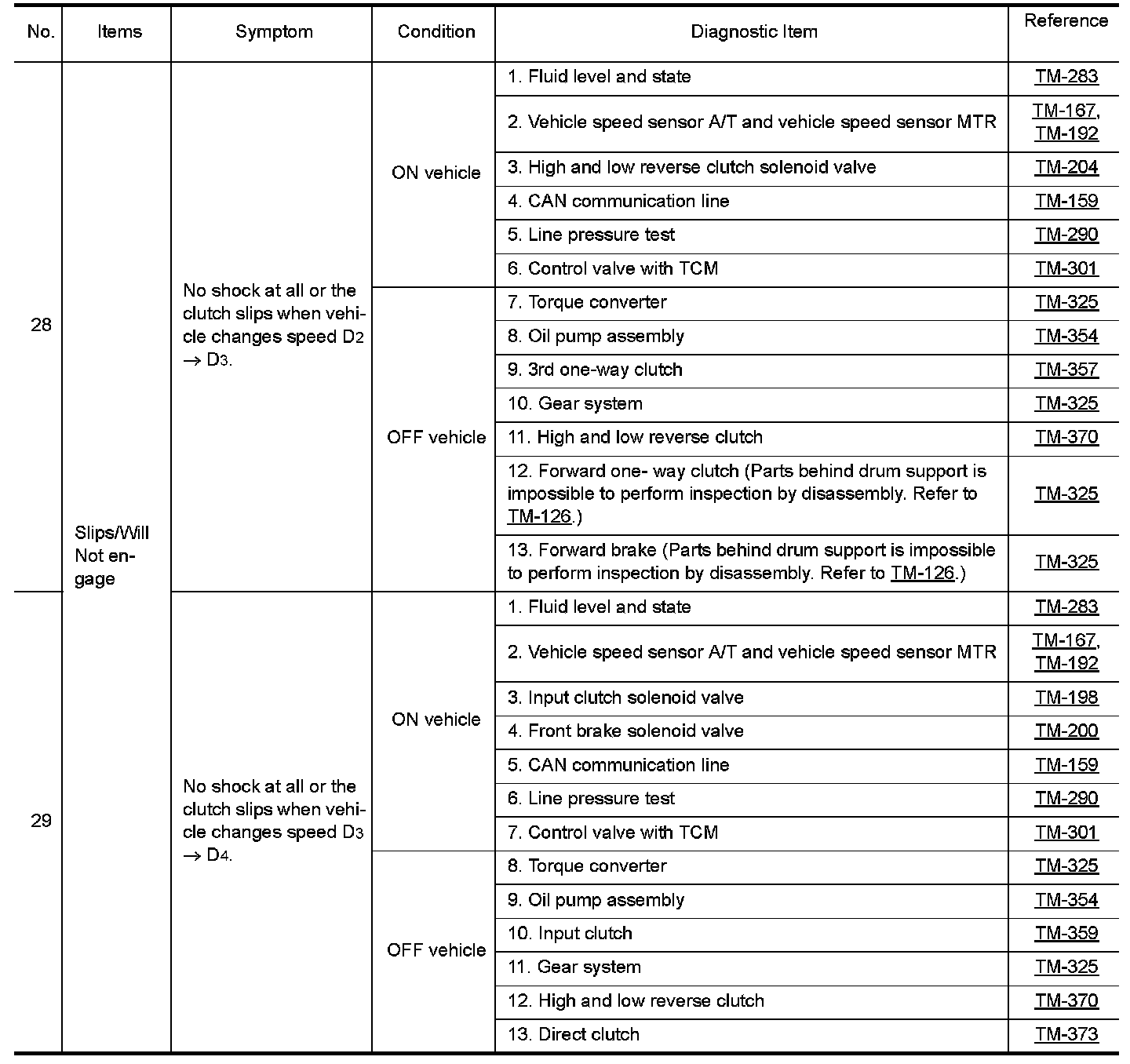

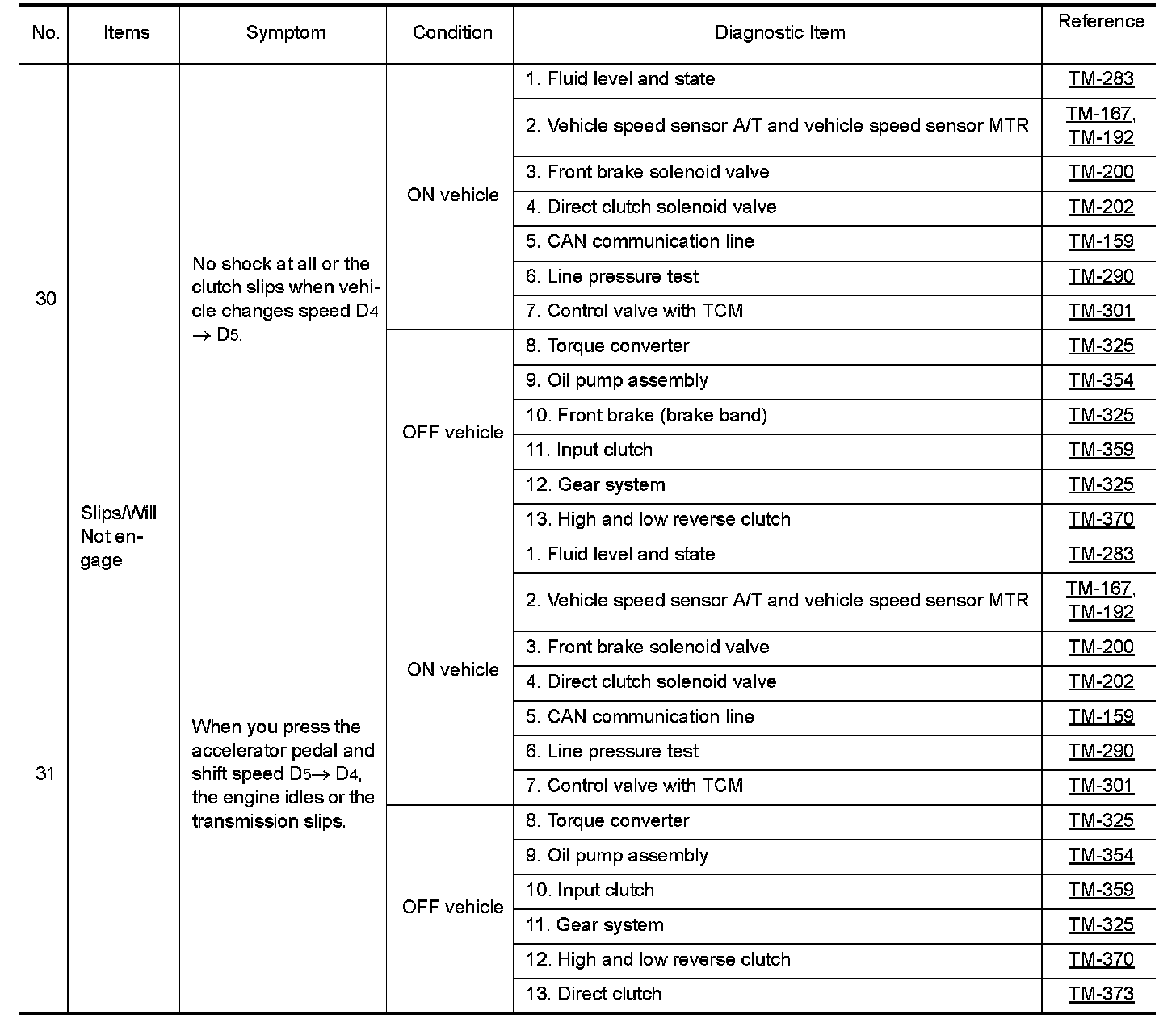

Symptom Chart (Part 2):

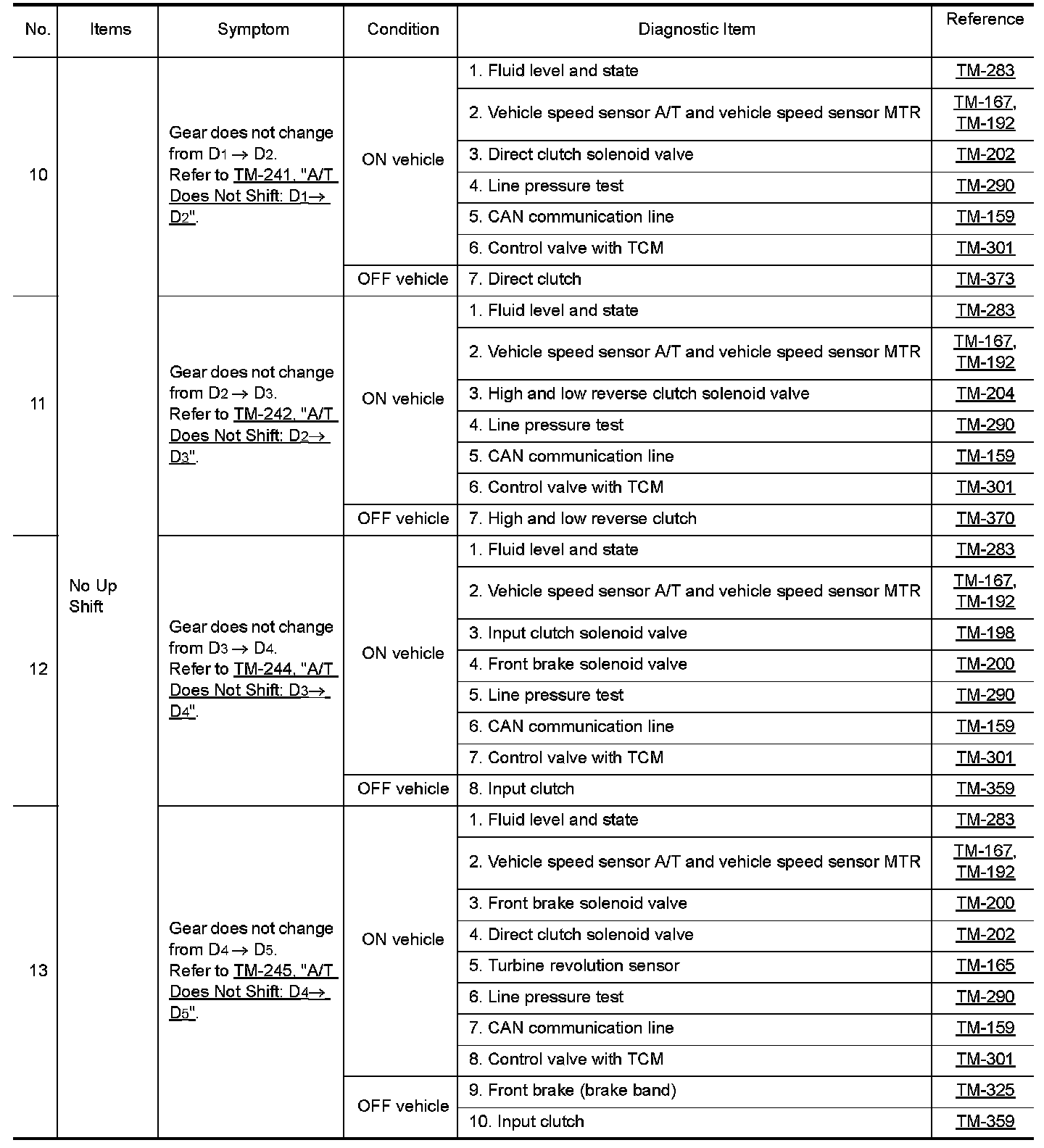

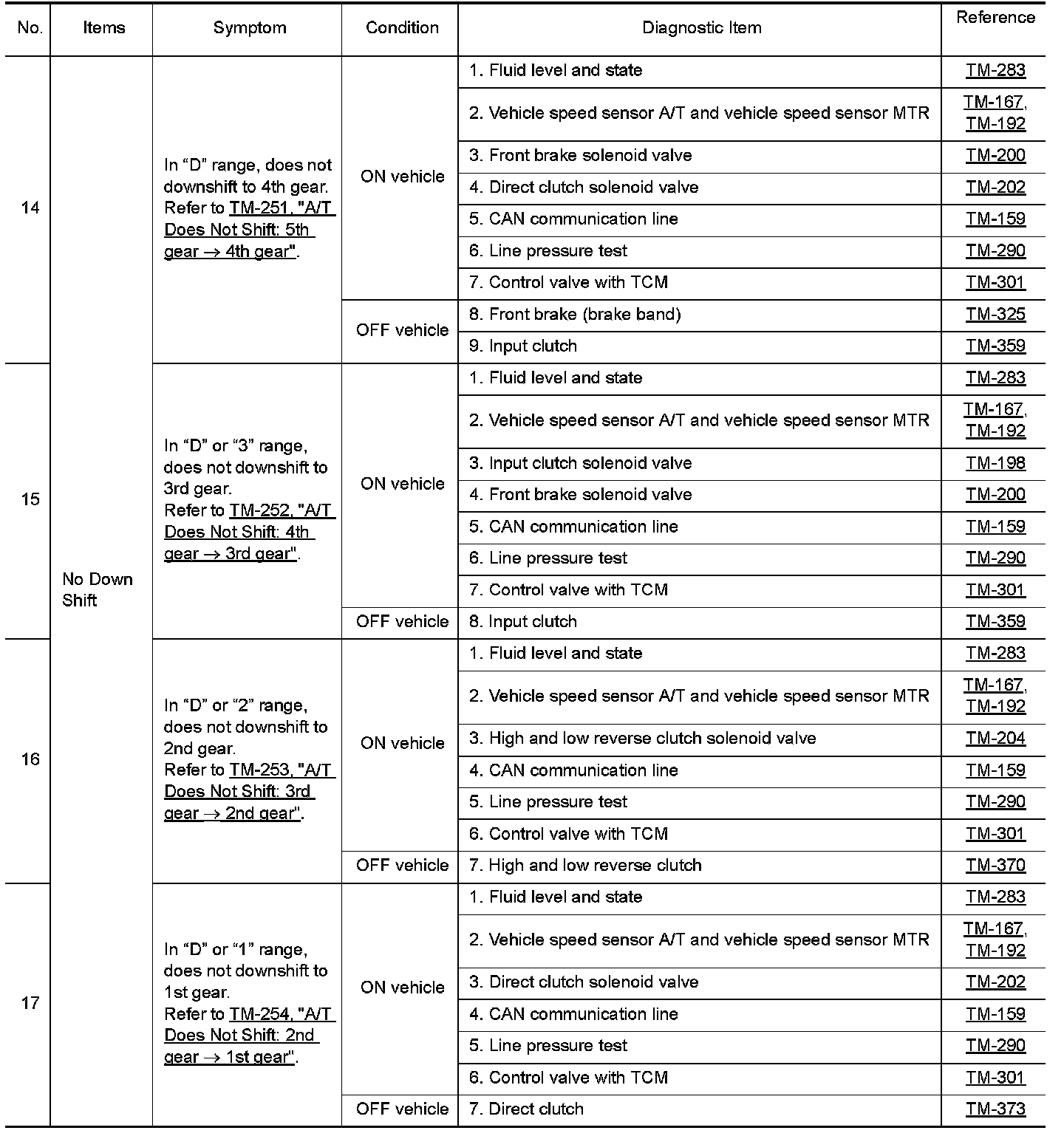

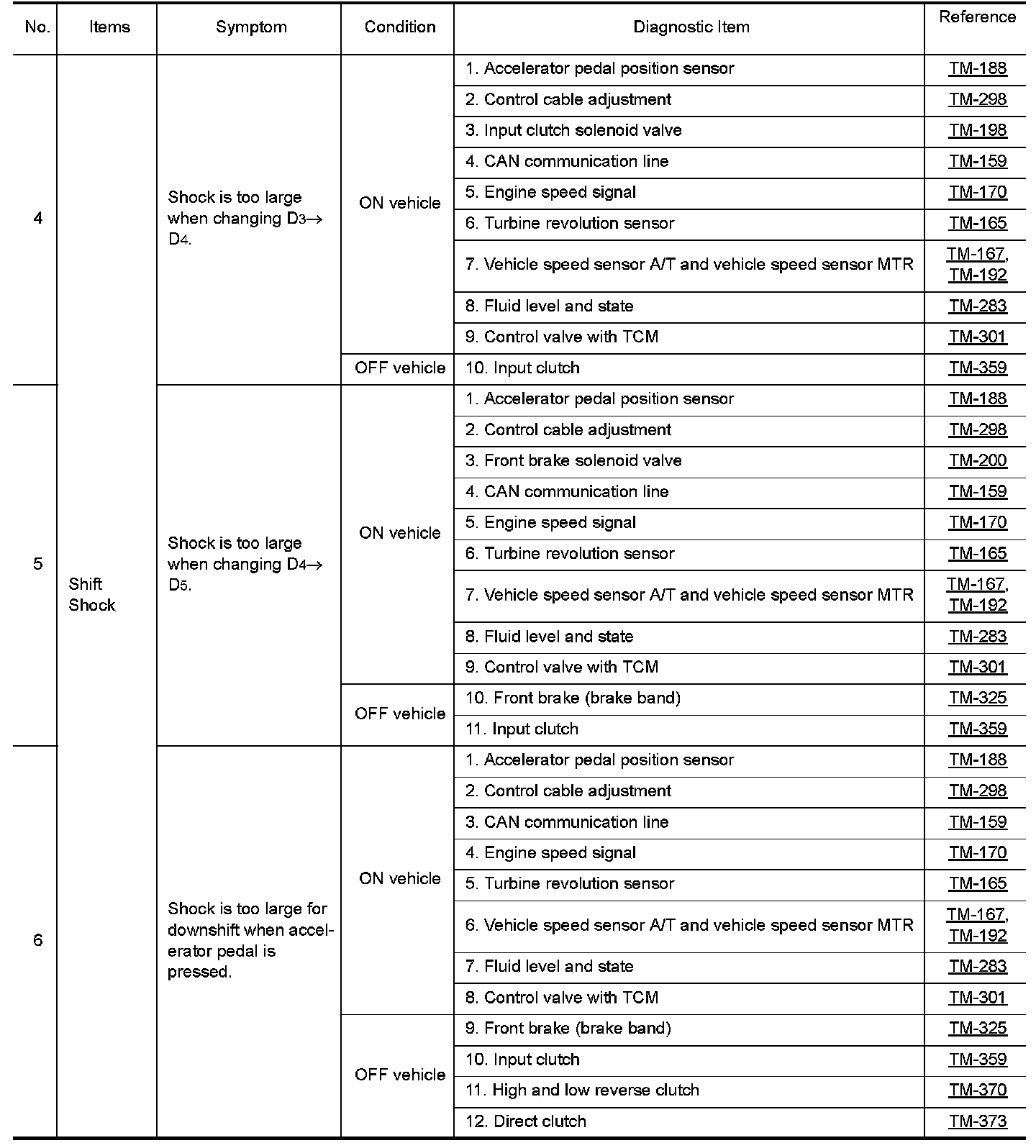

Symptom Chart (Part 3):

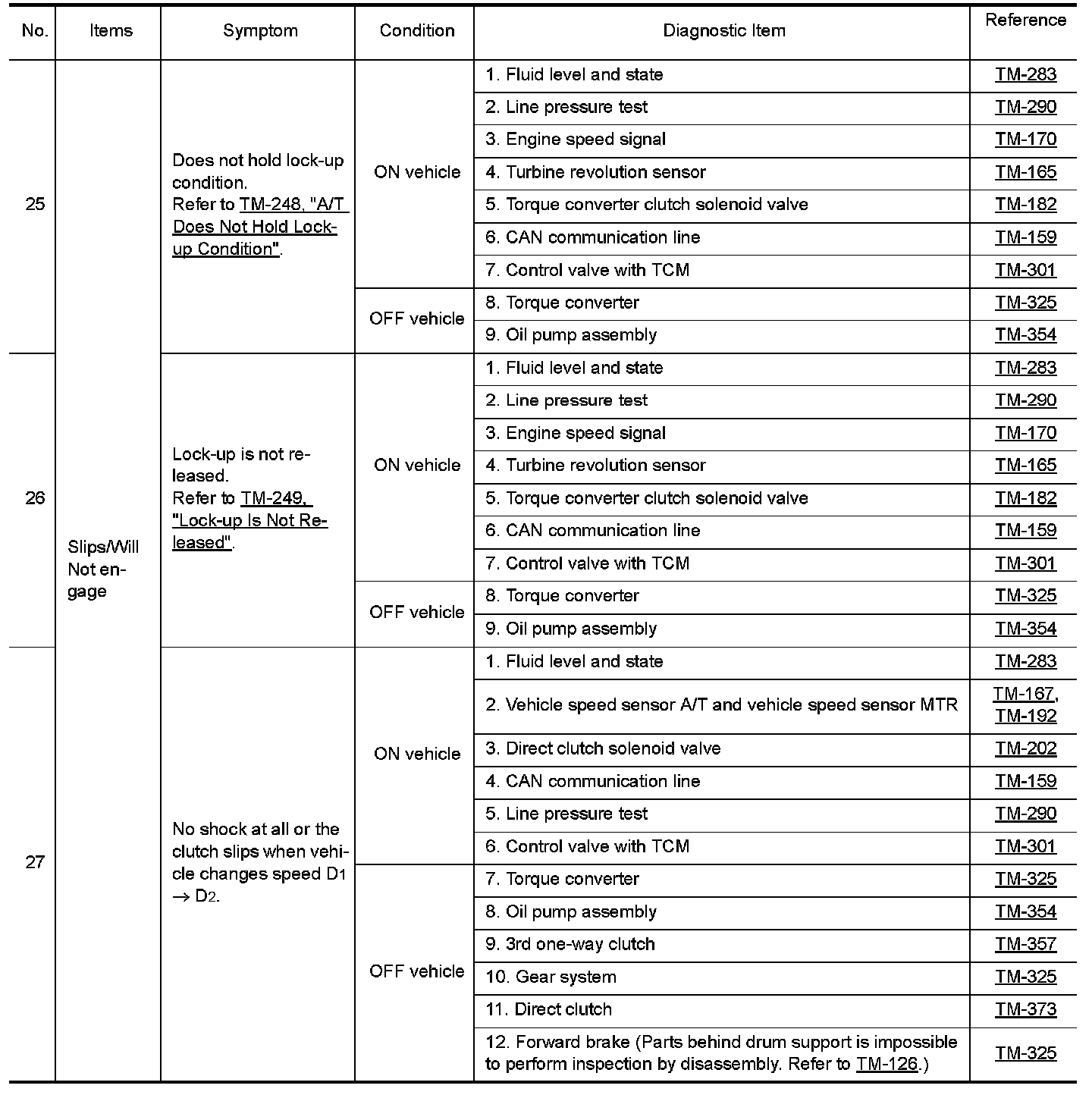

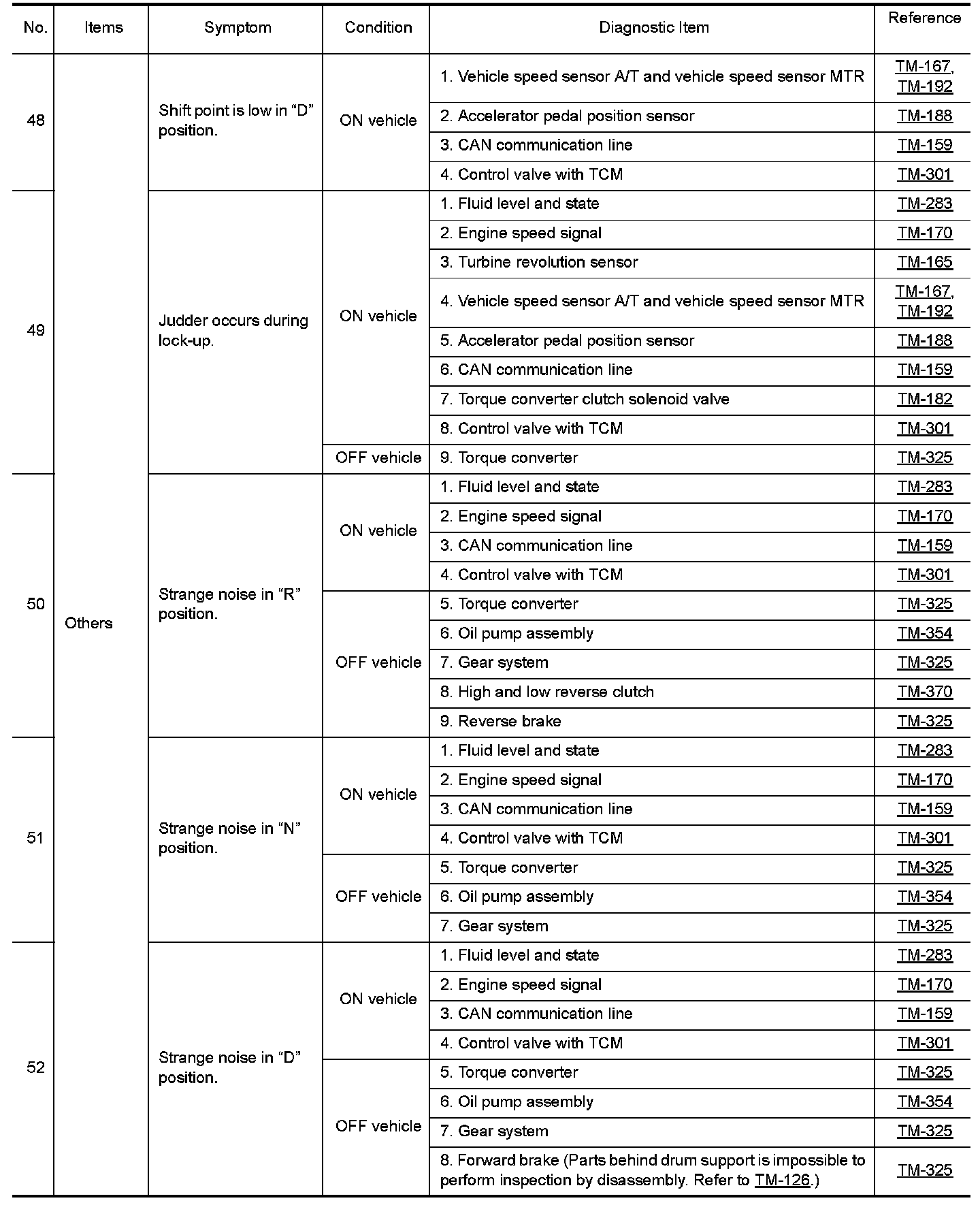

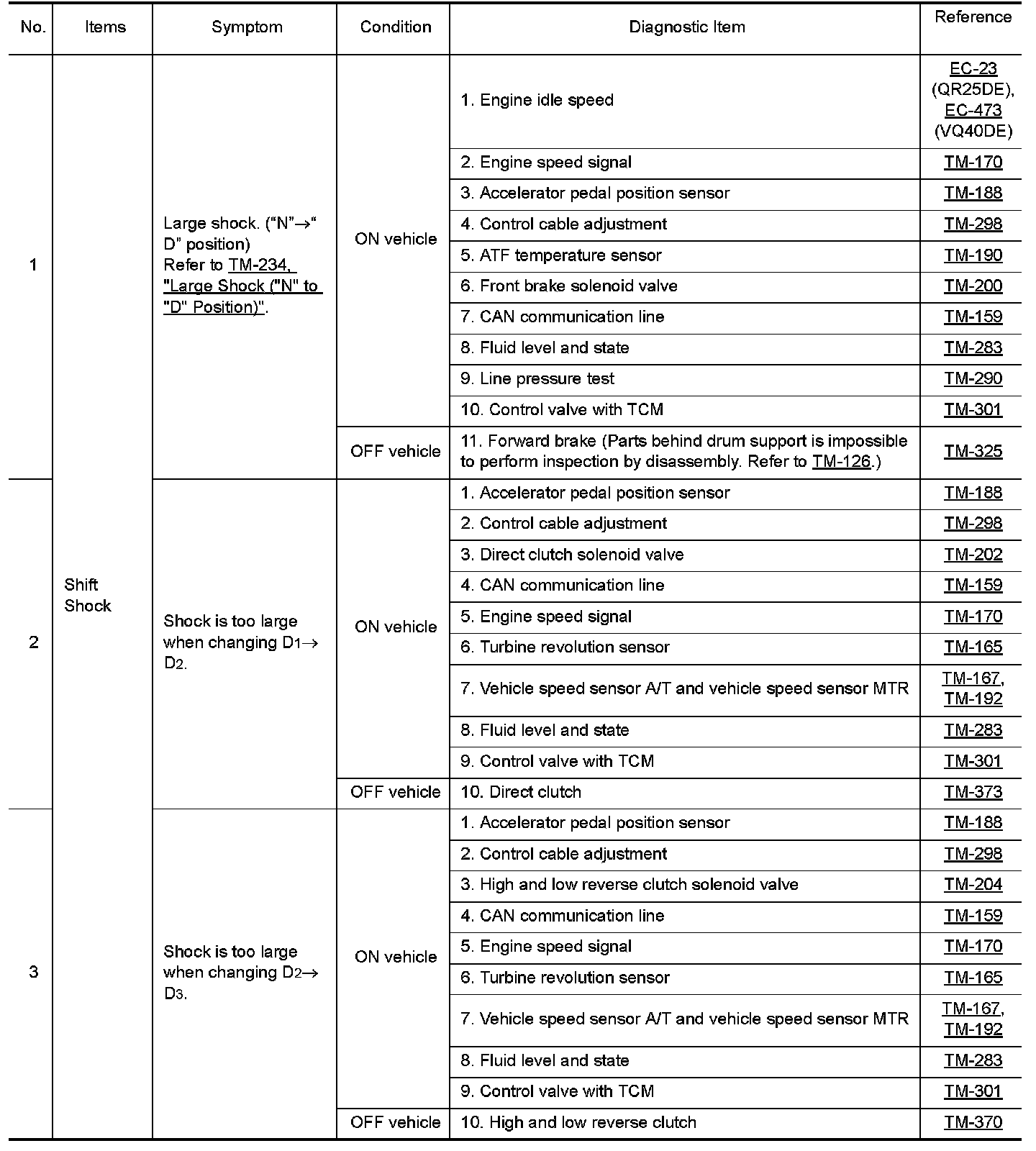

Symptom Chart (Part 4):

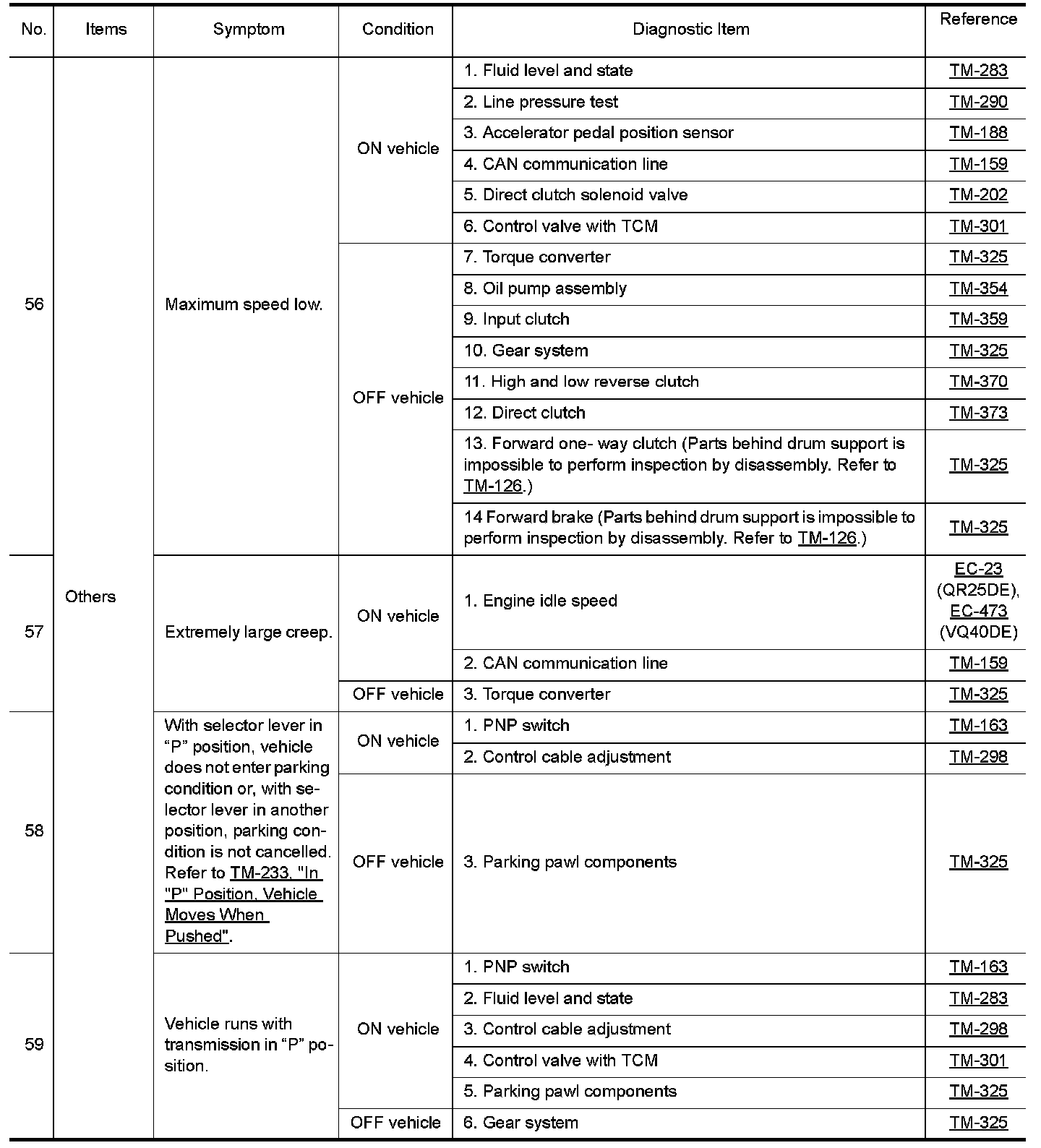

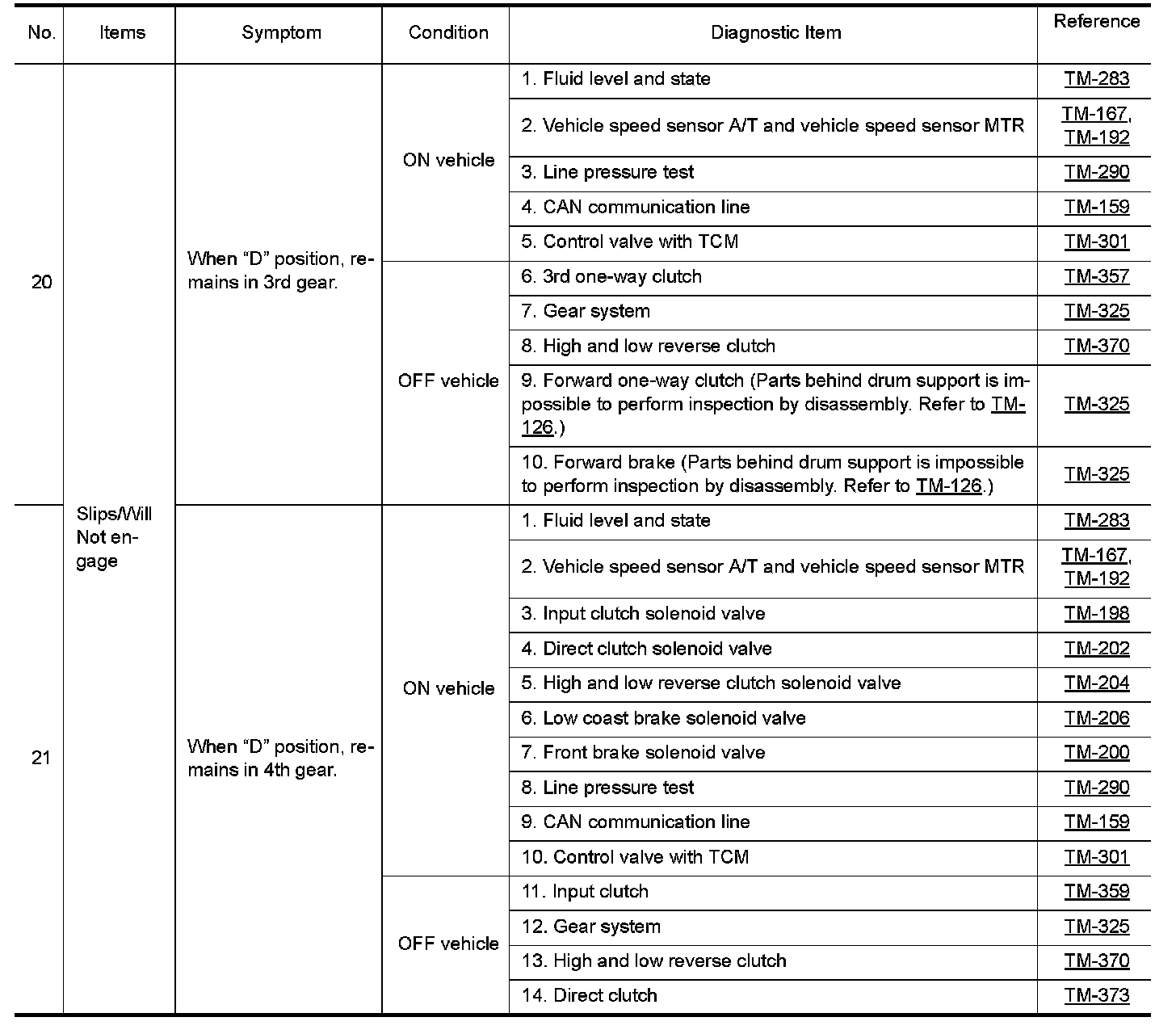

Symptom Chart (Part 5):

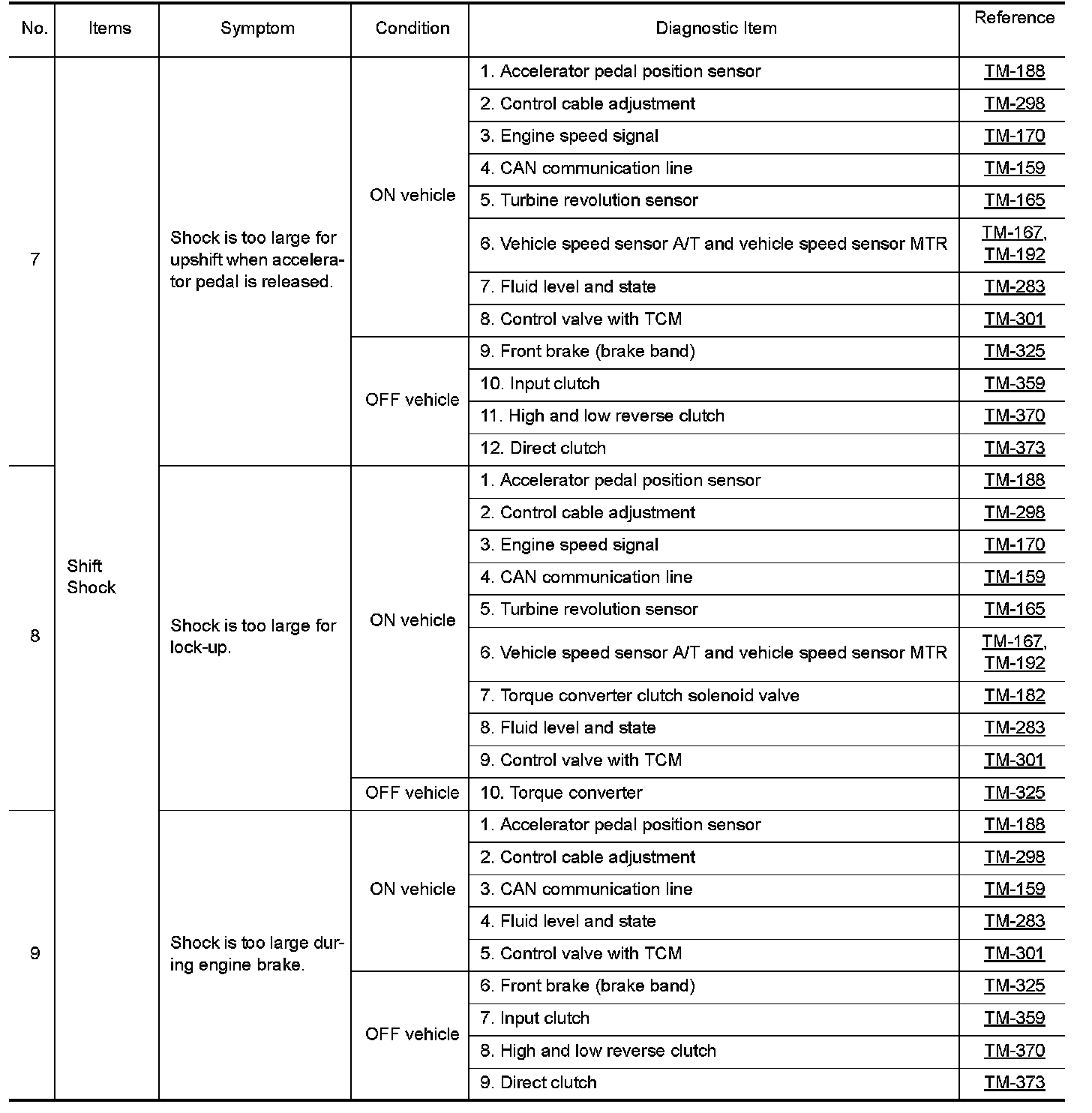

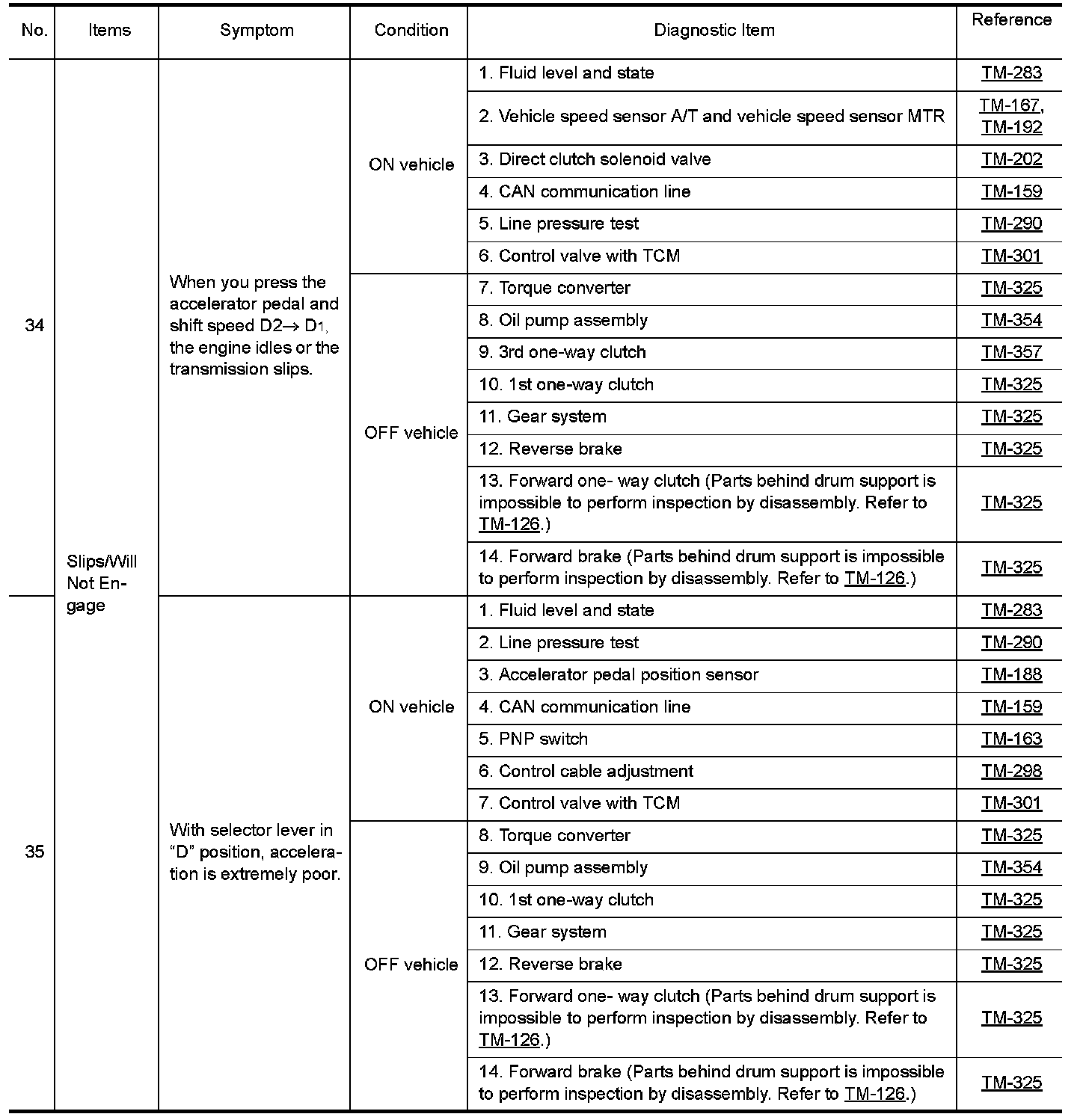

Symptom Chart (Part 6):

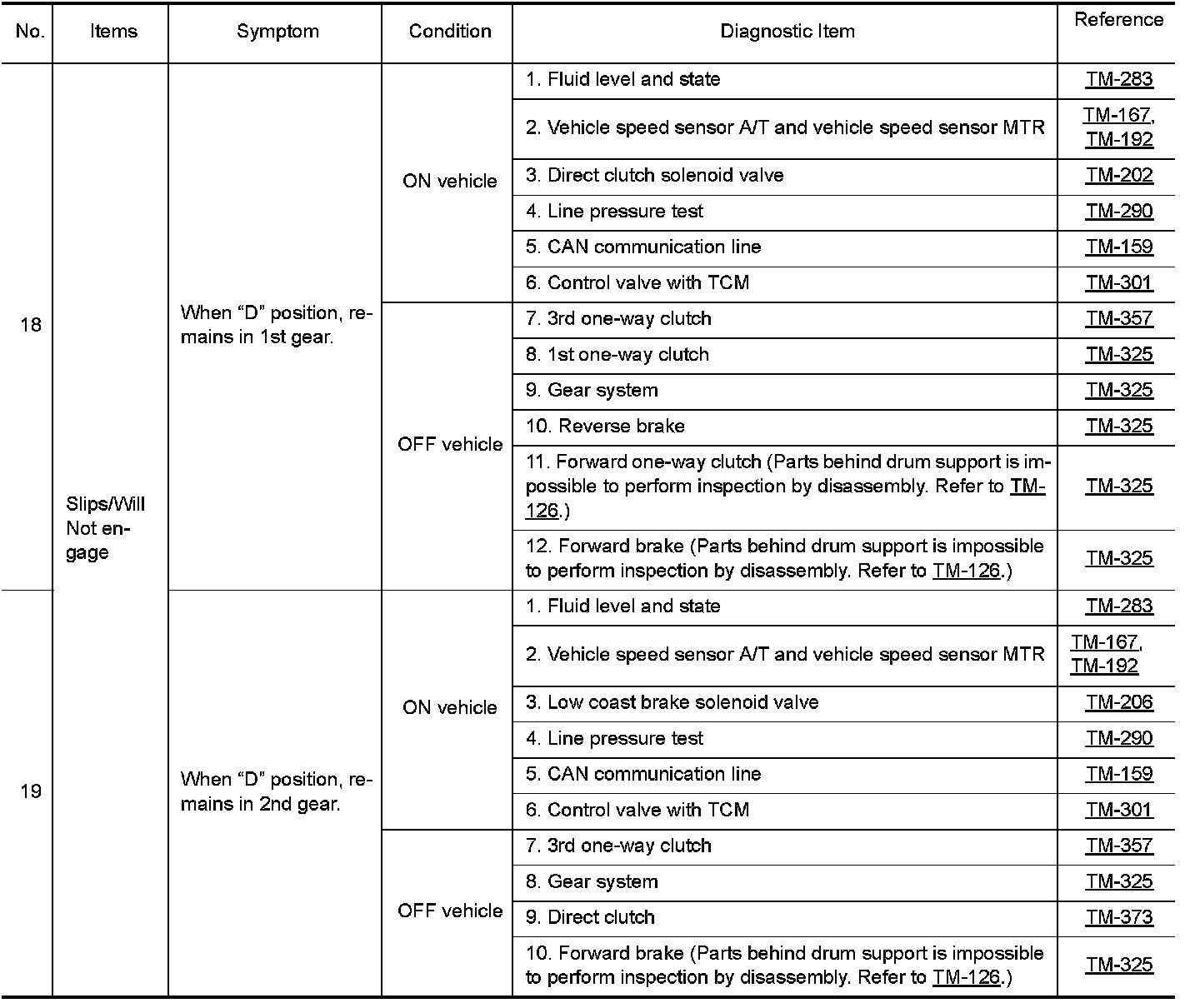

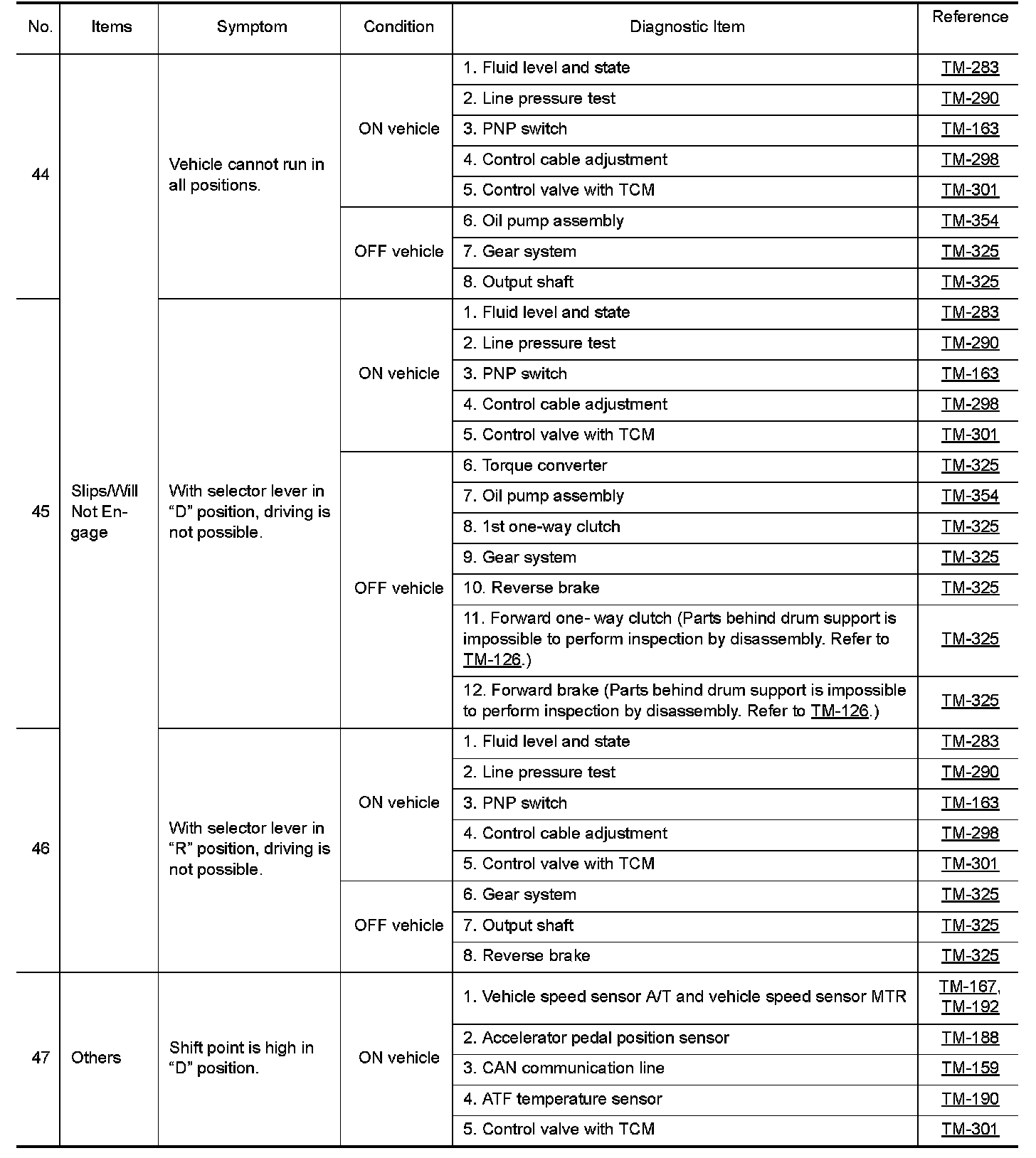

Symptom Chart (Part 7):

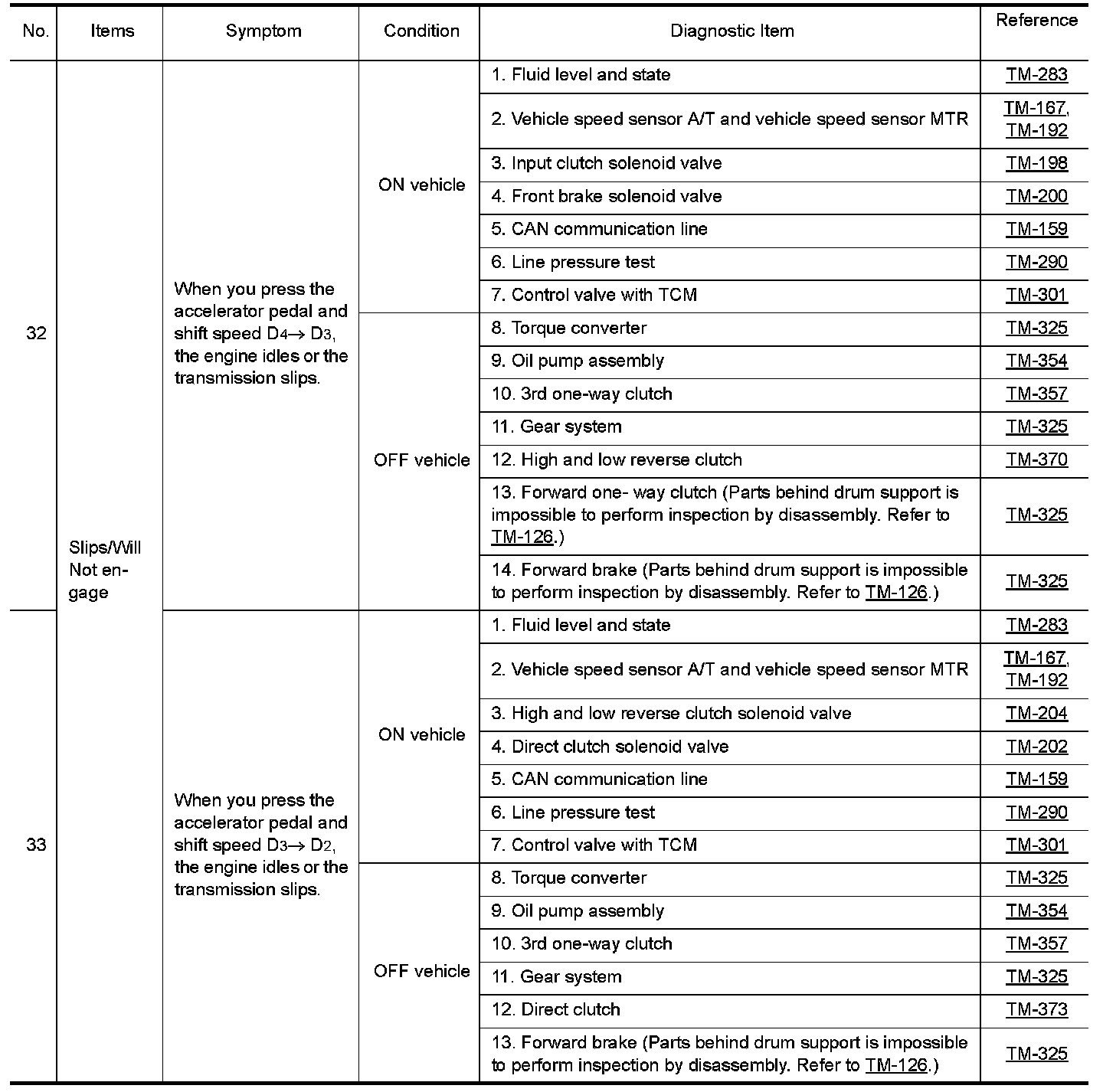

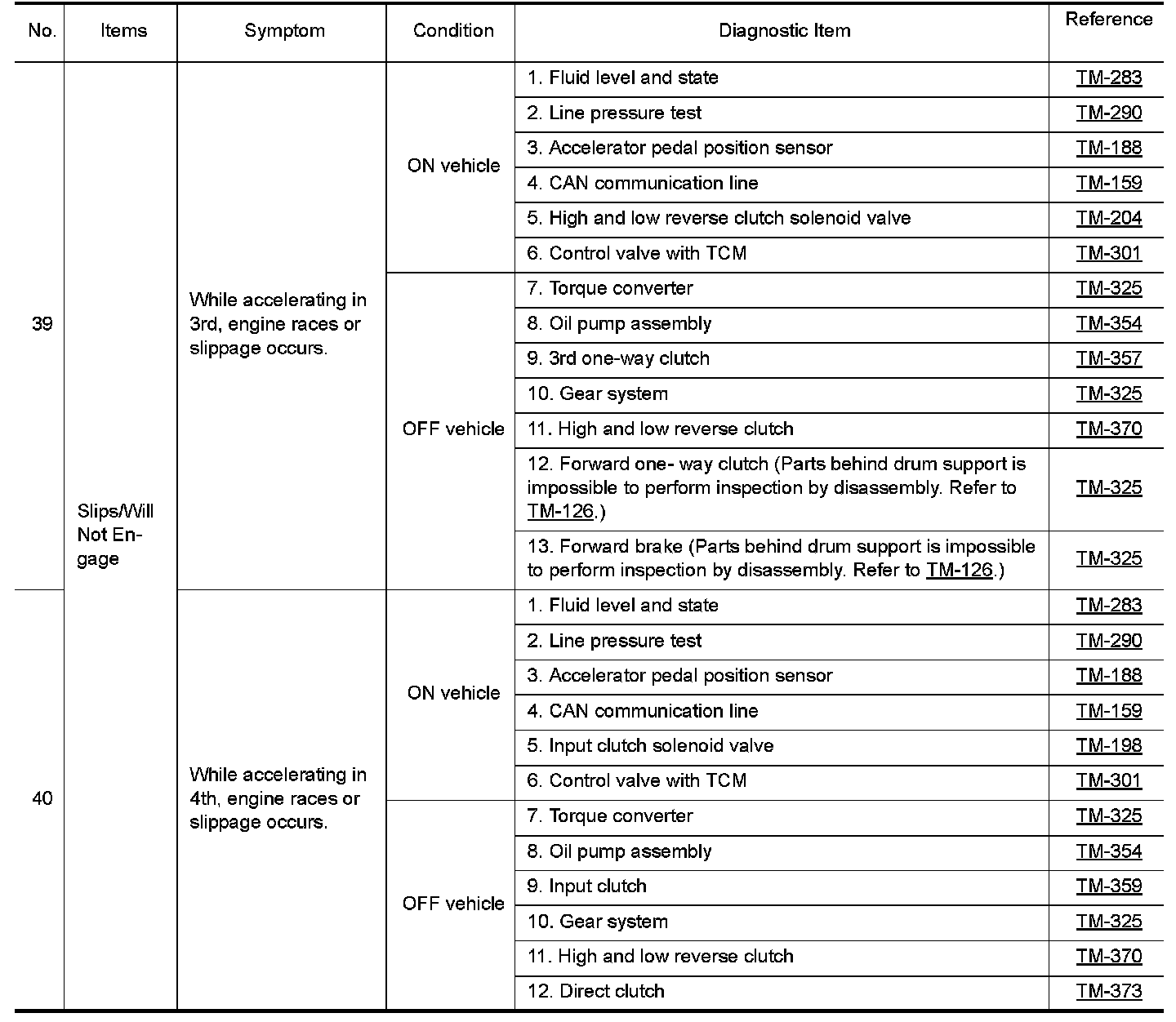

Symptom Chart (Part 8):

Symptom Chart (Part 9):

Symptom Chart (Part 10):

Symptom Chart (Part 11):

Symptom Chart (Part 12):

Symptom Chart (Part 13):

Symptom Chart (Part 14):

Symptom Chart (Part 15):

Symptom Chart (Part 16):

Symptom Chart (Part 17):

Symptom Chart (Part 18):

Symptom Chart (Part 19):

Symptom Chart (Part 20):

Symptom Chart (Part 21):
