With Color Display





CONTROL UNIT


Removal and Installation


A/C AND AV SWITCH ASSEMBLY FOR COLOR DISPLAY

Removal and Installation
The front A/C switch assembly is integrated into the A/C and AV switch assembly in cluster lid C. Refer to Audio Display Unit.

A/C AUTO AMP

Removal
1. Remove the audio unit. Refer to Bose W/ Color Display W/ NAVI.

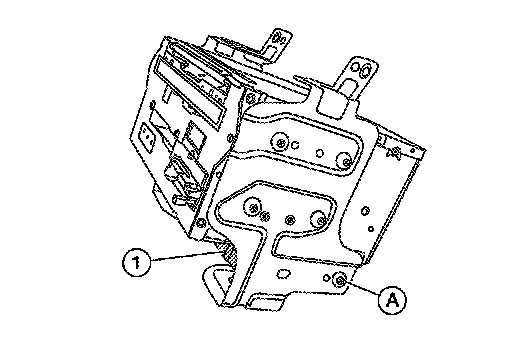

2. Remove the two A/C auto amp bracket screws (A).
3. Remove the A/C auto amp (1) from the bracket.

Installation
Installation is in the reverse order of removal.

REAR CONTROL SWITCH

Removal
1. Remove the rear cup holder from the rear seat armrest. Refer to With Climate Controlled Seats.

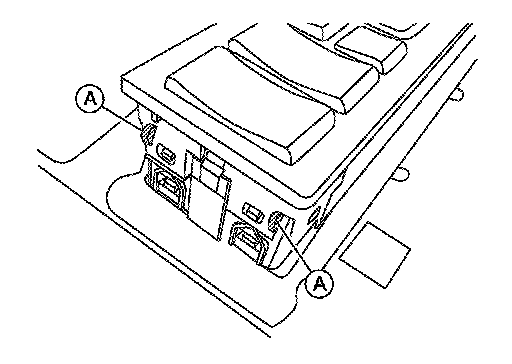

2. Release the two tabs (A) on the LH end of the rear control switch.
3. Unhook the RH end of the rear control switch and remove the rear control switch from the armrest.
4. Disconnect the rear control switch connectors and remove the rear control switch.

Installation
Installation is in the reverse order of removal.

REAR CONTROL CANCEL SWITCH

Removal
1. Remove the instrument panel lower cover (LH). Refer to Exploded View.
2. Remove the rear control cancel switch from the instrument panel lower cover (LH).

Installation
Installation is in the reverse order of removal.
