Radiator Support: Service and Repair

RADIATOR CORE SUPPORT


Removal and Installation


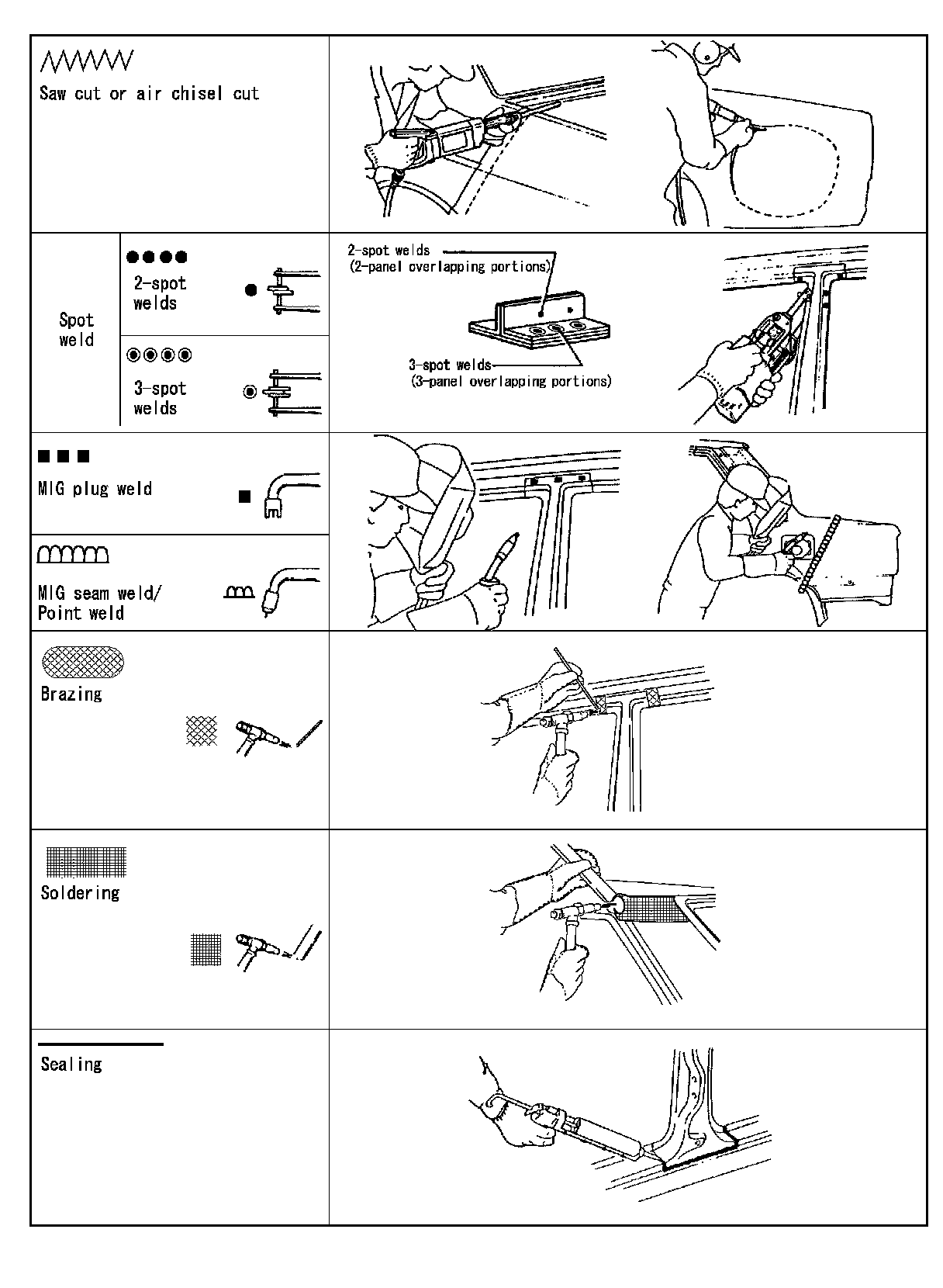

REMOVAL
1. Remove the hood. Refer to Service and Repair.
2. Remove the front bumper reinforcement. Refer to Service and Repair .
3. Remove the hood lock assembly. Refer to Service and Repair.
4. Remove the air duct. Refer to Removal And Installation (MR20DE) or Removal And Installation (QR25DE).
5. Remove both headlamps. Refer to Service and Repair .
6. Remove the crash zone sensor.
7. Remove the I-key buzzer.
8. Remove the horn. Refer to [1][2]Electrical Diagrams Service and Repair.
9. Remove the air guide and hood lock cable clip.
10. Remove the washer tank. Refer to Service and Repair.
11. Remove the radiator. Refer to Removal and Installation (MR20DE) or Removal and Installation (QR25DE).
12. Remove the AC condenser. Refer to Service and Repair.

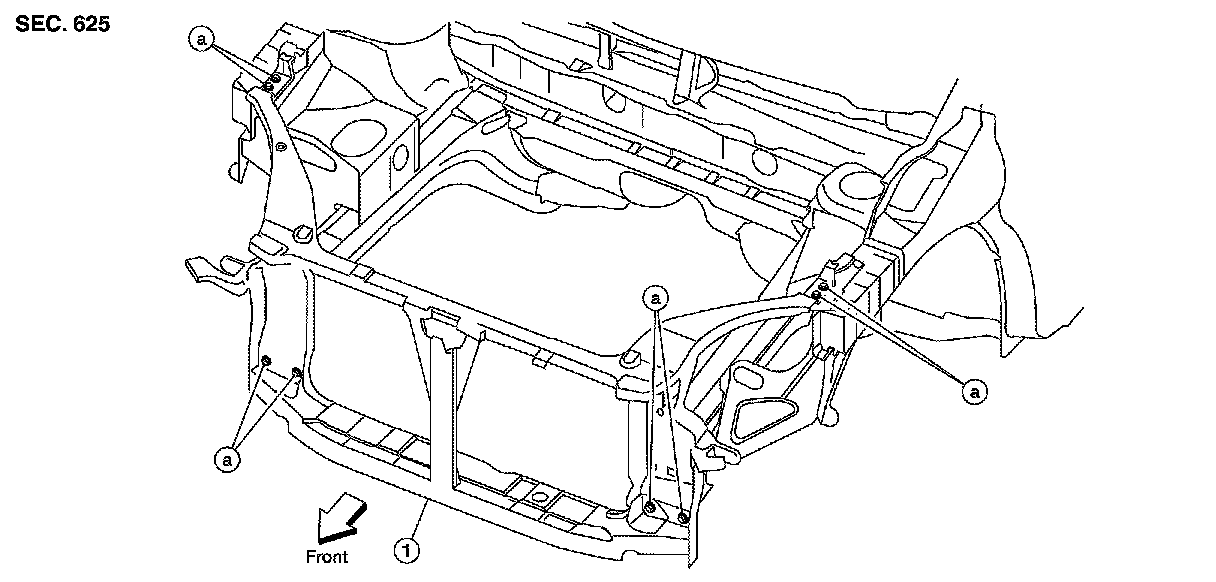

13. Remove the bolts (a) and the radiator core support (1).






INSTALLATION
Installation is in the reverse order of removal.
