System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

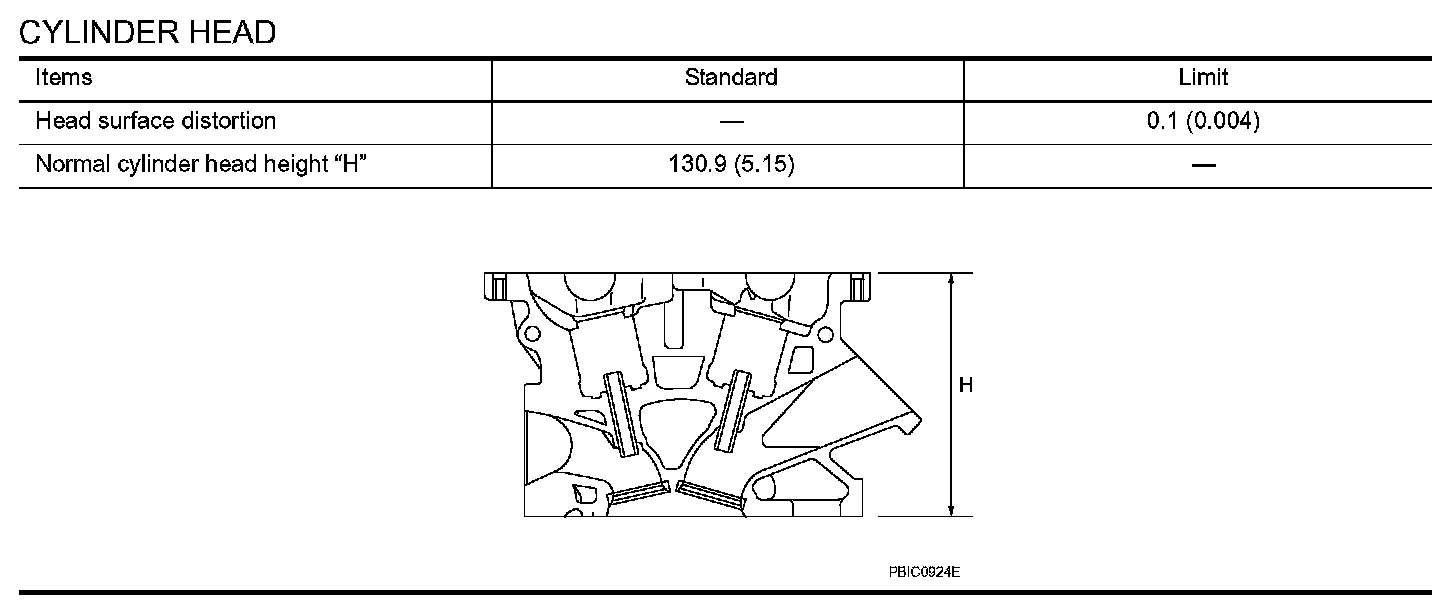

CYLINDER HEAD

Valve Dimensions

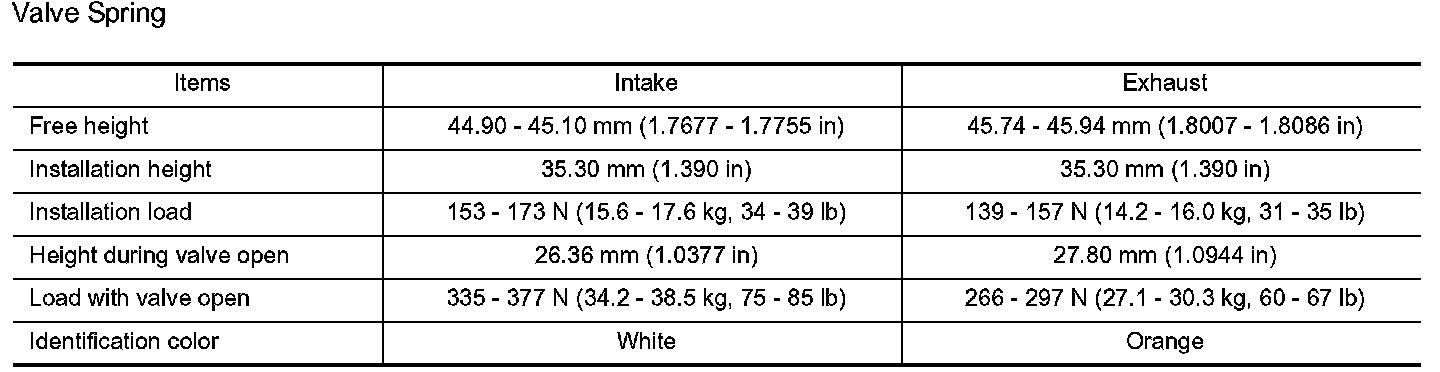

Valve Spring

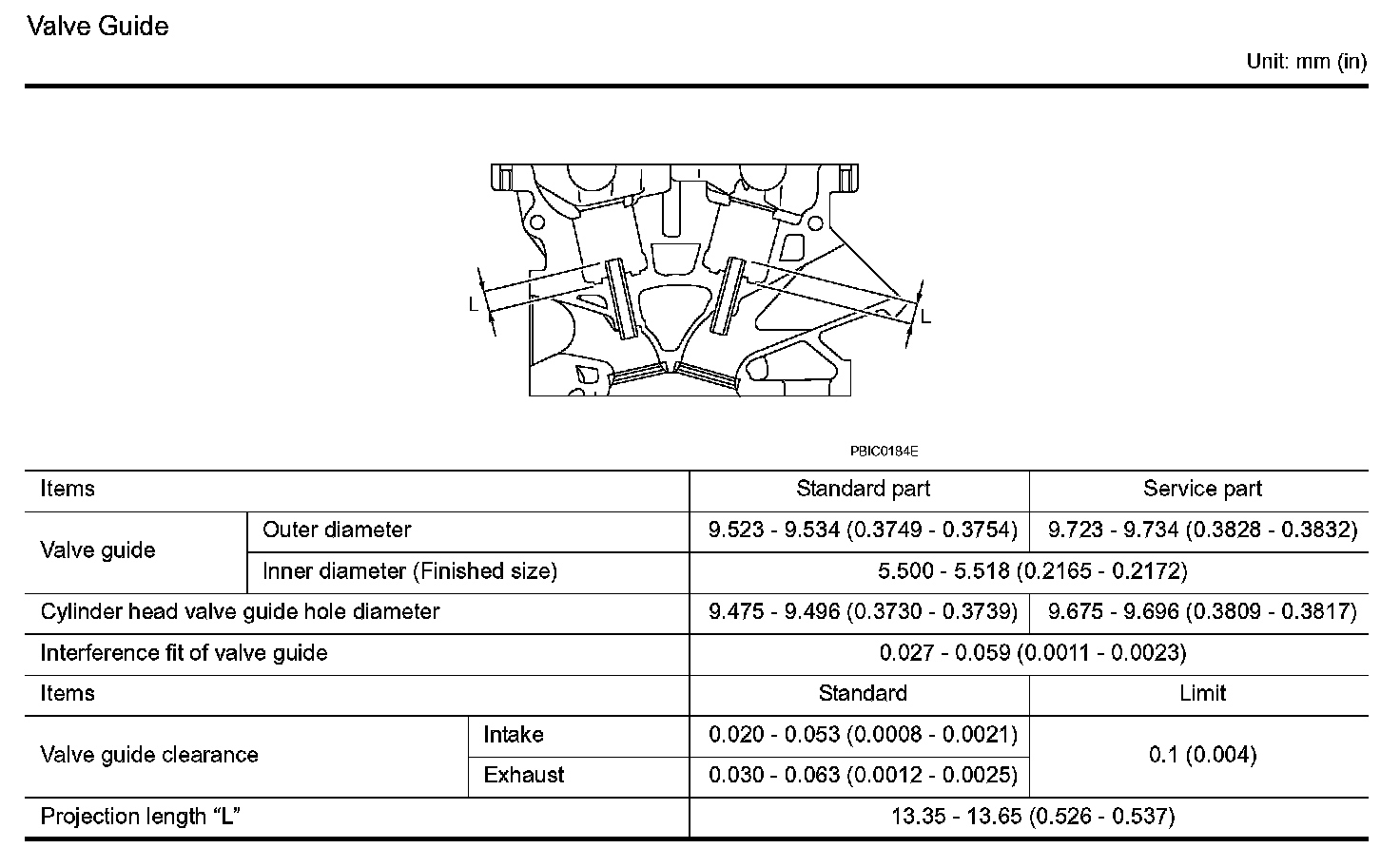

Valve Guide

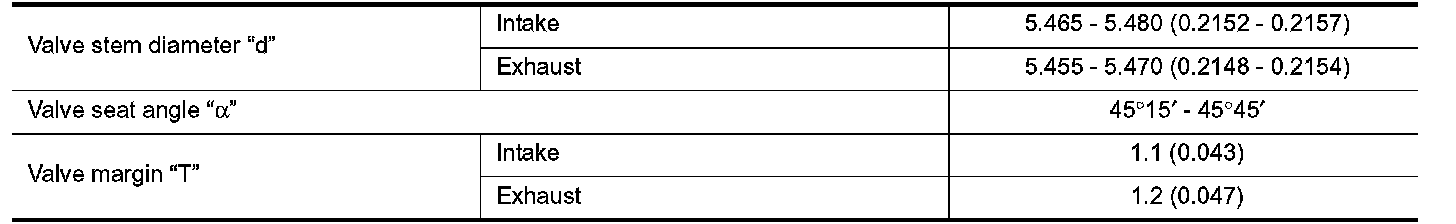

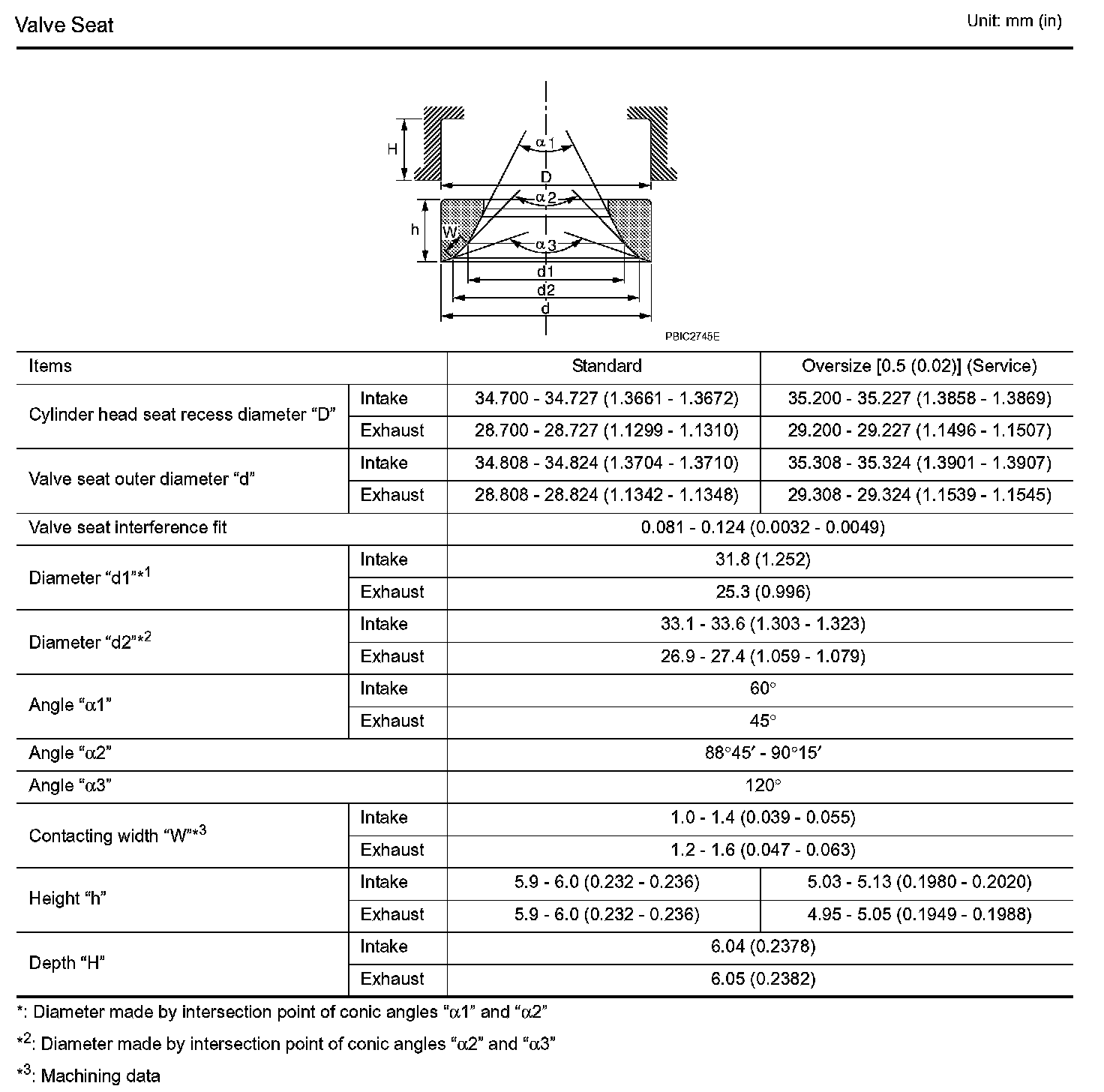

Valve Seat

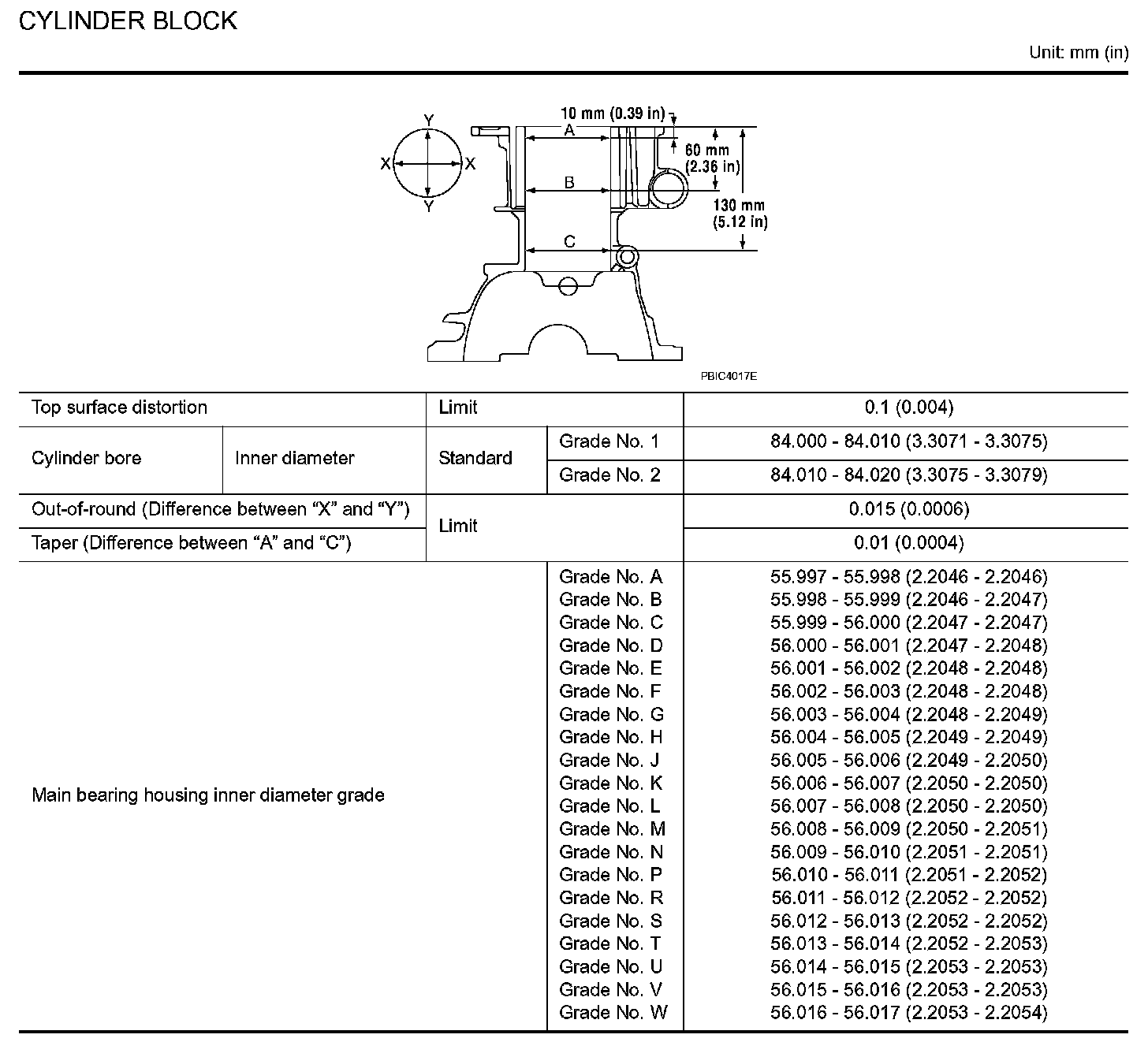

CYLINDER BLOCK

Available Piston

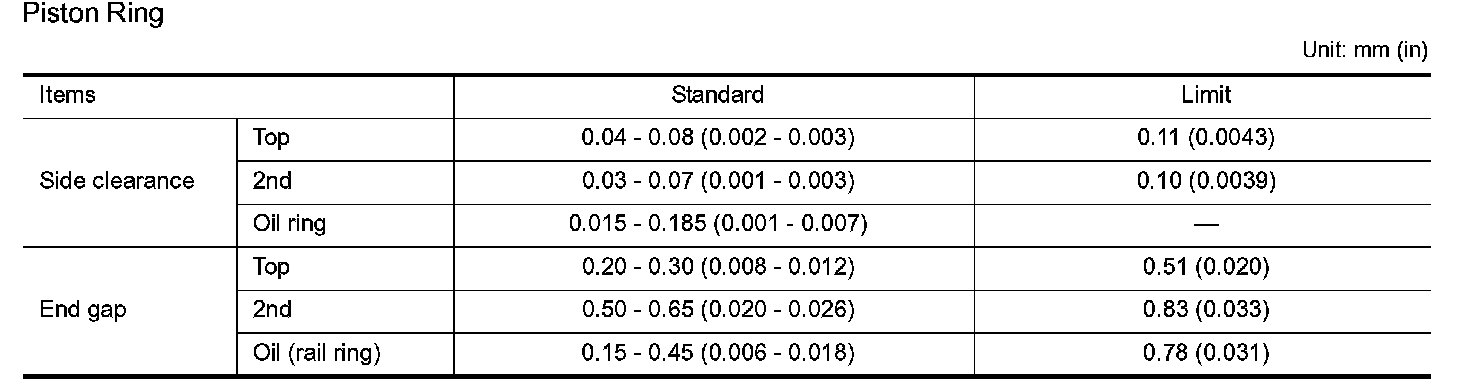

Piston Ring

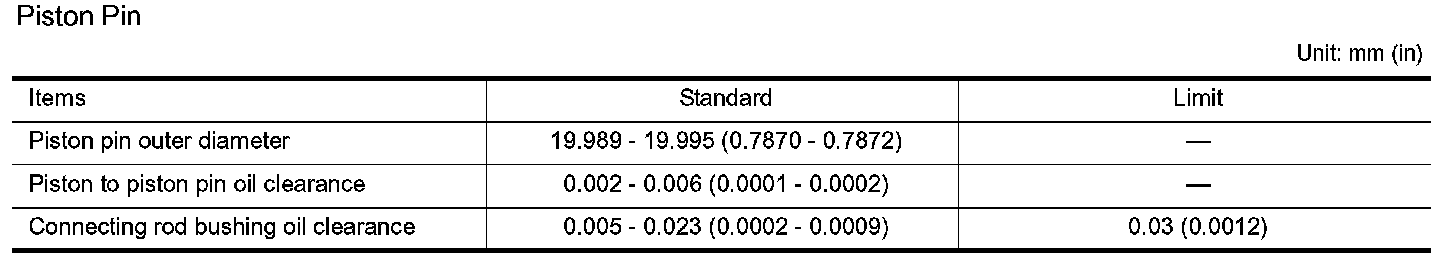

Piston Pin

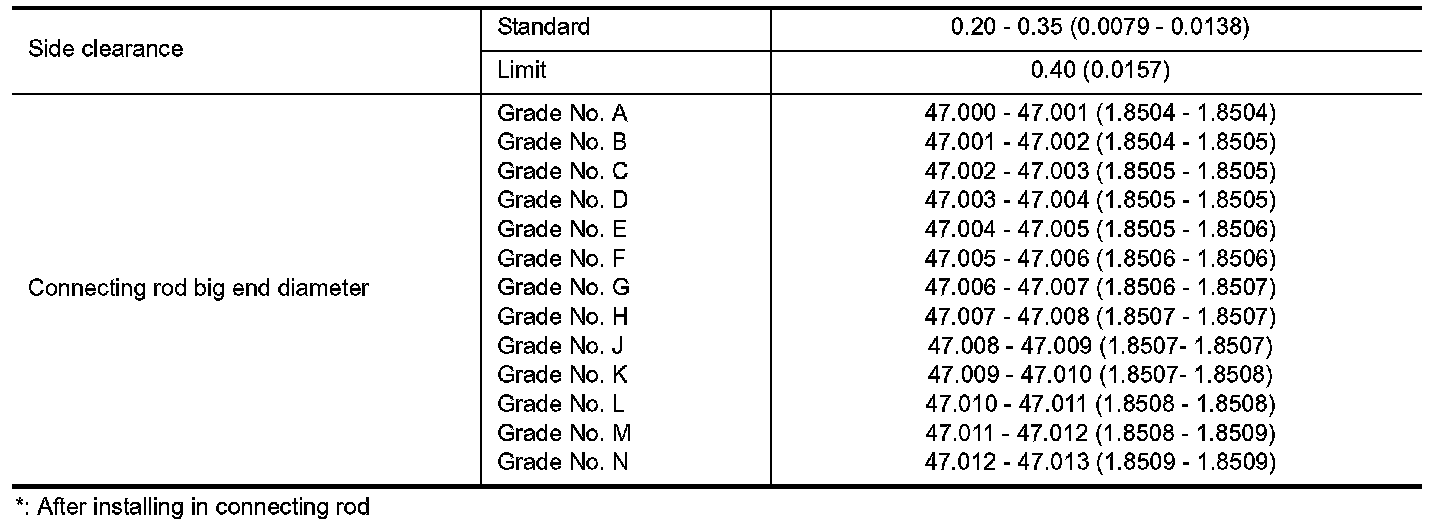

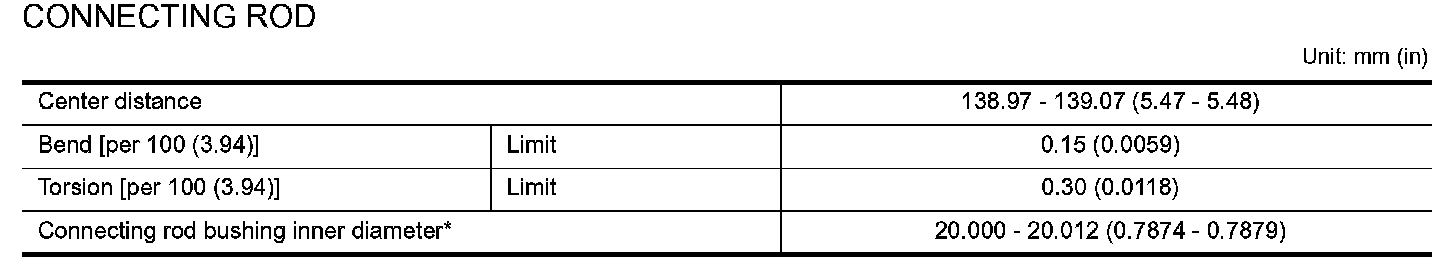

CONNECTING ROD

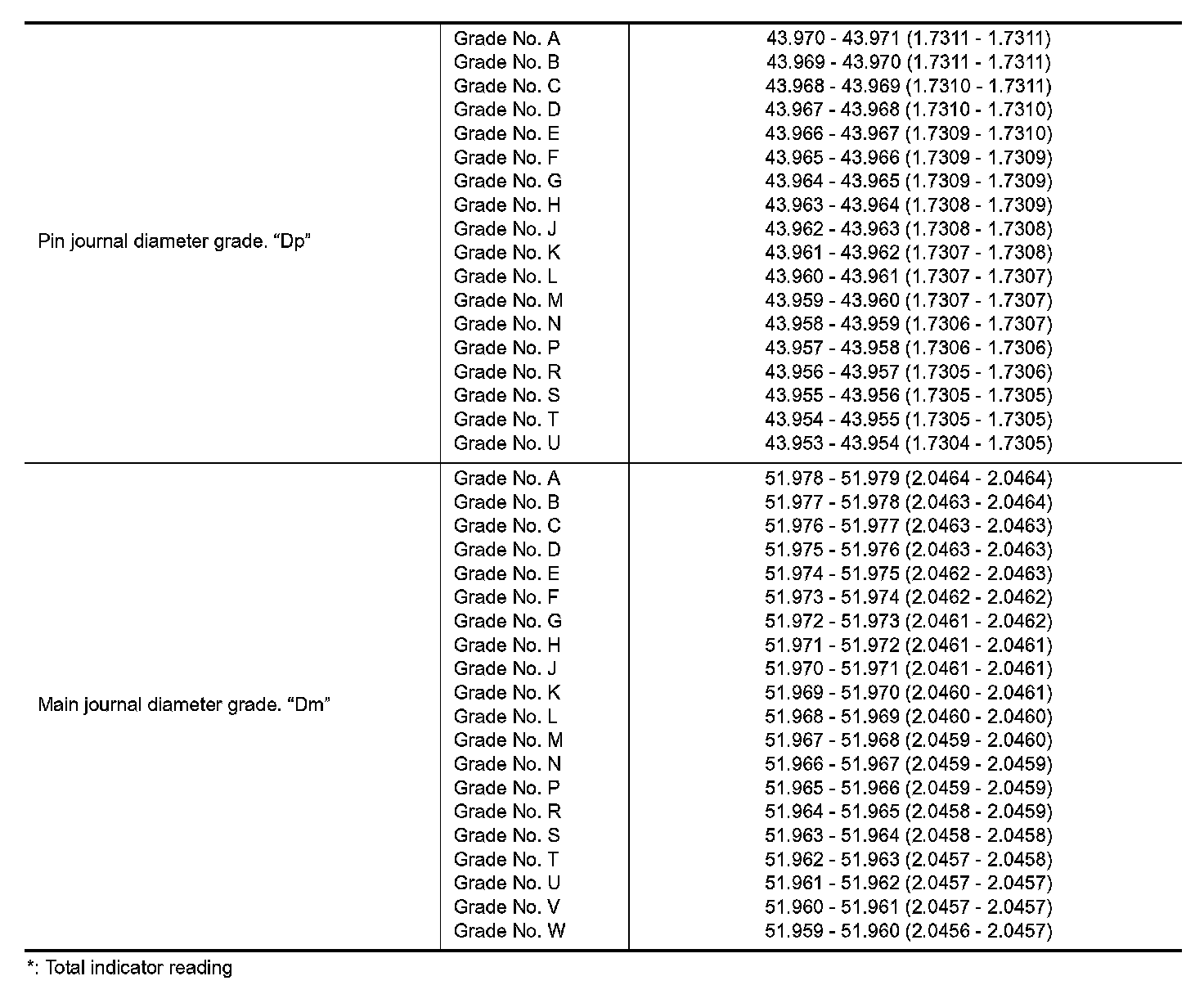

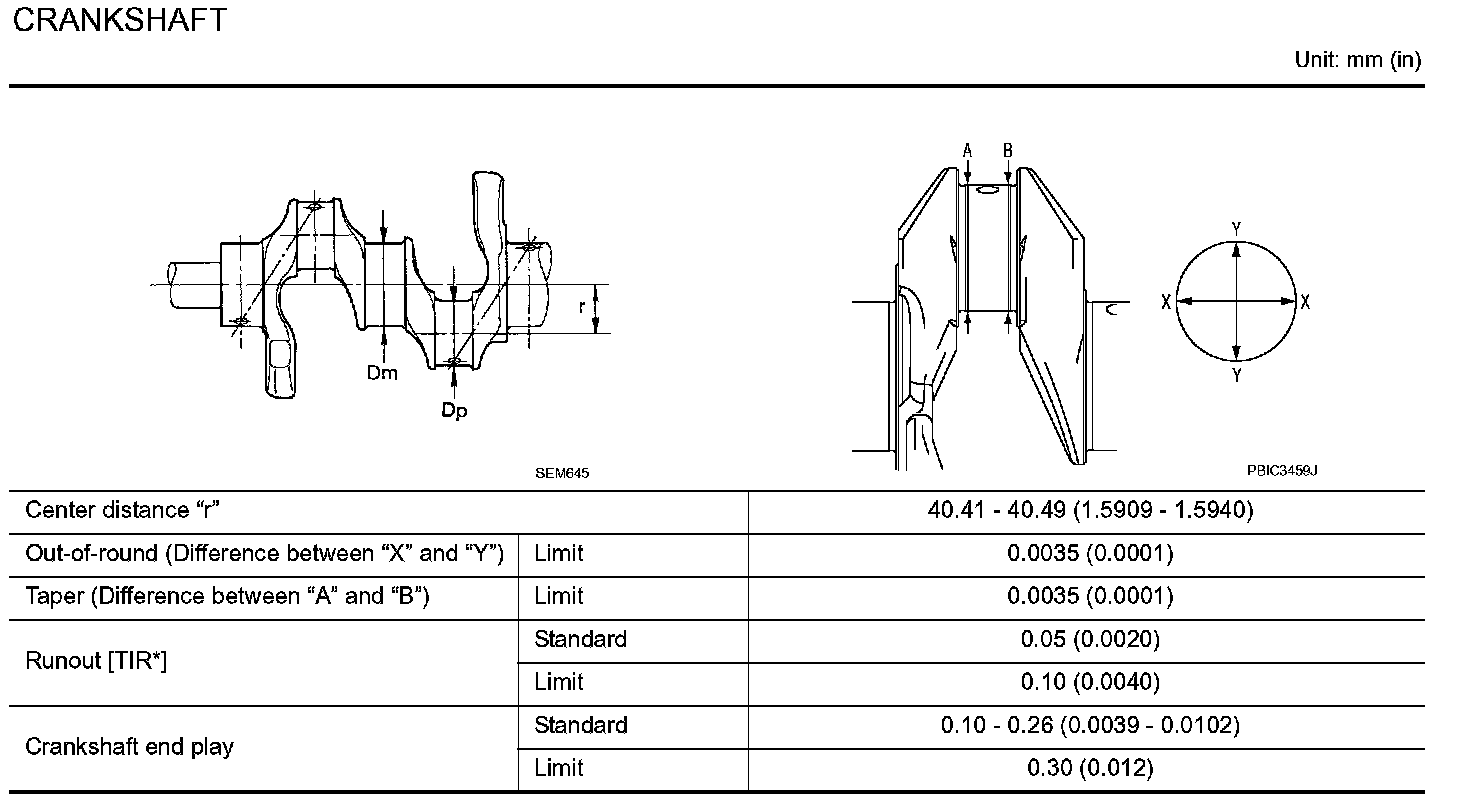

CRANKSHAFT

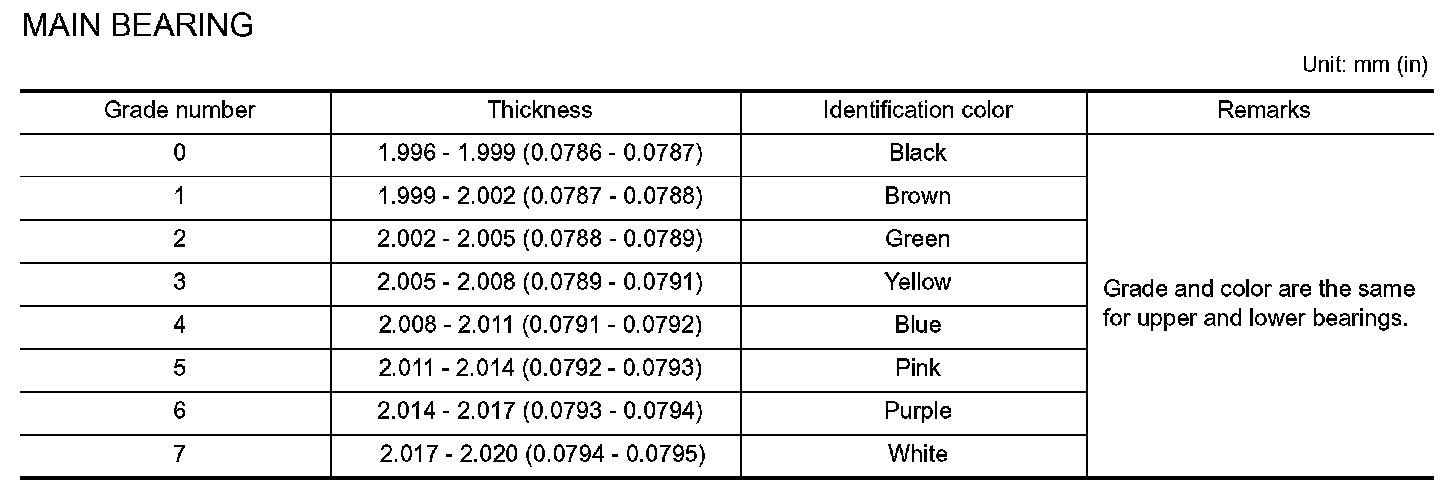

MAIN BEARING

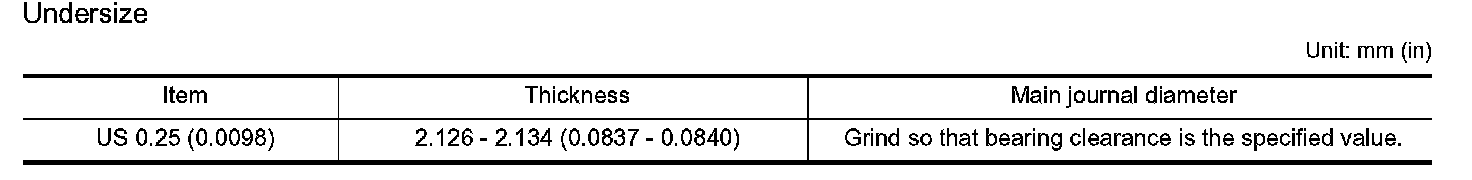

Undersize

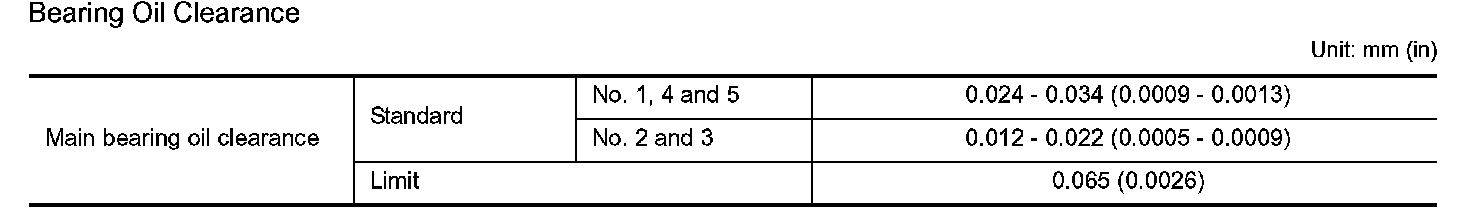

Bearing Oil Clearance

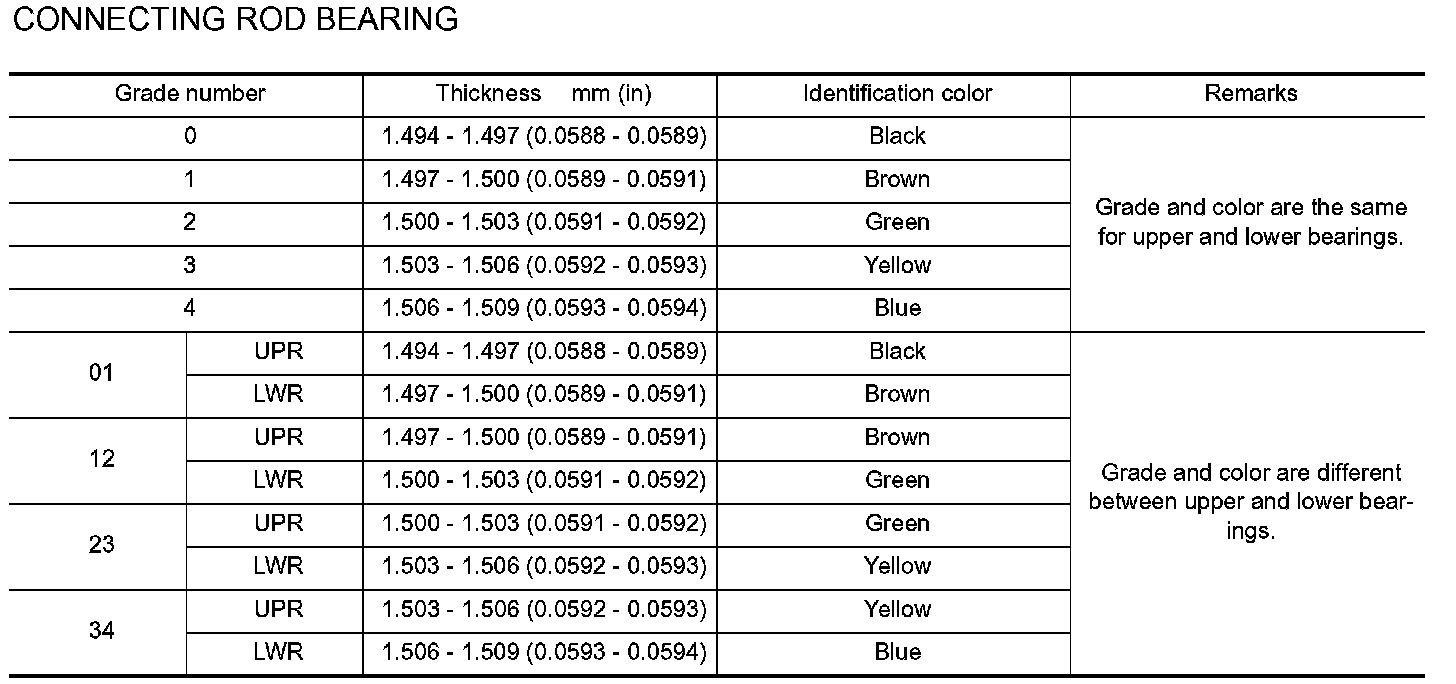

CONNECTING ROD BEARING

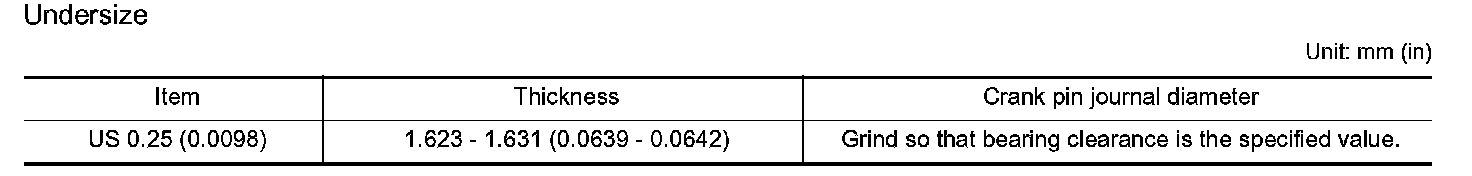

Undersize

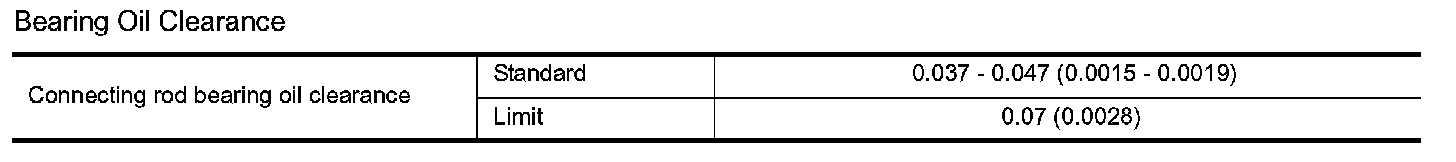

Bearing Oil Clearance

Main Bearing Cap

Tighten main bearing cap bolts in two steps.

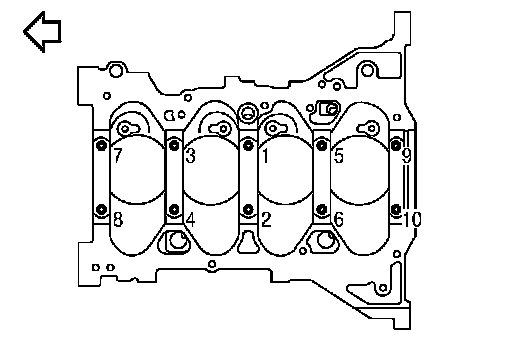

NOTE: Tighten main bearing cap bolts in numerical order as shown:

Arrow Indicates Engine Front

Crankshaft Pulley

Tighten crankshaft pulley bolt in three steps.
