System Specifications

CYLINDER HEAD





Valve Dimensions









Valve Spring






Valve Guide






Valve Seat






Cylinder Head

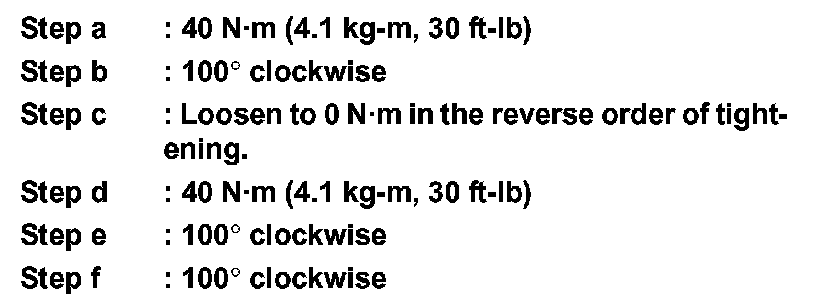

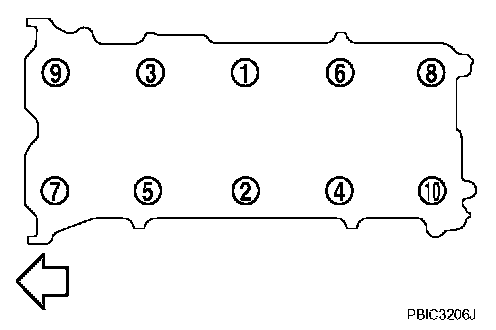

Install cylinder head, follow the steps below to tighten cylinder head bolts in numerical order as shown.





Arrow Indicates Engine Front

Intake Manifold

Except For California

Torque: 19.6 N.m (2.0 Kg-m, 14 ft-lb)






Tighten bolts in numerical order as shown.

Arrow Indicates Engine front


For California


Torque: 19.6 N.m (2.0 Kg-m, 14 ft-lb)






Loosen bolts in reverse order as shown.

Arrow Indicates Engine Front

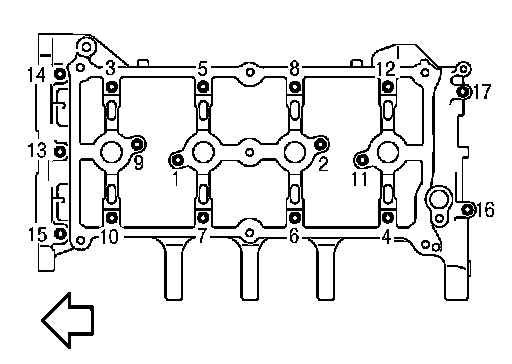

Camshaft Bearing Cap





Arrow Indicates Engine Front.

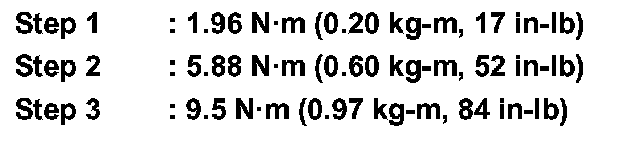

Tighten all bolts in numerical order in three steps.





Camshaft Gear/Sprocket

Camshaft sprocket bolt (INT) : 35.0 N.m (3.6 kg-m, 26 ft-lb)

Camshaft sprocket bolt (EXH) : 88.2 N.m (9.0 kg-m, 65 ft-lb)

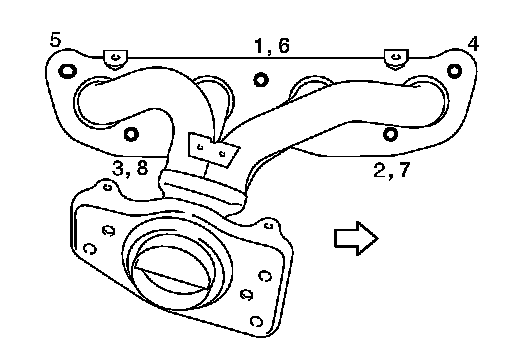

Exhaust Manifold

Except For California

Torque: 33.4 N.m (3.4 Kg-m, 25 ft-lb)







Tighten exhaust manifold nuts to specification in two stages in the numerical order as shown.

Arrow Indicates Engine Front


For California

Torque: 33.4 N.m (3.4 Kg-m, 25 ft-lb)







Tighten exhaust manifold nuts to specification in two stages in the numerical order as shown.

Arrow Indicates Engine Front
