Flywheel/Flex Plate
Drive PlateTorque: 108 N.m (11 Kg-m, 80 ft-lb)
Position

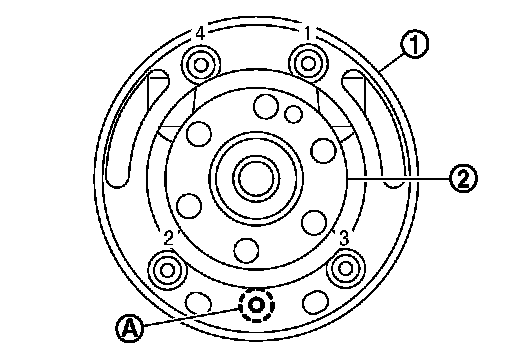

crankshaft (2) and signal plate (1) using a dowel pin (service part), and tighten bolts in numerical order as shown.
A : Dowel pin hole
NOTE: Dowel pin of
crankshaft and signal plate is provided as a set for each.
Flywheel M/TTorque: 108 N.m (11 Kg-m, 80 ft-lb)
Tighten bolts crosswise over several times.
