Alternator: Service and Repair





CHARGING SYSTEM

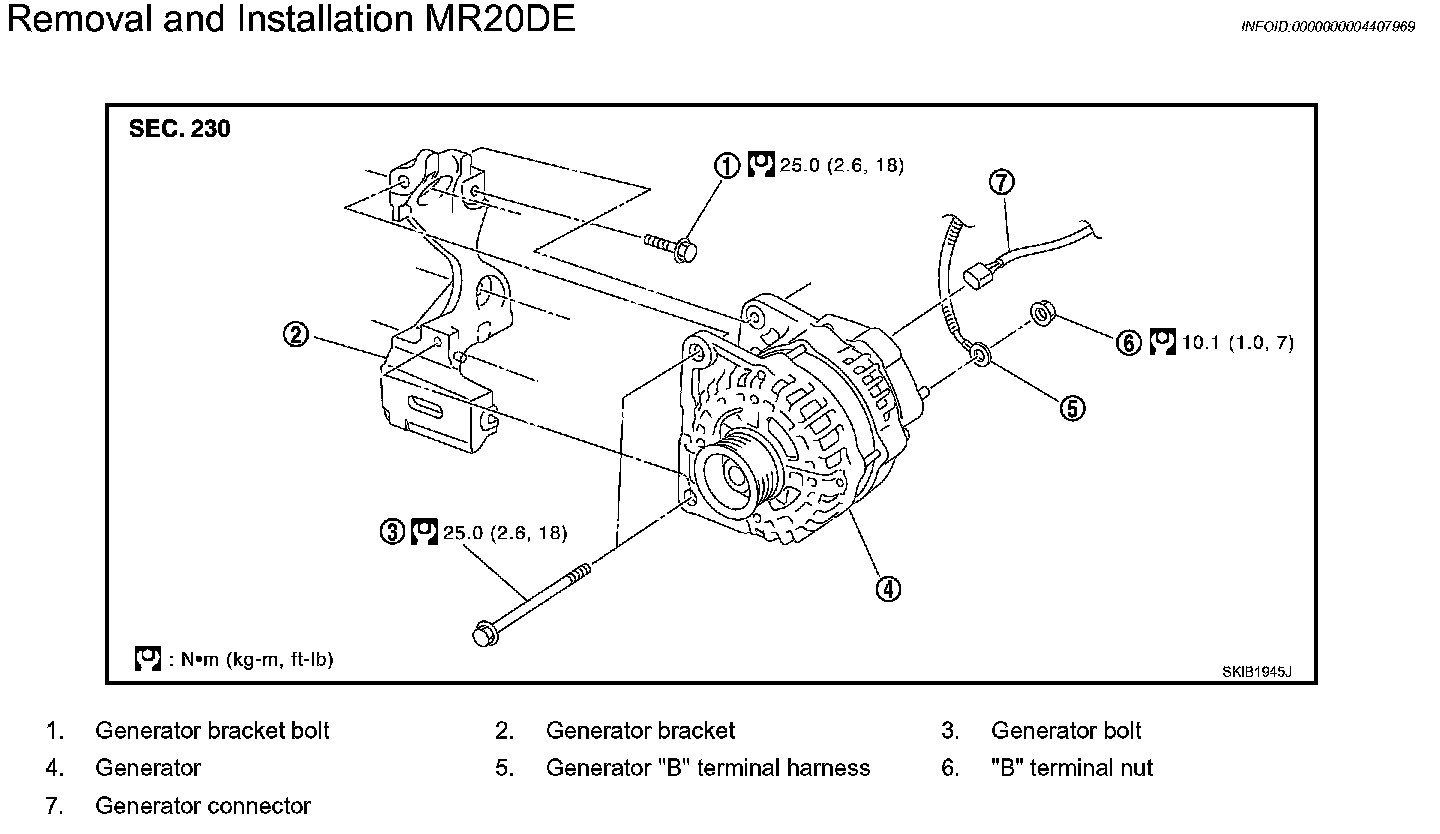

Removal and Installation MR20DE







REMOVAL
1. Disconnect the battery negative terminal. Refer to Removal and Replacement.
2. Remove drive belt. Refer to Removal and Installation.
3. Disconnect generator connector.
4. Remove "B" terminal nut.
5. Remove generator bolts.
6. Remove generator assembly from the vehicle.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
Be sure to tighten "B" terminal nut carefully.
