CONSULT-III Function





TROUBLE DIAGNOSIS


CONSULT-III Function (ENGINE)


FUNCTION

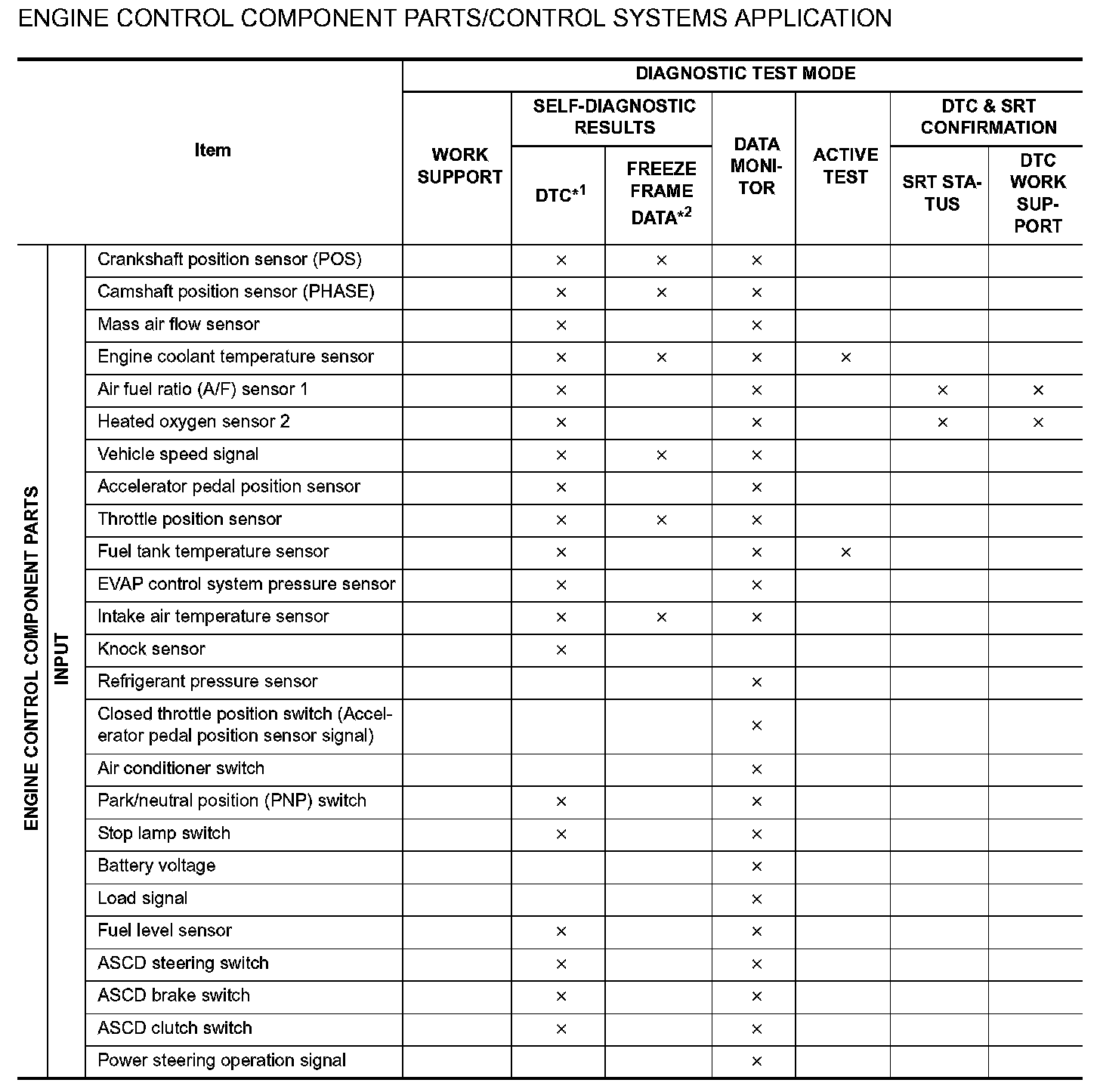

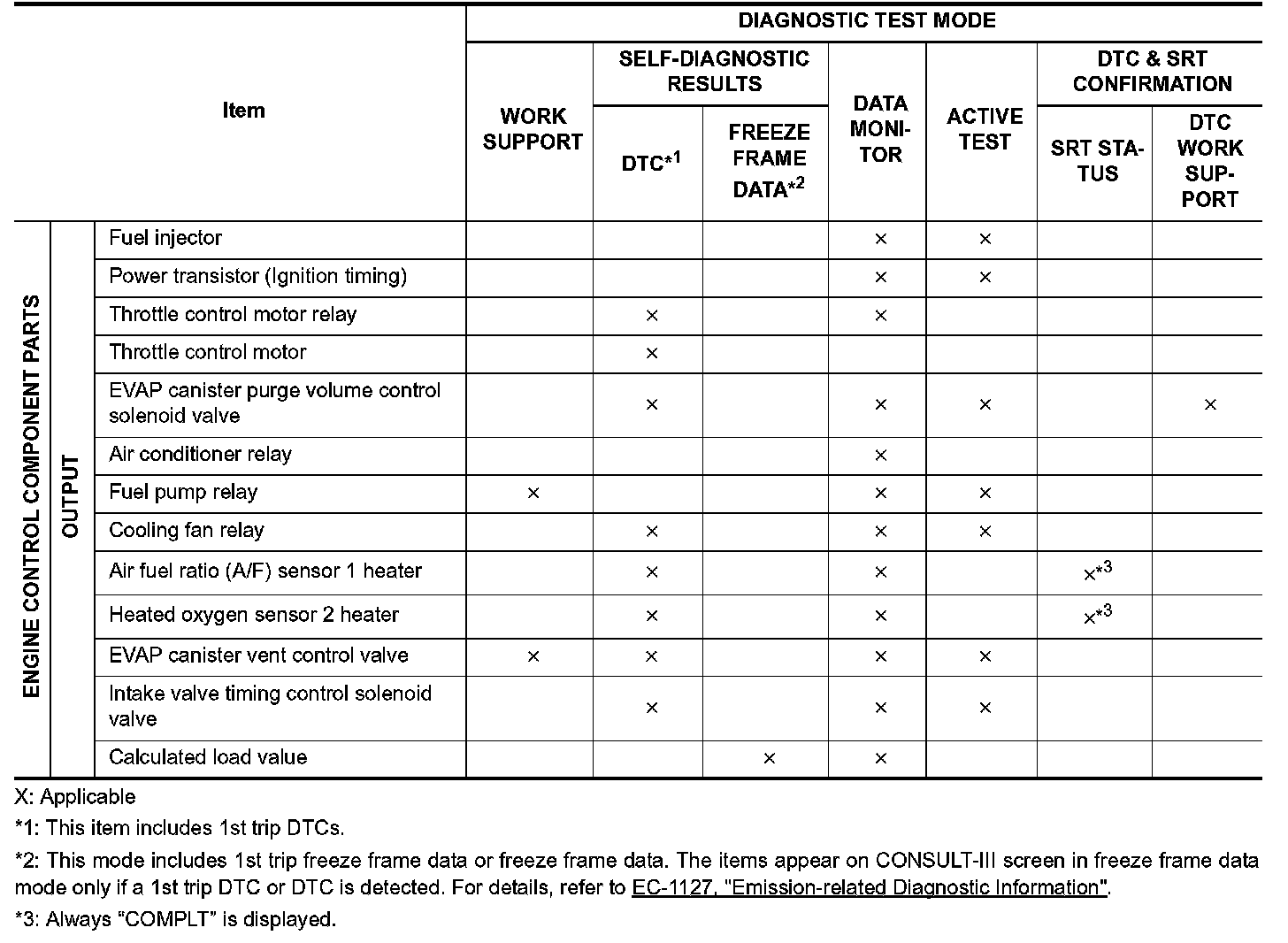

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION











WORK SUPPORT MODE

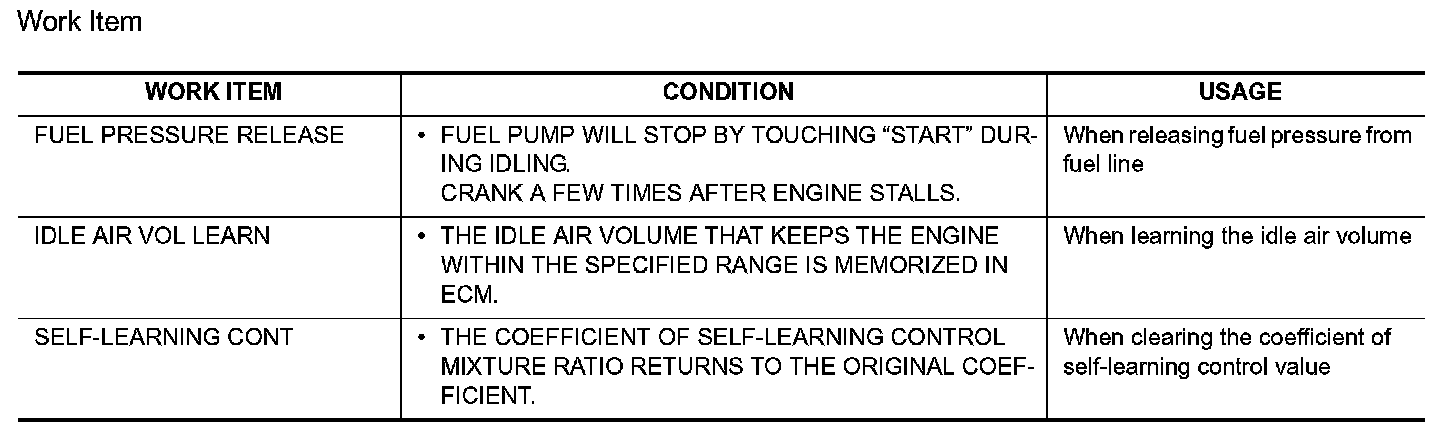

Work Item











SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to Emission-Related Diagnostic Information.

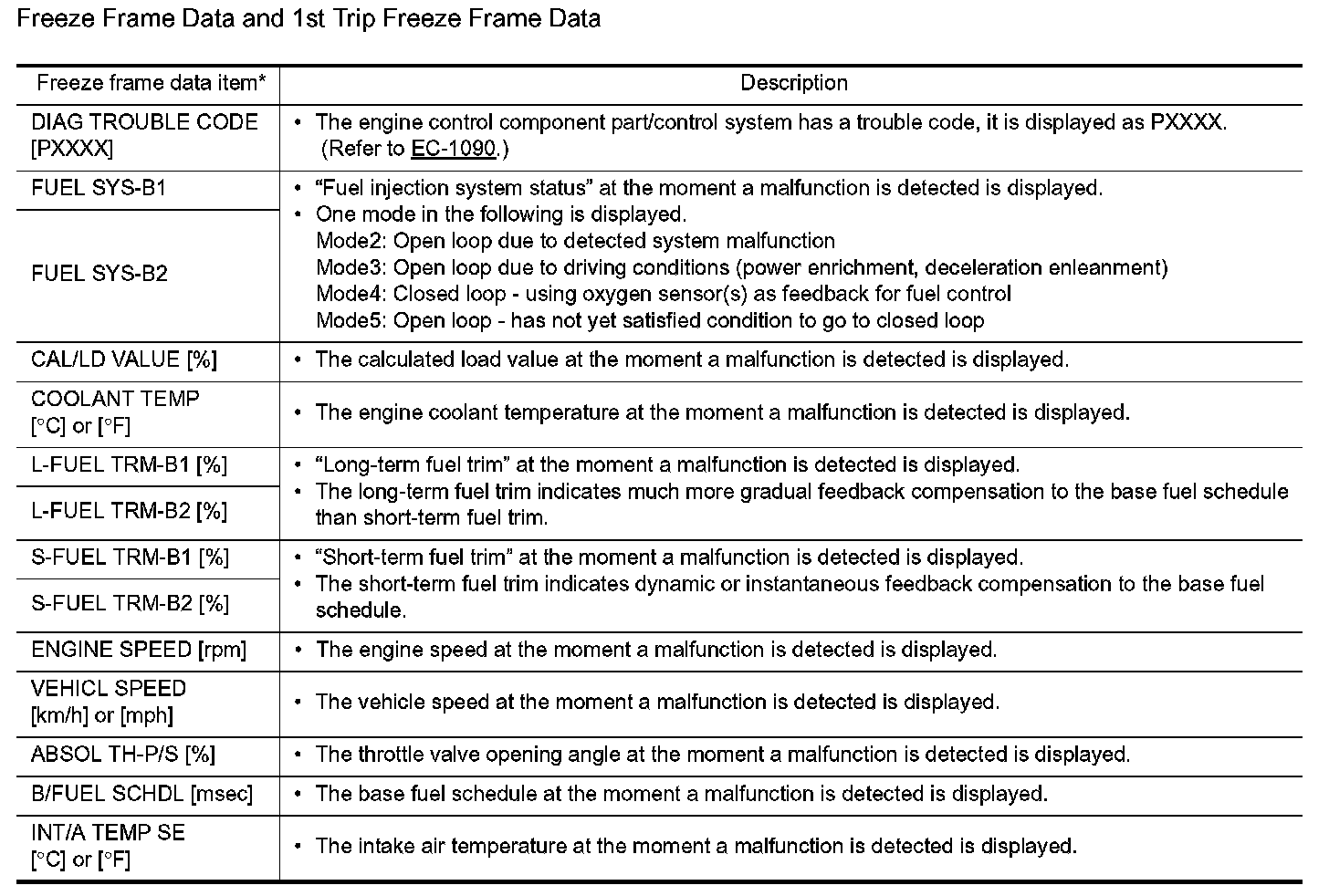

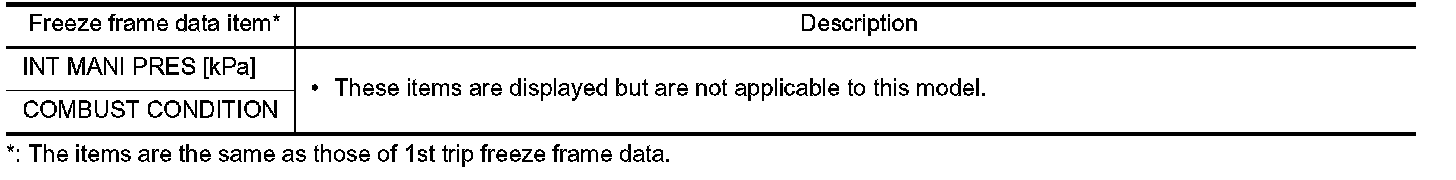

Freeze Frame Data and 1st Trip Freeze Frame Data











DATA MONITOR MODE

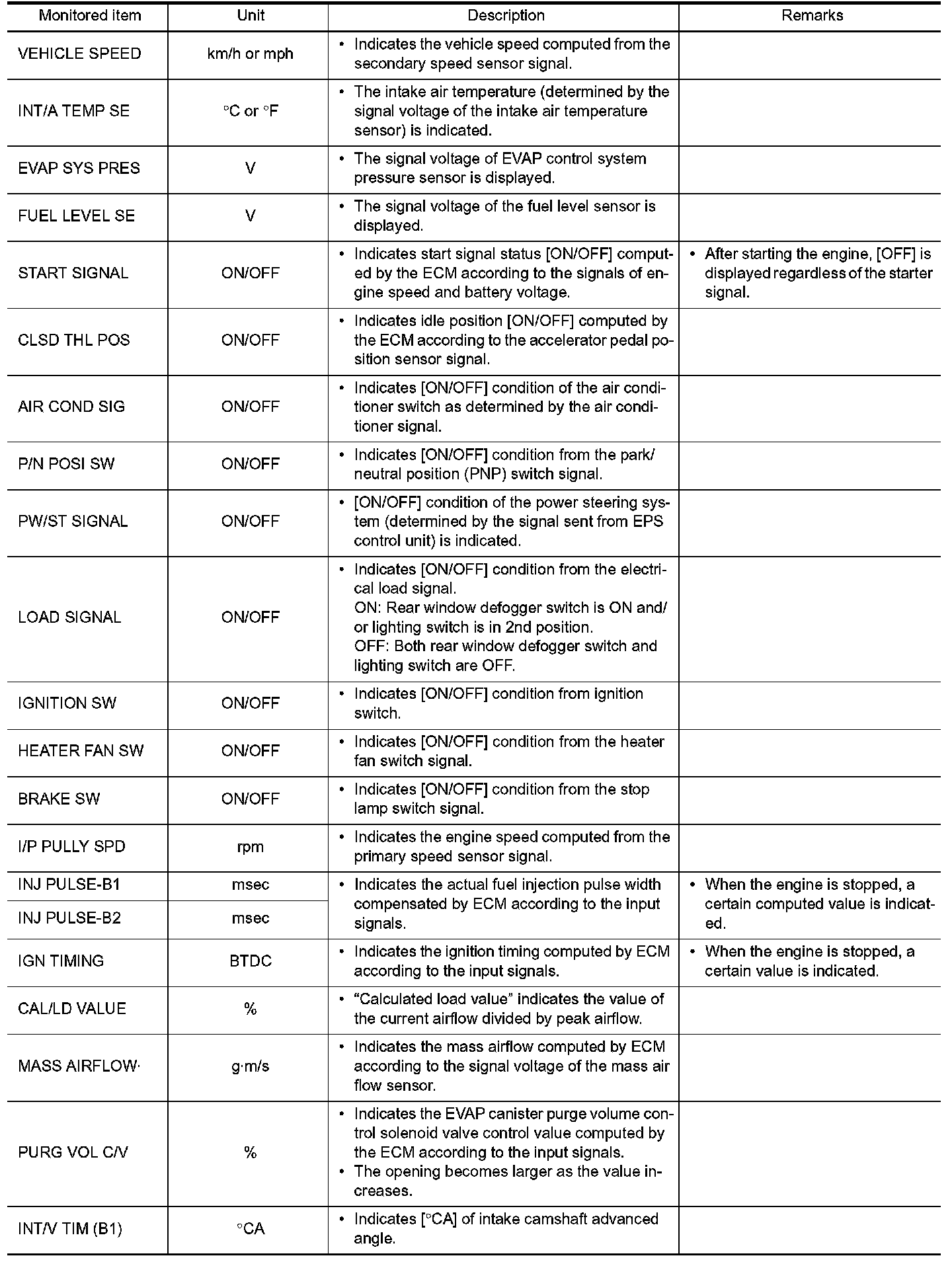

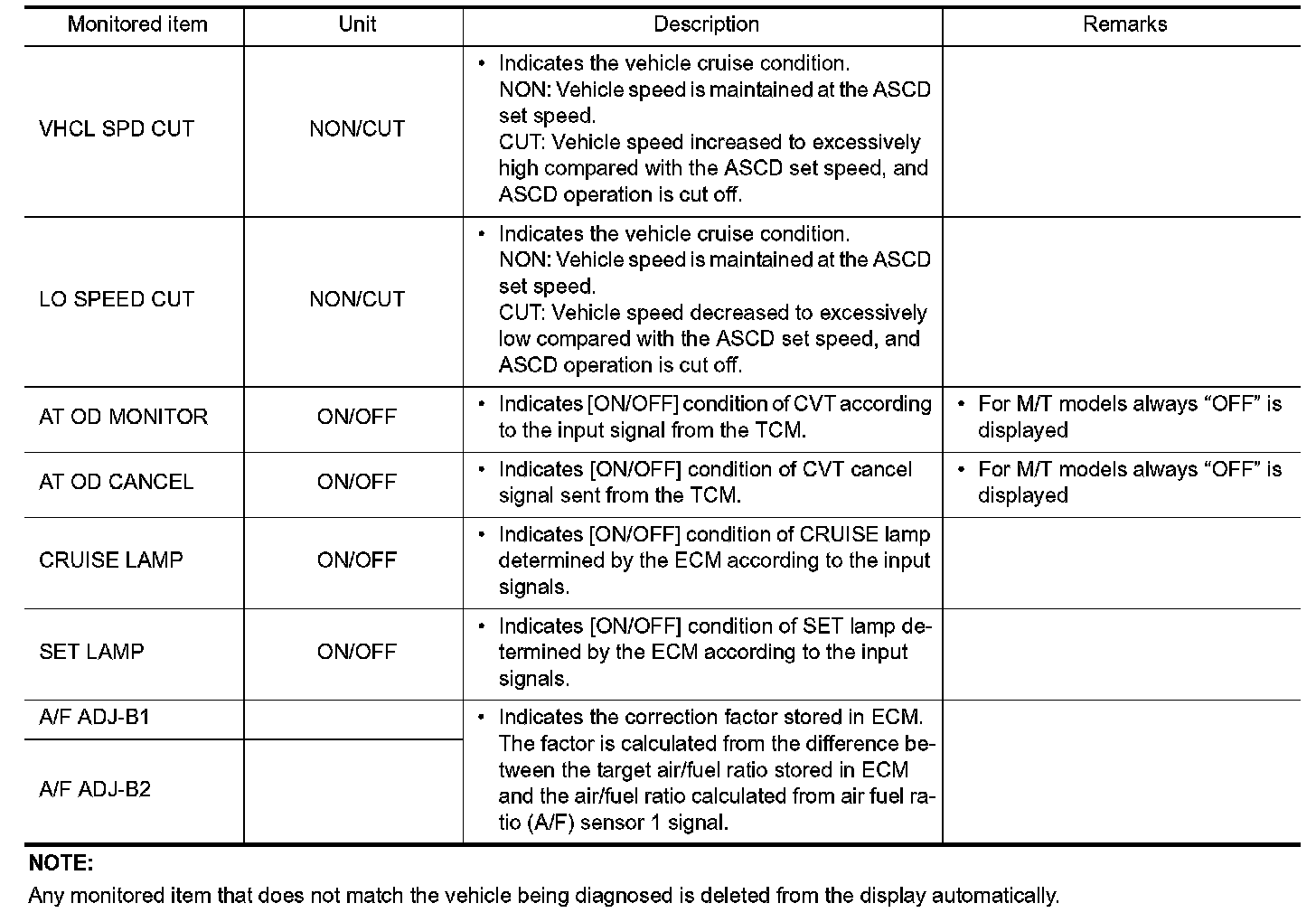

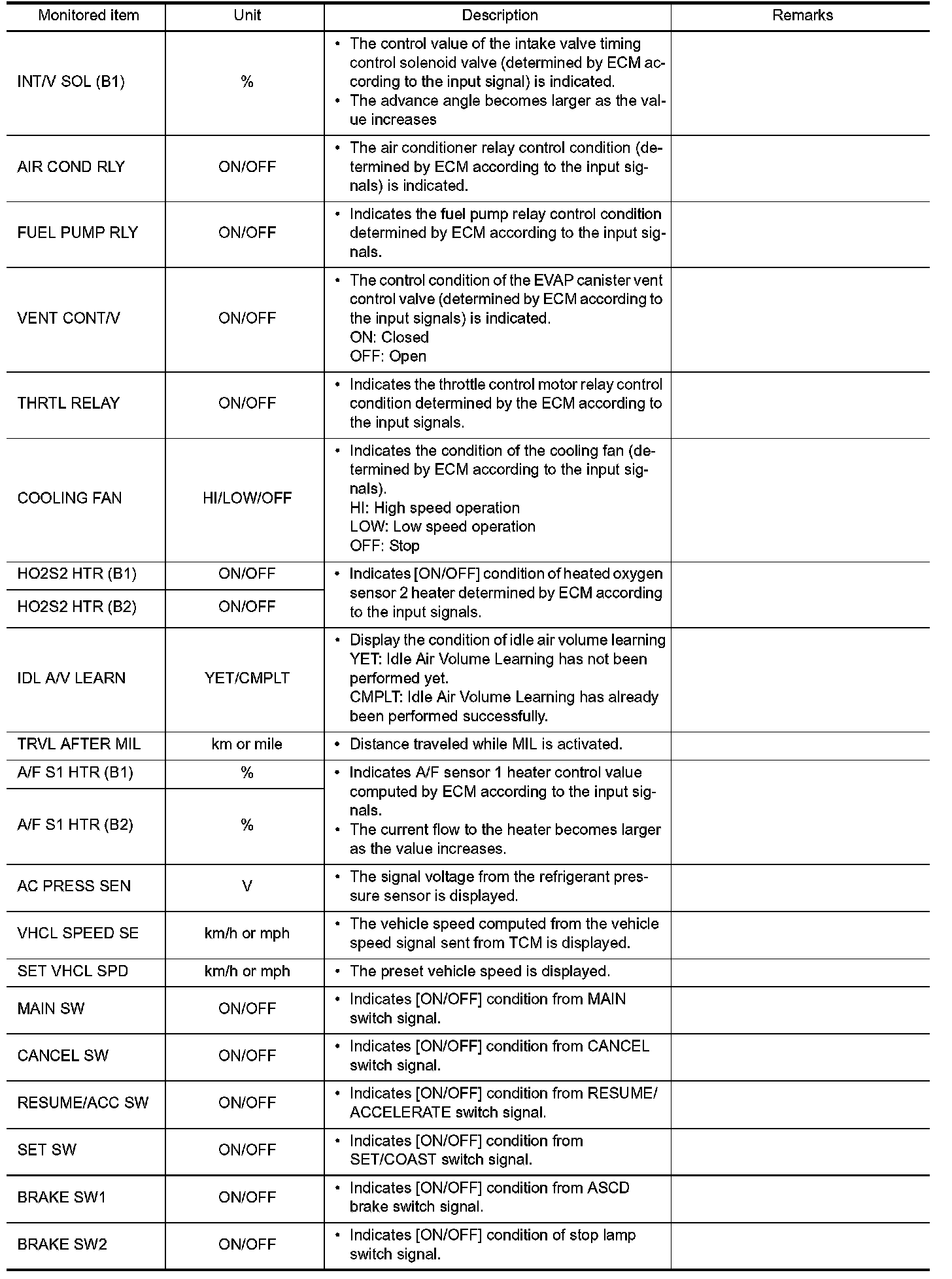

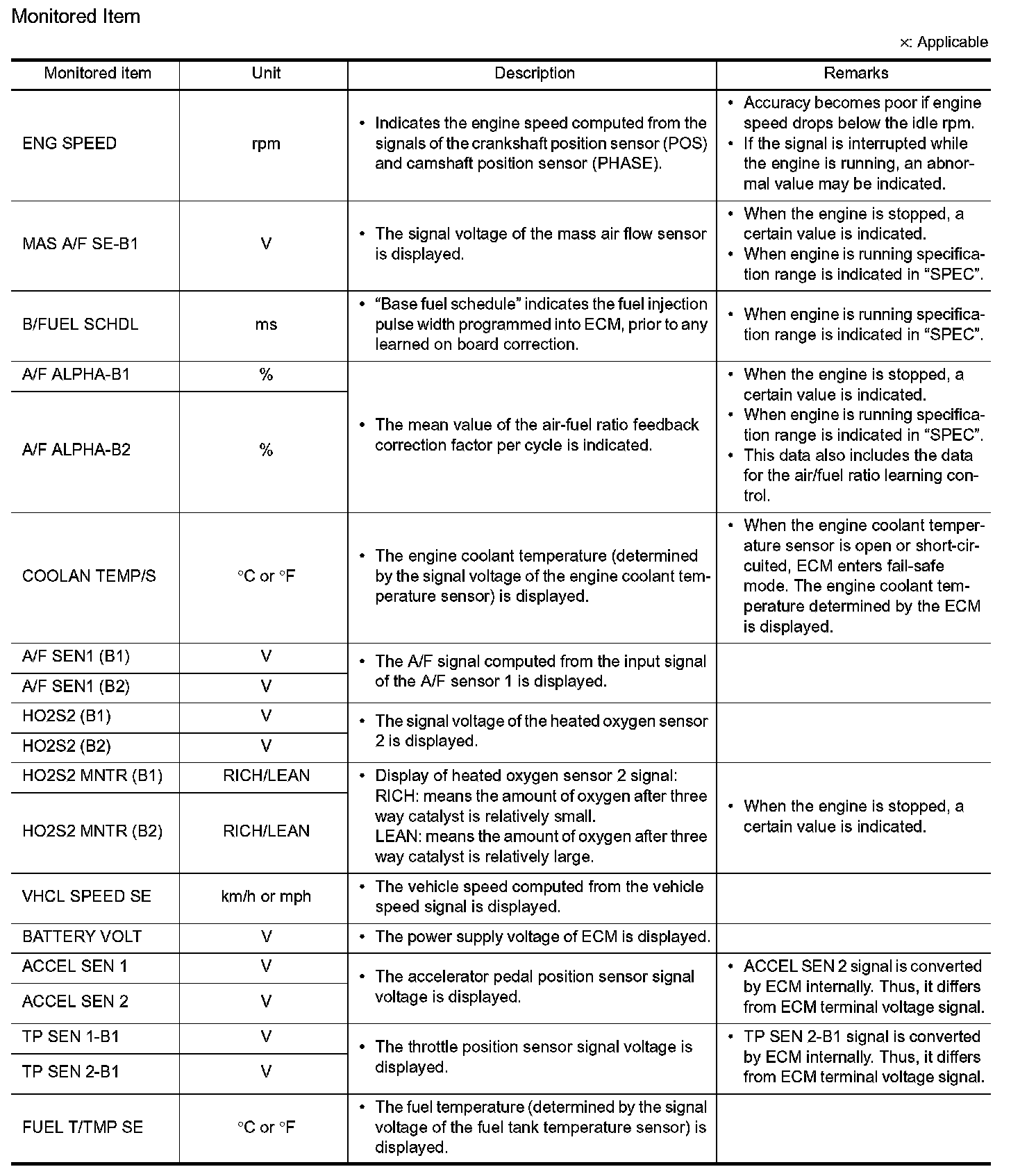

Monitored Item





















ACTIVE TEST MODE

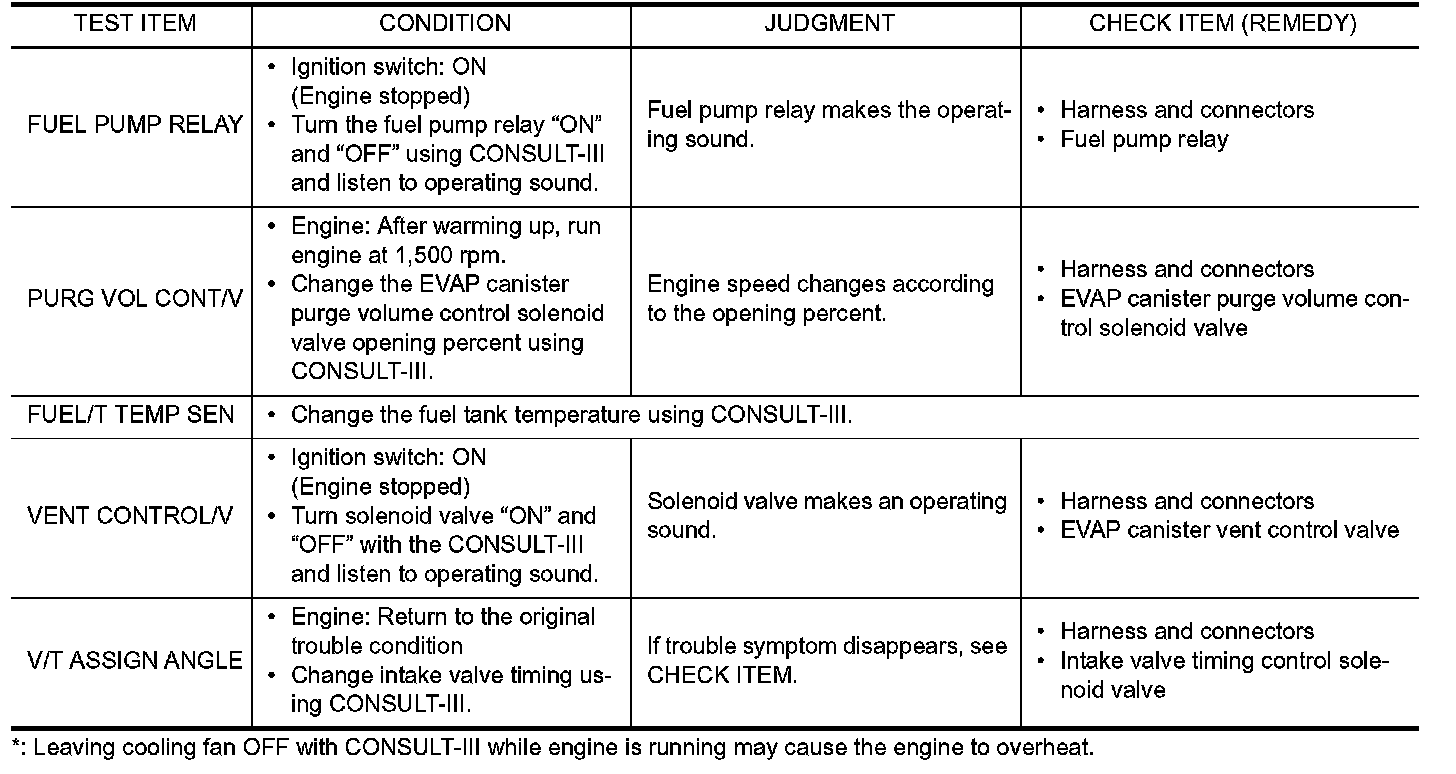

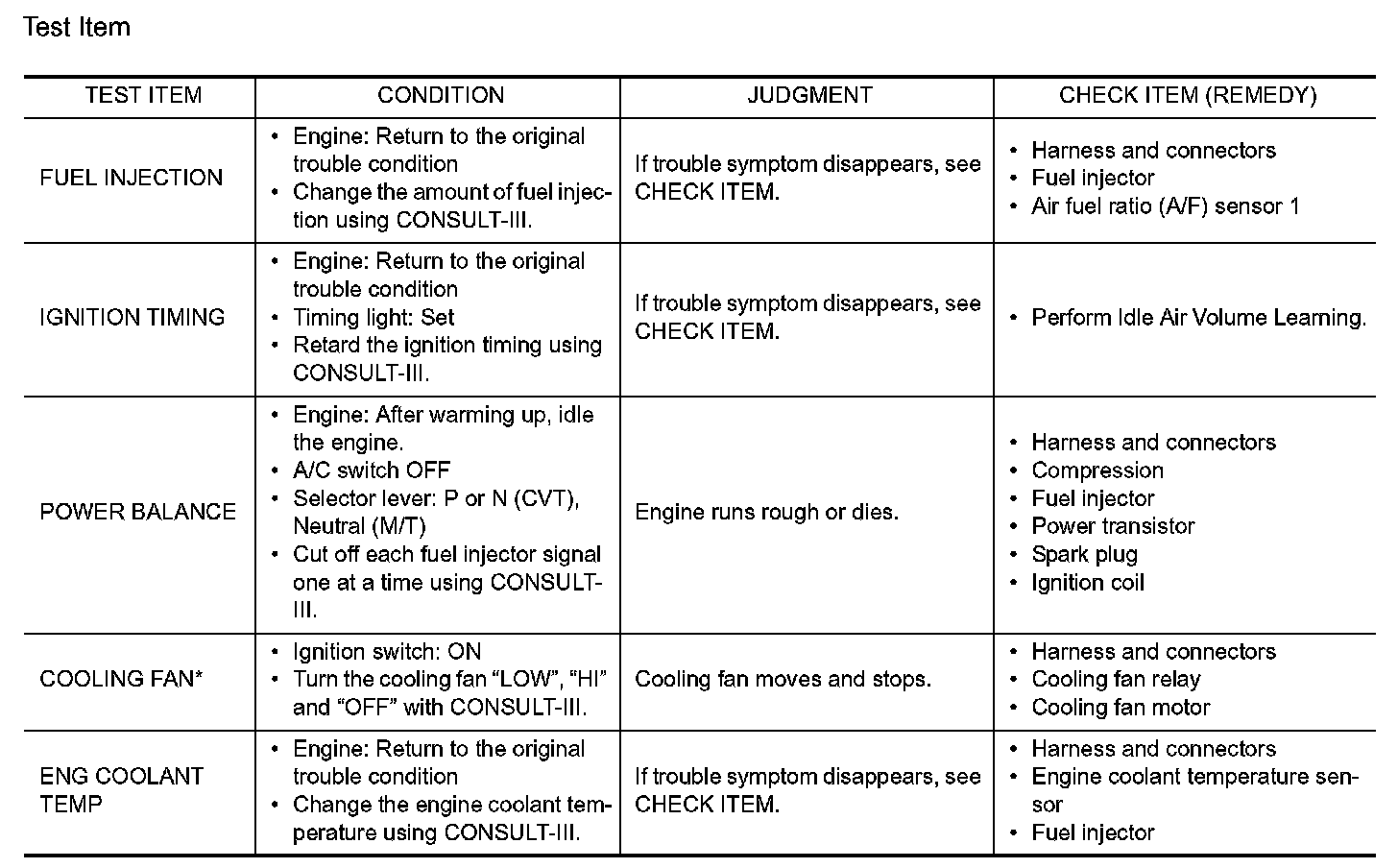

Test Item











DTC and SRT CONFIRMATION MODE

SRT STATUS Mode
For details, refer to Emission-Related Diagnostic Information.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

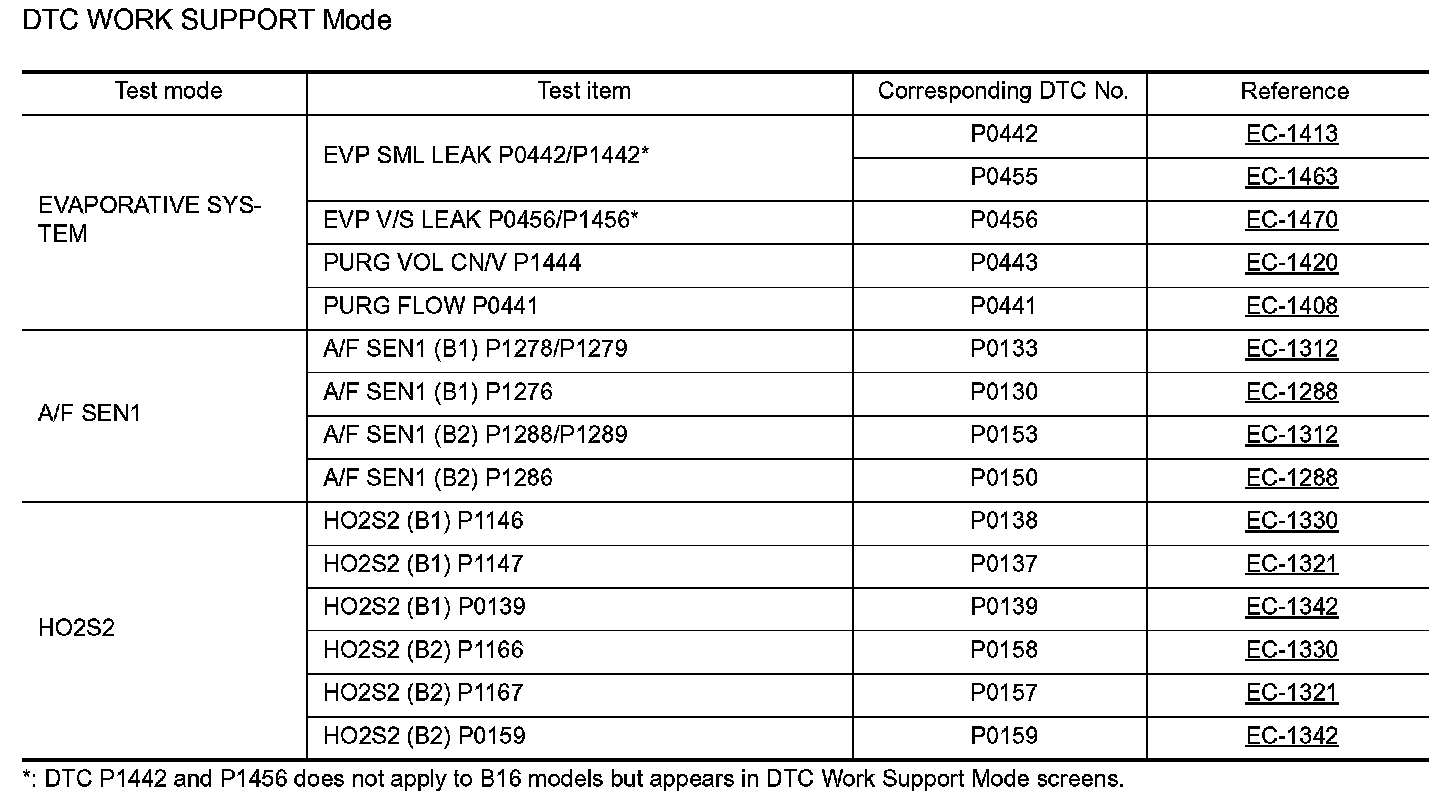

DTC WORK SUPPORT Mode
