System Specifications

CYLINDER HEAD

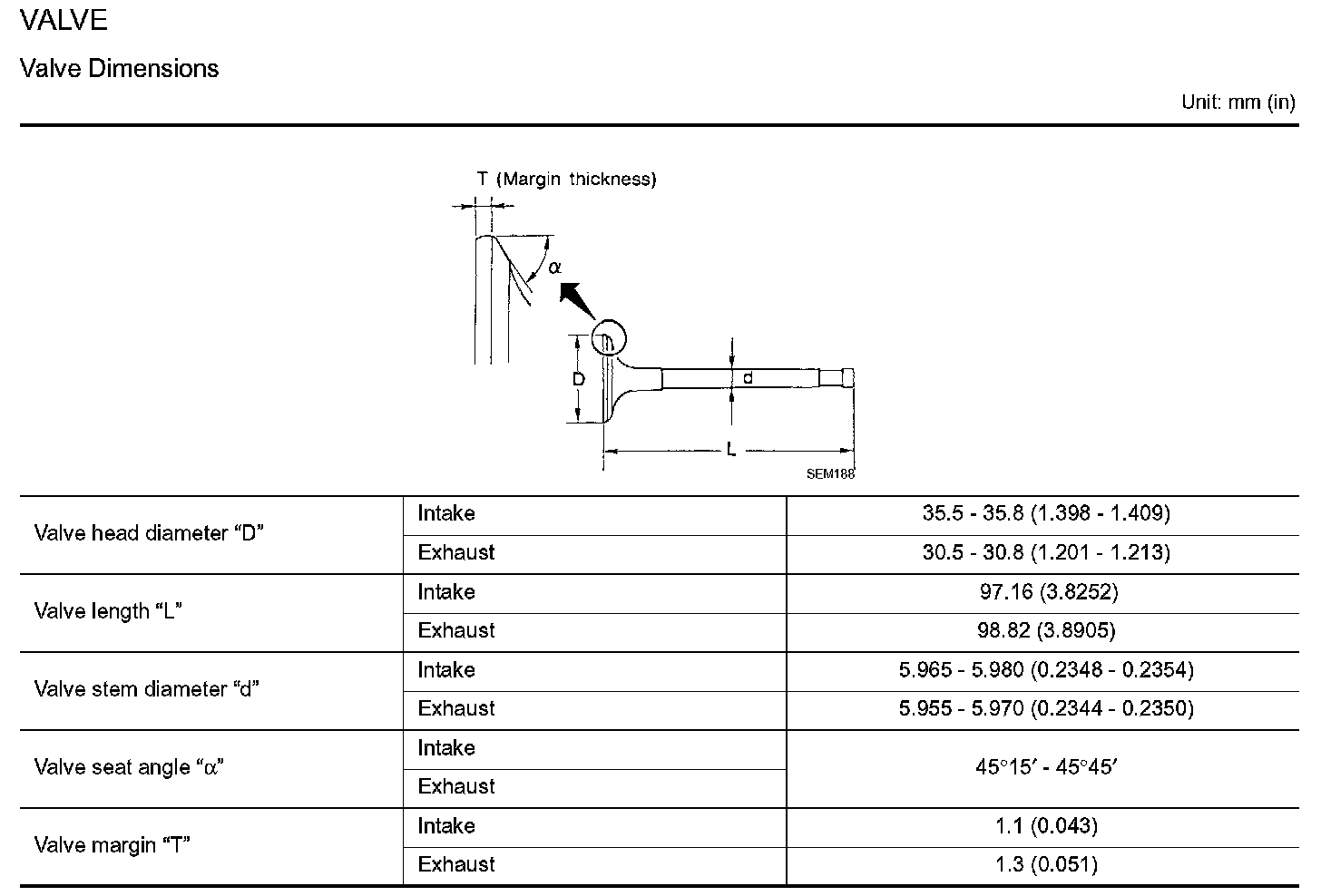

Valve Dimensions

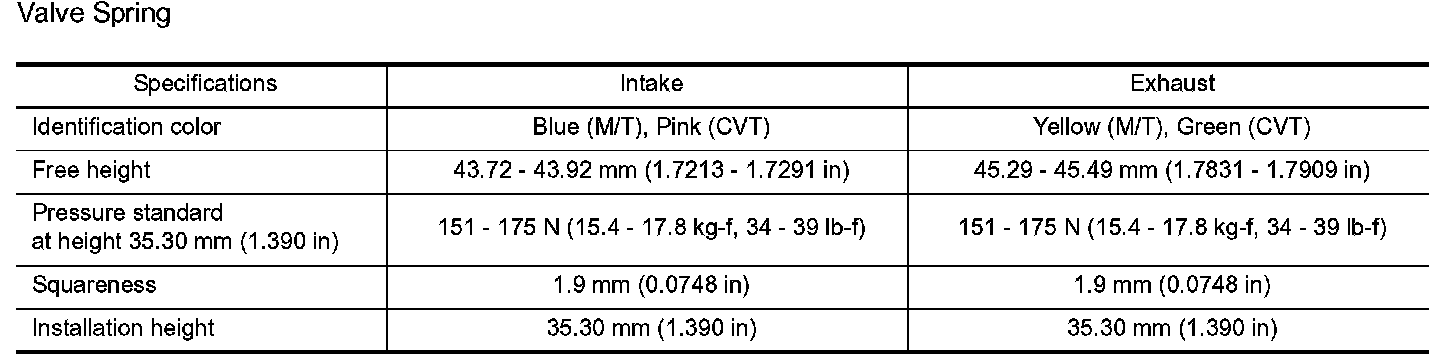

Valve Spring

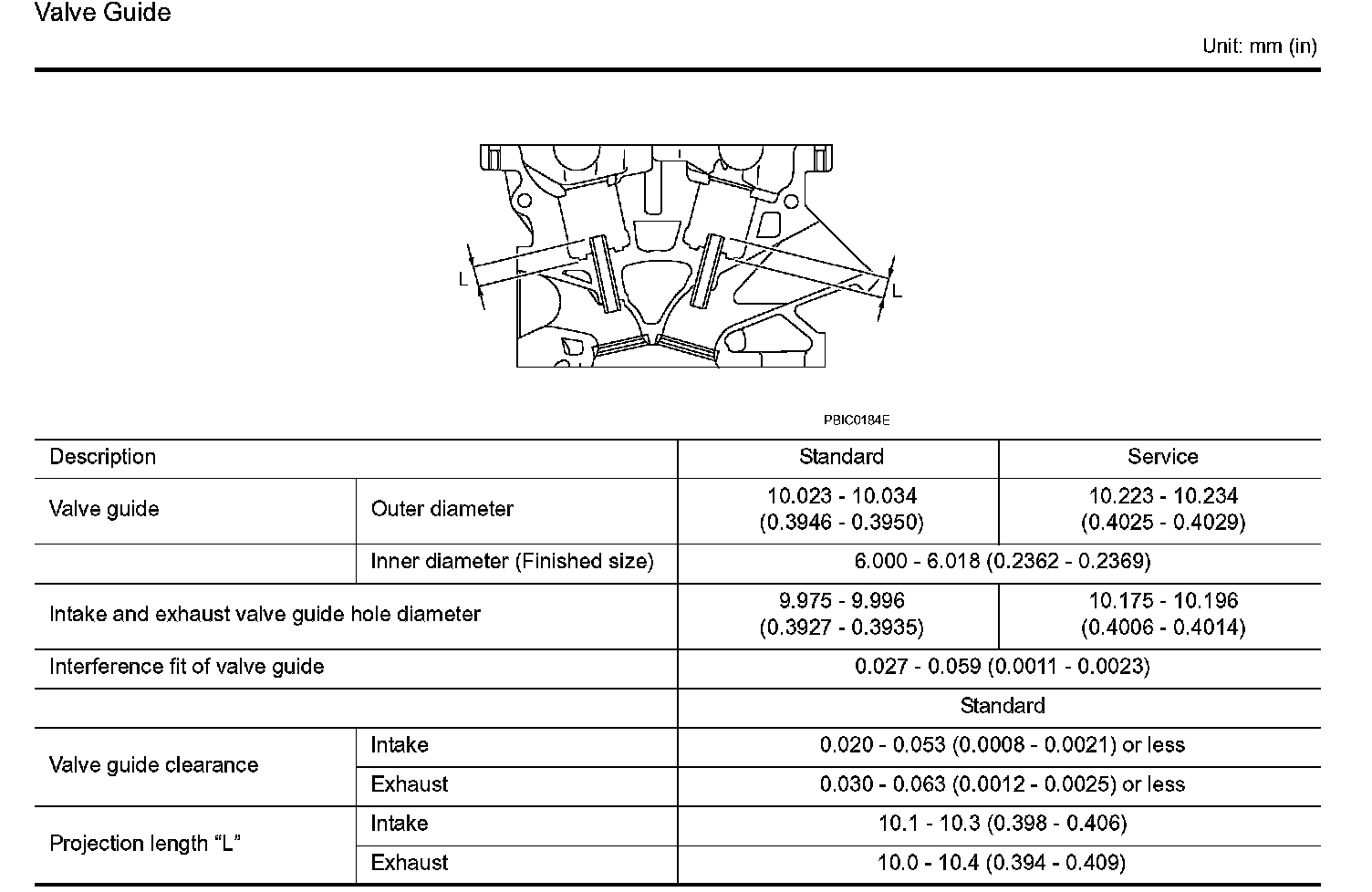

Valve Guide

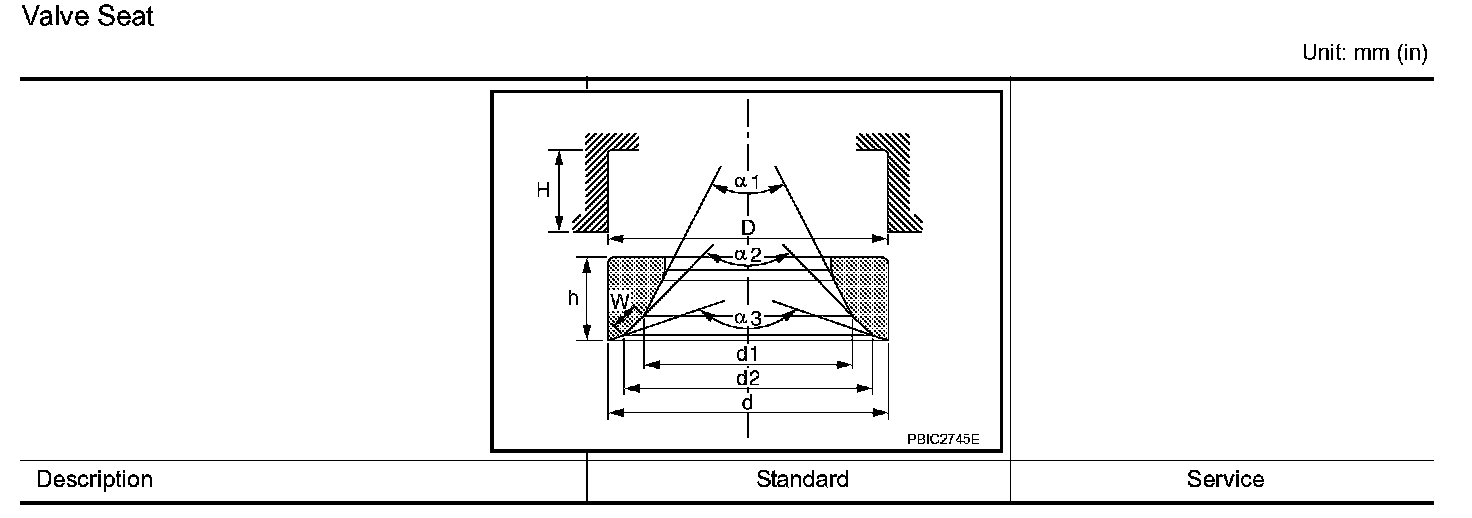

Valve Seat

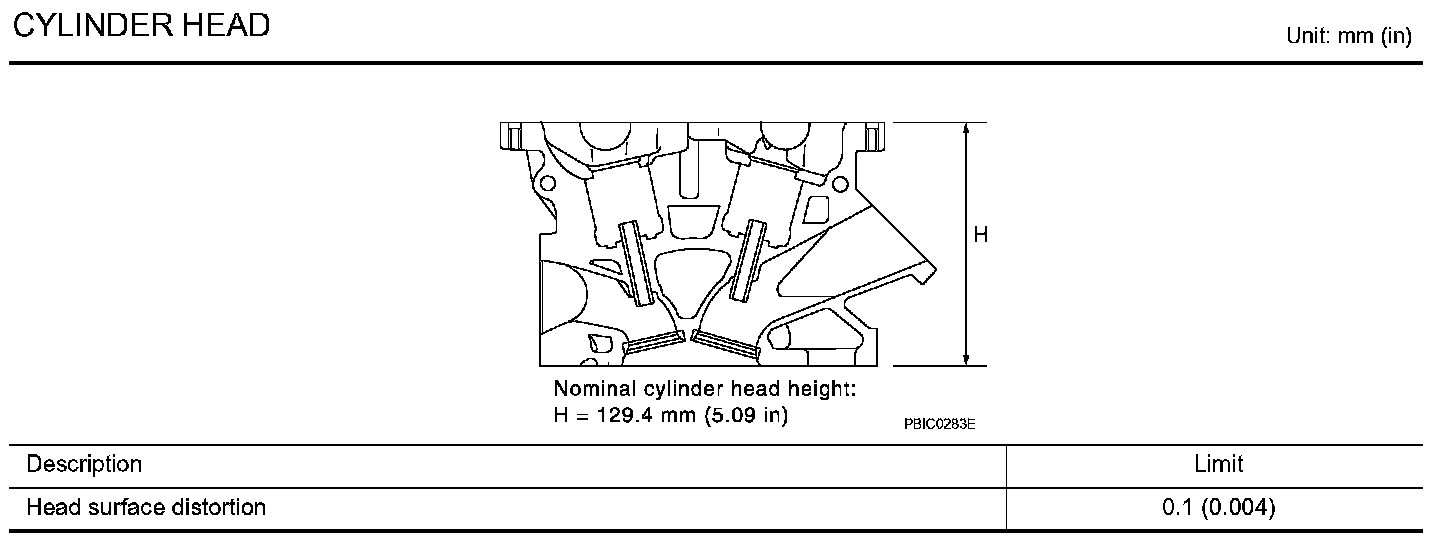

Cylinder Head

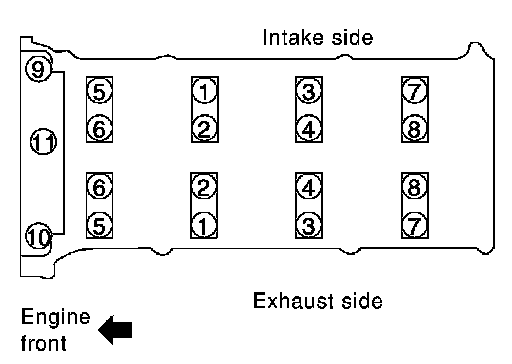

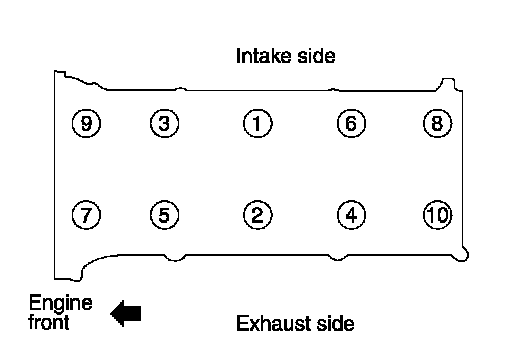

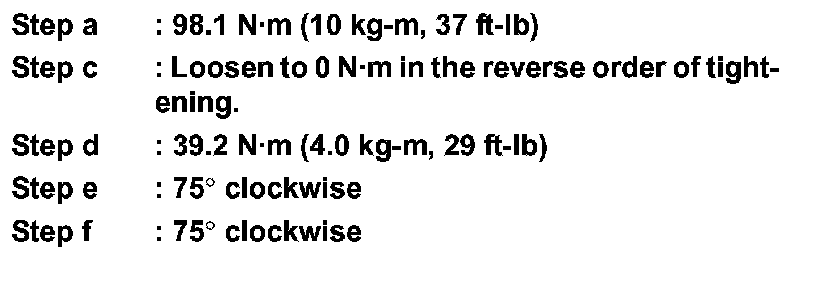

Follow the steps below to tighten the cylinder head bolts using Tool, in the numerical order as shown.






Intake Manifold

Torque: 19.6 N.m (2.0 Kg-m, 14 ft-lb)






Tightening Intake Manifold Bolts and Nuts
- Tighten in numerical order as shown.

CAUTION: After tightening No.5, retighten the No.1 bolt to specification.

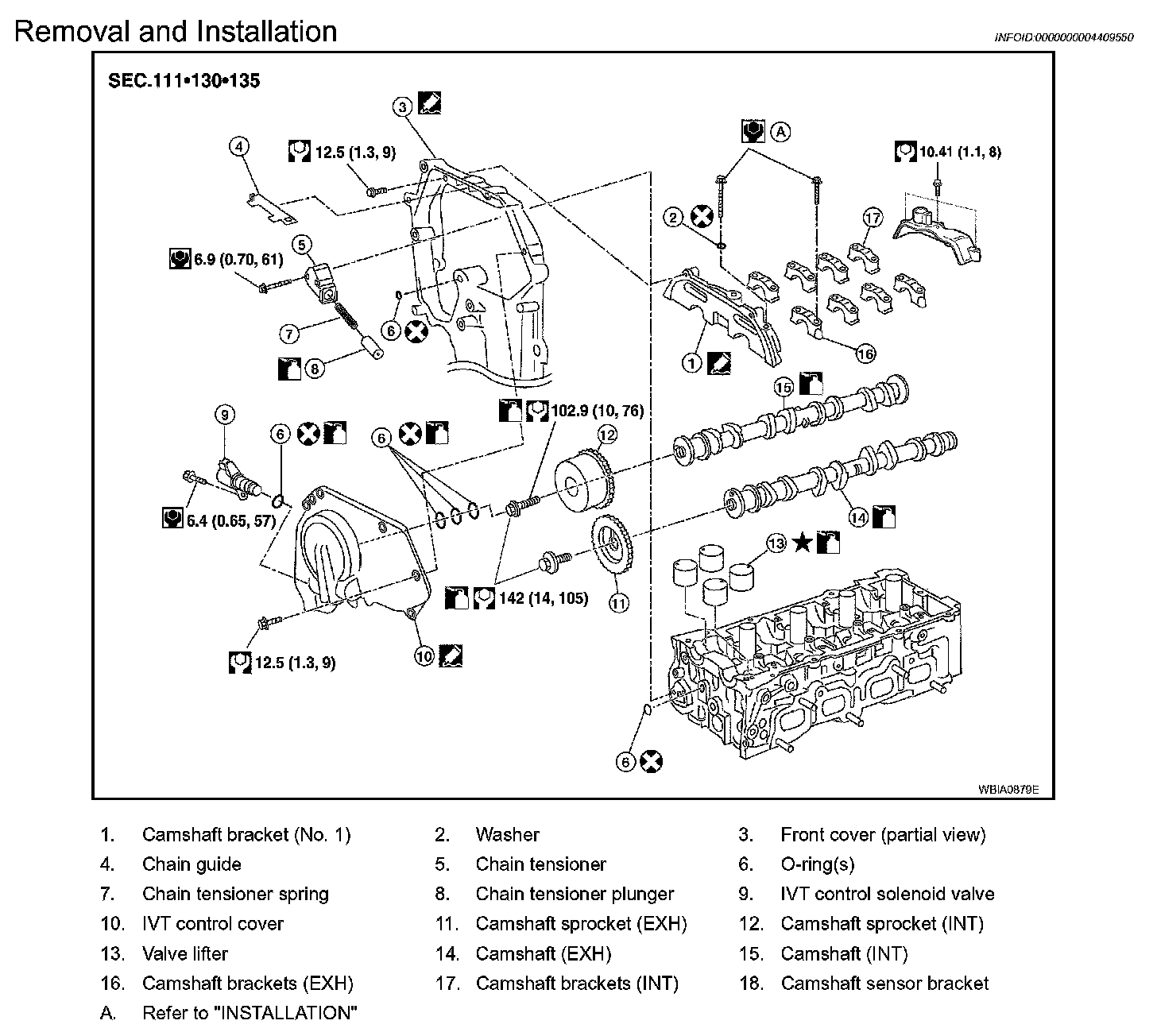

Camshaft Bearing Cap

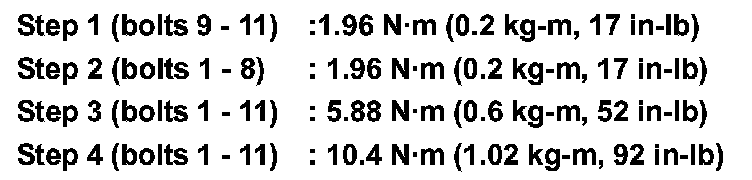

Tighten camshaft bracket bolts in four steps in the order as shown.





Camshaft Gear/Sprocket





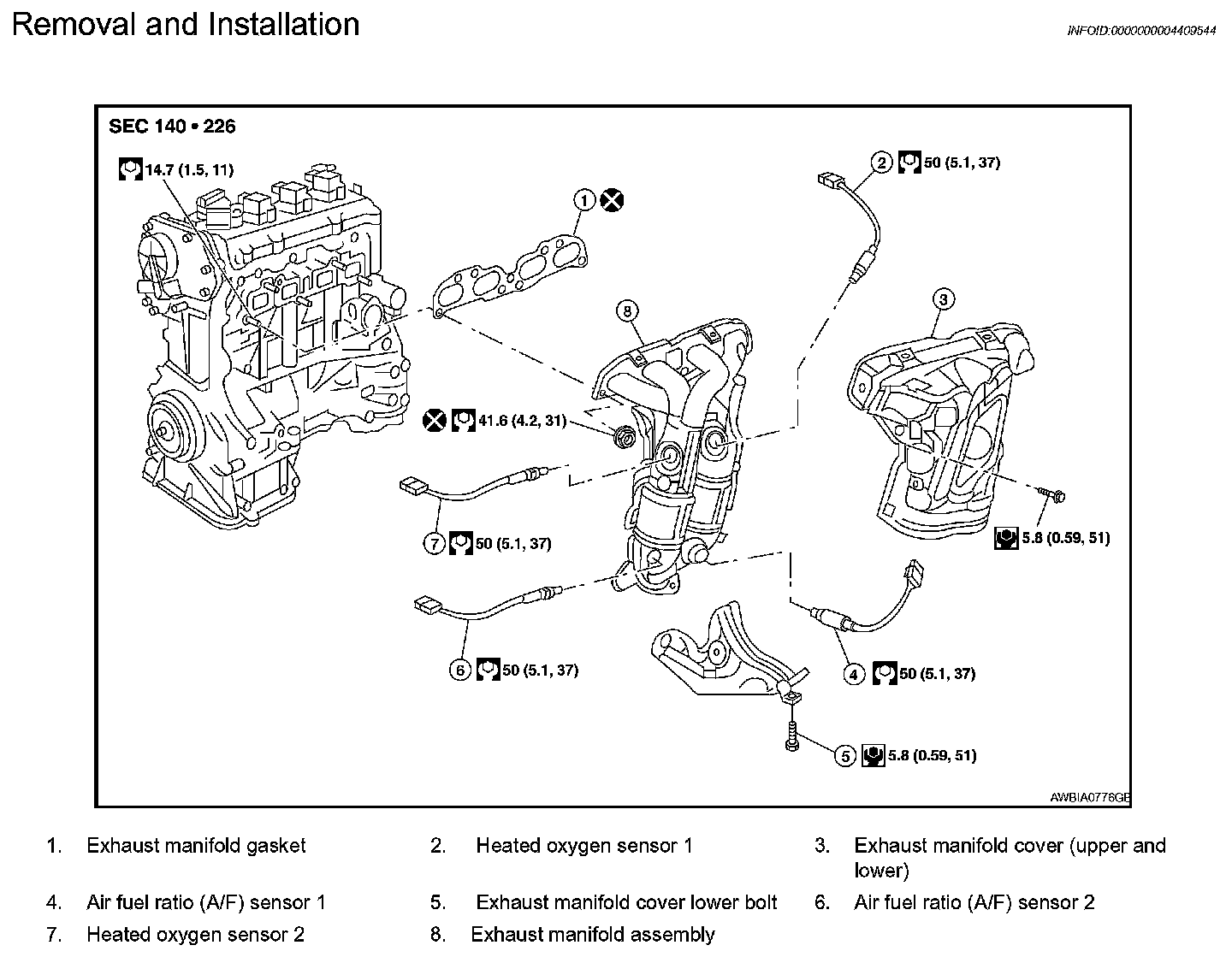

Exhaust Manifold

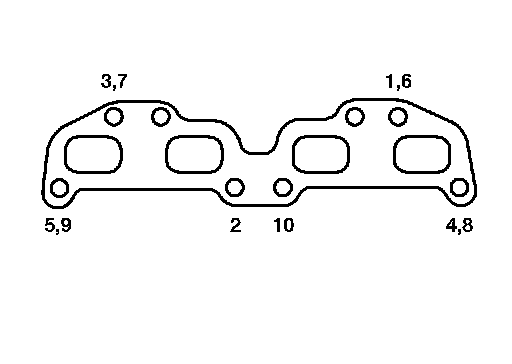

Tightening Exhaust Manifold Nuts
- Tighten the nuts in the numerical order shown, to specification.
