Flywheel/Flex Plate

Drive Plate (CVT)

Torque: 108 N.m (11 Kg-m, 80 ft-lb)

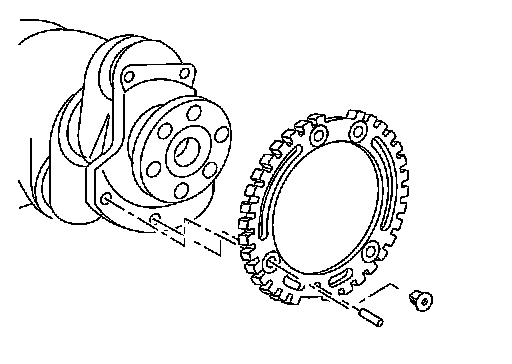

1. Install the signal plate to the crankshaft.

a. Position the crankshaft and signal plate using a positioning dowel pin, and tighten the bolts to specification.
b. Remove the dowel pin.

CAUTION: Be sure to remove dowel pin before installing the crankshaft.

NOTE: Dowel pins for the crankshaft and signal plate are supplied as a set for each.

Flywheel M/T

Torque: 108 N.m (11 Kg-m, 80 ft-lb)
