Terminal And Reference Value

TROUBLE DIAGNOSIS

TCM Terminal and Reference Value

TCM HARNESS CONNECTOR TERMINAL LAYOUT

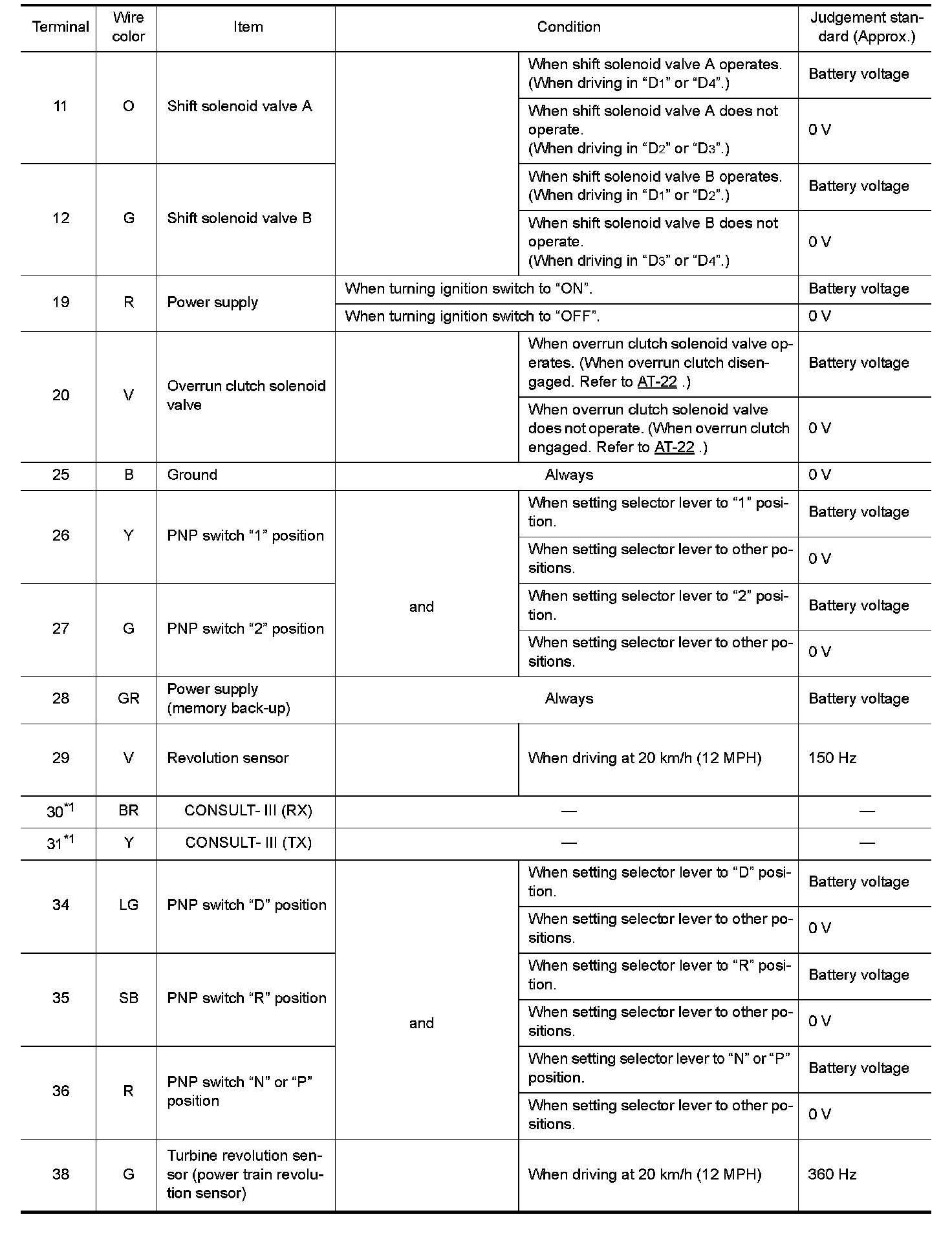

Terminals and Reference Values for TCM

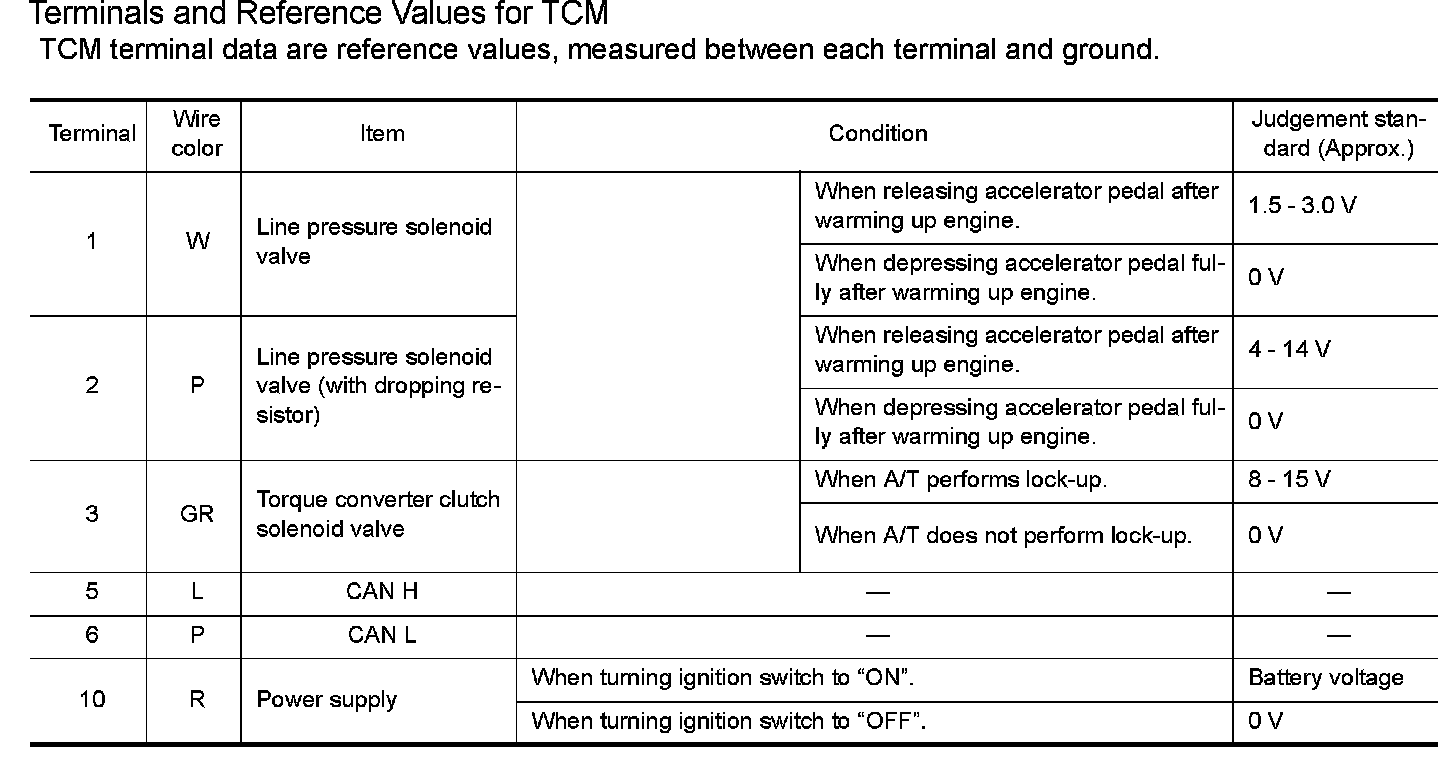

TCM terminal data are reference values, measured between each terminal and ground.
