System Specifications

CYLINDER HEAD

Valve Dimensions

Valve Spring

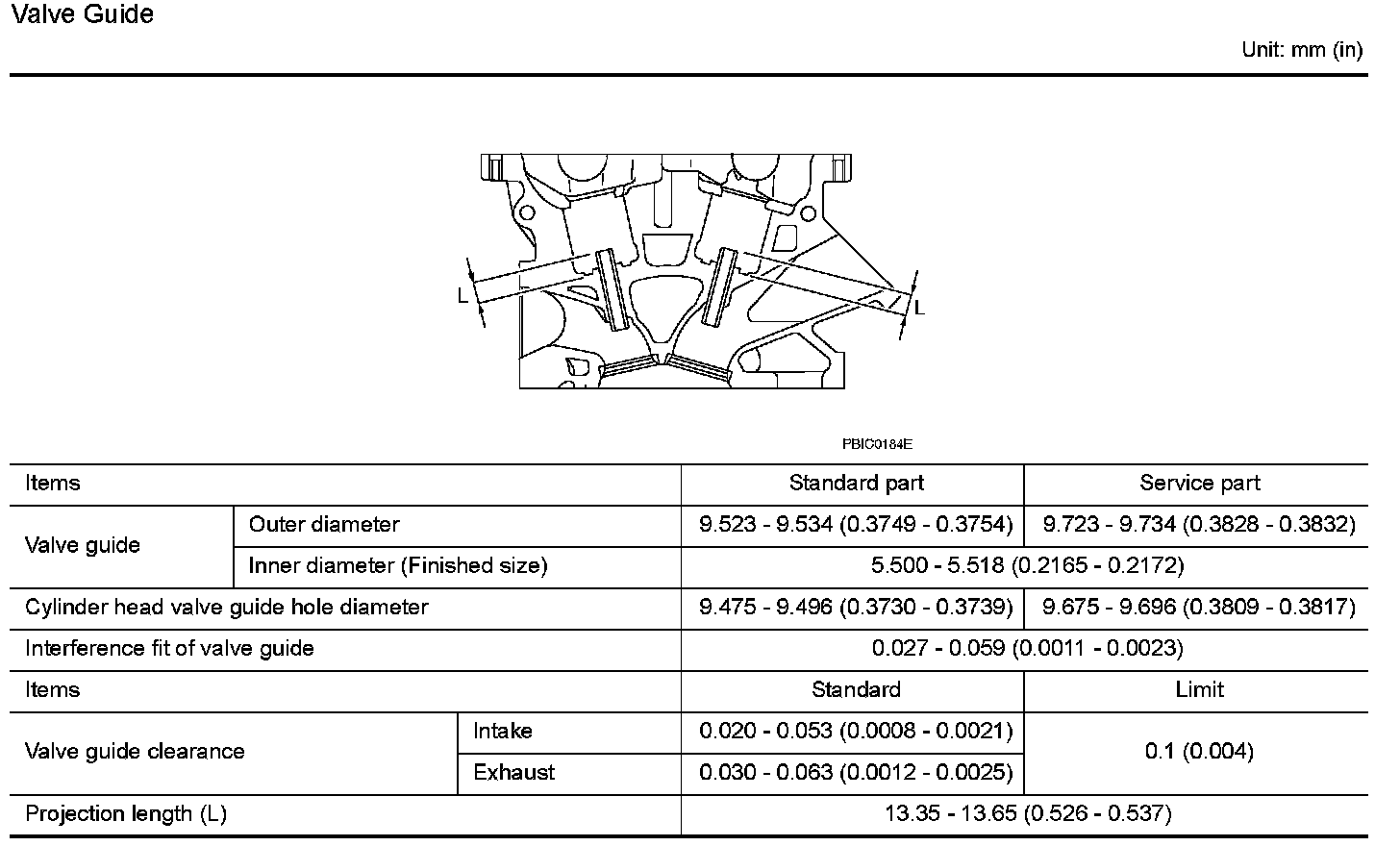

Valve Guide

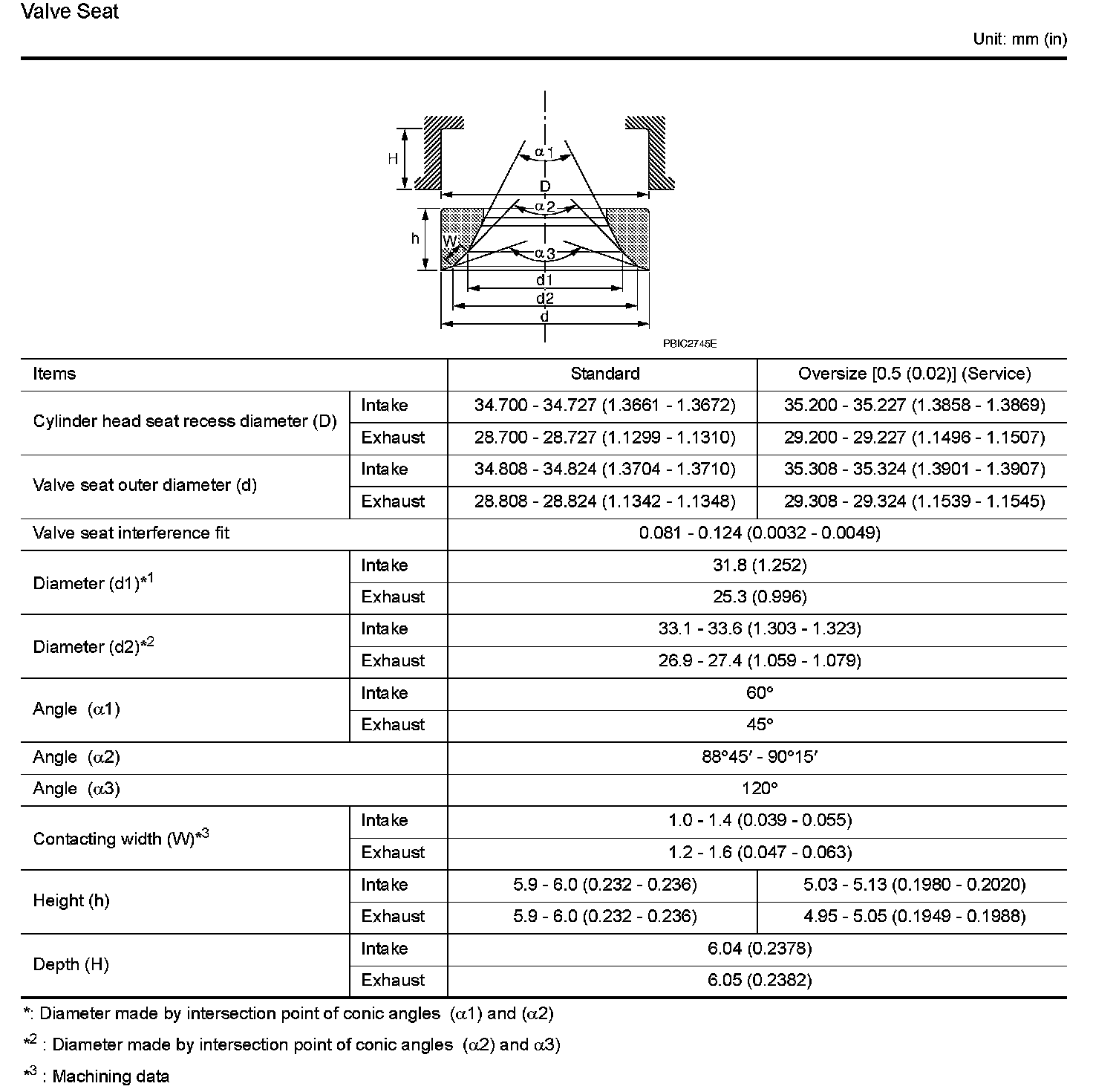

Valve Seat

CYLINDER BLOCK

AVAILABLE PISTON

PISTON RING

Piston Pin

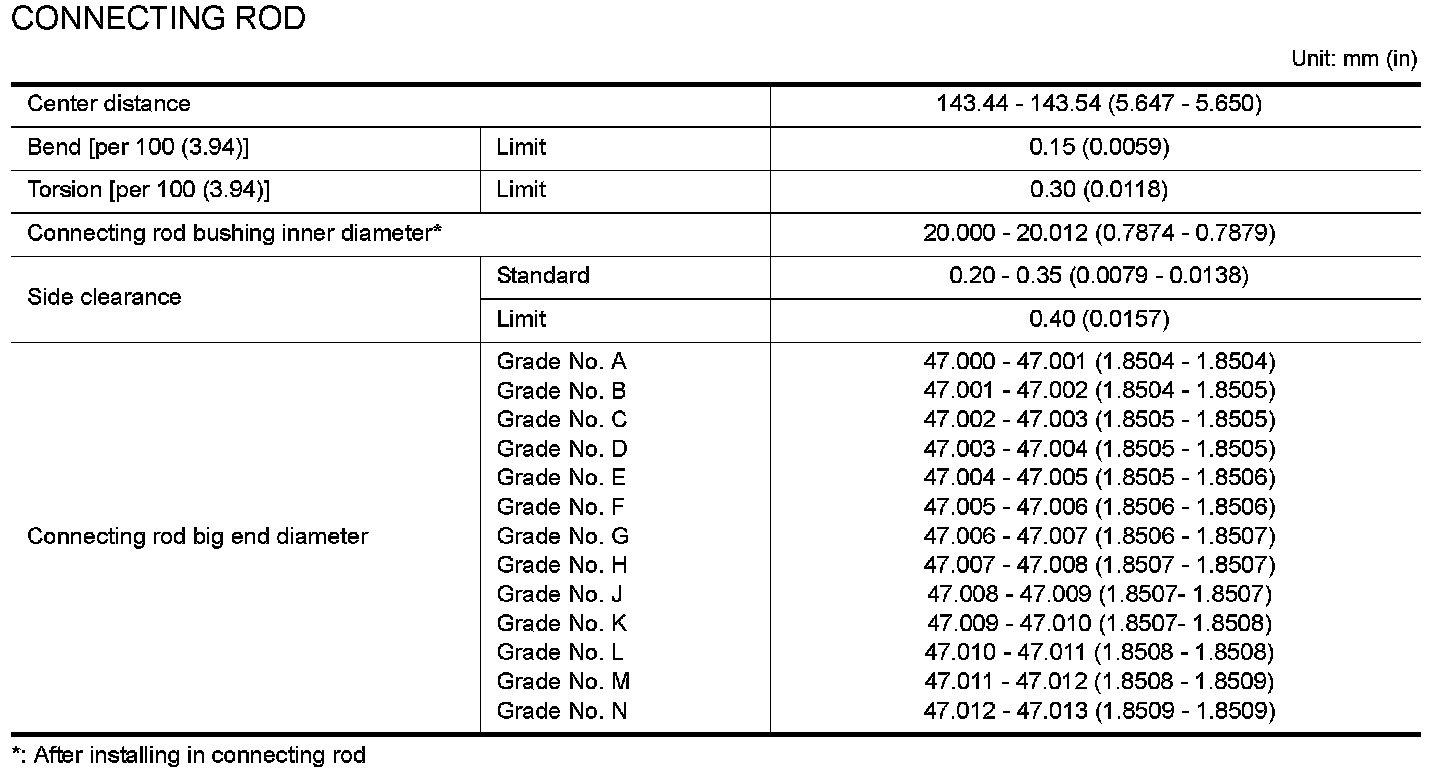

CONNECTING ROD

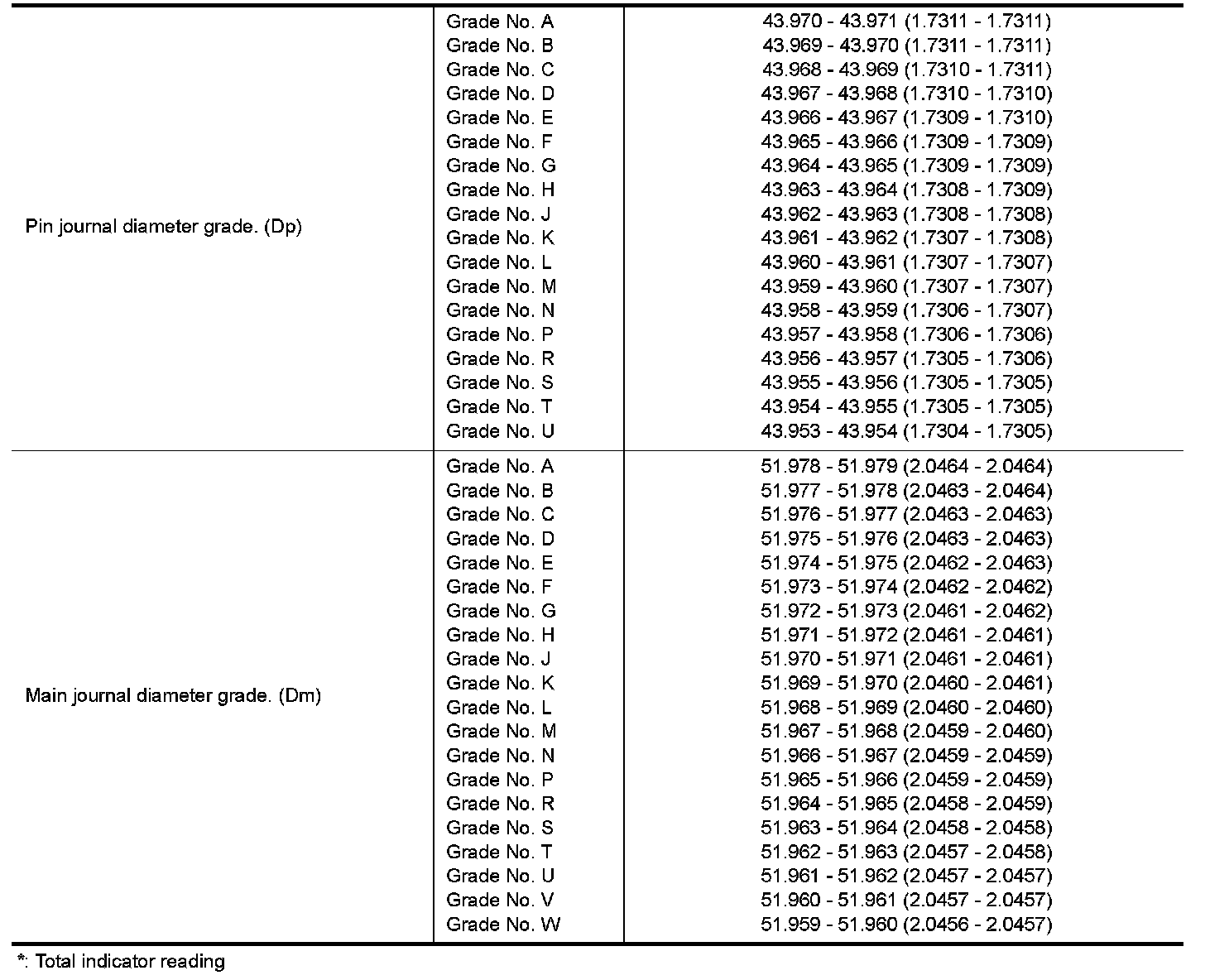

CRANKSHAFT

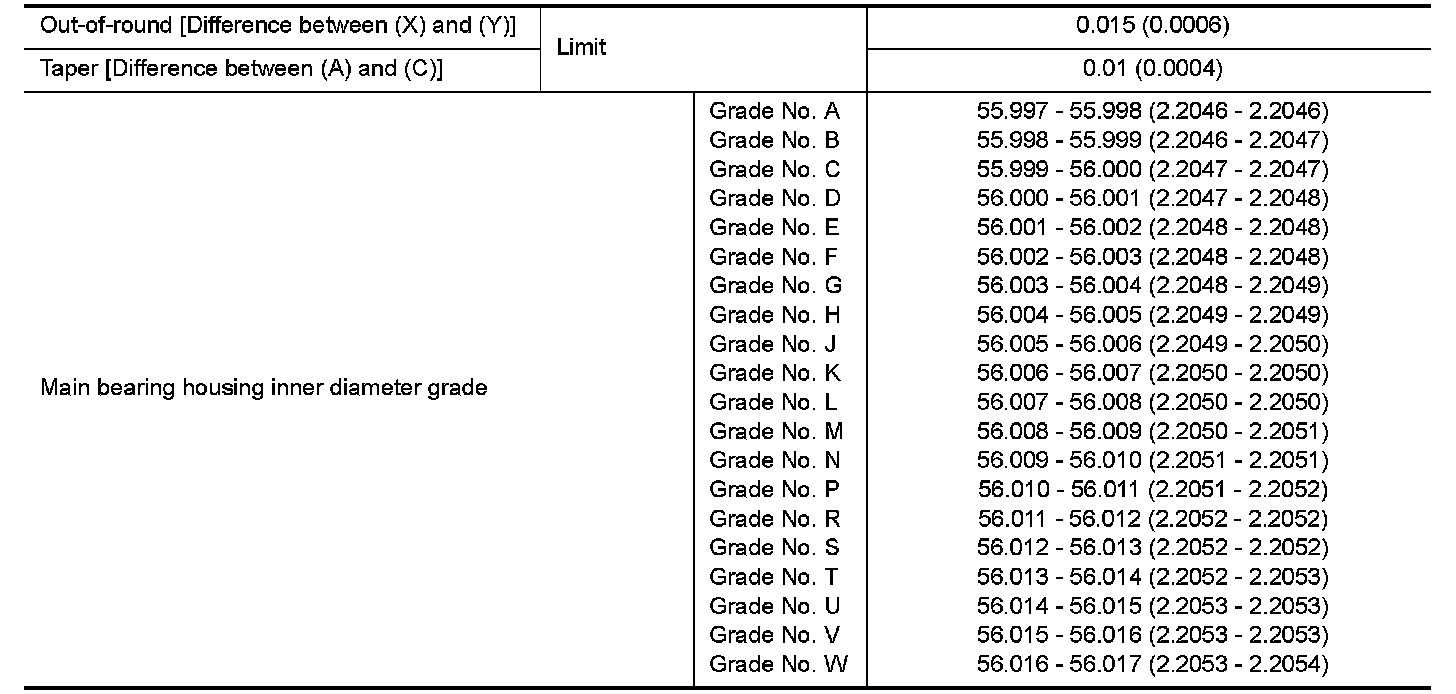

MAIN BEARING

Undersize

Bearing Oil Clearance

Main Bearing Cap Torque and Sequence

Tighten main bearing cap bolts in two steps in numerical order as shown.

Arrow Indicates Engine front

CAUTION:
Measure the angle in step 2 using Tool (A). Do not measure visually.

Crankshaft Pulley Torque
