EPS Control Unit Input/Output Signal Reference Value

TROUBLE DIAGNOSIS

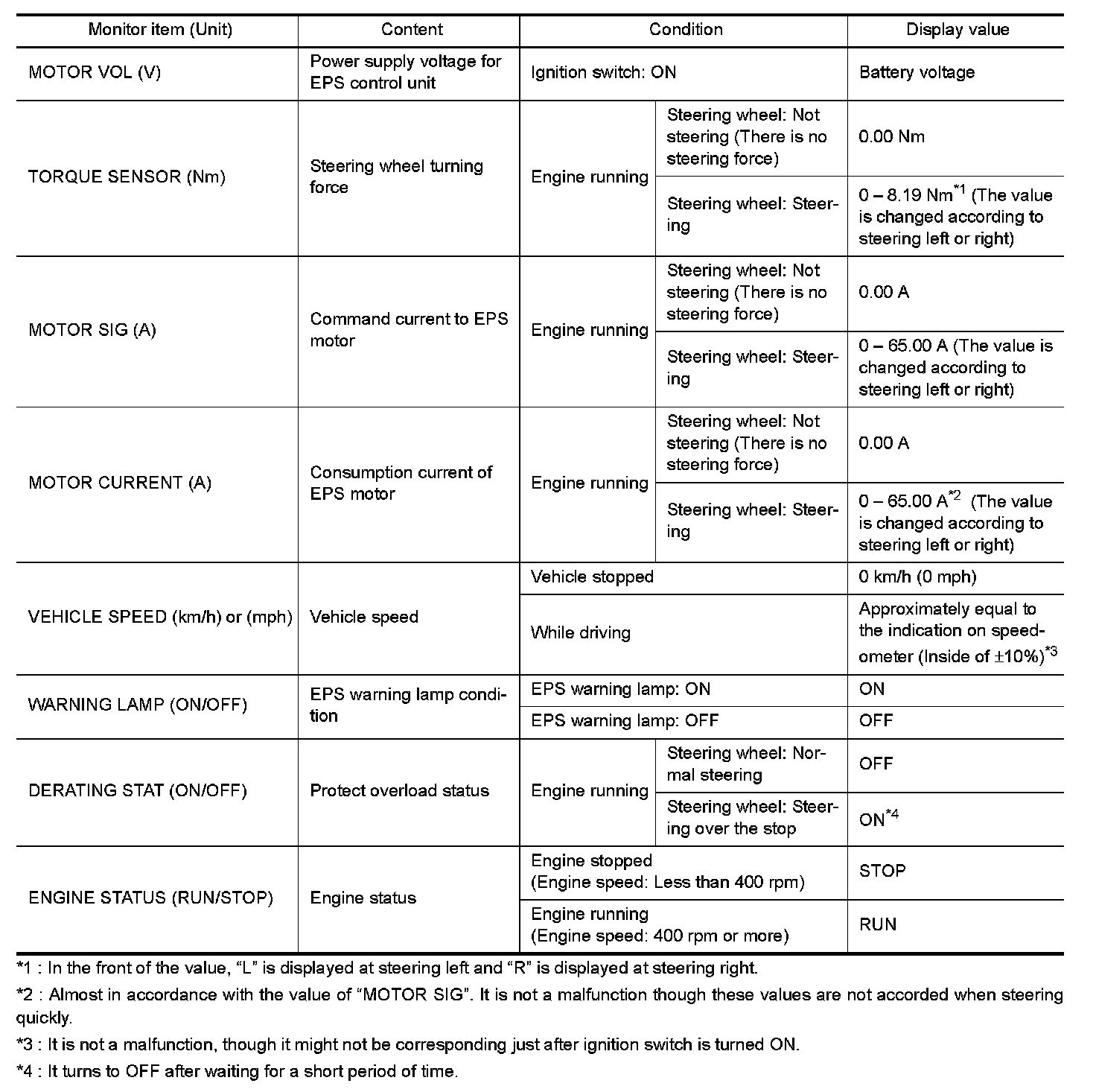

EPS Control Unit Input/Output Signal Reference Value

SPECIFICATIONS WITH CONSULT-III

CAUTION:
The output signal indicates the EPS control unit calculation date. The normal values will be displayed even in the event that the output circuit (harness) is open.
