Connecting Rod, Engine

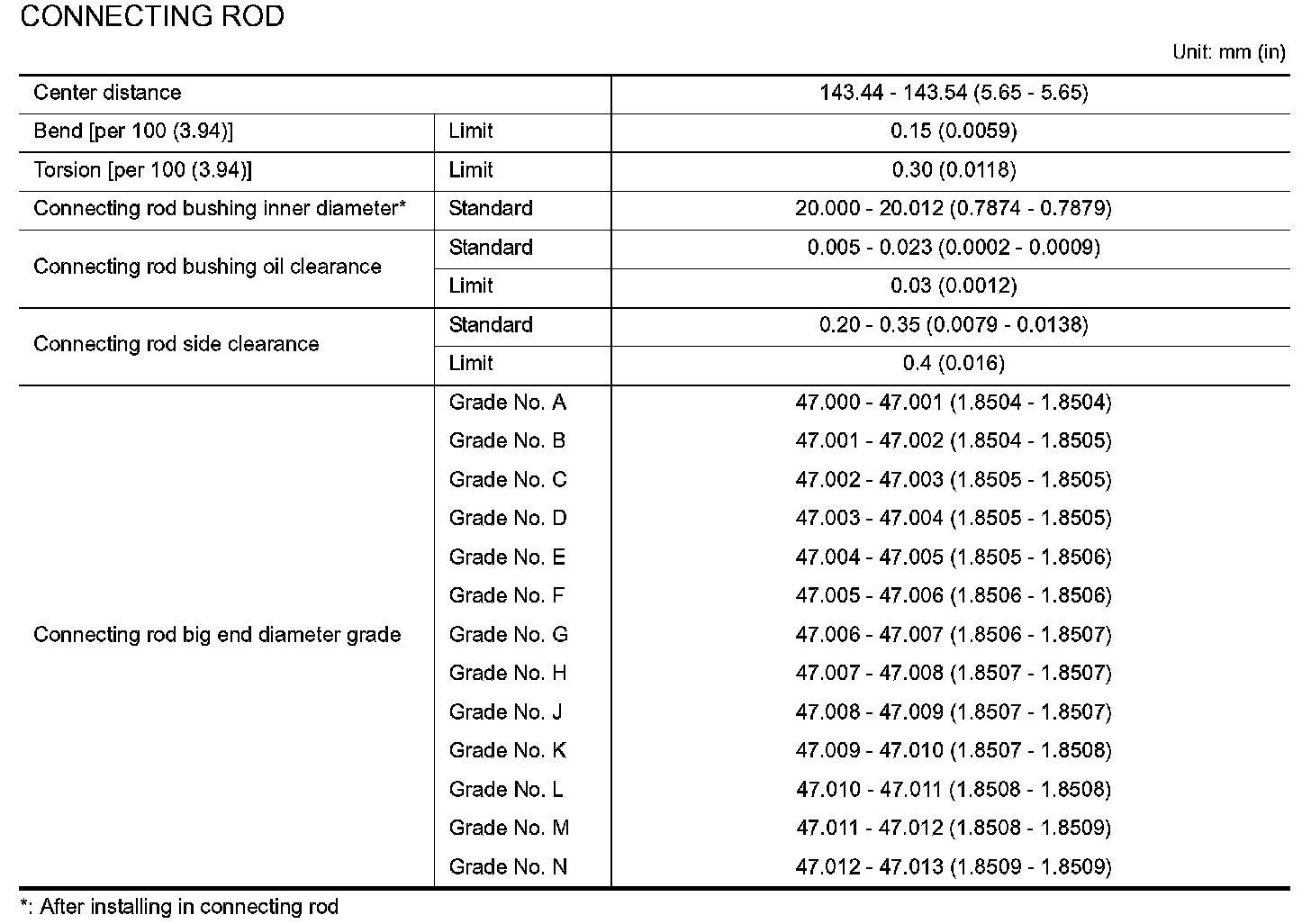

CONNECTING RODConnecting Rod Cap BoltsTighten
connecting rod cap bolts.
Torque : 27.5 N.m (2.8 kg-m, 20 ft-lb)
Completely loosen
connecting rod cap bolts.
Torque : 0 N.m (0 kg-m, 0 ft-lb)
Tighten
connecting rod cap bolts.
Torque : 19.6 N.m (2.0 kg-m, 14 ft-lb)
Then turn all
connecting rod cap bolts 60 degrees clockwise (angle tightening).
