Exhaust Manifold

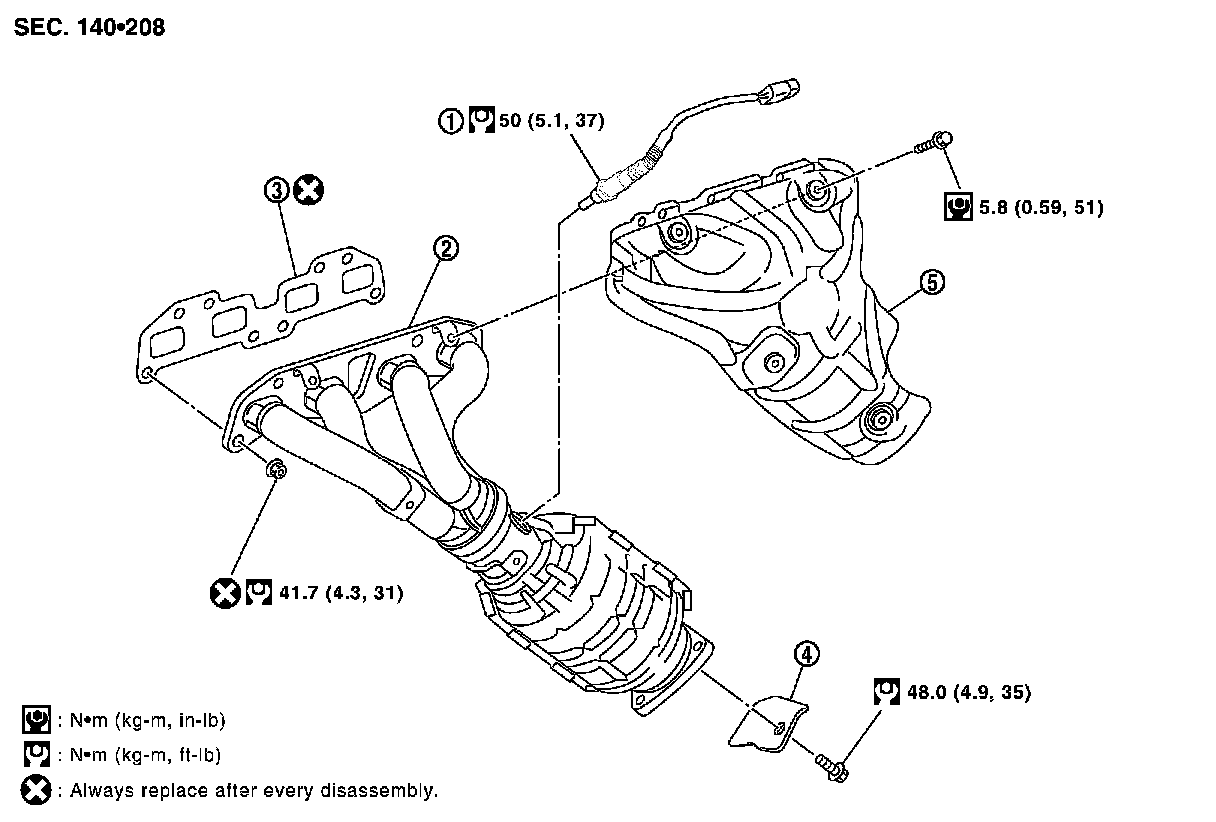

EXHAUST MANIFOLD AND THREE WAY CATALYSTIf stud bolts were removed, install them and tighten to the specified torque.
Exhaust manifold stud bolt : 14.7 N.m (1.5 kg-m, 11 ft-lb)
Tighten nuts in numerical order as shown.
Tighten nuts in numerical order as shown again.
