Torque And Sequence

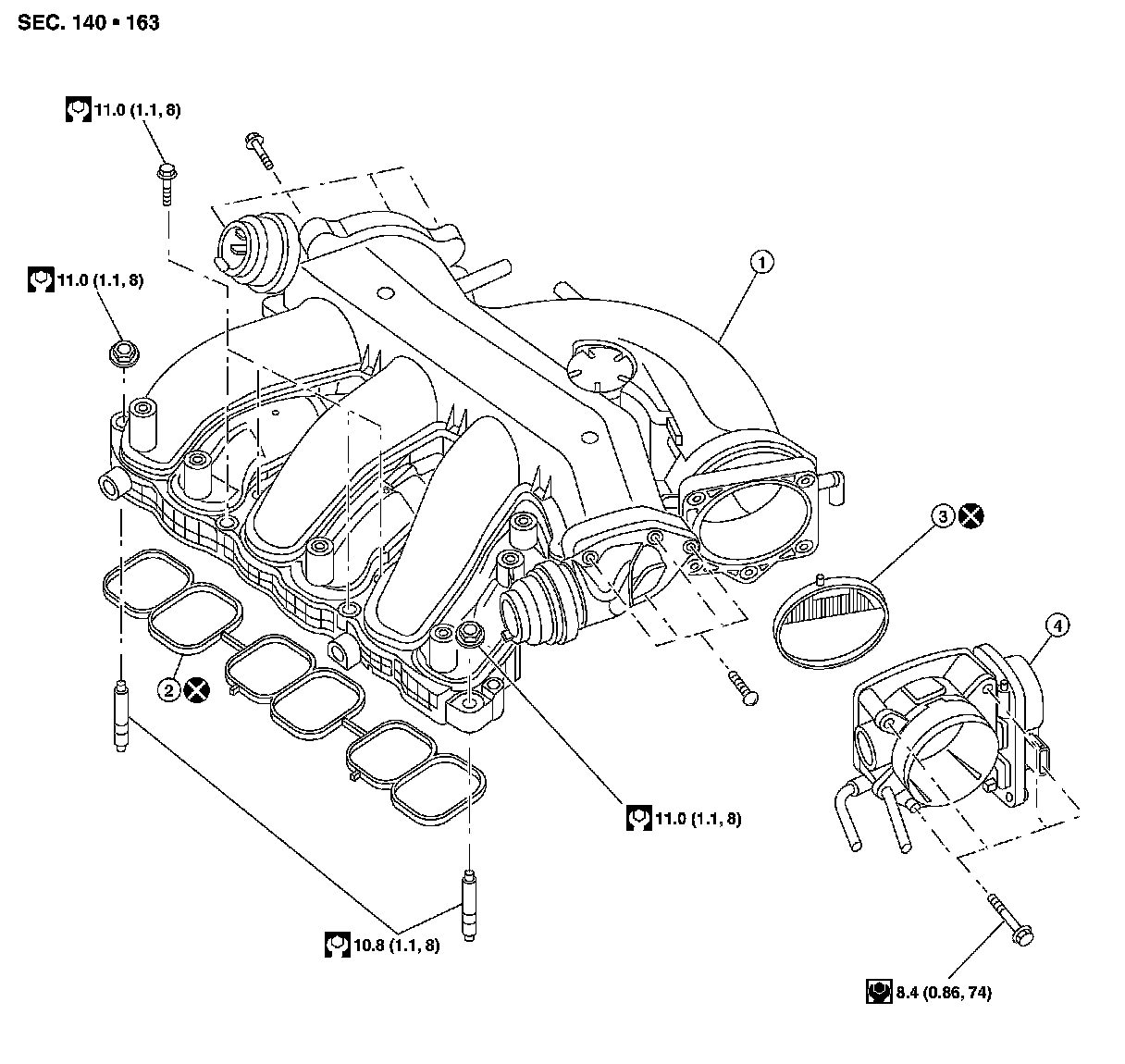

INTAKE MANIFOLD COLLECTORInstallation is in the reverse order of removal.
Tighten intake manifold collector bolts in the order as shown.
INTAKE MANIFOLDInstallation is in the reverse order of removal. Follow the procedure below for specific tightening sequences and procedures.
-
Install
intake manifold bolts in two steps in the numerical order as shown.
