Flywheel
Flywheel (M/T models)Flywheel (M/T models)
108 N.m (11 Kg-m, 80 ft-lb)

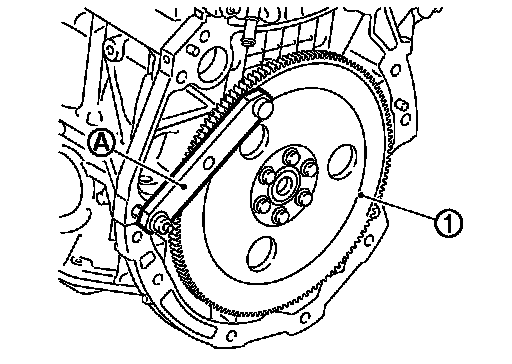

Install
flywheel (M/T models) or drive plate (1) (CVT models).
-
Secure crankshaft using Tool. (A), and tighten bolts crosswise over several times.
Tool number : KV11105210 (J-44716)
