Timing Cover

Timing Cover

Front Cover 25.5 N.m (2.6 kg-m, 19 ft-lb)

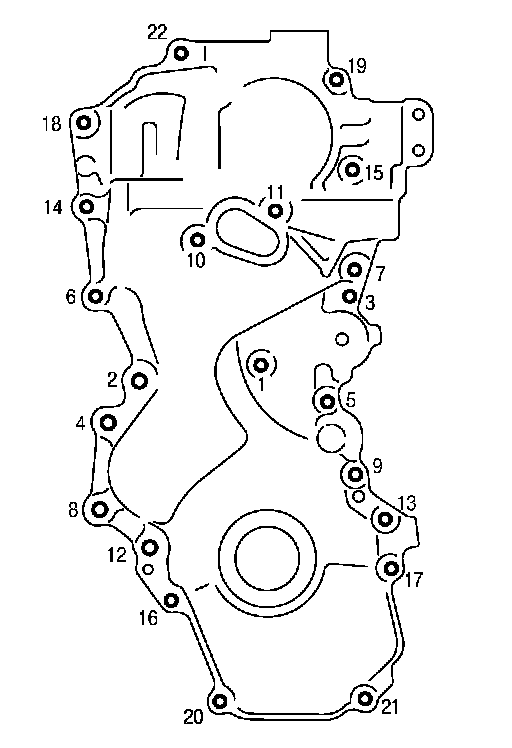

Install front cover, and tighten bolts in numerical order as shown.

CAUTION: Attaching should be done within 5 minutes after liquid gasket application.

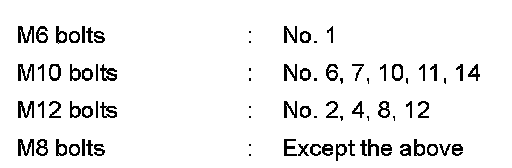

NOTE: Use the following for the installation position of bolts.

Tighten all bolts are in two stages to specified torque in numerical order as shown.

CAUTION: Be sure to wipe off any excessive liquid gasket leaking.
