Component Inspection





ASCD BRAKE SWITCH


Component Inspection


ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.

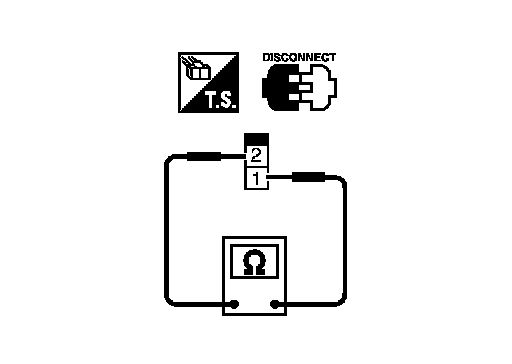

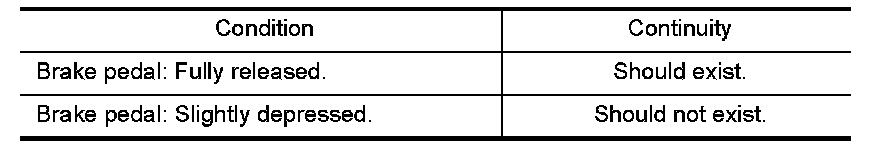

3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.





If NG, adjust ASCD brake switch installation, Inspection and Adjustment, and perform step 3 again.

ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.

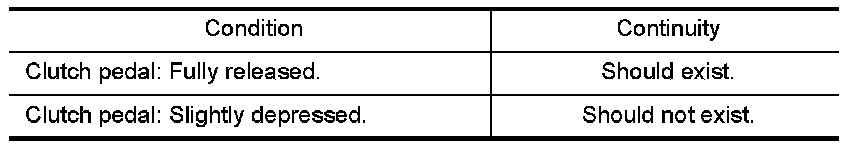

3. Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.





If NG, adjust ASCD clutch switch installation, Adjustments, and perform step 3 again.

STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.

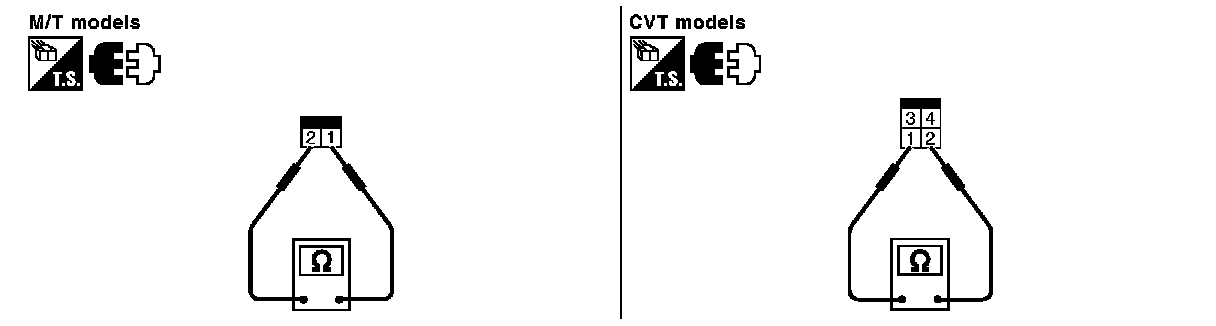

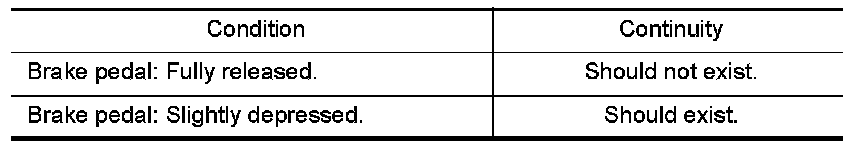

3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.










If NG, adjust stop lamp switch installation, Inspection and Adjustment, and perform step 3 again.
