CONSULT-III Function (Engine)

TROUBLE DIAGNOSIS


CONSULT-III Function (ENGINE)

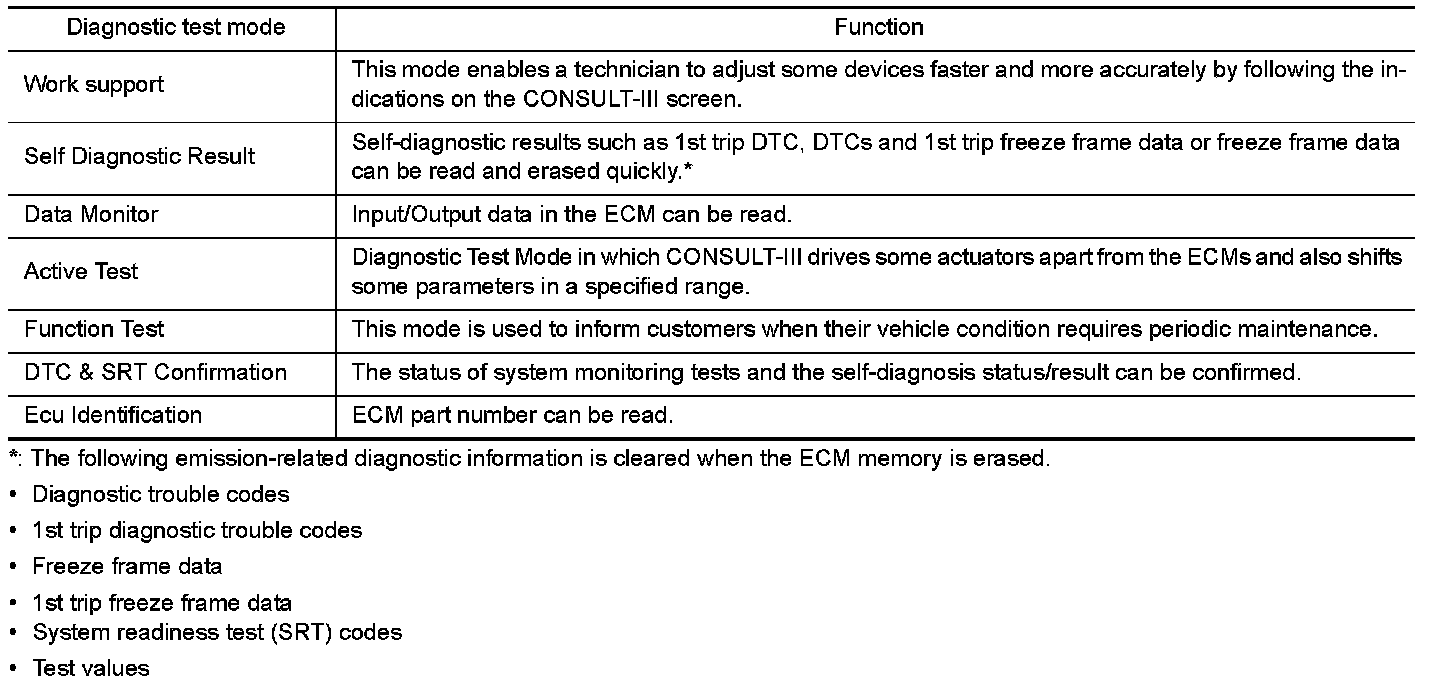

FUNCTION

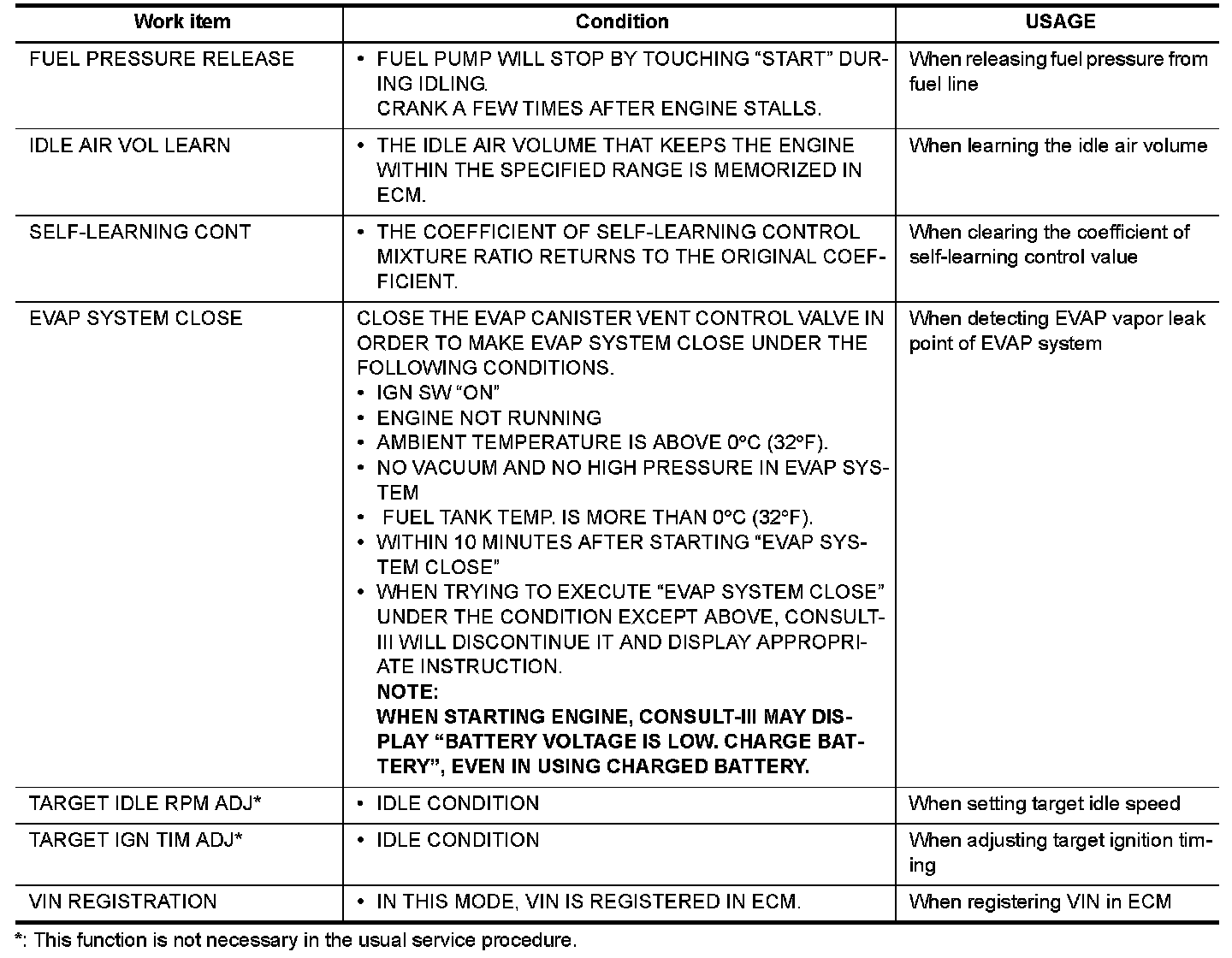

WORK SUPPORT MODE

Work Item






SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, Emission-Related Diagnostic Information.

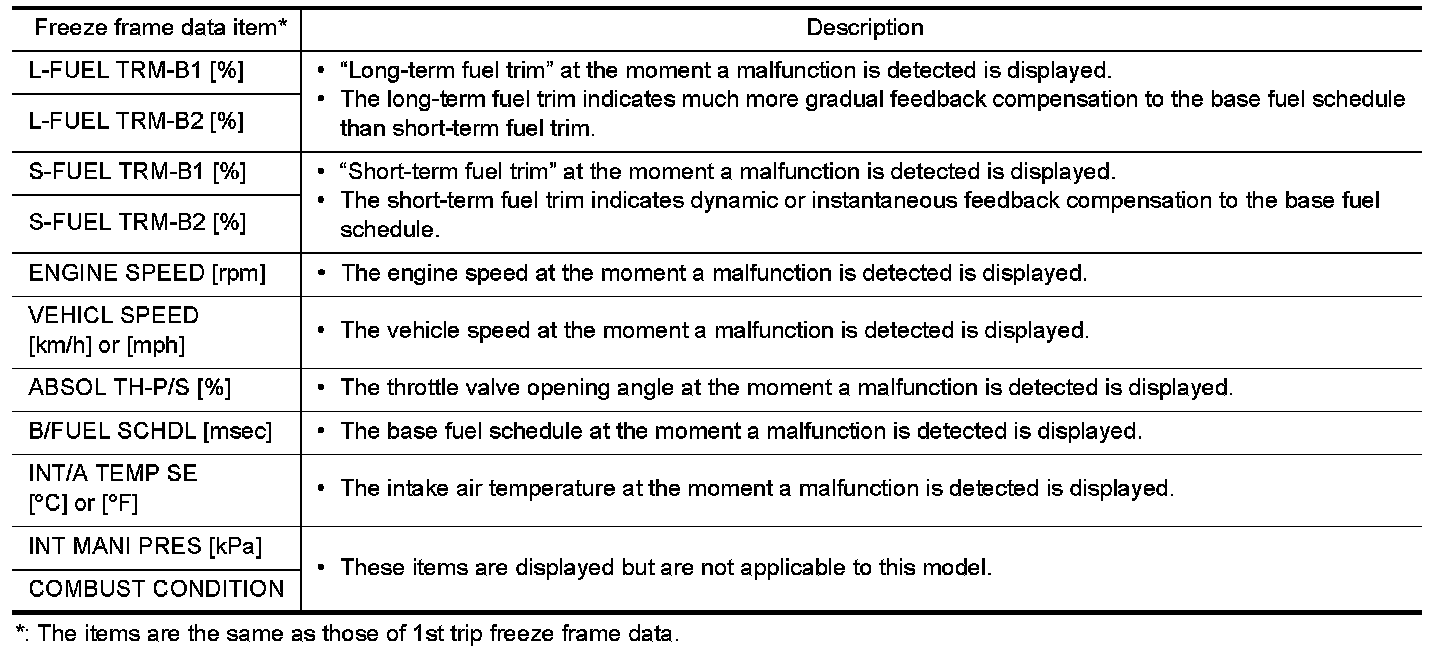

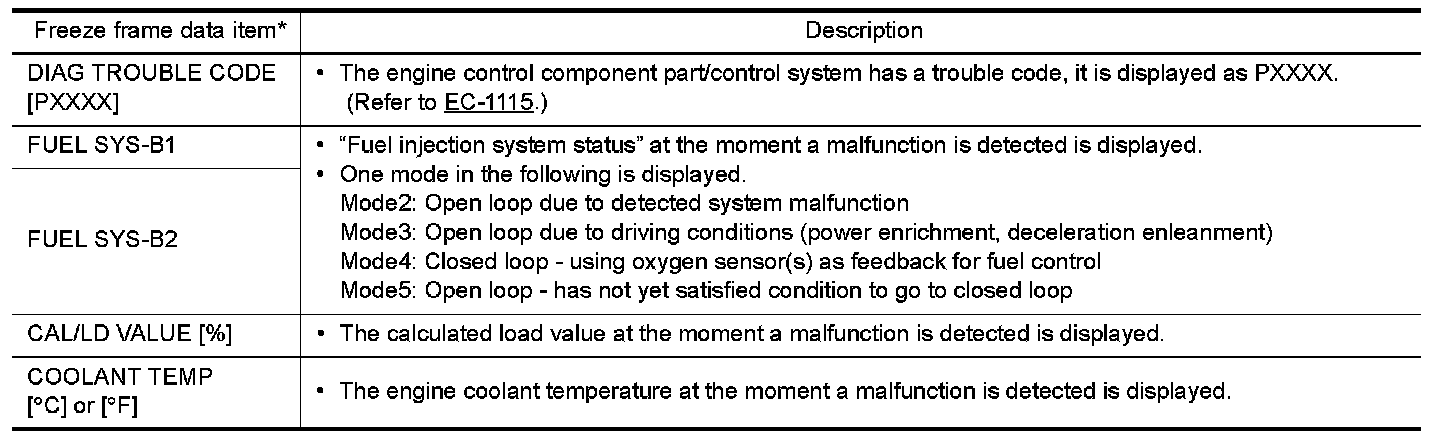

Freeze Frame Data and 1st Trip Freeze Frame Data

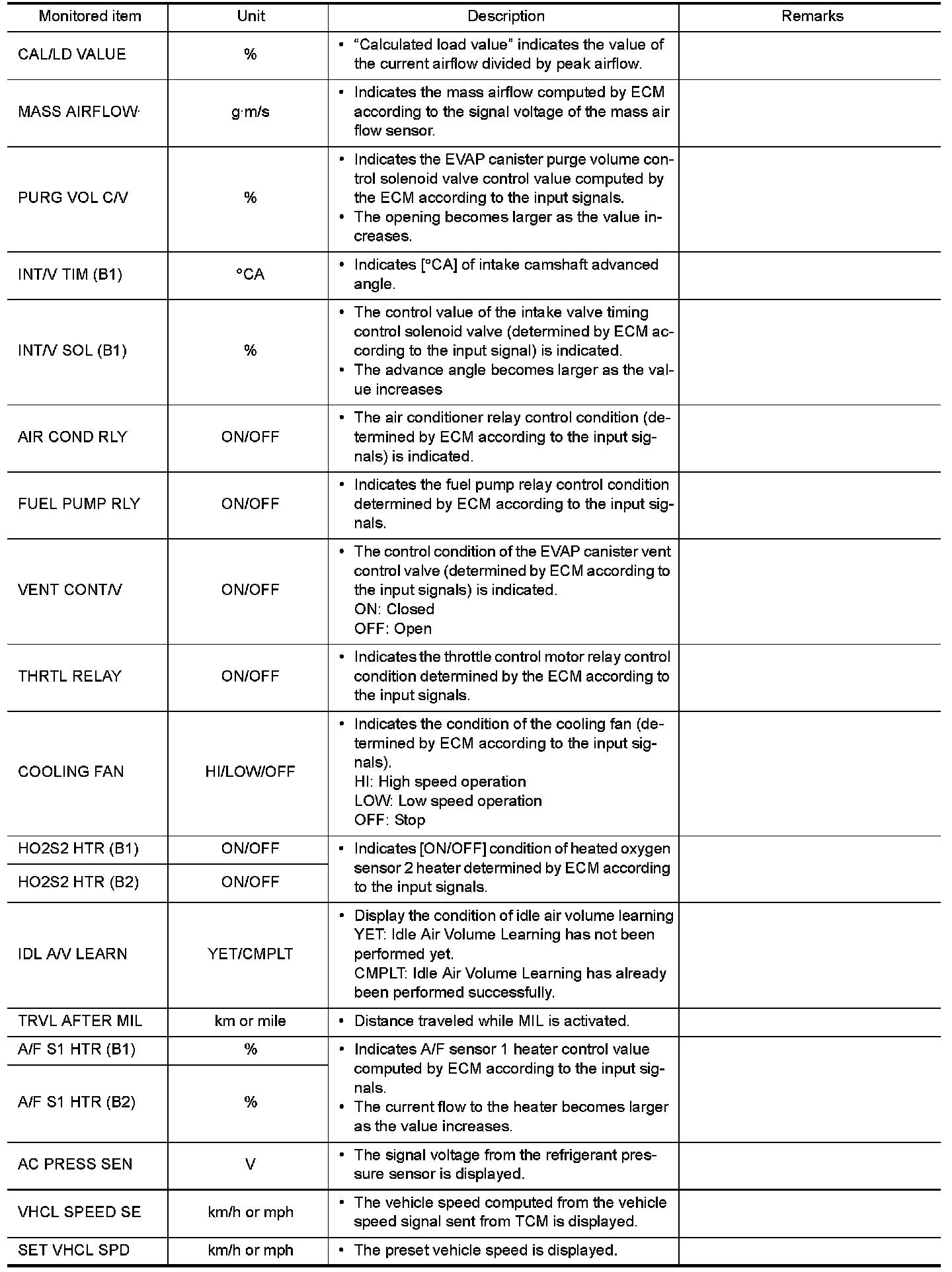

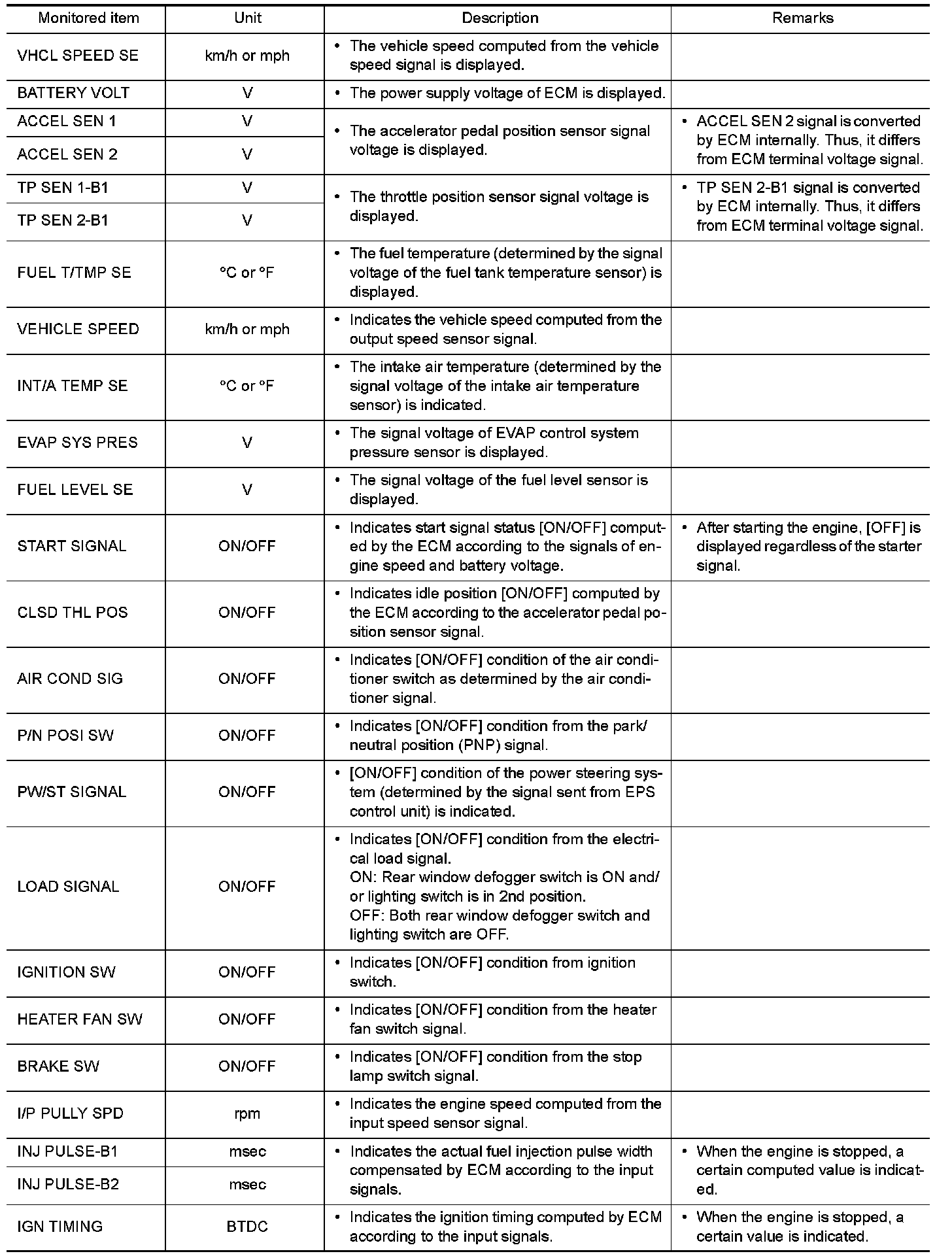

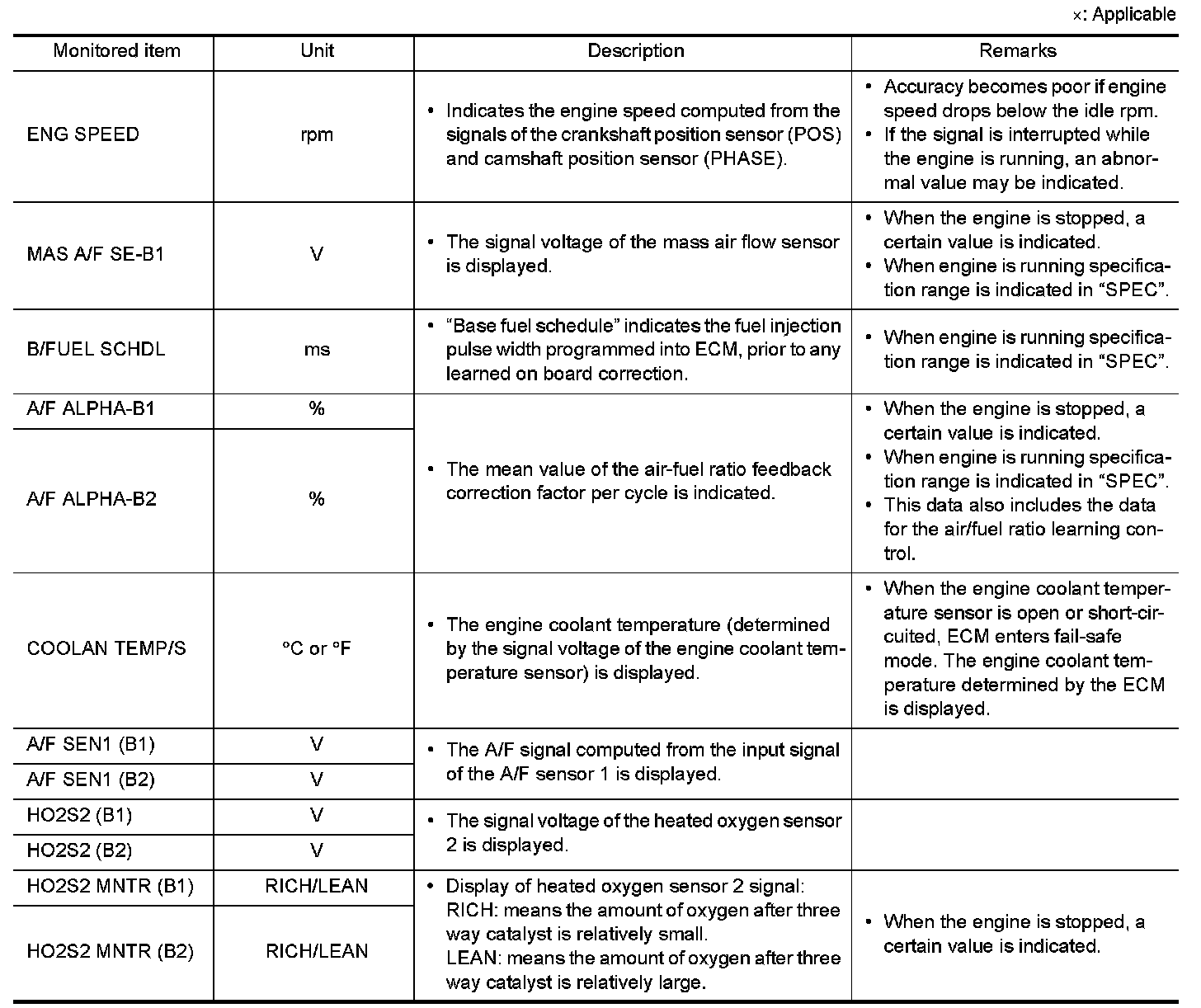

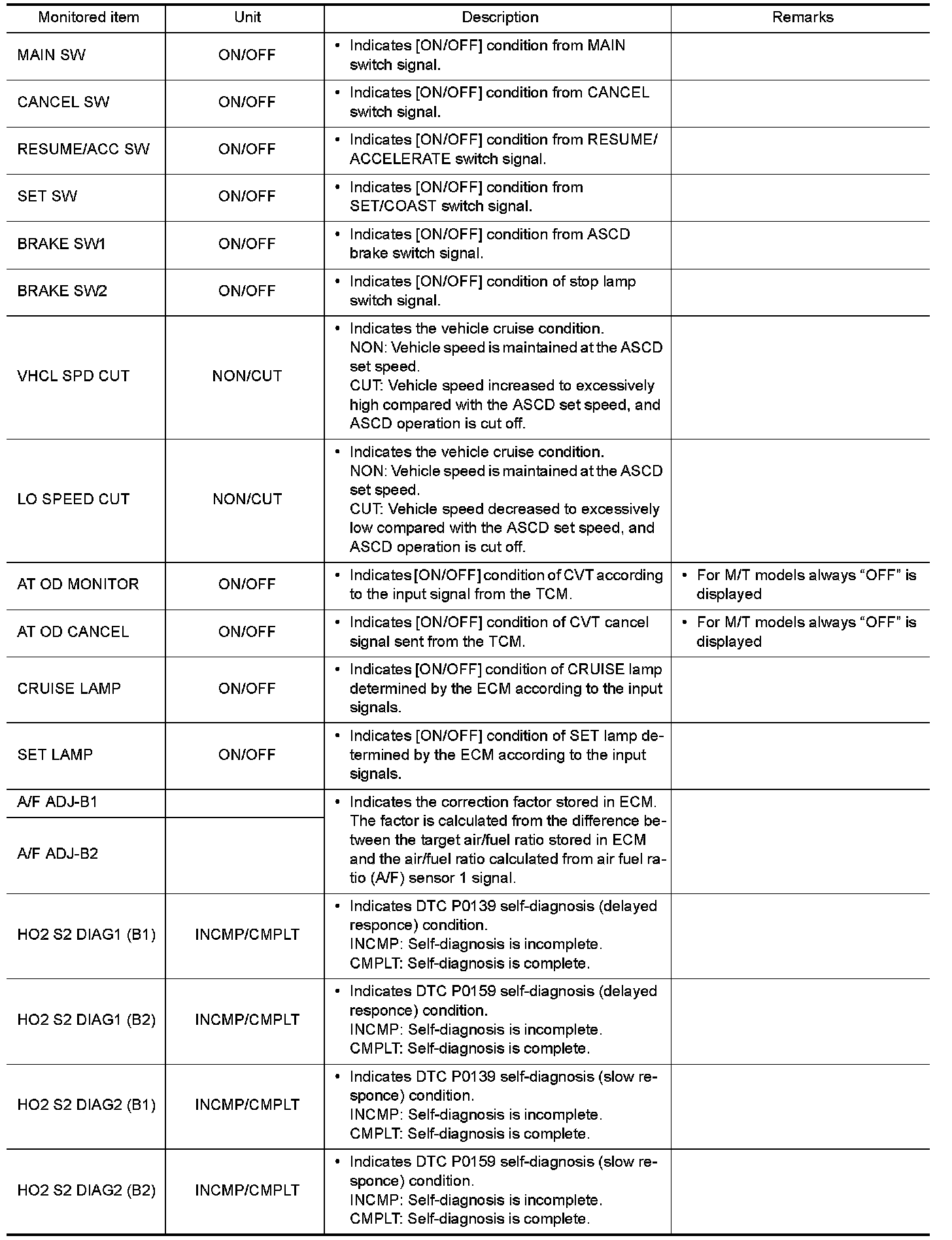

DATA MONITOR MODE

Monitored Item





















NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

ACTIVE TEST MODE

Test Item






DTC & SRT CONFIRMATION MODE

SRT STATUS Mode
For details, Emission-Related Diagnostic Information.

PERMANENT DTC STATUS Mode
For details, Emission-Related Diagnostic Information.

NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing permanent DTC.

NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.

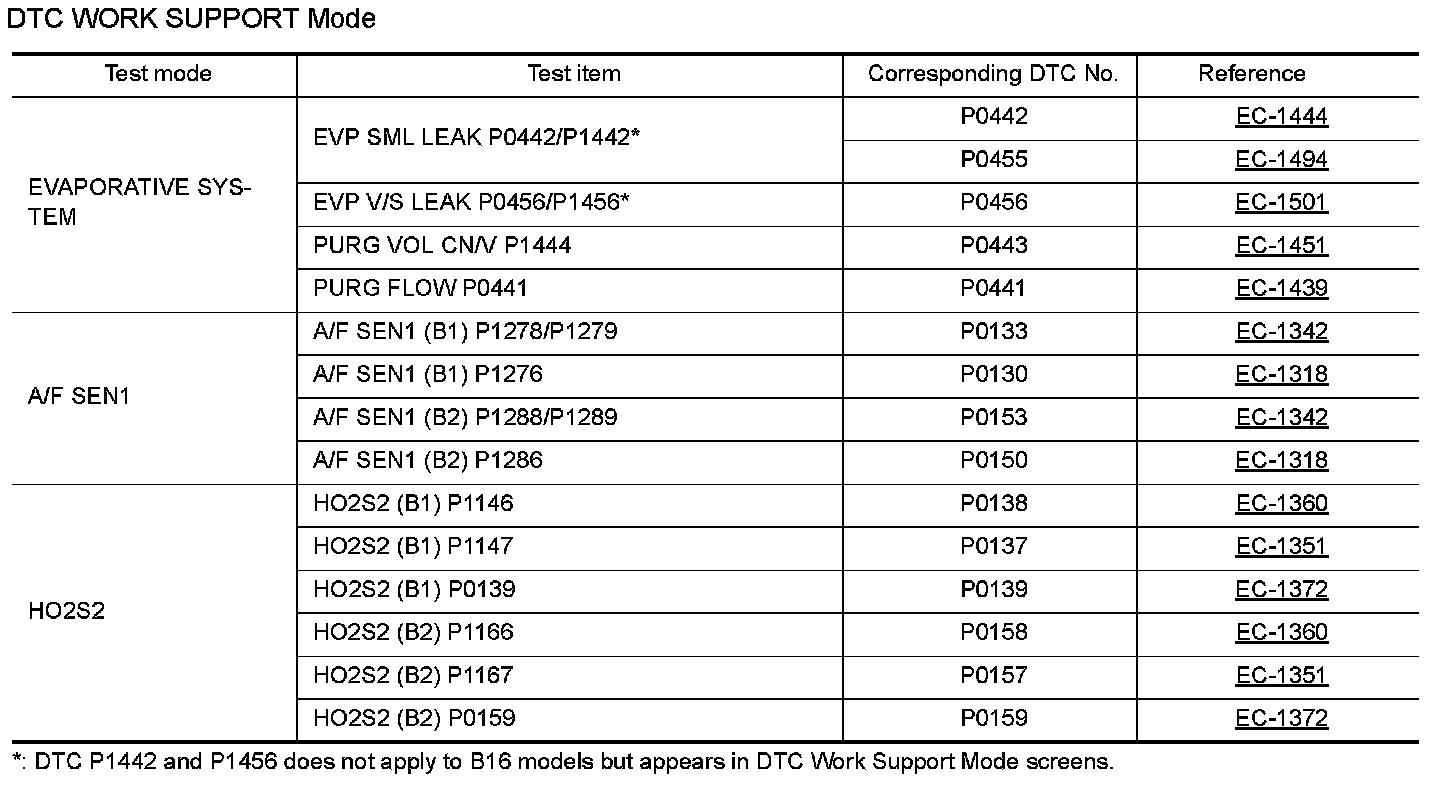

DTC WORK SUPPORT Mode
