Intake Manifold

INTAKE MANIFOLD















Install the intake manifold bolts and nuts in the reverse order of removal, following the tightening sequences below.

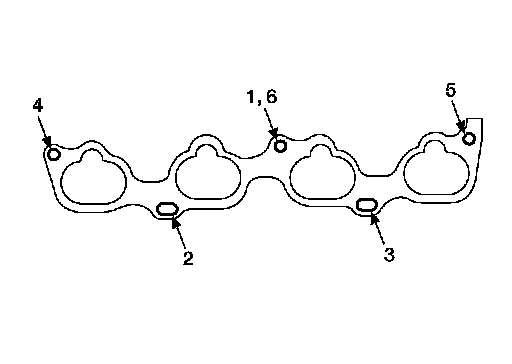

Tightening Intake Manifold Bolts and Nuts

Tighten in numerical order as shown.

CAUTION: After tightening No.5, retighten the No.1 bolt to specification.

Tightening Intake Manifold Support Bolts
- Tighten the intake manifold support bolts following the tightening sequence below.
- Temporarily tighten the intake manifold support (rear) bolts.
- Tighten the electric throttle control actuator bolts.
- Tighten the intake manifold support (rear) bolts.
- Temporarily tighten the intake manifold support (front) bolts (intake manifold side).
- Tighten the intake manifold support (front) bolts (engine side).
- Tighten the intake manifold support (front) bolts (intake manifold side).
