Removal Sedan With Intelligent Key
REMOTE KEYLESS ENTRY RECEIVERRemoval REMOVAL 1.
Remove glove compartment.
Service and Repair.
2.

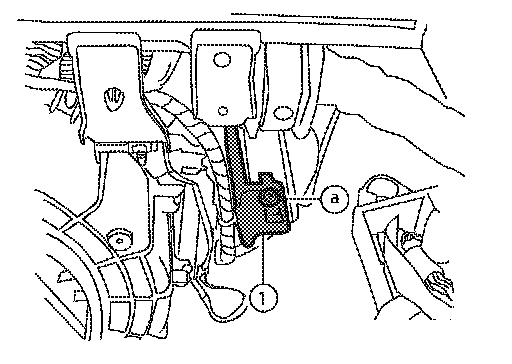

Remove the screw (a), lower the bracket and remote keyless entry receiver (1), then disconnect the harness and remove the receiver.
