Removal And Installation





TCM


Removal and Installation


REMOVAL

CAUTION:
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Programming and Relearning.
1. Disconnect the battery negative terminal. .
2. Remove the fresh air intake tube (upper) Service and Repair.
3. Disconnect the TCM harness connector.

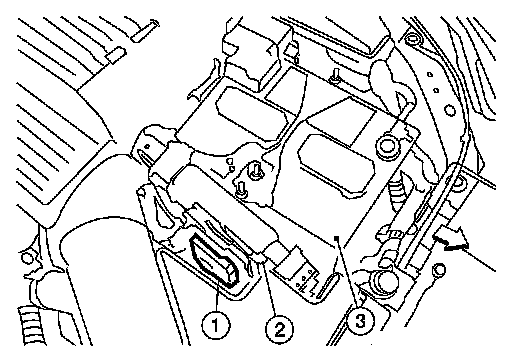

4. Remove the TCM (1) from the bracket (2).
- Arrow Indicates : Front
- Battery (3)

INSTALLATION
Installation is in the reverse order of removal.
