Symptom Related Diagnostic Procedures

SYSTEM SYMPTOM

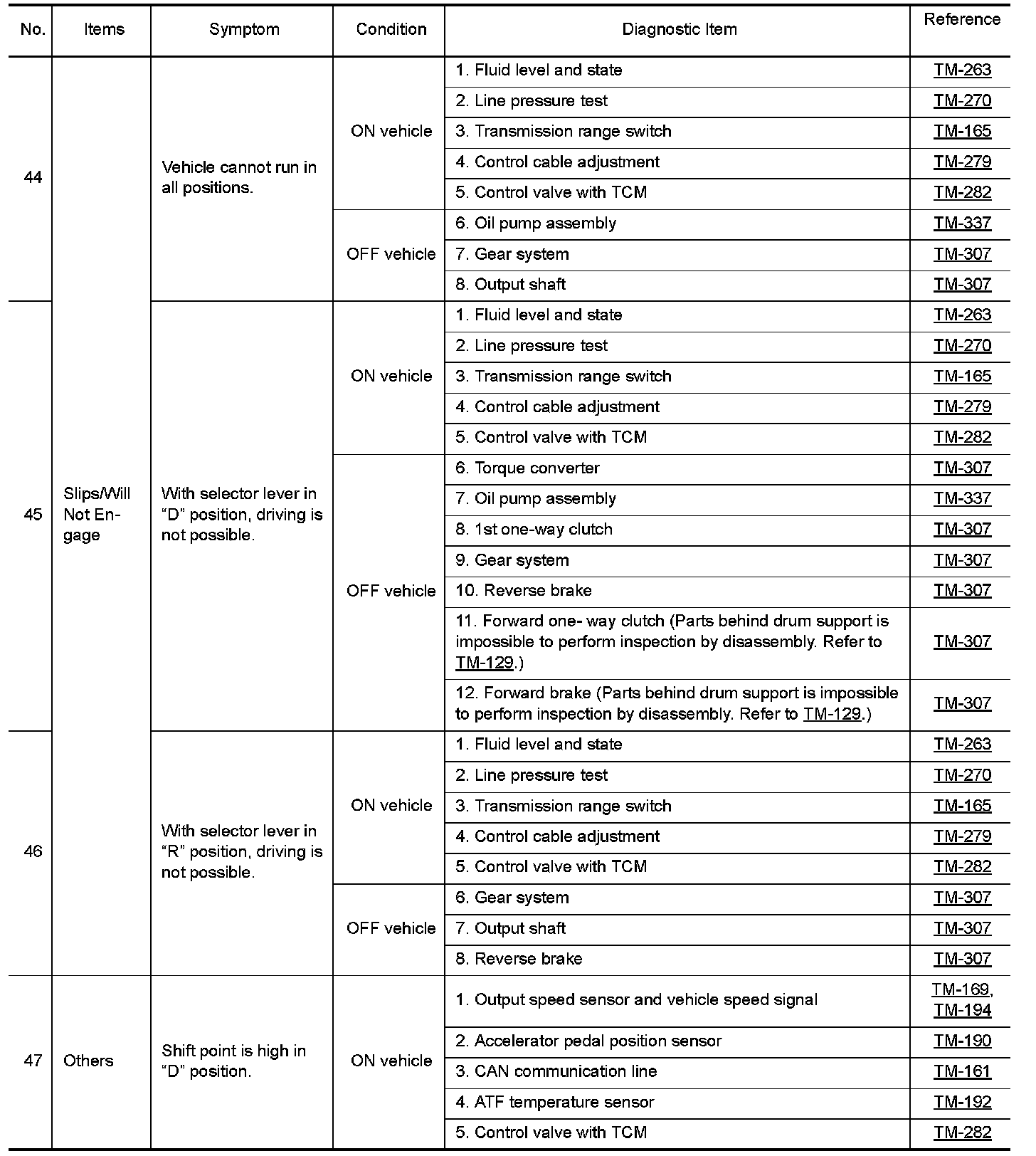

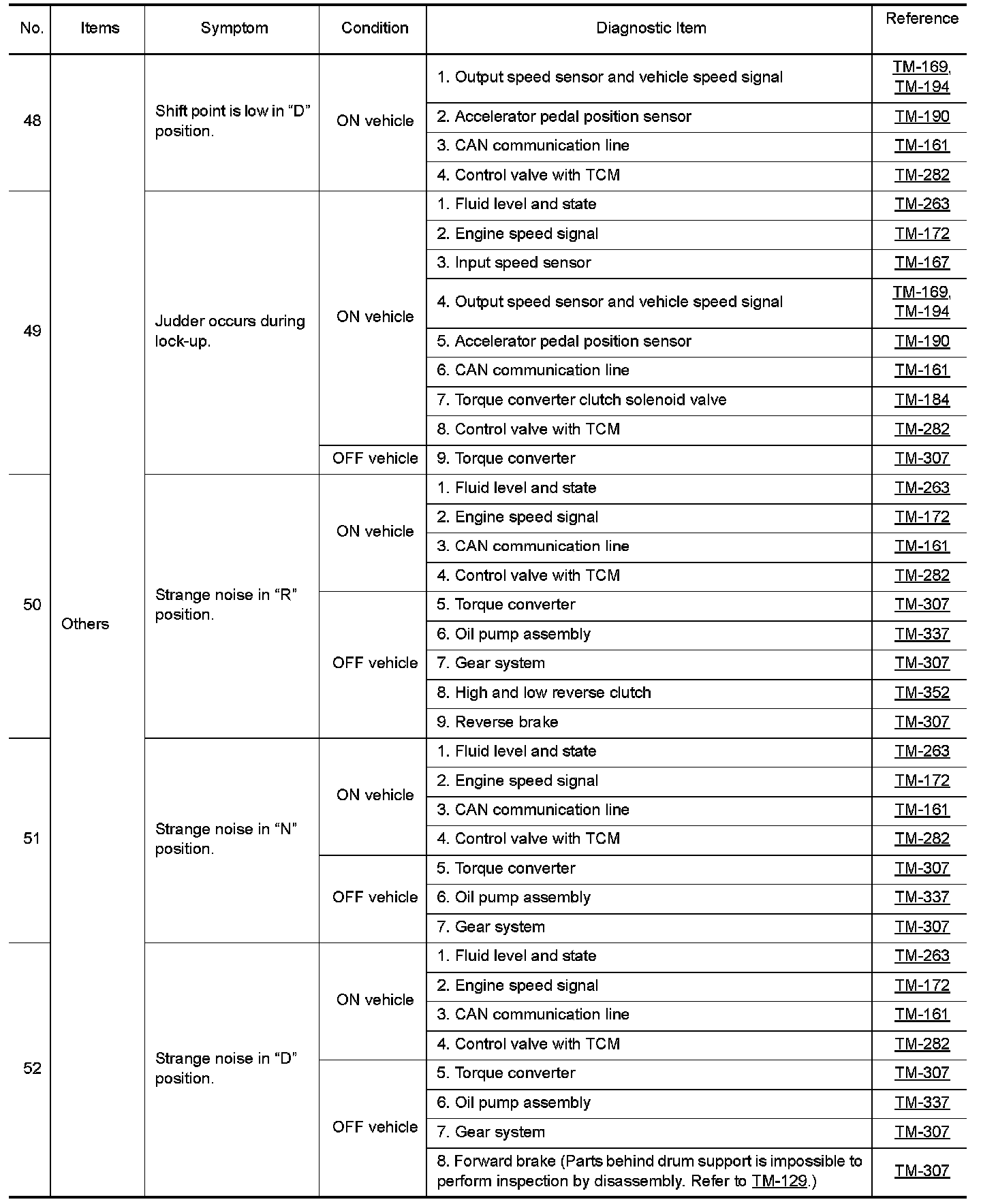

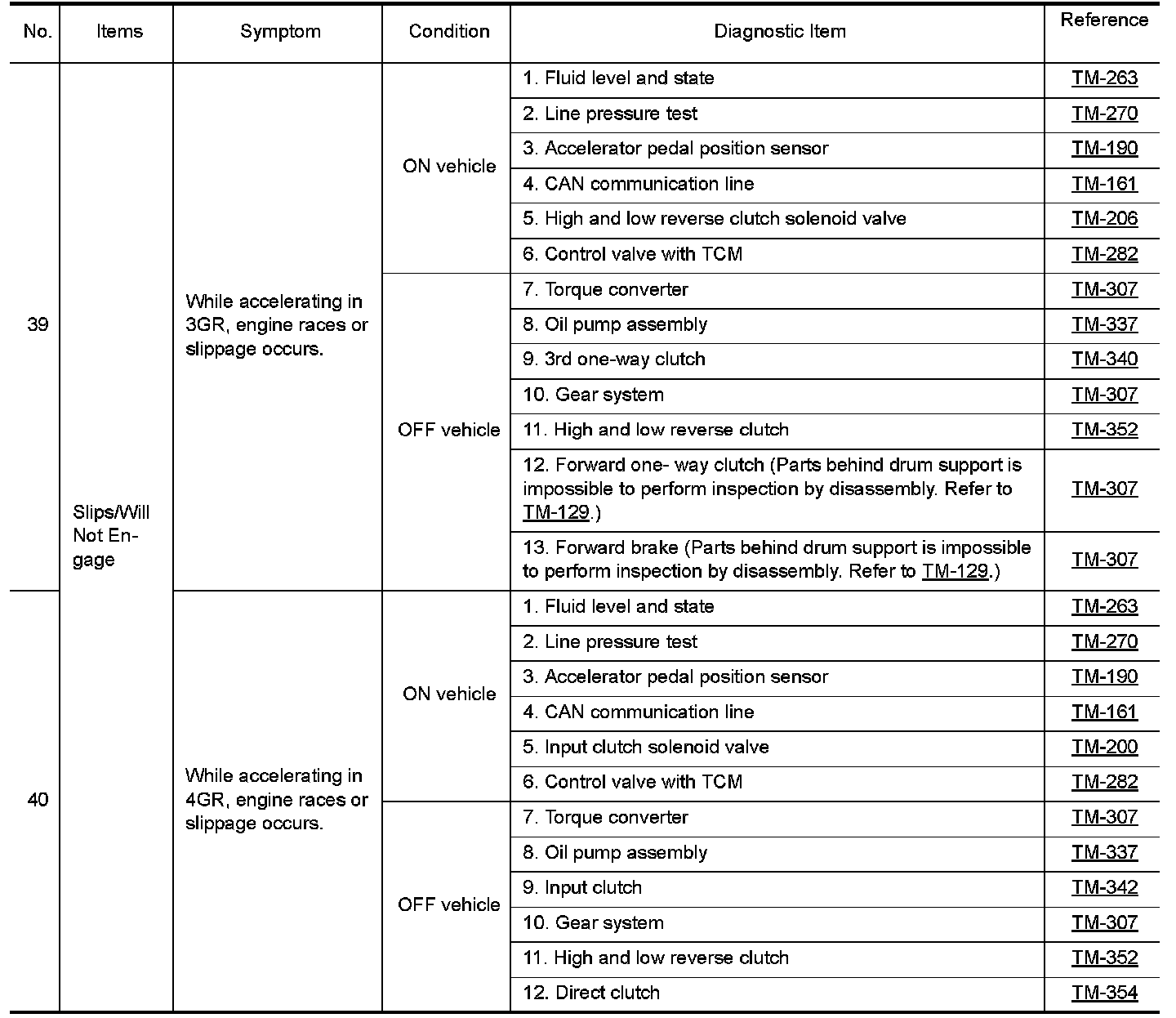

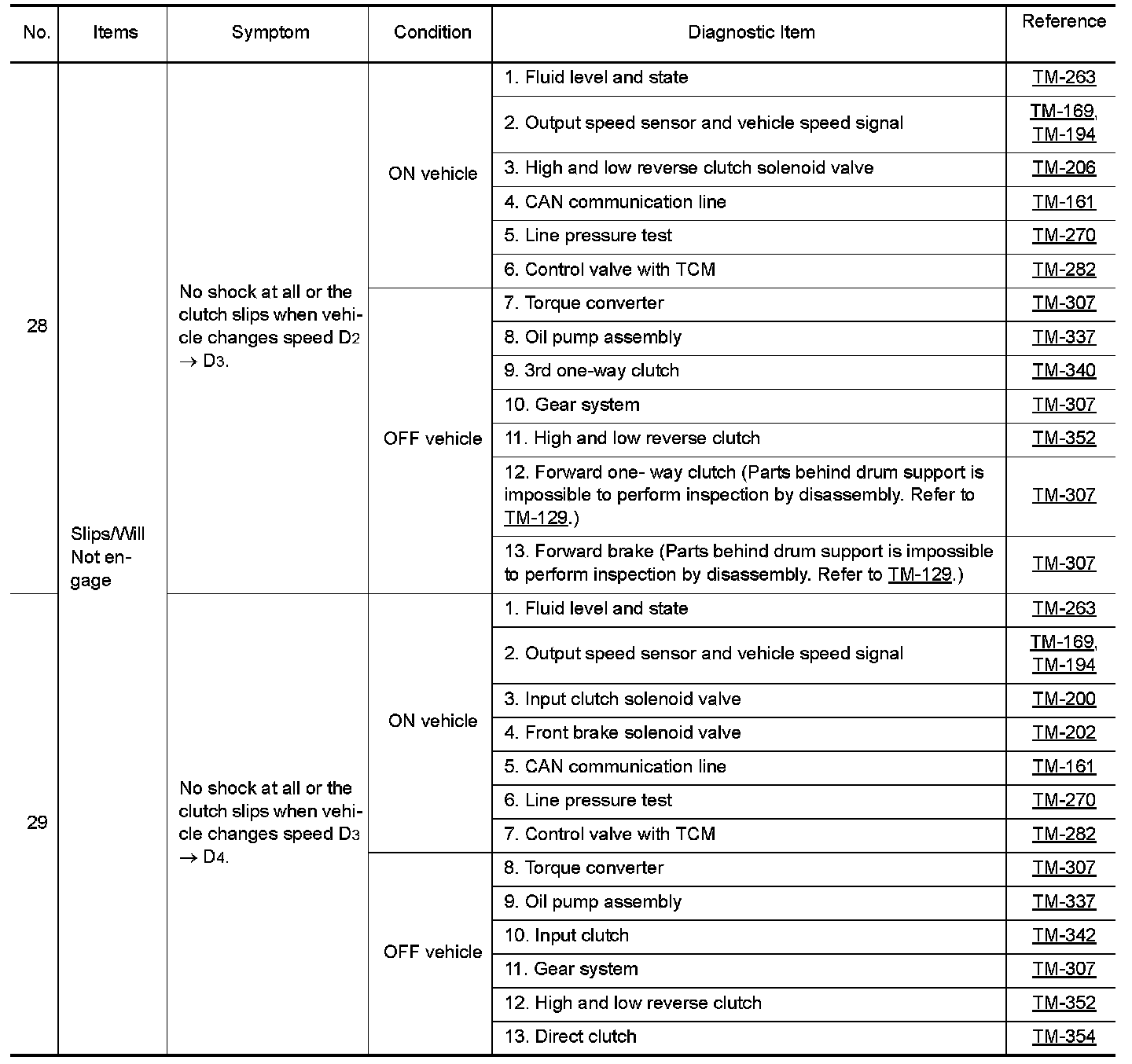

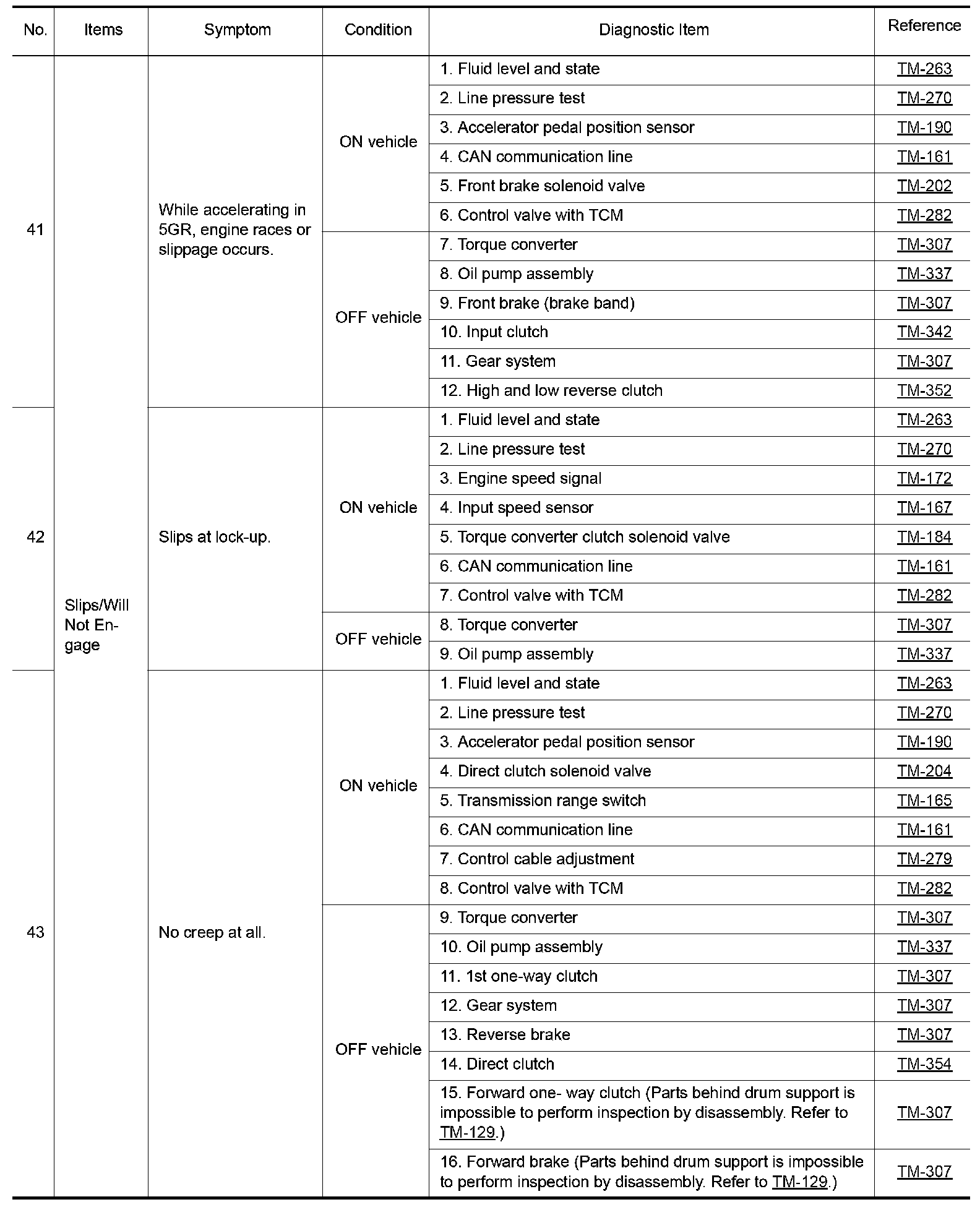

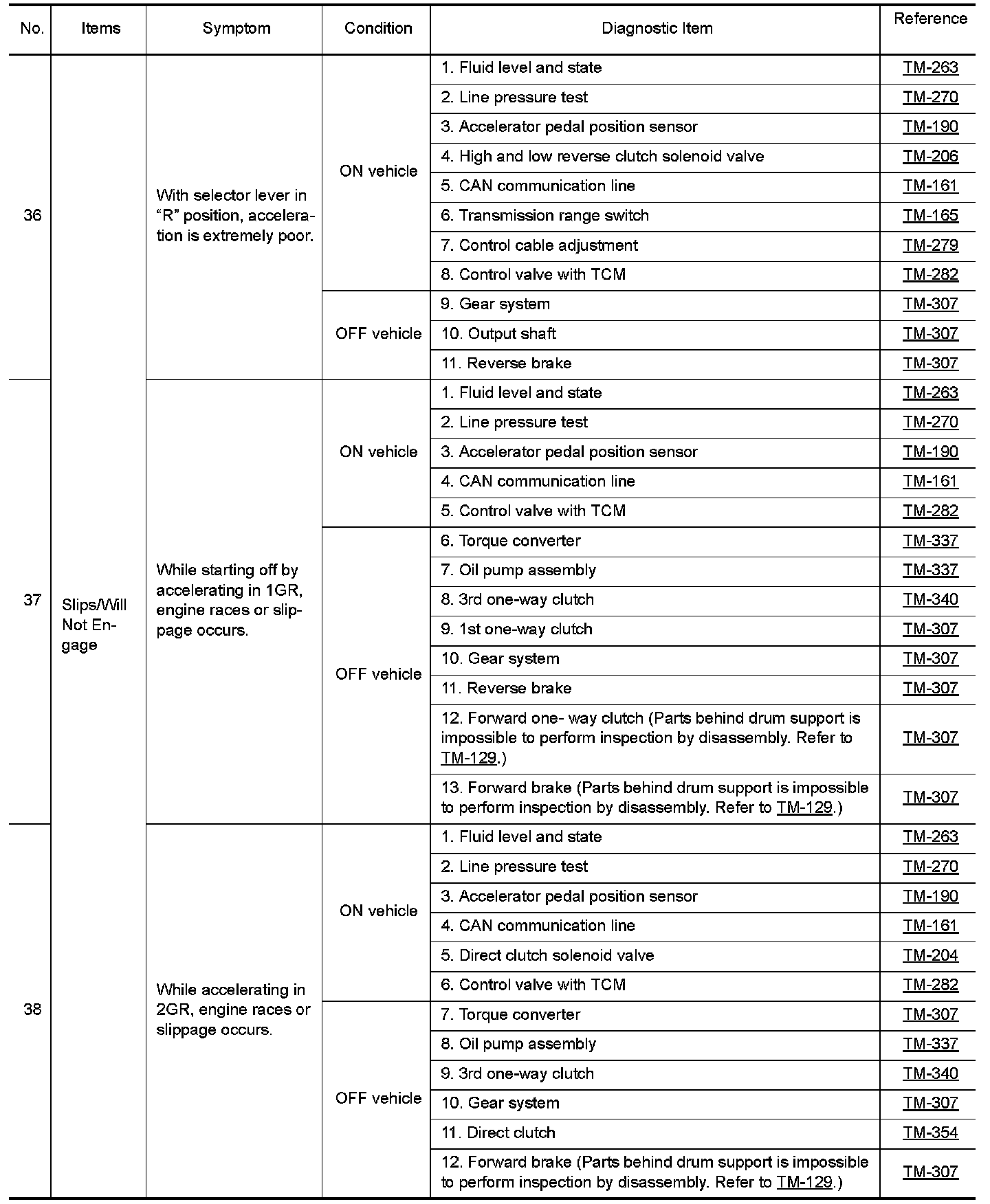

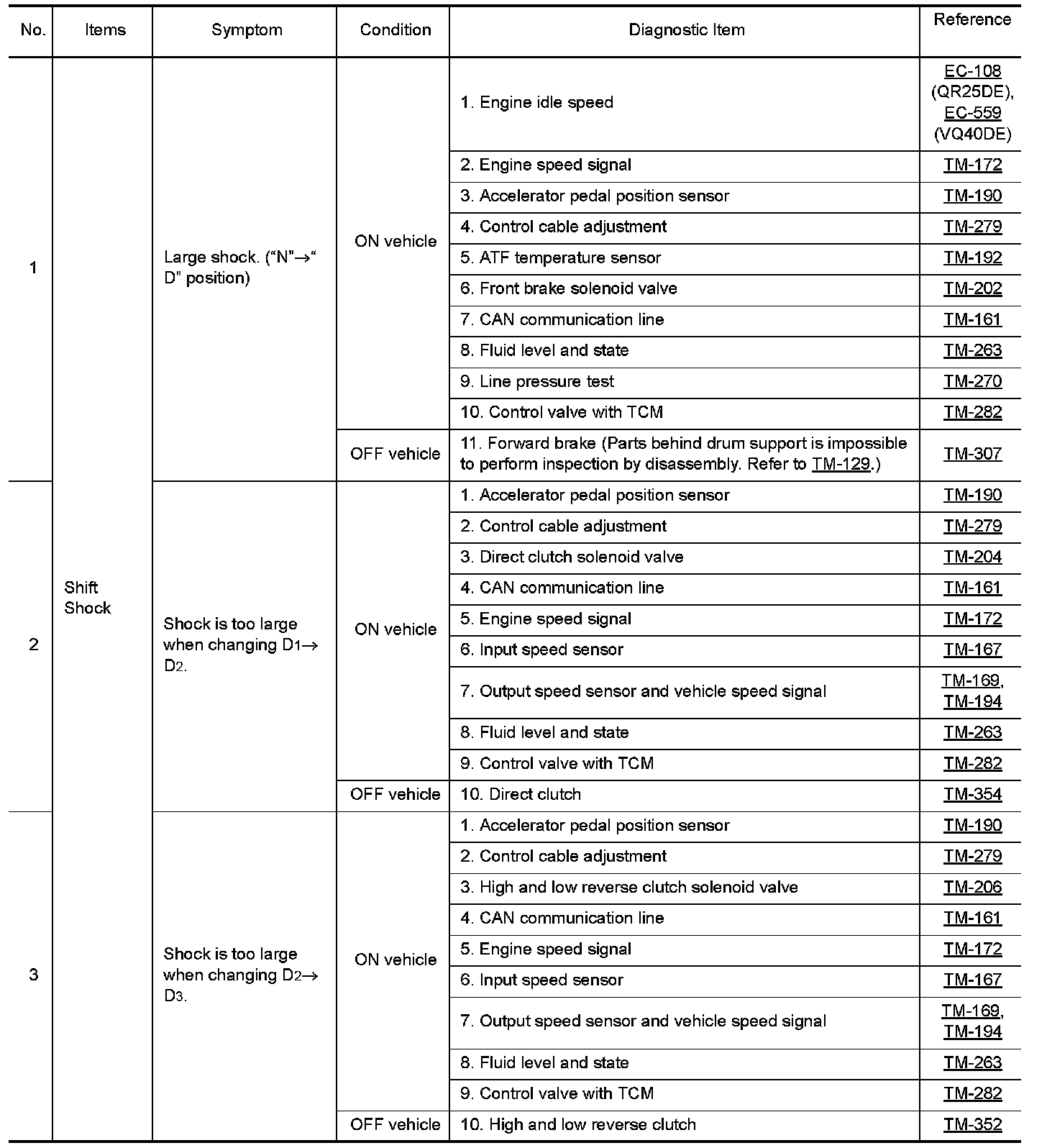

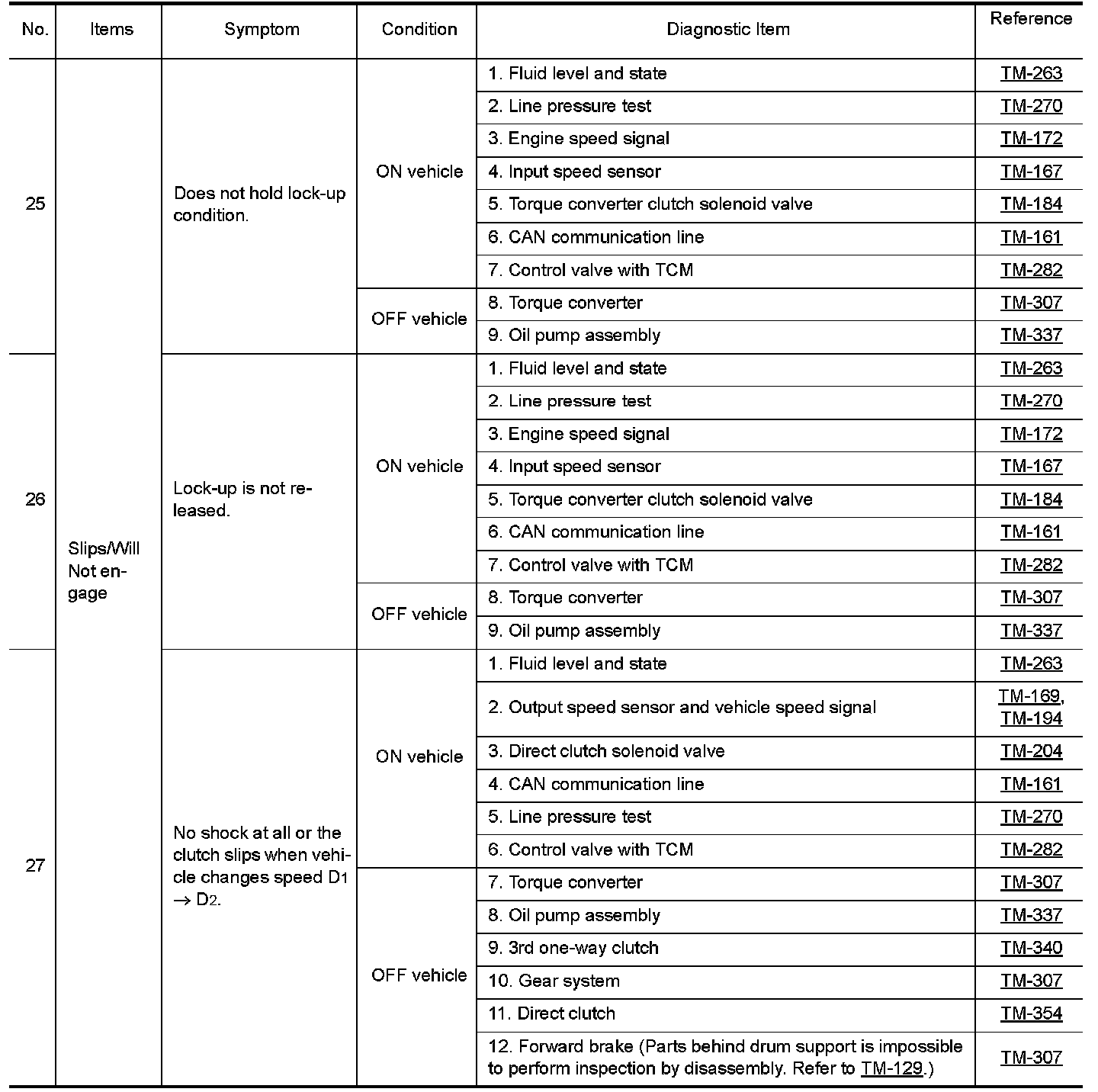

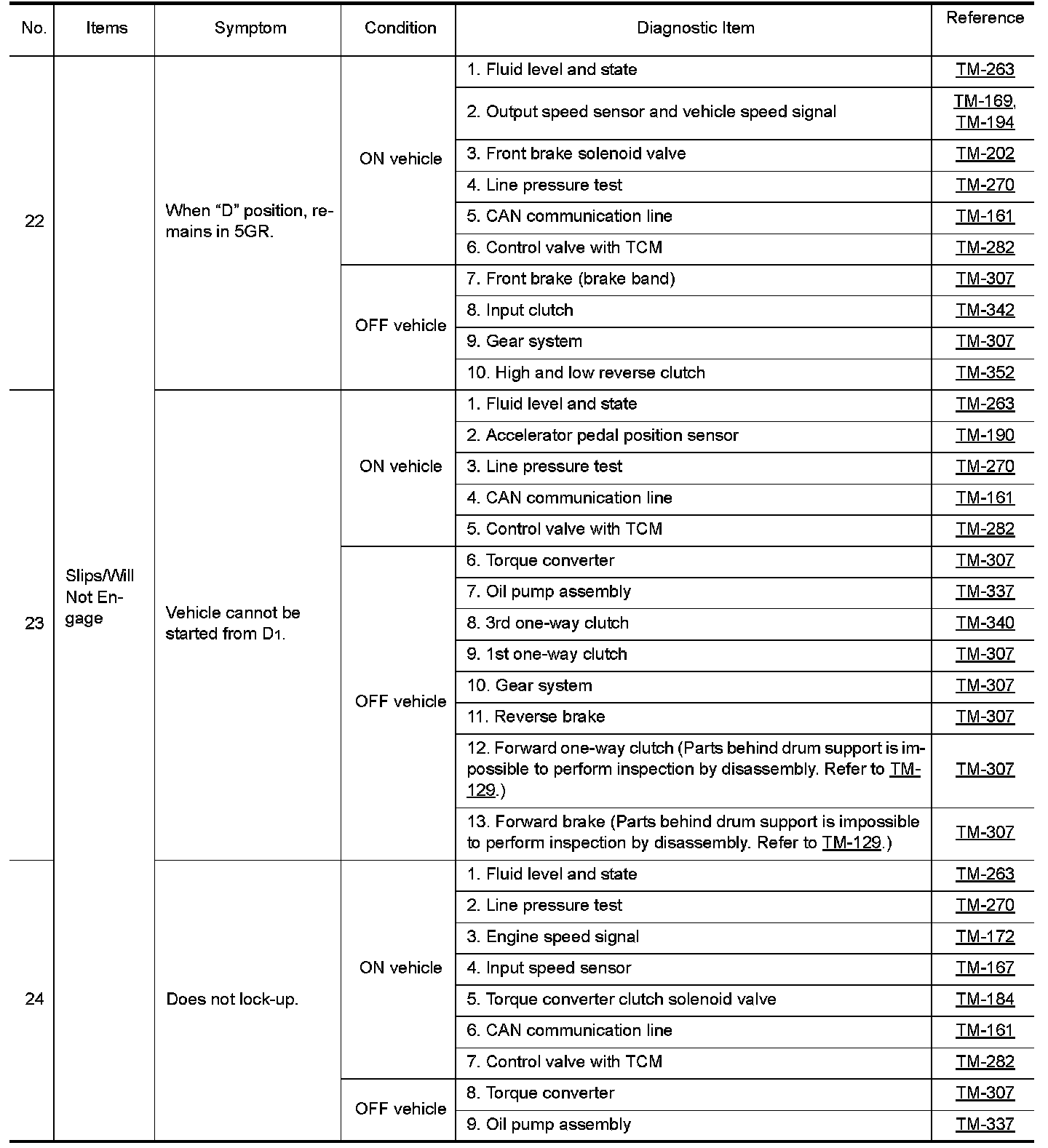

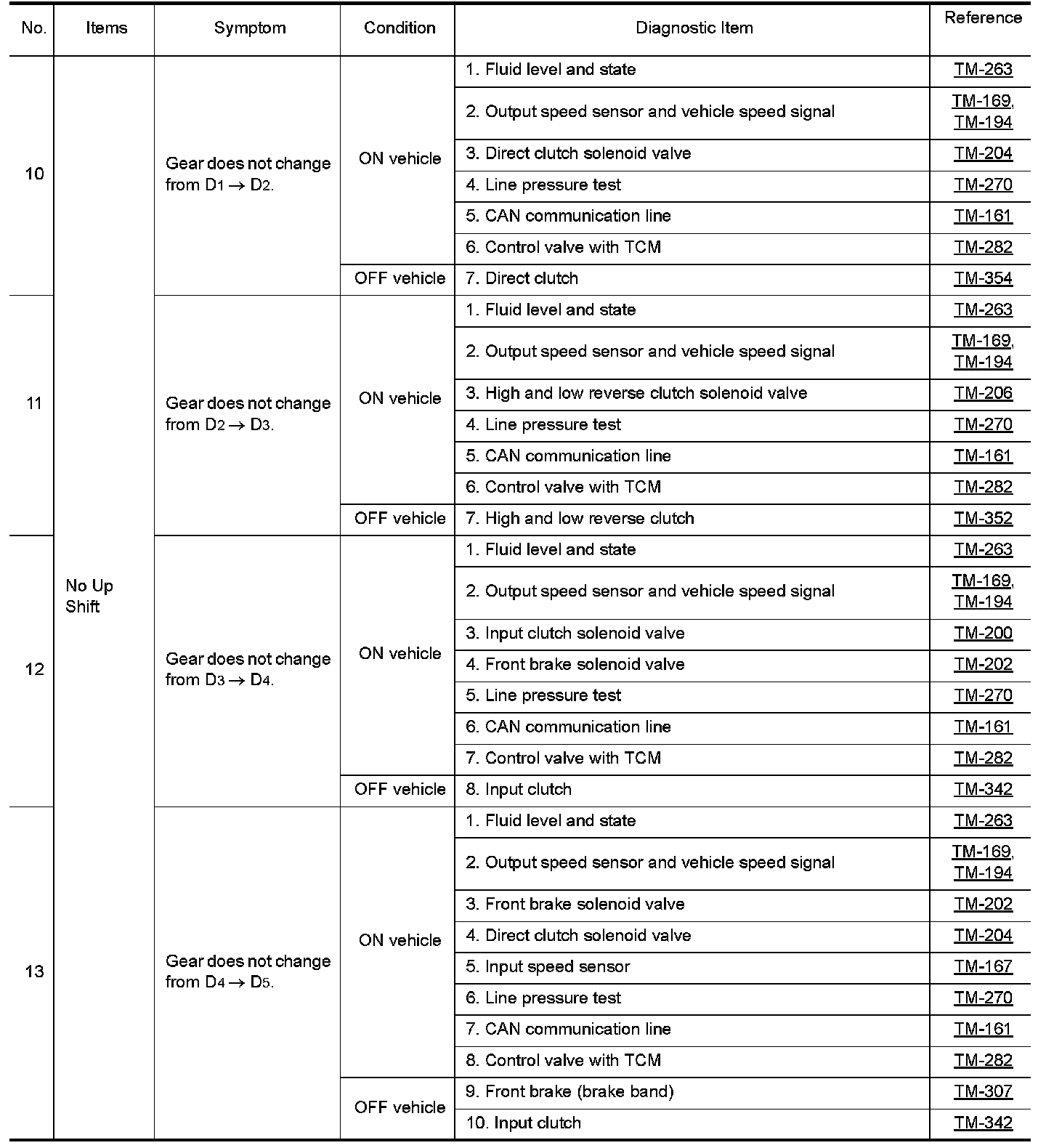

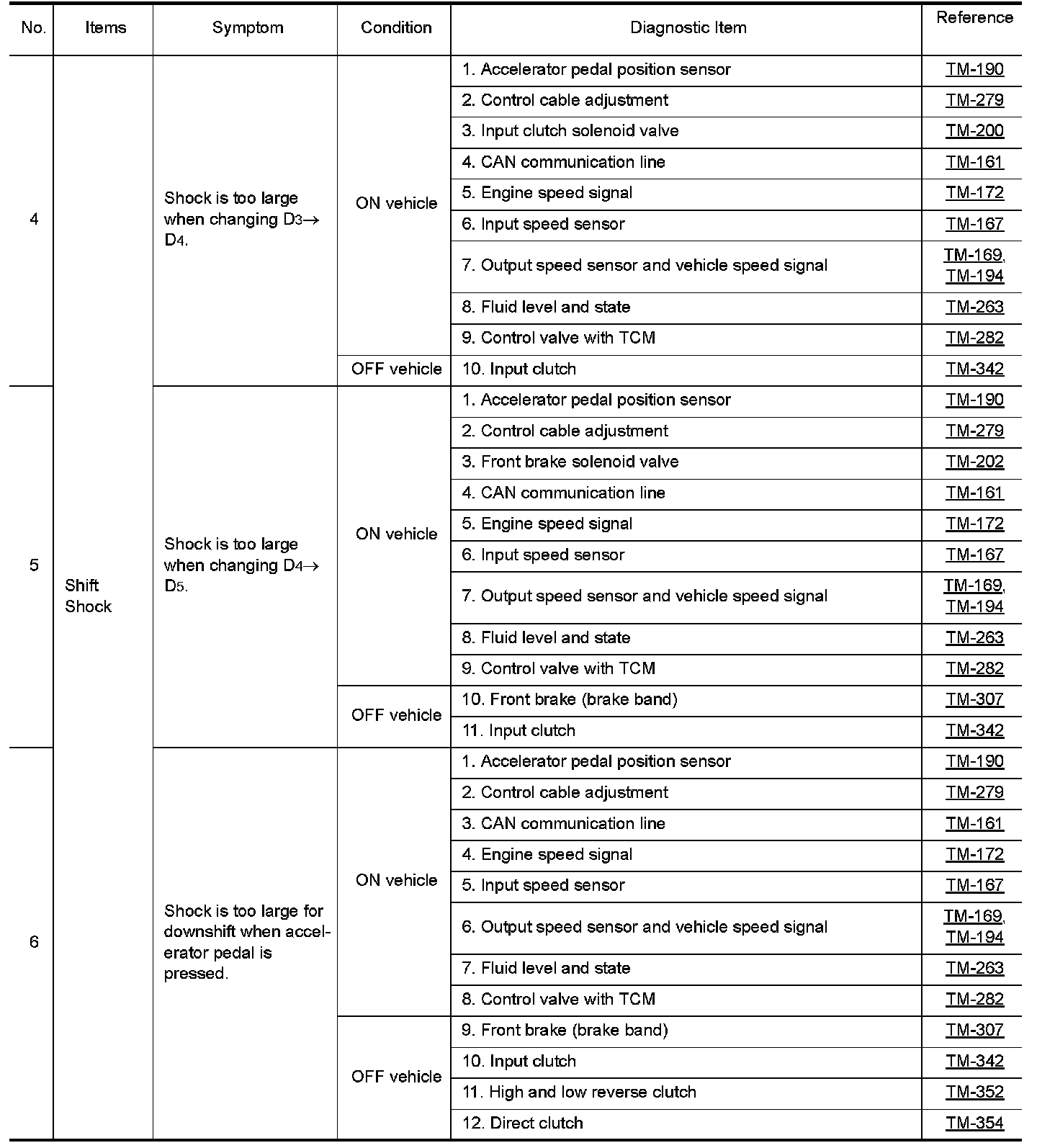

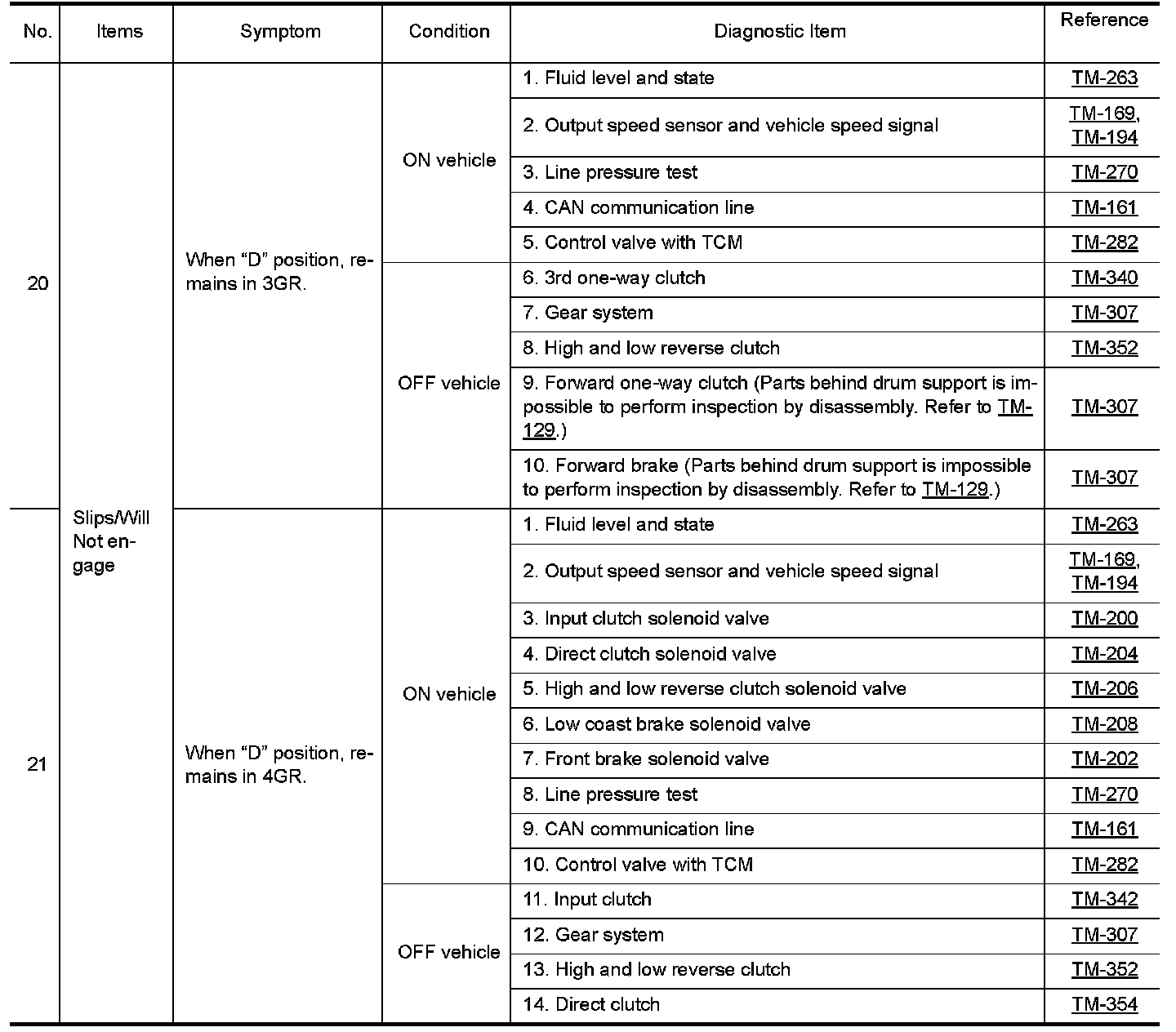

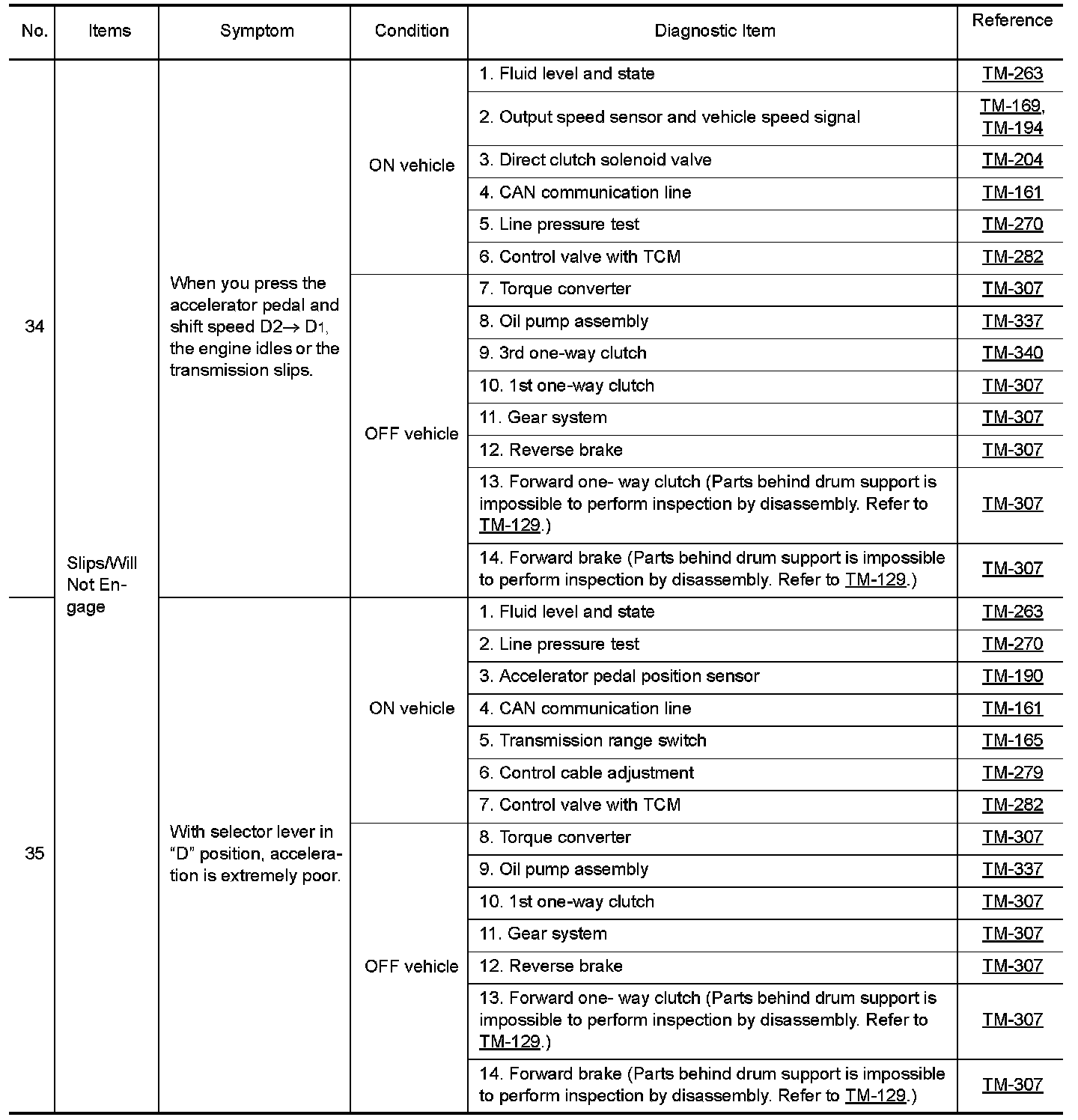

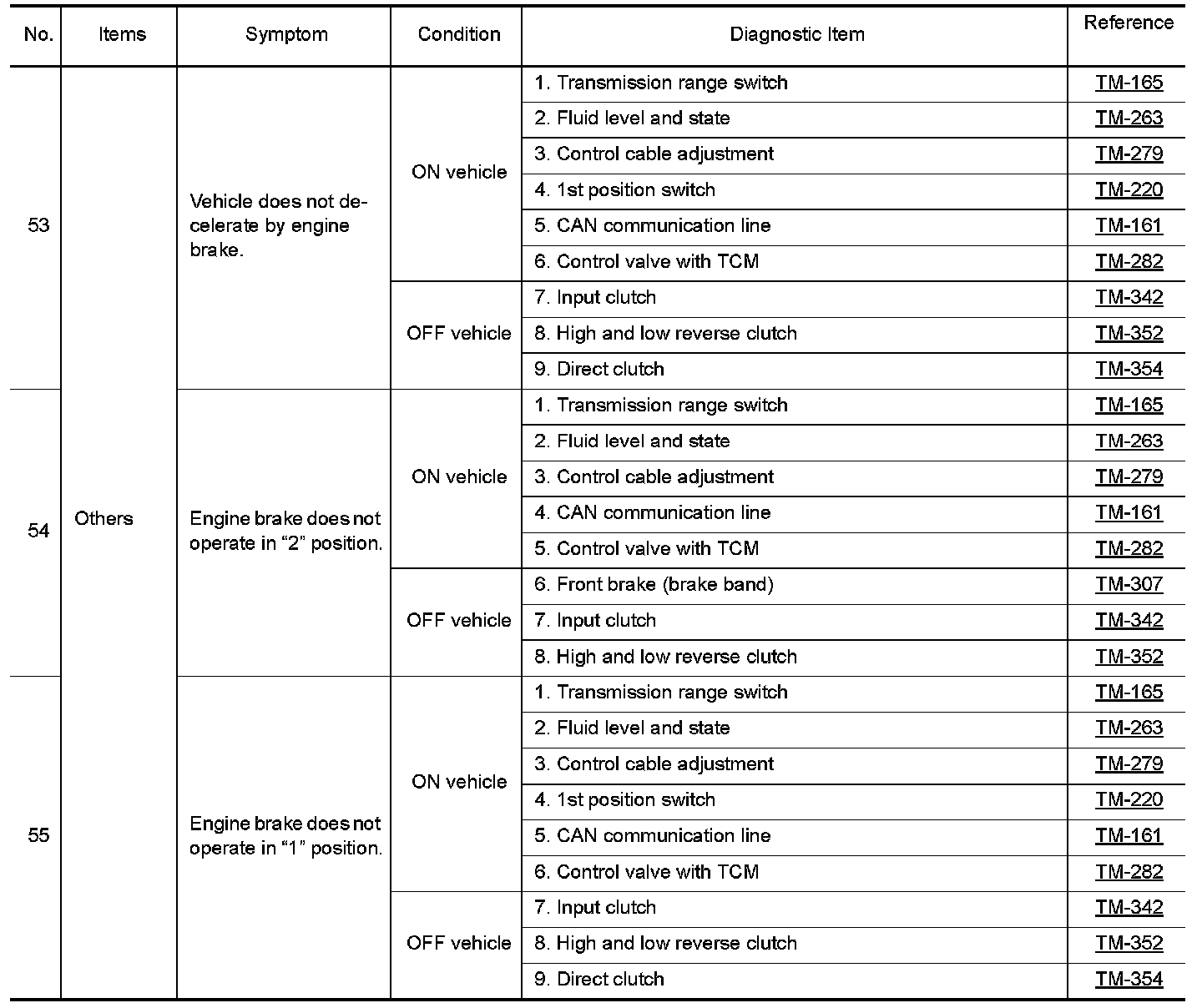

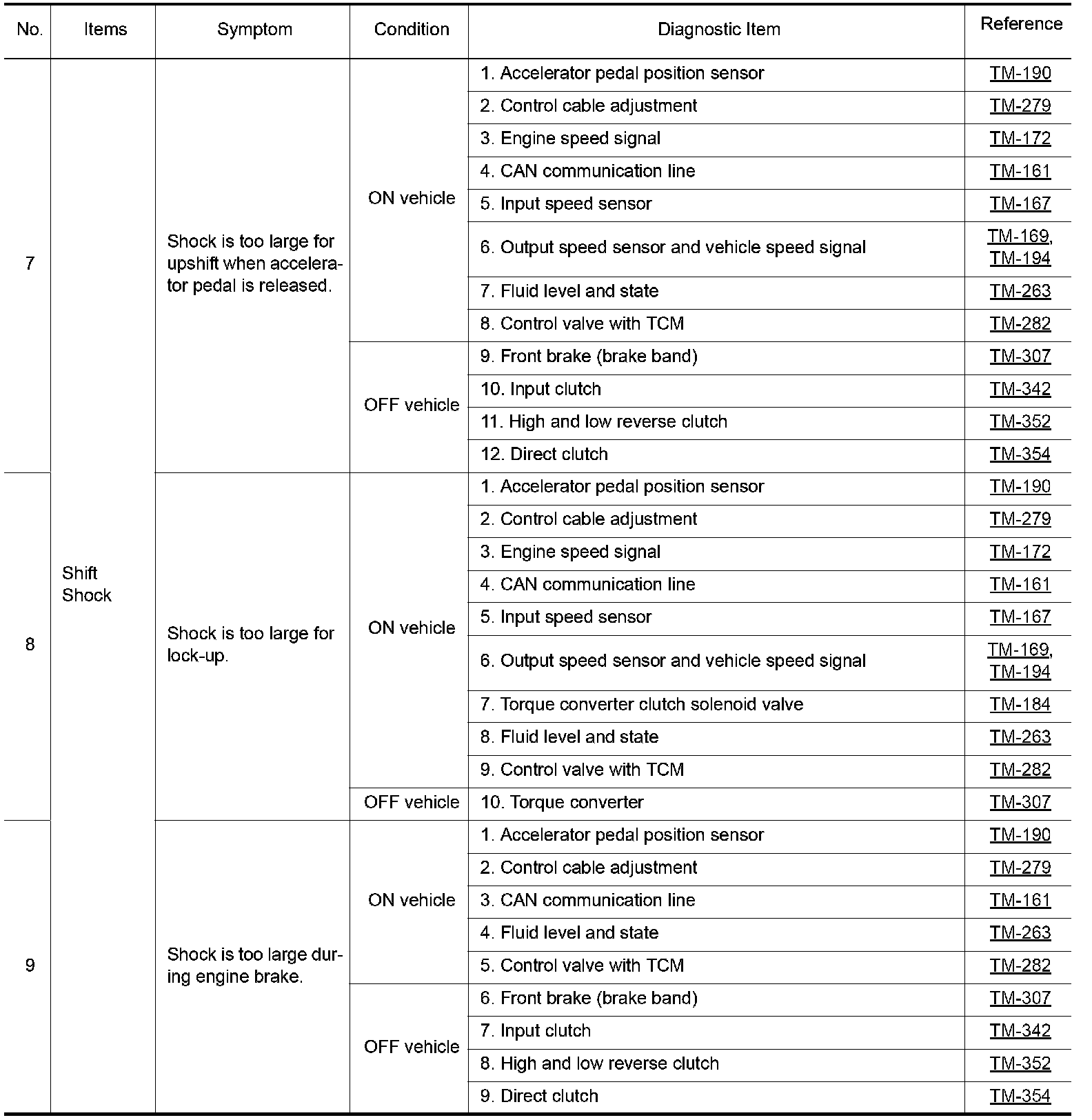

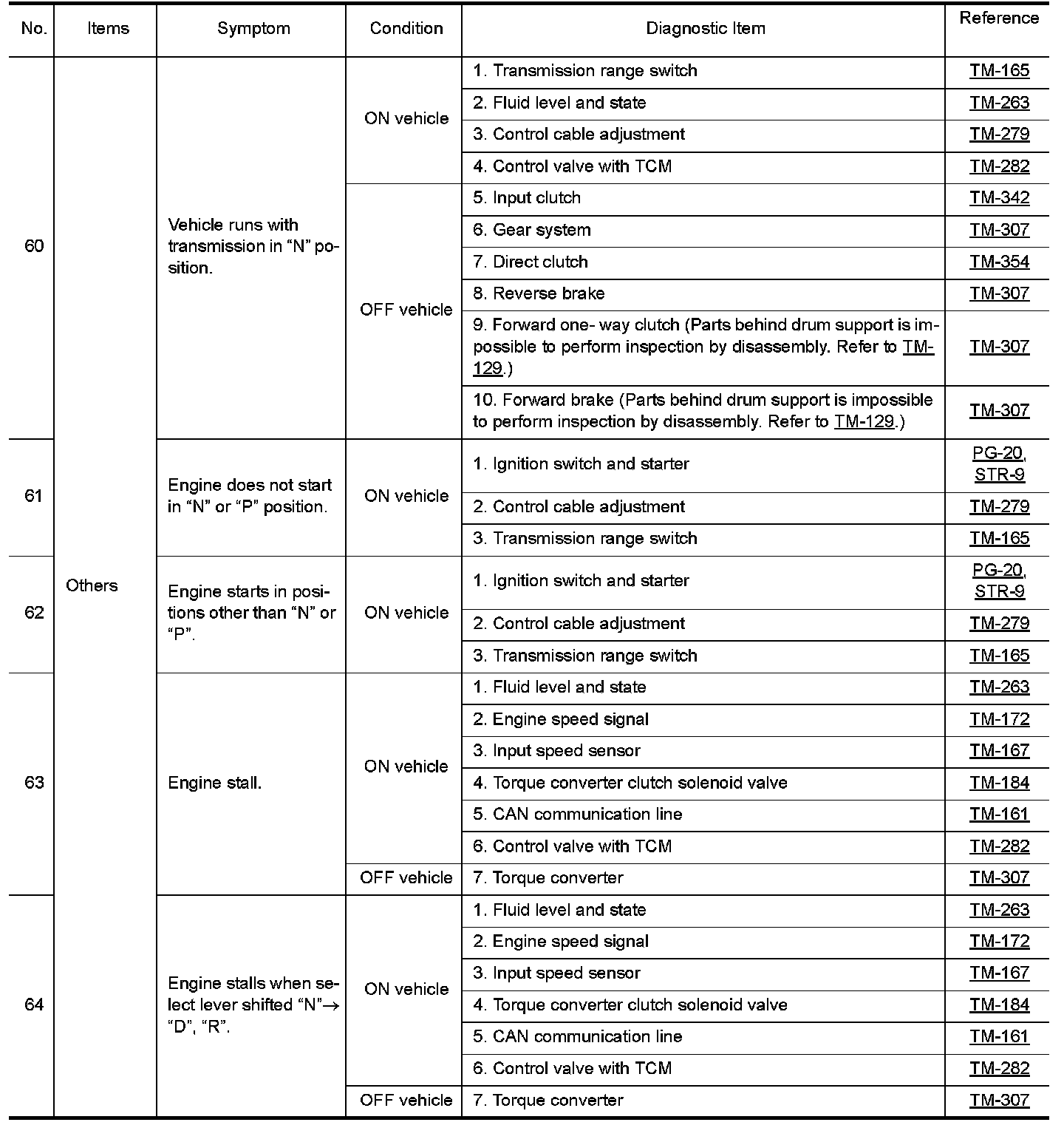

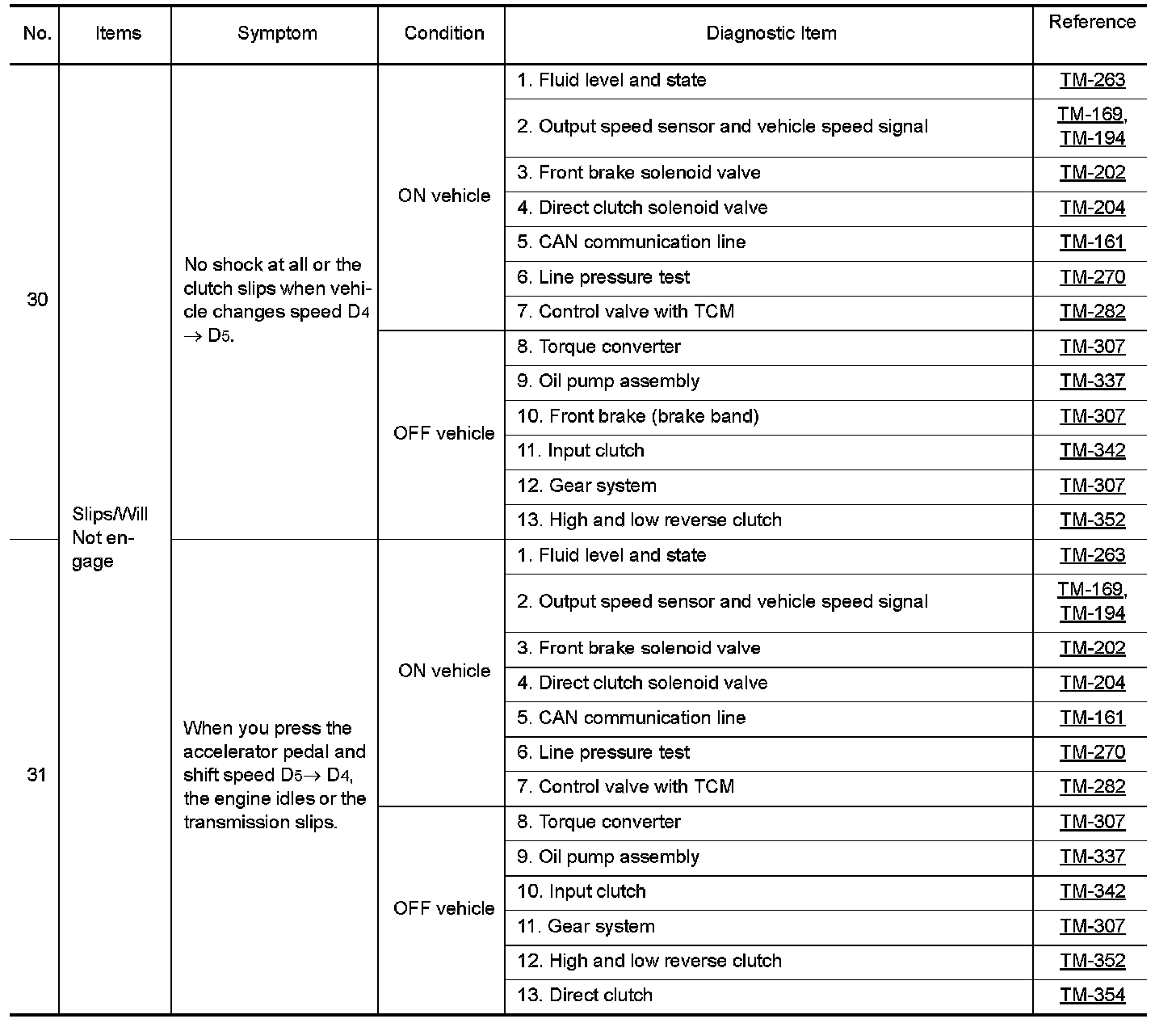

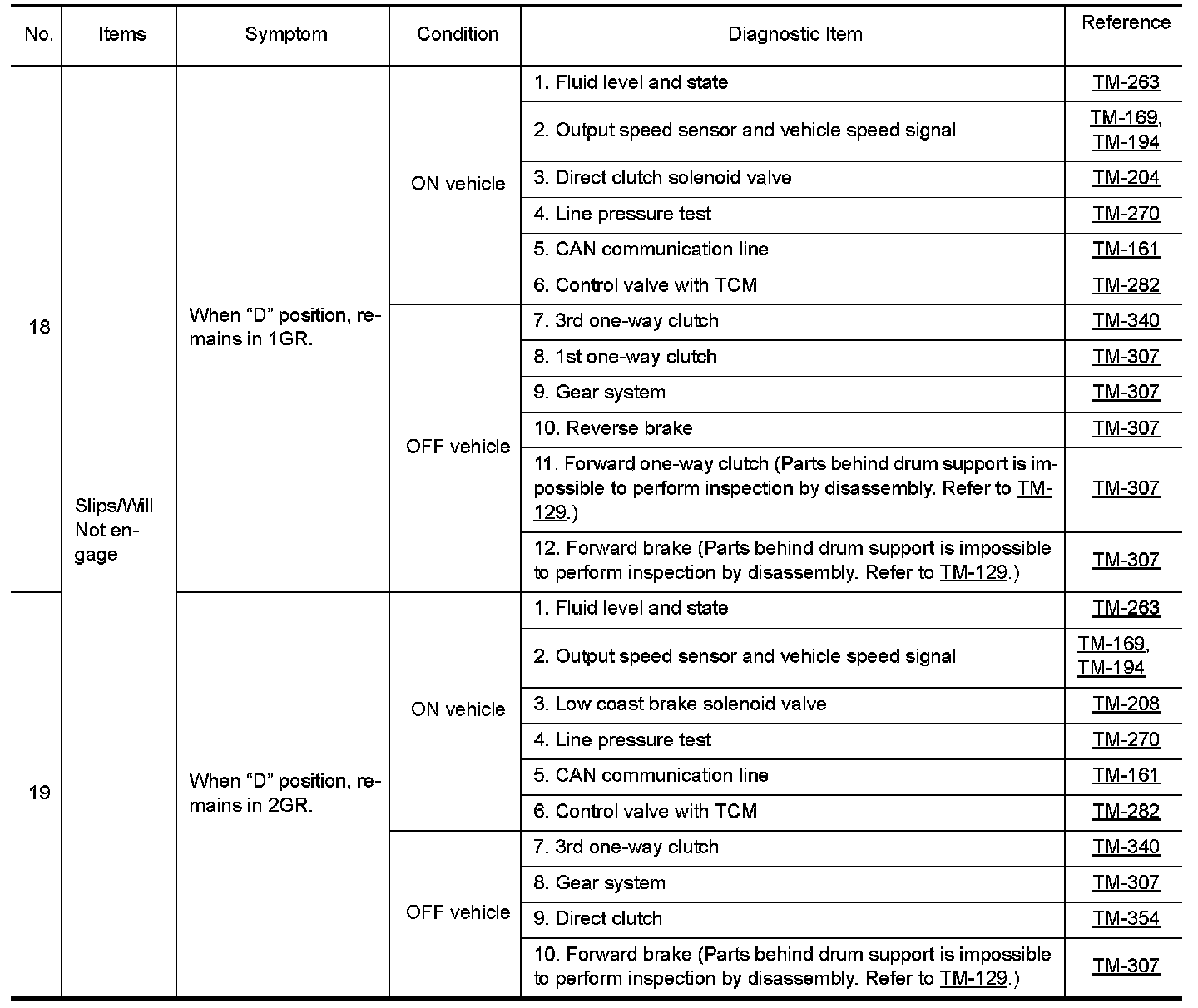

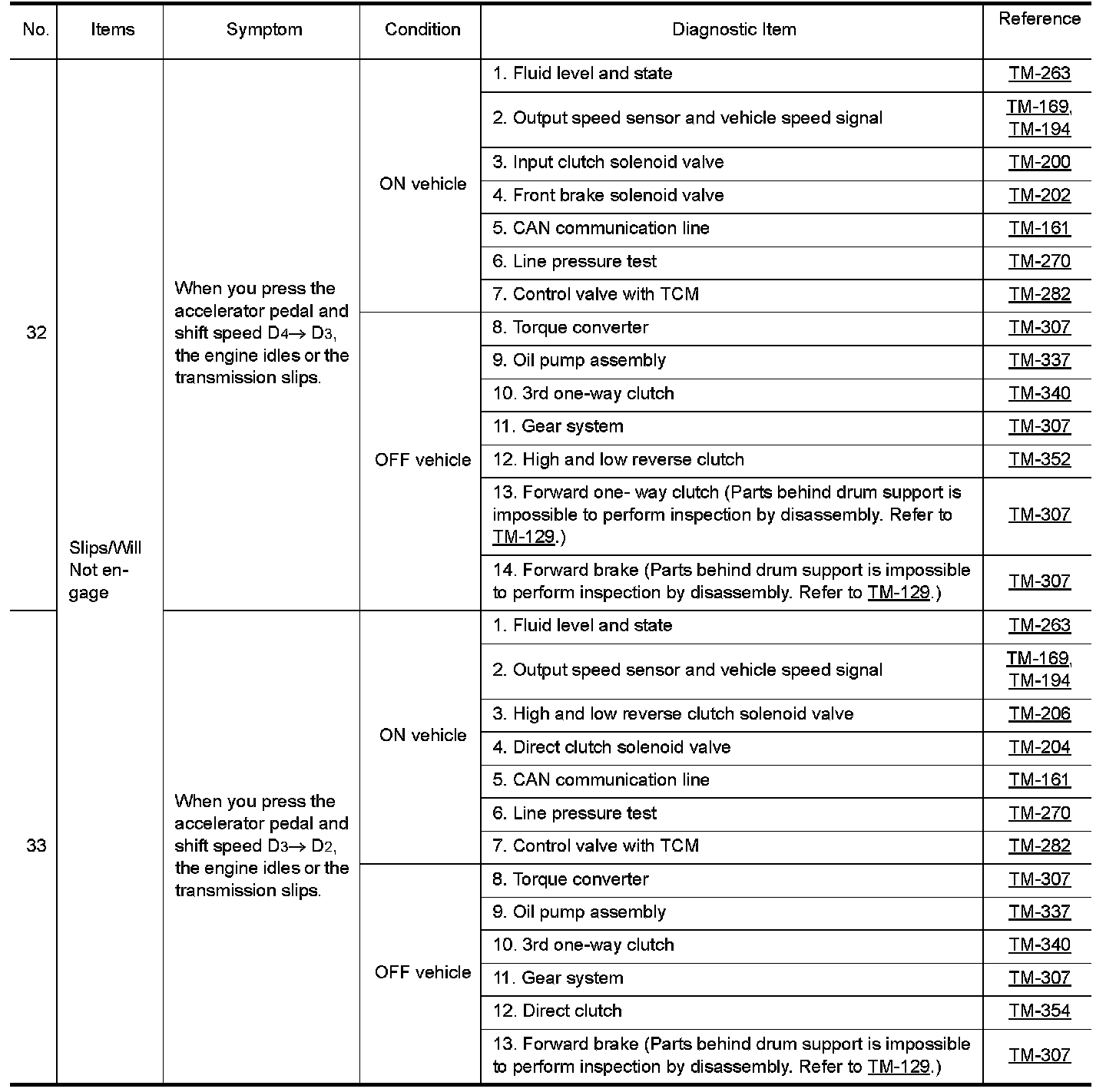

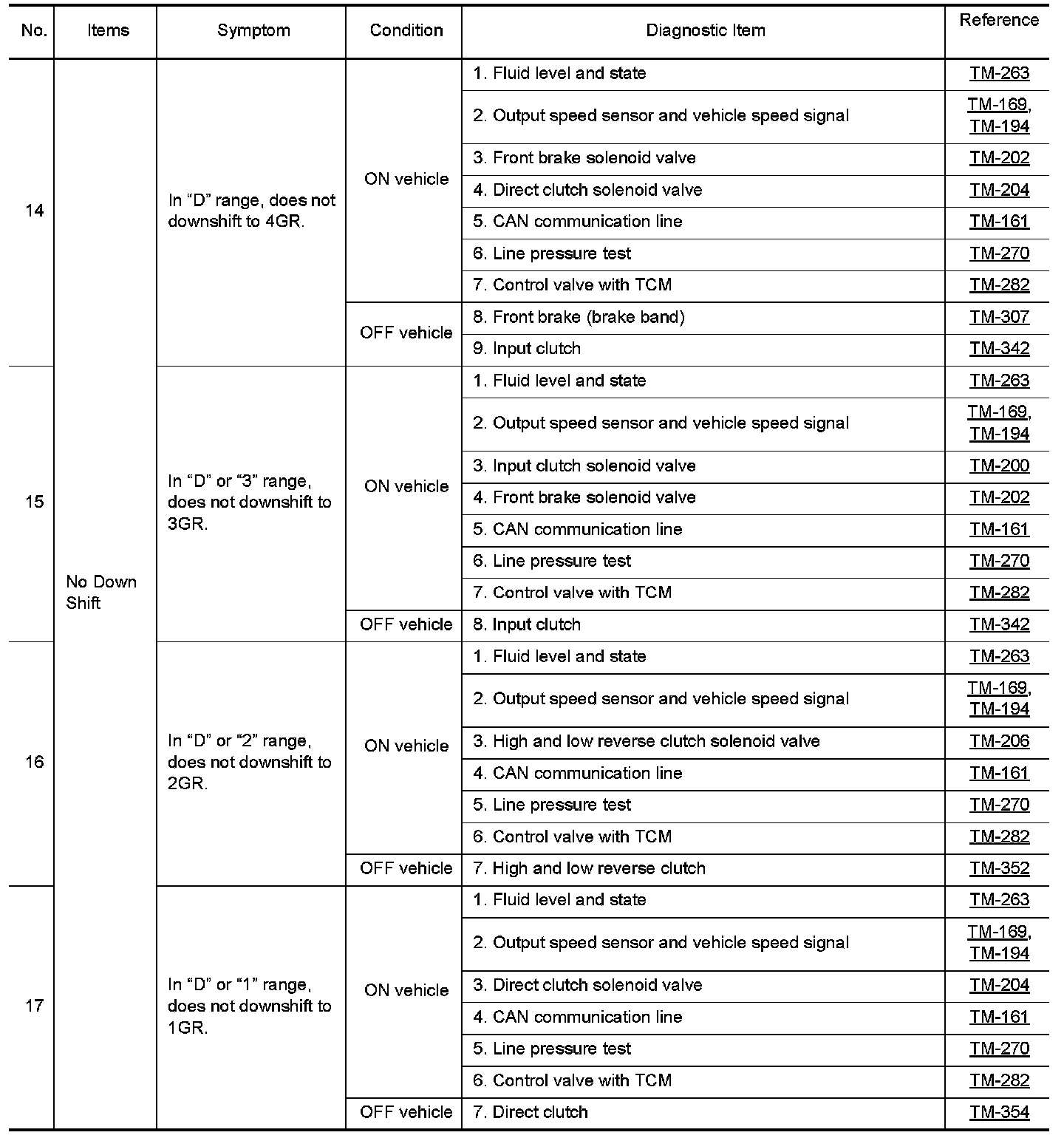

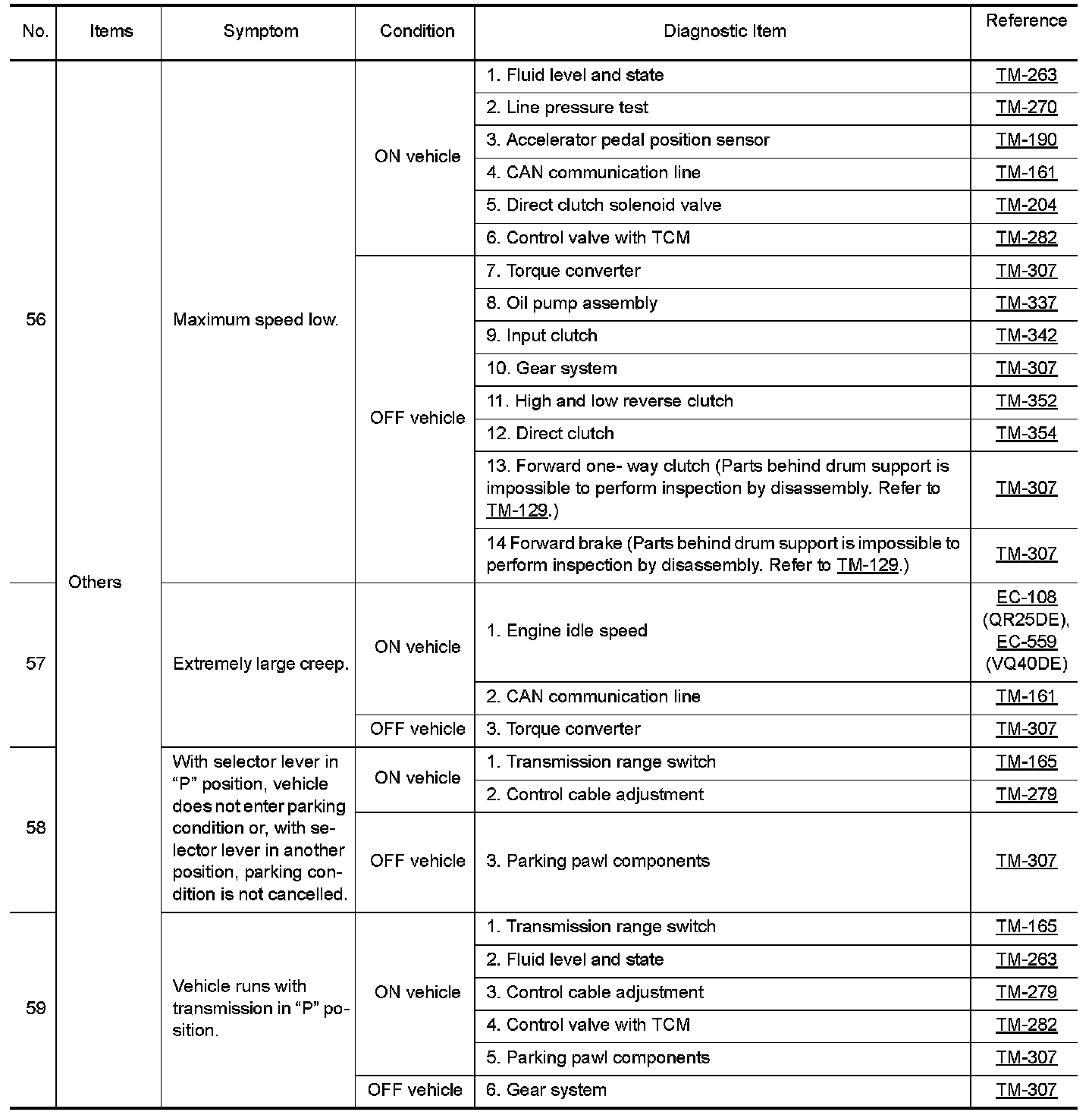

Symptom Chart

- The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
- Overhaul and inspect inside the A/T only if A/T fluid condition is NG. Checking.
