Automatic Air Conditioner
A/C AUTO AMP.Removal and Installation REMOVAL 1.
Remove audio unit.
-
Audio Unit. (AUDIO WITHOUT NAVIGATION)
-
Service and Repair. (AUDIO WITH NAVIGATION)
2.
Remove inside key antenna (instrument center).
Instrument Center.
3.

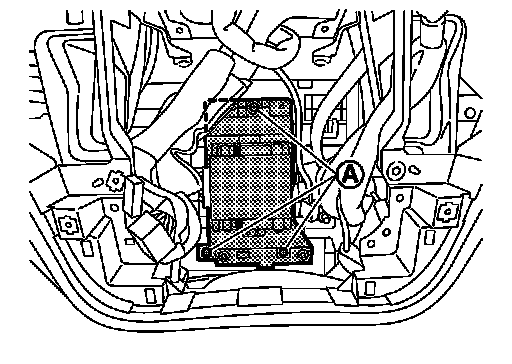

Remove fixing screws (A), and then remove A/C auto amp.
INSTALLATION Install in the reverse order of removal.
