CONSULT-III Function

DIAGNOSIS SYSTEM (A/C AUTO AMP.)


CONSULT-III Function

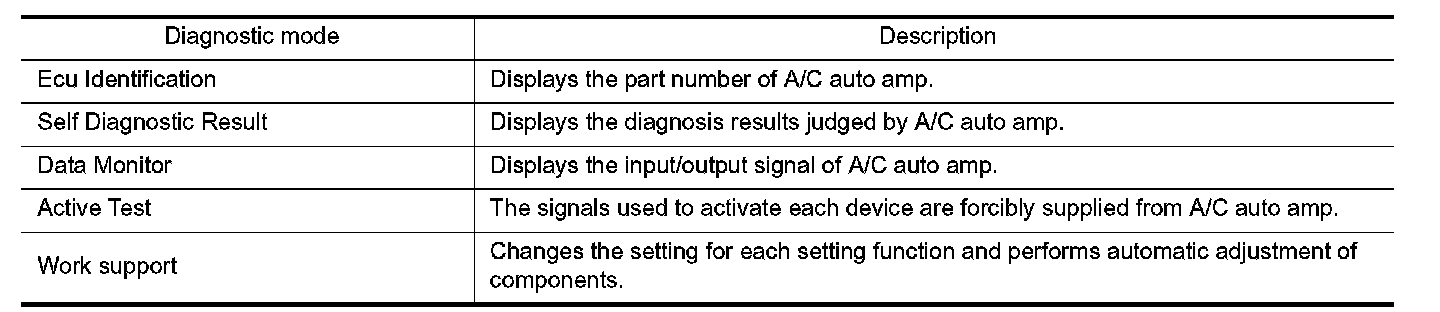

CONSULT-III performs the following functions via CAN communication with A/C auto amp.






NOTE:
Diagnosis should be performed with engine running. Door motor operation speeds become slower and NO results may be returned even for normal operation if battery voltage drops below 12 V during self-diagnosis.

ECU IDENTIFICATION
Part number of A/C auto amp. can be checked.

SELF-DIAGNOSIS RESULTS
Diagnosis result that is judged by A/C auto amp. can be checked. Testing and Inspection.

DATA MONITOR

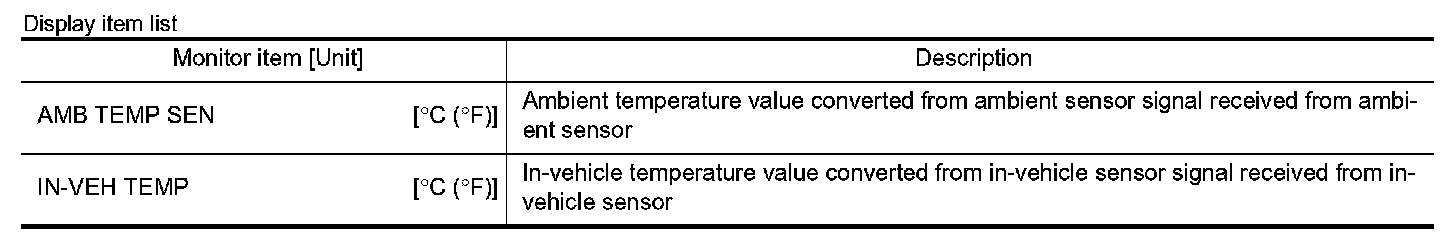

Input/output signal of A/C auto amp. can be checked.











ACTIVE TEST

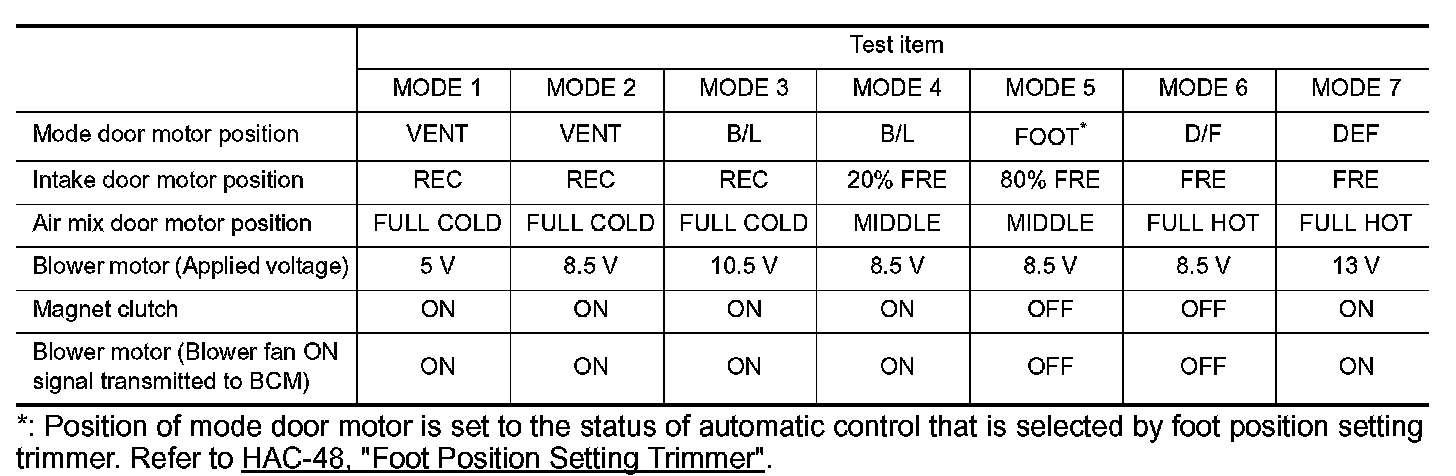

The signals used to activate each device forcibly supplied from A/C auto amp. operation check of air conditioning system can be performed.






Check each output device






NOTE:
Perform the inspection of each output device after starting the engine because the compressor is operated.

WORK SUPPORT

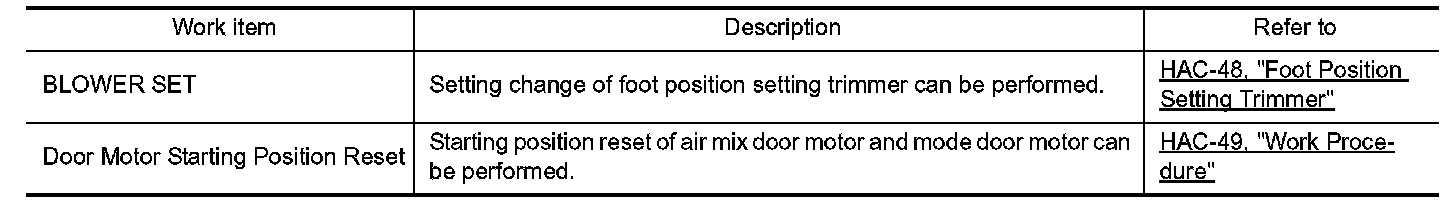

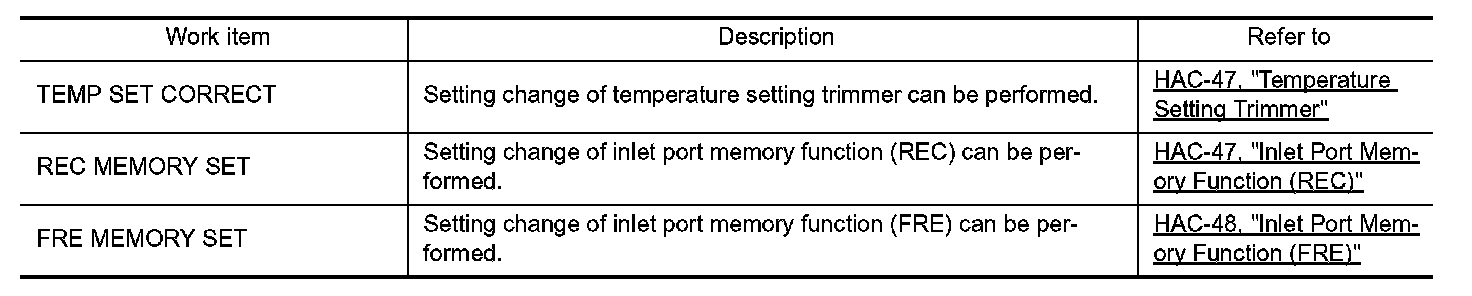

Setting change of each setting functions and automatic adjustment of components can be performed.











NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of WORK SUPPORT may be cancelled.
