Intake Manifold
INTAKE MANIFOLDIntake manifold 27 N.m (2.8 kg-m, 20 ft-lb)
Install
intake manifold with the following procedure:

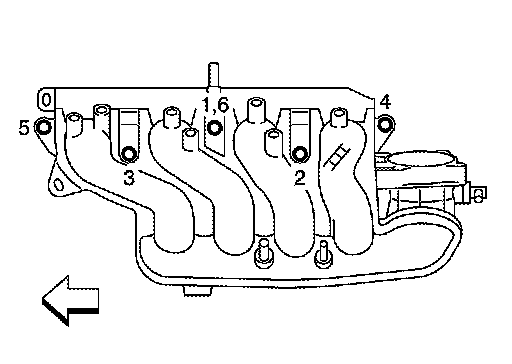

Arrow Indicates Engine Front
Tighten in numerical order as shown in the figure.
NOTE:Tighten bolt the No.1 in two steps.
The numerical order No.6 shows the second step.
Install in the reverse order of removal after this step.
