Timing Cover

TIMING CHAIN

Bolt 1 6.6 N.m (0.67 kg-m, 58 in-lb)

Bolt 6, 7, 10, 13, 21 55 N.m (5.6 kg-m, 41 ft-lb)

Bolt 2, 4, 8, 11 75 N.m (7.7 kg-m, 55 ft-lb)

Bolt 3, 5, 9, 12, 14, 15, 16, 17, 18, 19, 20 25.5 N.m (2.6 kg-m, 19 ft-lb)

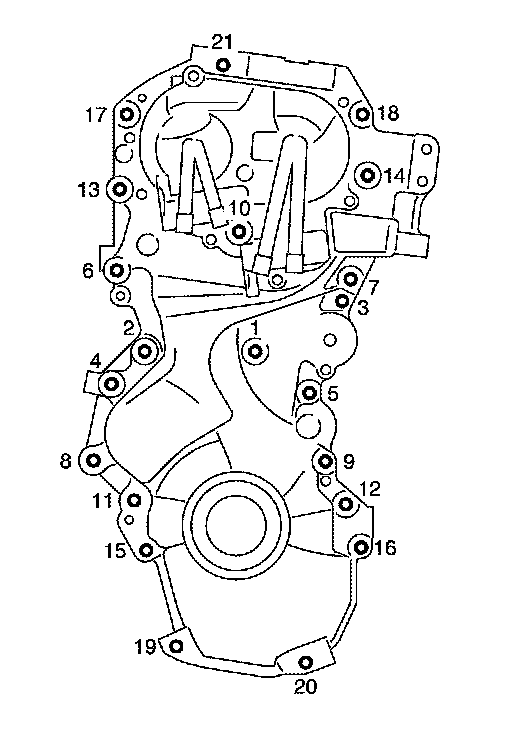

Install front cover, and tighten mounting bolts in numerical order as shown in the figure.

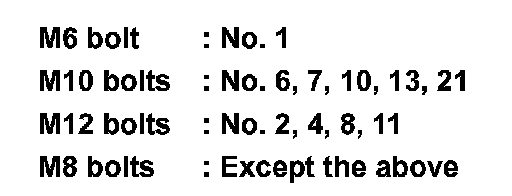

Refer to the following for the installation position of bolts.






CAUTION:
Attaching should be done within 5 minutes after liquid gasket application.

After all bolts are tightened, retighten them to specified torque in numerical order as shown in the figure.
