Rotation




ROAD WHEEL

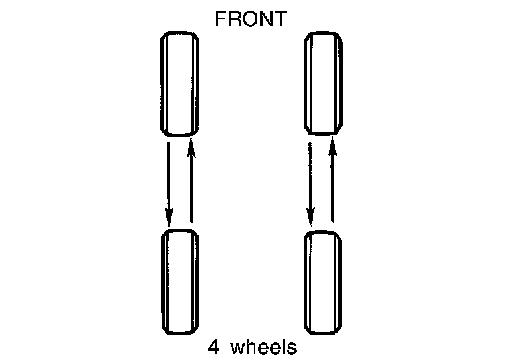

Tire Rotation






- Follow the maintenance schedule for tire rotation service intervals.
- When installing the wheel, tighten wheel nuts to the specified torque. Refer to "Exploded View" Exploded View.

CAUTION:
- When installing wheels, tighten them diagonally by dividing the work two to three times in order to prevent the wheels from developing any distortion.
- Be careful not to tighten wheel nut at torque exceeding the criteria.
- Use NISSAN genuine wheel nut.
- Perform the ID registration, after tire rotation. Refer to "Work Procedure" Work Procedure.
