Reading and Clearing Diagnostic Trouble Codes
TROUBLE DIAGNOSISSelf-Diagnosis If communication signals cannot be transmitted or received among
control units communicating via CAN communication line, CAN communication-related DTC is displayed on the CONSULT "Self Diagnostic Result"
screen.

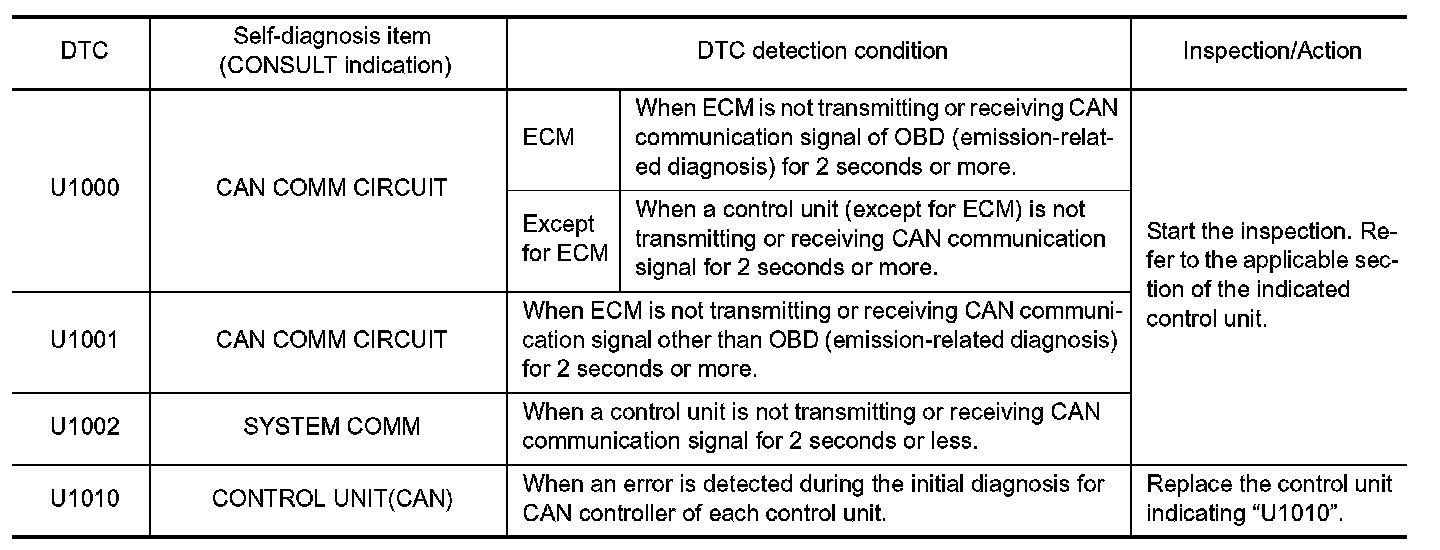

NOTE: The following table shows examples of CAN communication-related DTC. For other DTC, refer to the applicable sections.
