System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Head


CYLINDER HEAD






VALVE DIMENSIONS

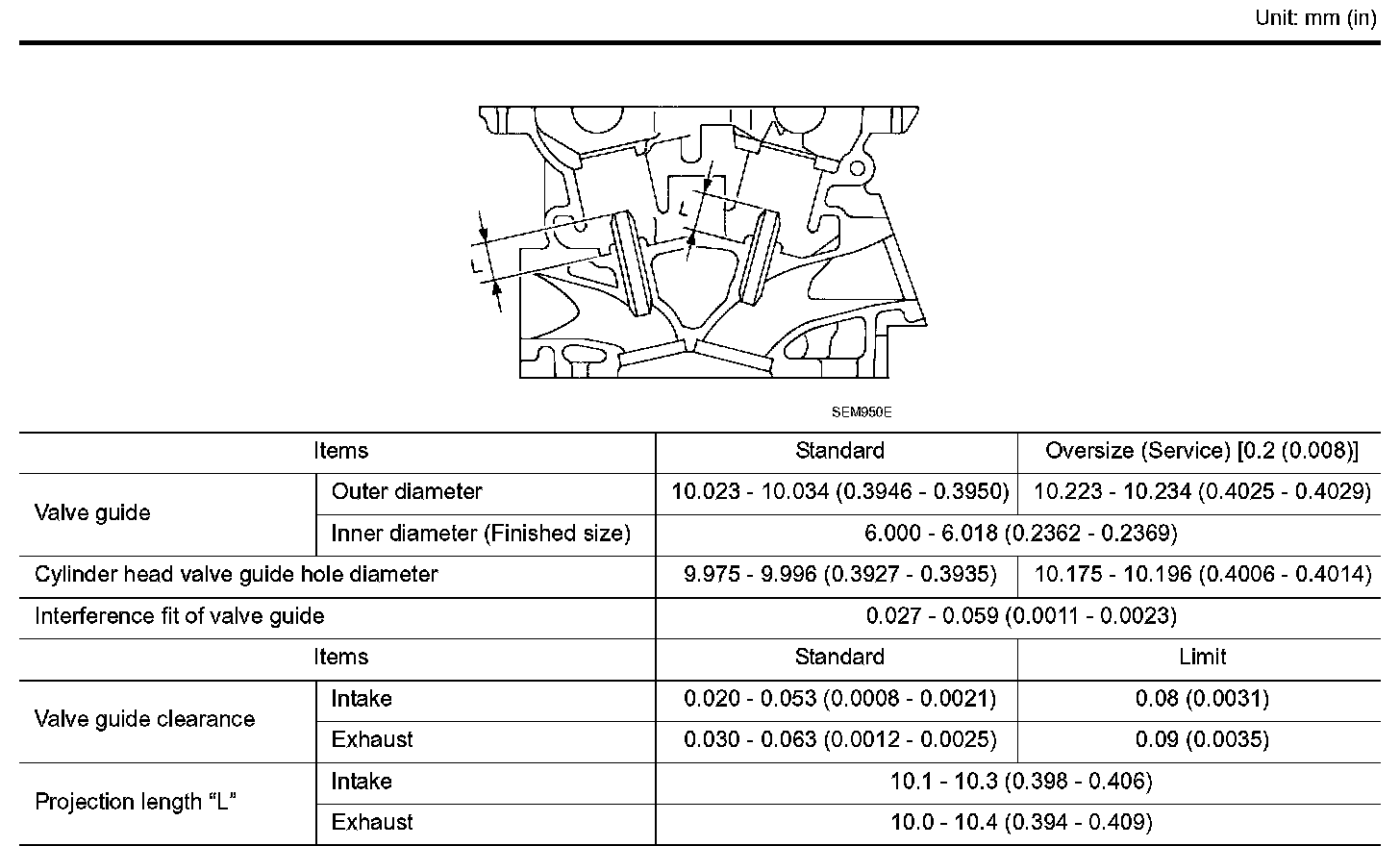

VALVE GUIDE

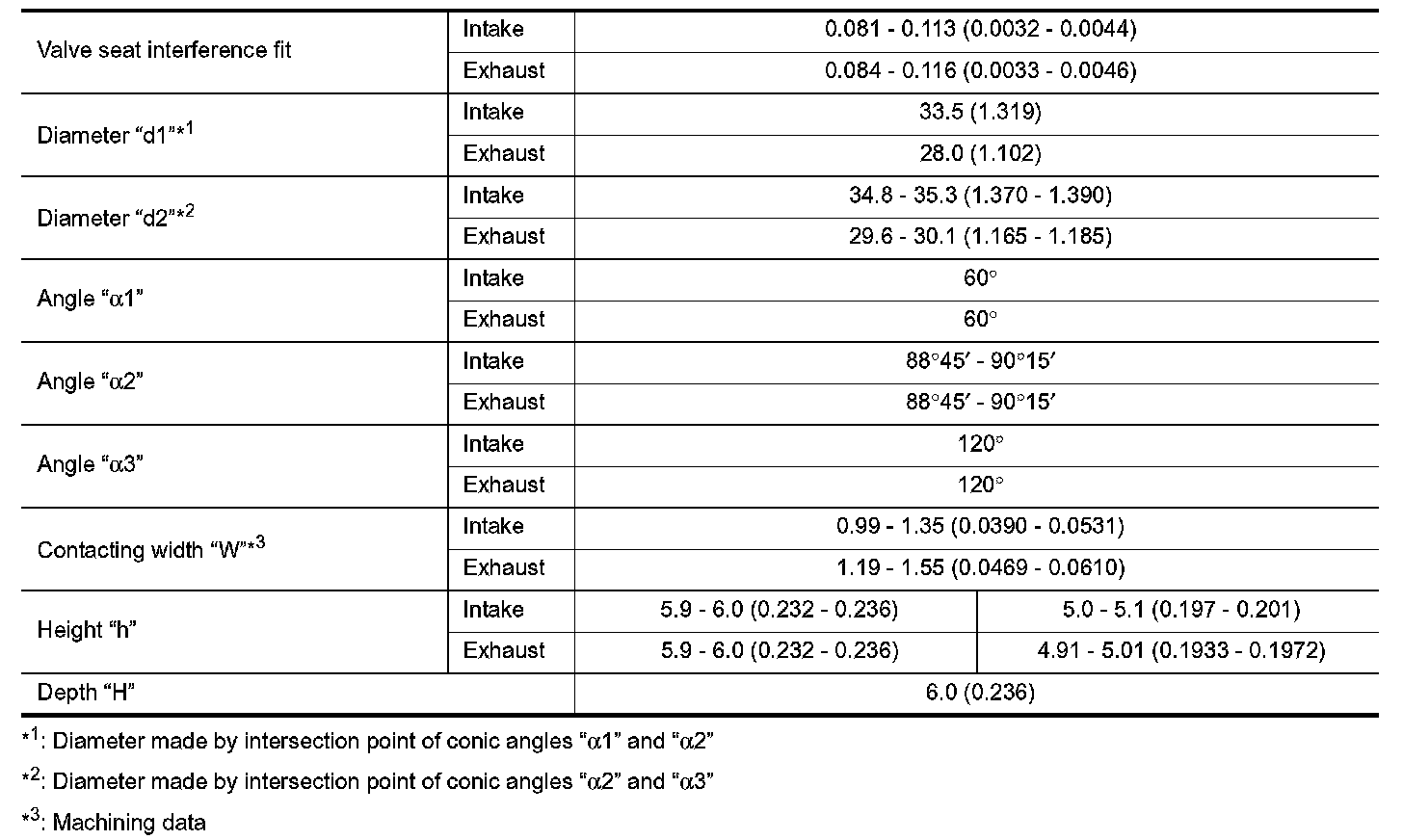

VALVE SEAT











VALVE SPRING








Cylinder Head Torque & Sequence





Tighten cylinder head bolts in numerical order as shown in the figure with the following procedure, and install cylinder head.

CAUTION: If cylinder head bolts are reused, check their outer diameters before installation.

a. Apply new engine oil to threads and seating surface of mounting bolts.

b. Tighten all bolts.






c. Turn all bolts 60 degrees clockwise (angle tightening).

d. Completely loosen.






CAUTION: In this step, loosen bolts in the reverse order of that indicated in the figure.

e. Tighten all bolts.






f. Turn all bolts 75 degrees clockwise (angle tightening).
g. Turn all bolts 75 degrees clockwise again (angle tightening).

CAUTION:




Check and confirm the tightening angle by using an angle wrench (SST) or protractor. Avoid judgment by visual inspection without the tool.



Re-usability

Cylinder Head Bolts Outer Diameter





Cylinder head bolts are tightened by plastic zone tightening method. Whenever the size difference between "A" and "B" exceeds the limit, replace them with new one.










If reduction of outer diameter appears in a position other than "d2", use it as "d2" point.



Camshaft Bearing Cap Torque & Sequence





Tighten mounting bolts of camshaft brackets in the following steps, in numerical order as shown in the figure.

Tighten No. 9 to 11 in numerical order.






Tighten No. 1 to 8 in numerical order.






Tighten all bolts in numerical order.






Tighten all bolts in numerical order.









INTAKE MANIFOLD

Torque & Sequence






EXHAUST MANIFOLD

Torque & Sequence





Camshaft Gear/Sprocket

Specifications
