Intake Manifold
INTAKE MANIFOLDExcept For CaliforniaIntake manifold 27 N.M (2.8 kg-m, 20 ft-lb)
For CaliforniaIntake manifold 19.6 N.m (2 kg-m, 14 ft-lb)
Install
intake manifold.

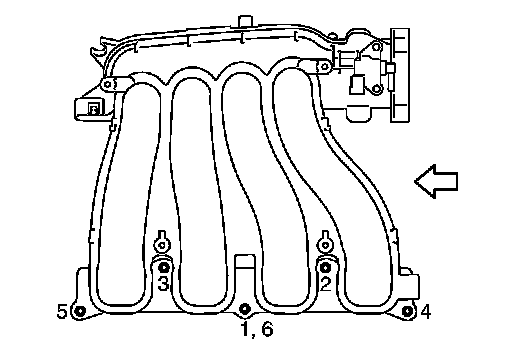

Tighten bolts in numerical order as shown.
Arrow Indicates Engine Front
