Front Fender: Service and Repair

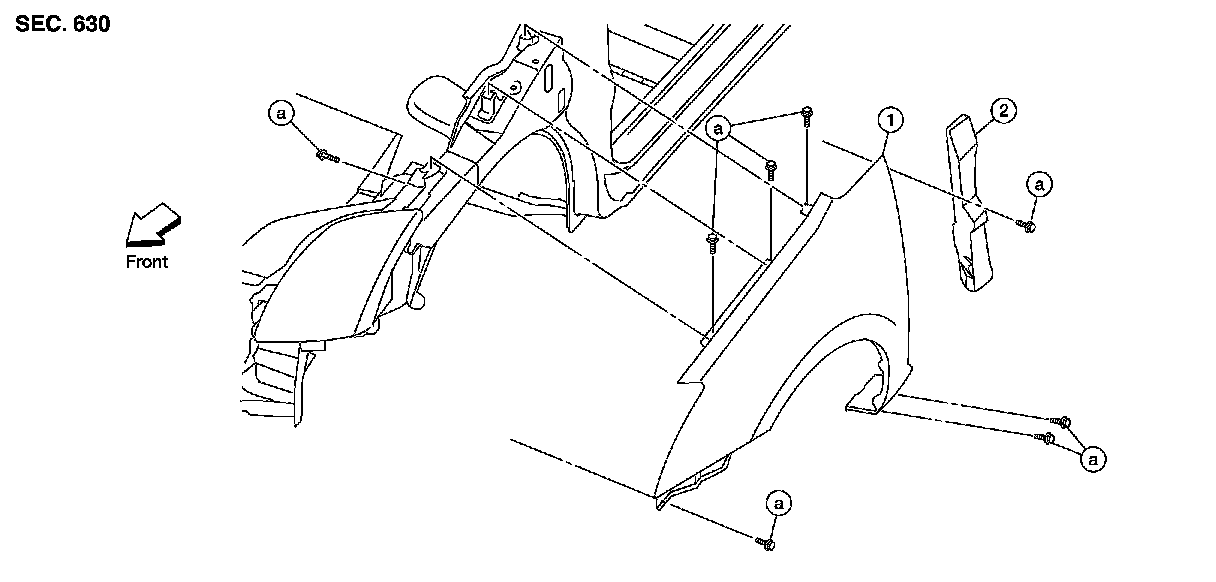

FRONT FENDER


Removal and Installation












REMOVAL

CAUTION:
While removing use a shop cloth to protect the vehicle body from damage.
1. Remove the front bumper fascia. Service and Repair.
2. Remove the cowl top cover (LH/RH). Service and Repair.
3. Remove the front fender protector. Removal And Installation.
4. Remove the bolts and the front fender.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint onto the head of the front fender bolts.
