CAN Communication System Inspection





INTELLIGENT KEY SYSTEM


CAN Communication System Inspection

1.CHECK SELF-DIAGNOSTIC RESULTS

With CONSULT-III
- Connect CONSULT-III, and turn ignition switch ON.
- Touch "INTELLIGENT KEY" on "SELECT SYSTEM" screen.
- Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.

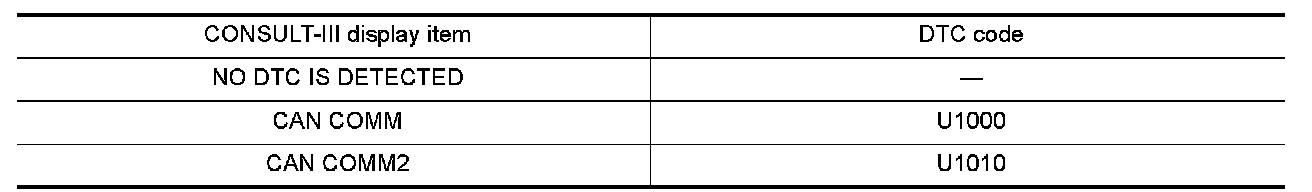

- Check display content in self-diagnostic results.






OK or NG
NO DTC IS DETECTED- INSPECTION END
CAN COMM [U1000]- Go to "CAN SYSTEM", Trouble Diagnosis Flow Chart.
CAN COMM2 [U1010]- Replace Intelligent Key unit. Service and Repair .
