ACC Switch Check

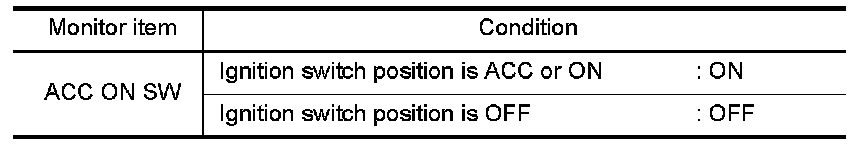

REMOTE KEYLESS ENTRY SYSTEMACC Switch Check 1.CHECK ACC SWITCH With CONSULT-III Check ACC switch ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-III.

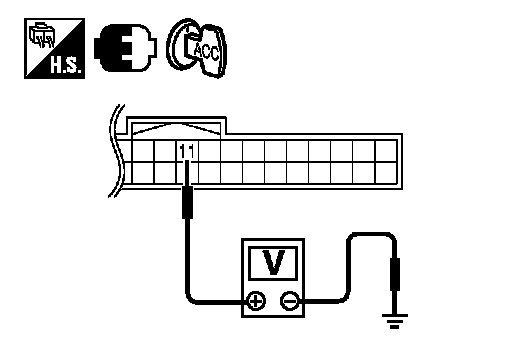

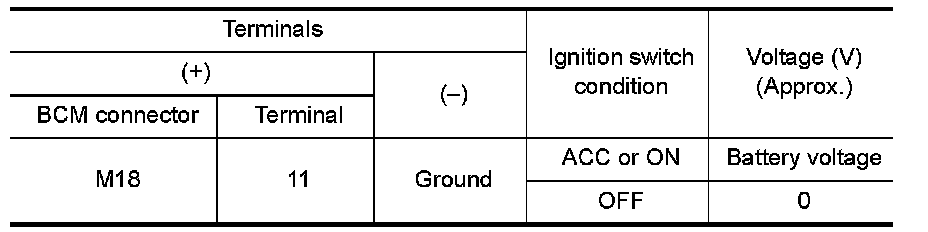

Without CONSULT-III Check voltage between BCM connector and ground.
OK or NG
OK - ACC switch is OK.
NG - Check the following.
-
10A fuse [No. 6, located in fuse block (J/B)]
-
Harness for open or short between BCM and fuse.
