Inspection
BRAKE FLUIDOn Board Inspection CHECKING BRAKE FLUID LEVEL -

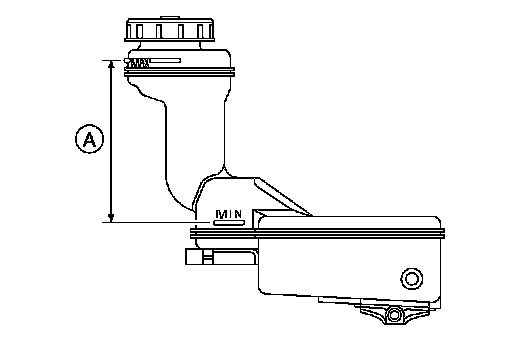

Make sure the fluid level in the reservoir tank is between MAX and
MIN lines (A) as shown.
-
Visually check around the reservoir tank for fluid leakage.
-

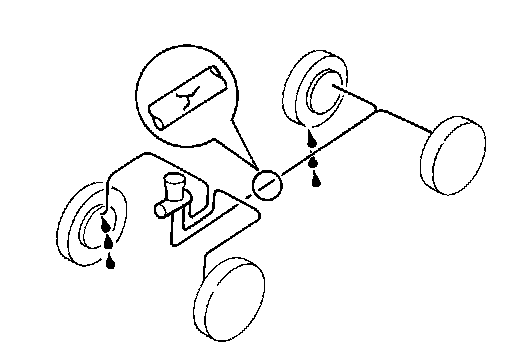

If fluid level is excessively low, check brake system for fluid leakage.
-
Release parking brake lever and see if brake warning lamp goes off. If not, check brake system for fluid leakage.
