Electric Throttle Control Function

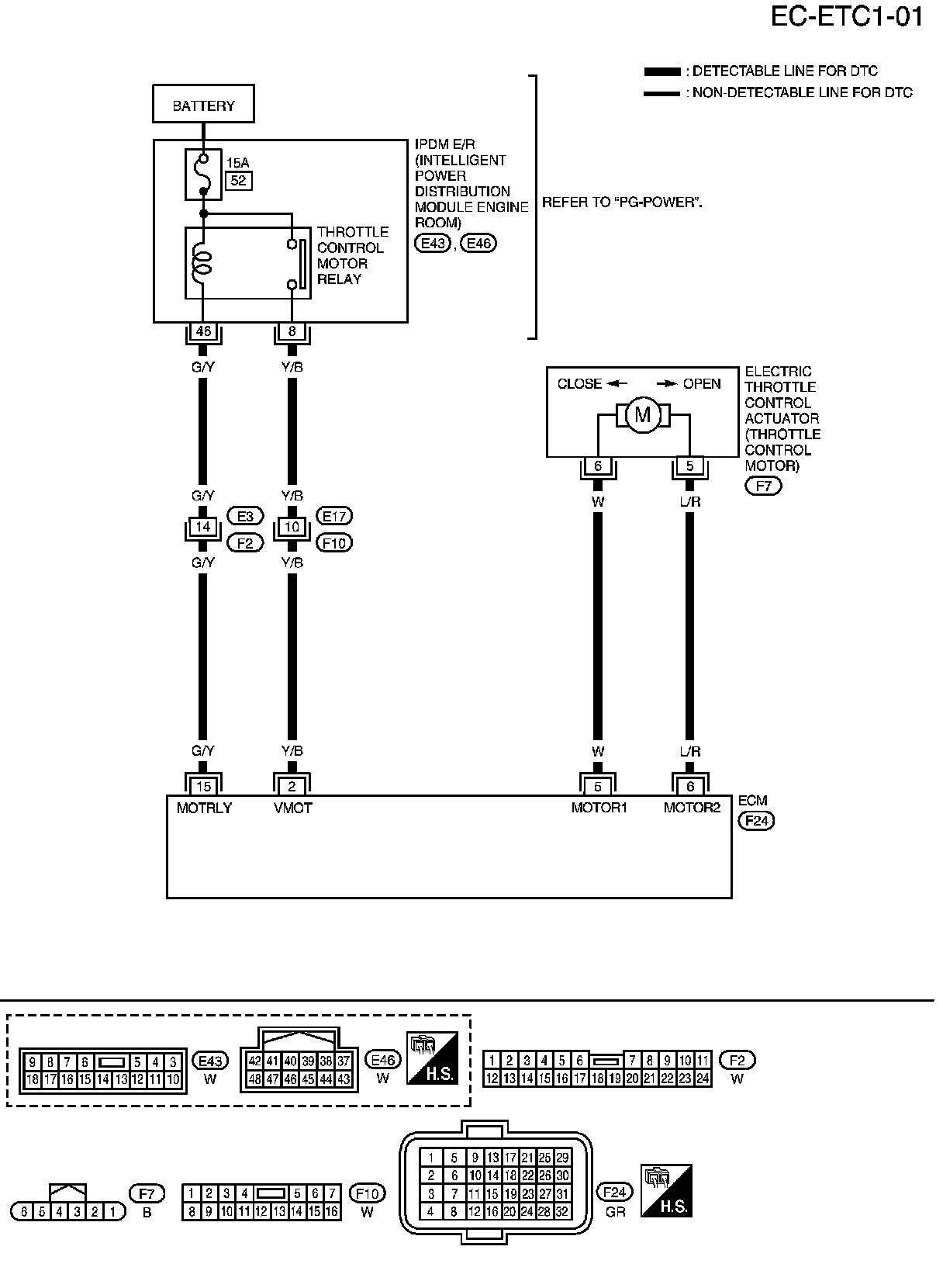

DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONWiring Diagram Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
