Intake Manifold

INTAKE MANIFOLD

Intake manifold 19.6 N.m (2 kg-m, 14 ft-lb)

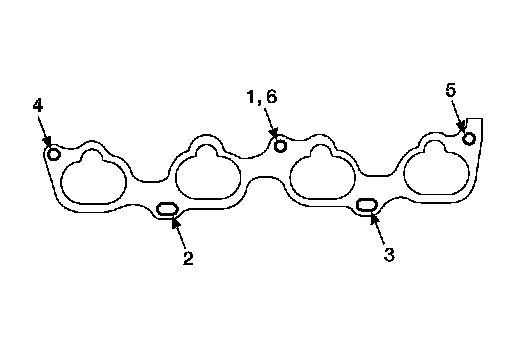

Tightening Intake Manifold Bolts and Nuts

Tighten in numerical order as shown.

CAUTION: After tightening No.5, retighten the No.1 bolt to specification.
