Control Module: Service and Repair





TCM


Removal and Installation


COMPONENTS

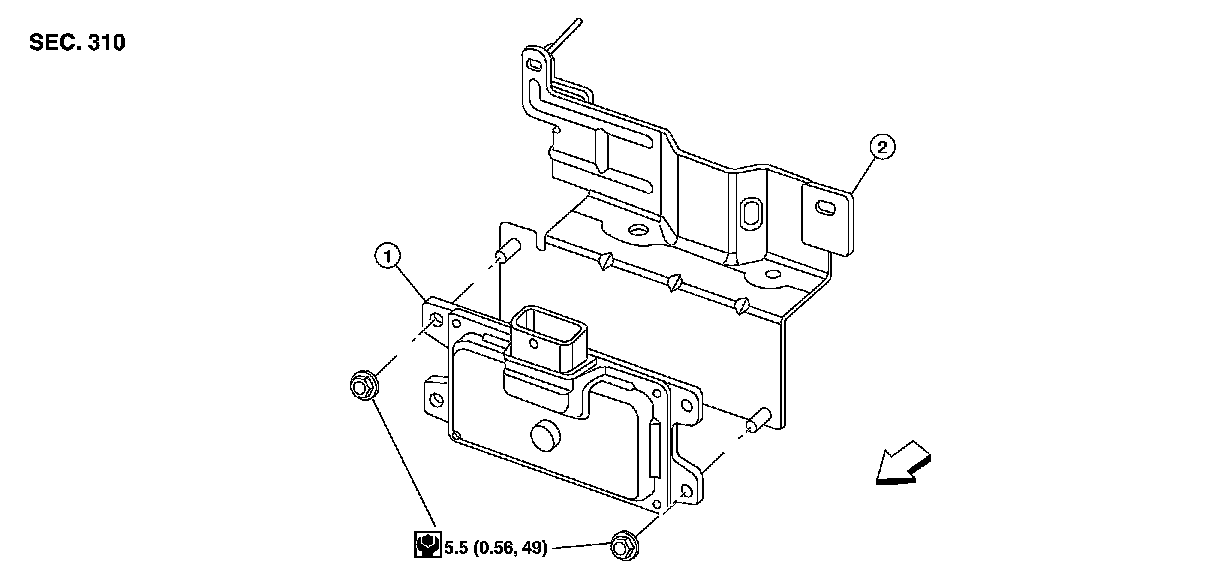

MR20DE











REMOVAL

CAUTION:
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Service After Replacing TCM, Transaxle Assembly, Or Control Valve.
1. Disconnect the battery negative terminal.
2. Remove the fresh air intake tube (upper). Service and Repair.
3. Disconnect the TCM harness connector.
4. Remove the TCM (1).

INSTALLATION
Installation is in the reverse order of removal.

COMPONENTS

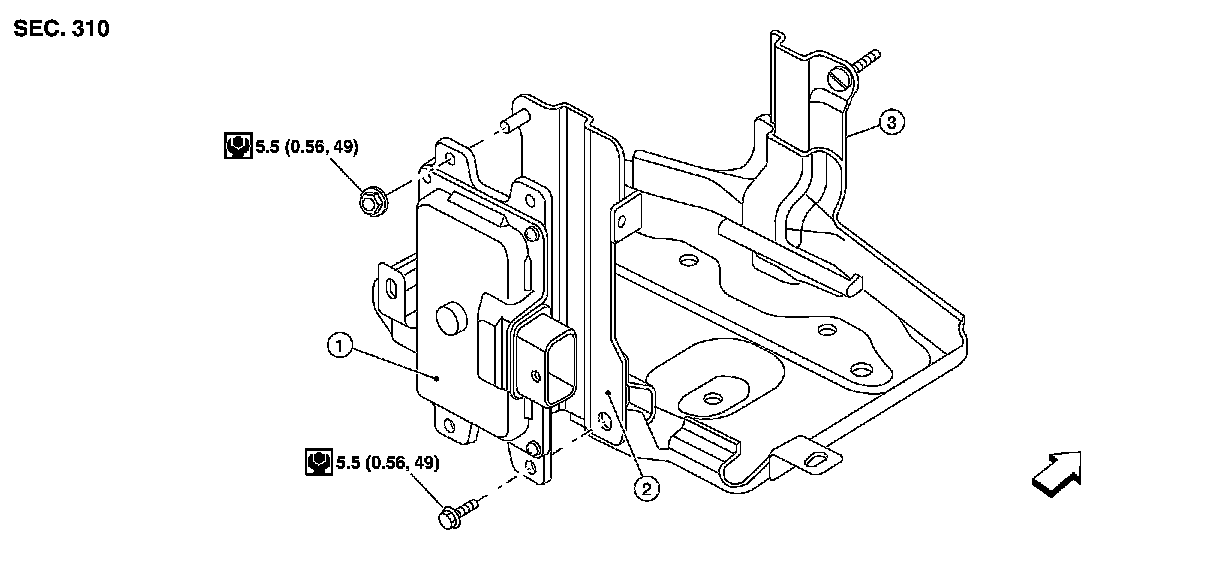

QR25DE











REMOVAL

CAUTION:
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Service After Replacing TCM, Transaxle Assembly, Or Control Valve.
1. Disconnect the battery negative terminal.
2. Remove the air cleaner case. Service and Repair.
3. Disconnect the TCM harness connector.
4. Remove the TCM.

INSTALLATION
Installation is in the reverse order of removal.
