Primary Speed Sensor

ON-VEHICLE SERVICE

Primary Speed Sensor

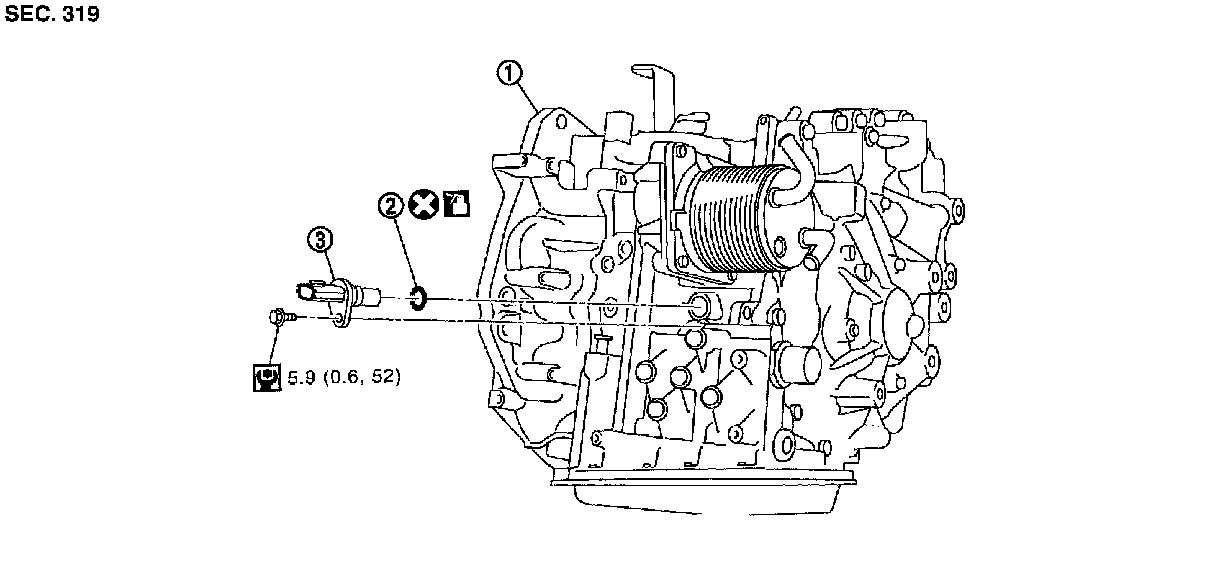

COMPONENTS

CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
- After installation is complete, check for CVT fluid leakage and CVT fluid level. Procedures, "Checking CVT Fluid".
